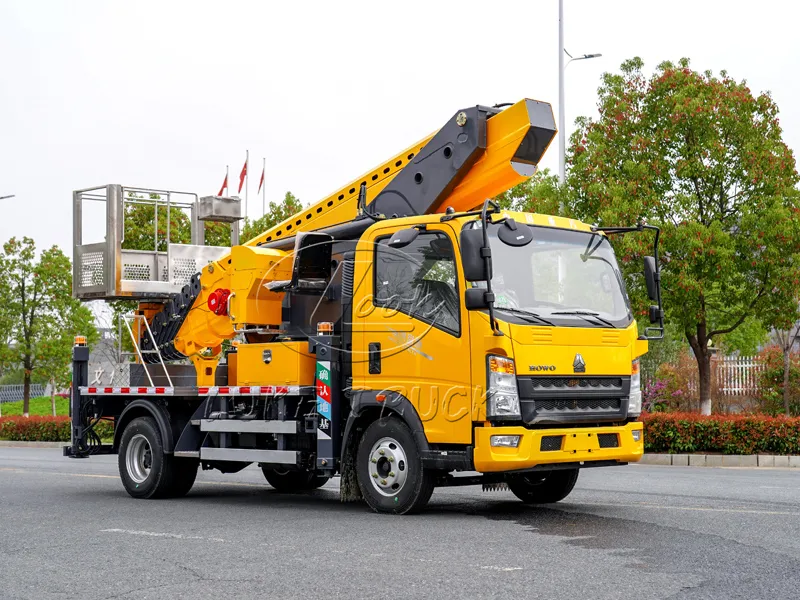

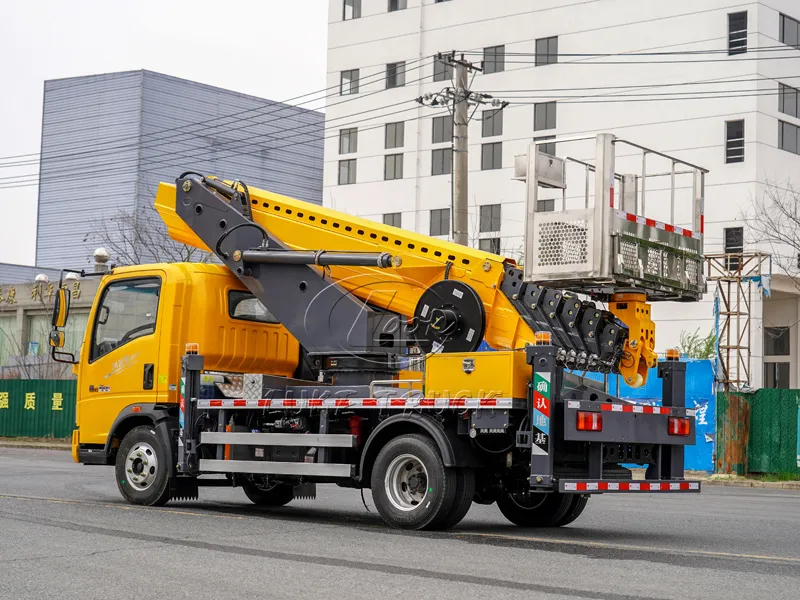

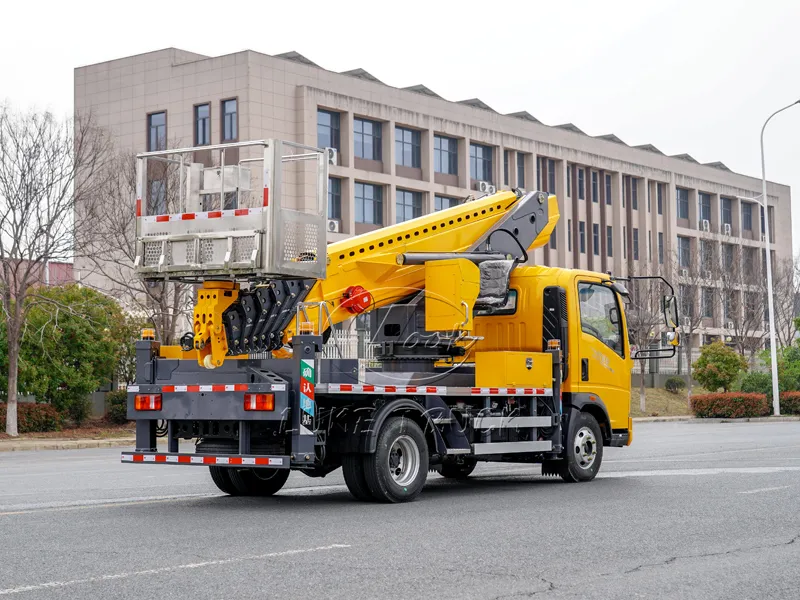

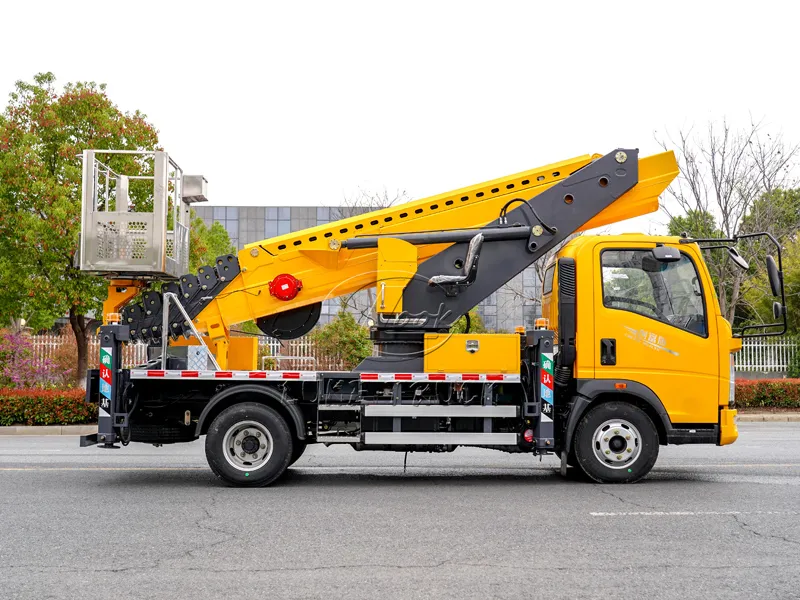

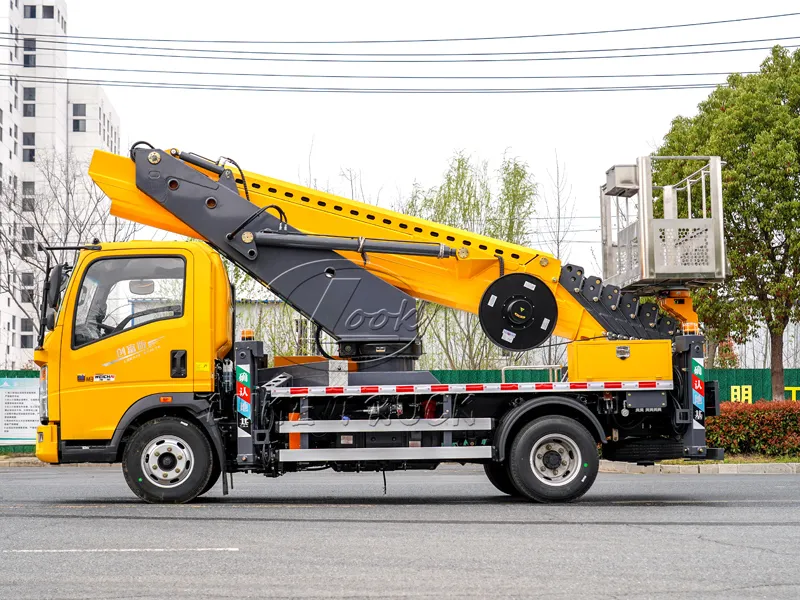

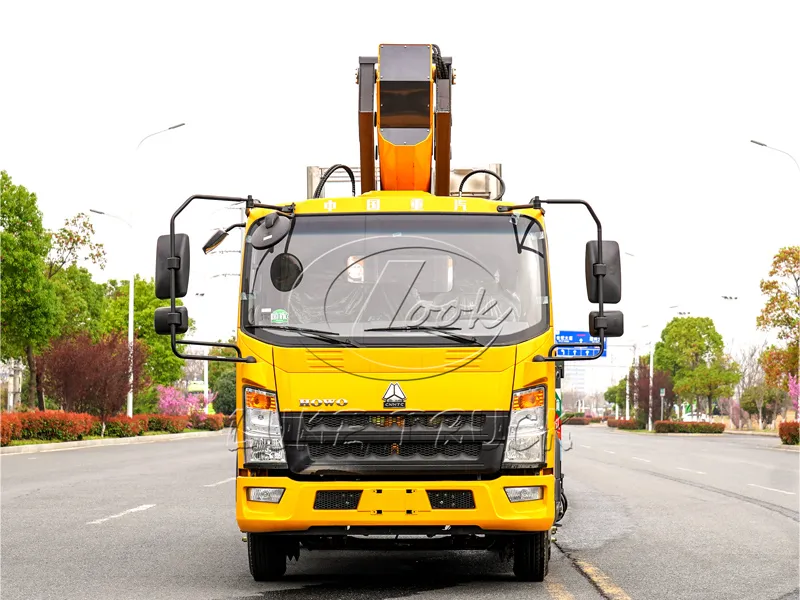

Yellow Heavy-duty truck with 35-meter Aerial Working Platform Truck is constructed from military-grade high-strength alloy steel, having undergone 80,000 fatigue impact tests. Its load-bearing capacity has been enhanced by 40%, ensuring rock-solid stability whether navigating rugged mountain roads or maneuvering through urban streets.
| Technical Parameters of Yellow Heavy Duty Truck 35m Aerial Working Platform Truck | |||
| Product trademark | Casal card | Announcement batch | 400 |
| product name | Aerial Working Platform Truck | product model | LOOK5071JGKZZ6 |
| gross mass （Kg） | 73,606,800 | outline dimension （mm） | 7450×2200×3650 |
| Number of passengers in the cab (per person) | 2,3 | curb weight （Kg） | 7230 |
| Approach angle/Departure angle (°) | 19/12 | Front/rear suspension (mm) | 1160/2340 |
| axle weight （Kg） | 2640/4720,2400/4400 | Maximum speed (Km/h) | 80,95 |

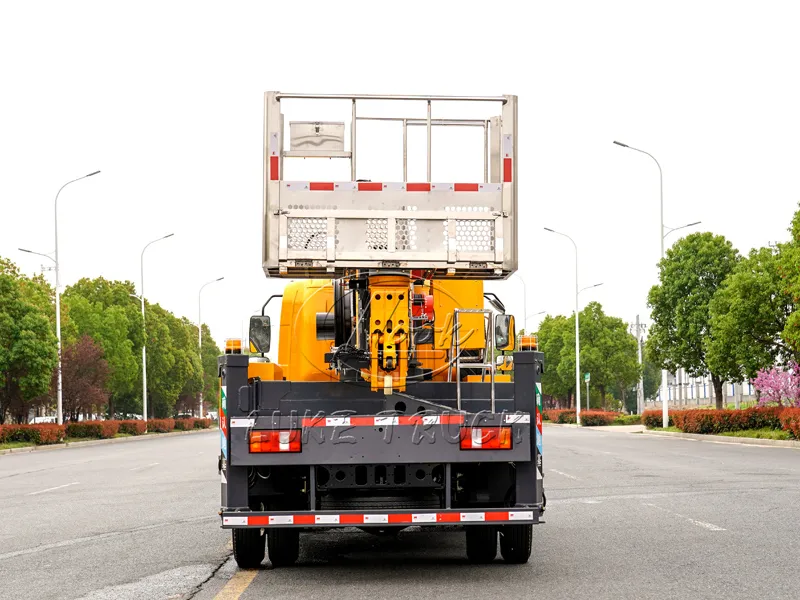

| This vehicle is designed for high-altitude operations including power line repairs, communication maintenance, and street lighting installations. Its primary working mechanism is an extendable boom arm. The side and rear protective panels are constructed with Q235B steel, featuring welded bolts for secure connection. The rear protective panel measures 50×100 mm in width and height, with a 500 mm ground clearance at the lower rear section. An optional speed limiter is available, setting the maximum speed at 80 km/h. Warning lights are mounted on both front and rear outriggers, which remain off during normal operation but activate during extended work. A night vision light is integrated into the work platform for nighttime visibility, though it stays off during movement. Customizable exterior styling options include optional cab units, aluminum alloy wheel rims, and bumper configurations. | |||
| [Chassis Technical Parameters] | |||
| Chassis model | ZZ1077G3815F174Z | Chassis name | truck chassis |
| brand name | Hawo brand | manufacturing enterprise | China Heavy Duty Truck Group Commercial Vehicle Co., Ltd. |
| number of axles | 2 | Number of tires | 6 |
| wheel base （mm） | 3280 | tyre size | 7.00R16LT 14PR |
| Number of leaf springs | 3/3+2 | front gauge （mm） | 1610 |
| fuel type | diesel oil | rear track （mm） | 1555 |
| standard of emission | GB17691-2018 National VI | ||
| engine type | engine manufacturer | displacement （ml） | power （Kw） |
| WP2.5NQ180E62 | Weichai Power Co., Ltd. | 2493 | 132 |
The chassis is constructed from military-grade high-strength alloy steel, having passed 80,000 fatigue impact tests and achieving a 40% increase in load-bearing capacity. Whether navigating rugged mountain roads or maneuvering through urban streets, it delivers rock-solid stability. The full range of models spans from blue-plate light trucks to heavy-duty chassis, with working heights extending from 18 meters to 50 meters. This comprehensive coverage meets all operational needs—from low-altitude maintenance and mid-level construction to high-altitude emergency repairs—truly embodying the concept of "one vehicle, all scenarios covered."

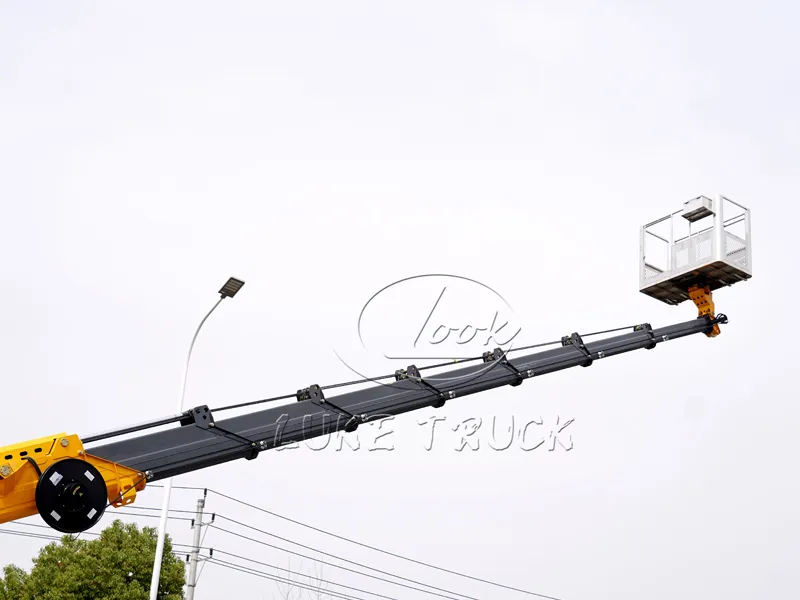

Robust as a rock, precise control, and zero errors in aerial operations: Chongqing Heavy Duty Truck's Aerial Working Platform Truck prioritizes safety above all, featuring a nine-tier safety protection system that sets new industry benchmarks. Its boom is crafted from aviation-grade hexagonal high-strength profiles through integrated forging, delivering 35% enhanced torsional strength. Equipped with multi-section synchronized telescoping technology, it ensures smooth and stable lifting without wobbling. With a maximum working radius of 25 meters and 360° continuous rotation, it effortlessly reaches any operational point.

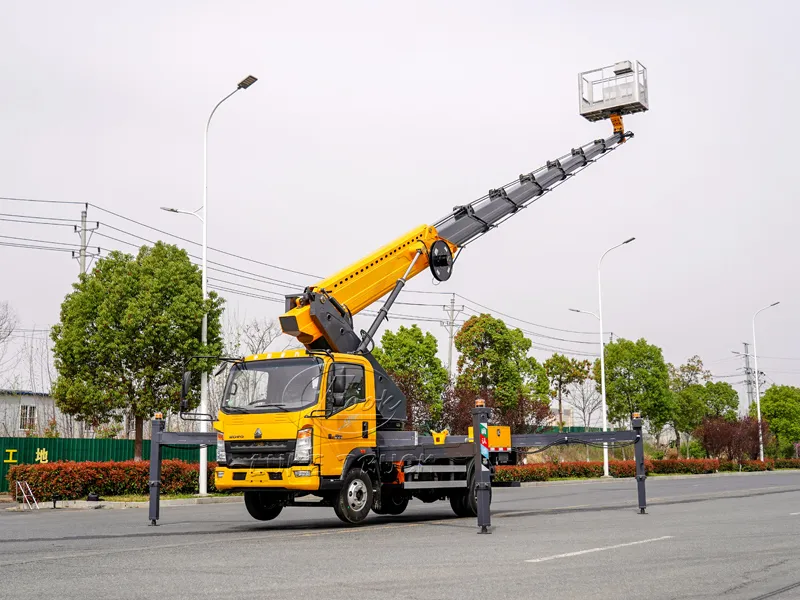

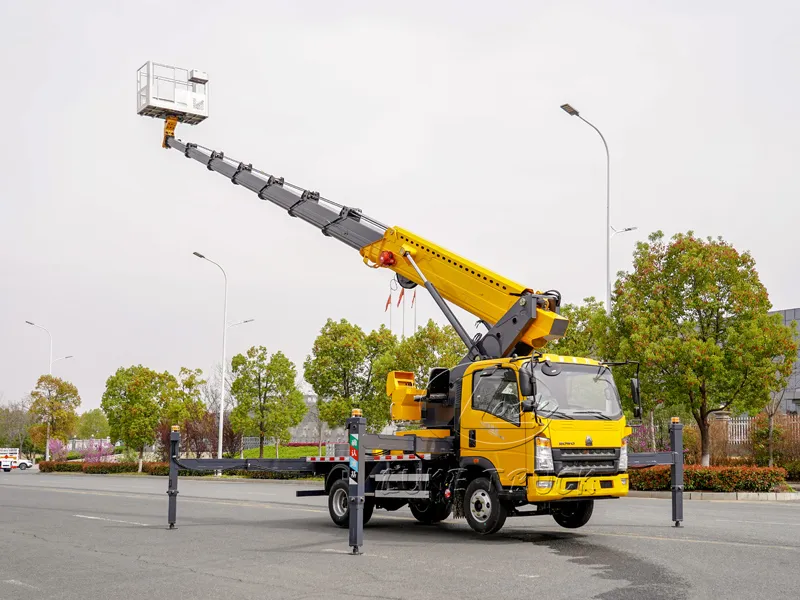

The innovative V-shaped hydraulic outriggers with H-shaped rear legs extend the maximum span to 7.2 meters. Featuring intelligent interlocking between the outriggers and the vehicle body, they automatically level with a single button press, securely anchoring the vehicle even on 15° inclined roads to eliminate rollover risks. Equipped with a German-imported electro-hydraulic proportional control system, the system achieves millimeter-level operational precision and supports three control modes: turntable operation, basket operation, and wireless remote control, ensuring accurate performance in complex conditions. Additionally, it is equipped with multiple safety features including wind speed monitors, emergency braking systems, and overload protection devices, providing robust safeguards for high-altitude workers.
Hardcore quality trusted worldwide, legendary craftsmanship forged through precision engineering. As a global benchmark for premium equipment, SINOTRUK Aerial Working Platform Trucks integrate cutting-edge international supply chain resources. Their core hydraulic components are sourced from Italy's Bosch Rexroth, sealed systems utilize Germany's Parker technology, and critical bearings are SKF-branded Swedish products. Having withstood extreme conditions including-40°C freezing temperatures, 50°C scorching heat, and high-altitude oxygen deprivation, these platforms demonstrate failure rates far below industry averages while maintaining over 15 years of operational lifespan.
All models are compatible with China VI, Euro V, and Euro III emission standards, and can be flexibly customized according to the regulatory requirements of different regions worldwide. They are exported to over 50 countries and regions, including Southeast Asia, the Middle East, Africa, and South America, becoming the "star equipment" for overseas infrastructure projects. Relying on China National Heavy Duty Truck Corporation's global network of over 1,000 service outlets, we provide premium services featuring 24/7 response, extended warranty, and lifetime technical support, ensuring every high-altitude operation is safeguarded by exceptional service.
