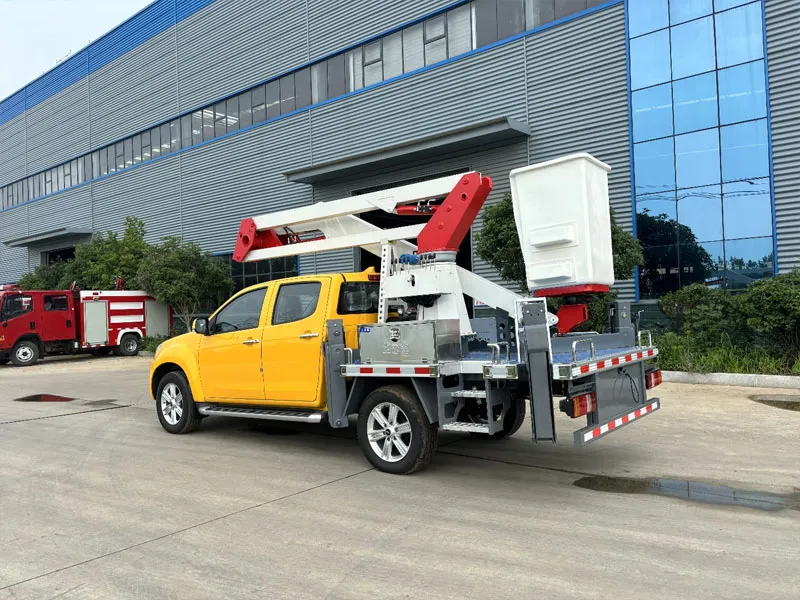

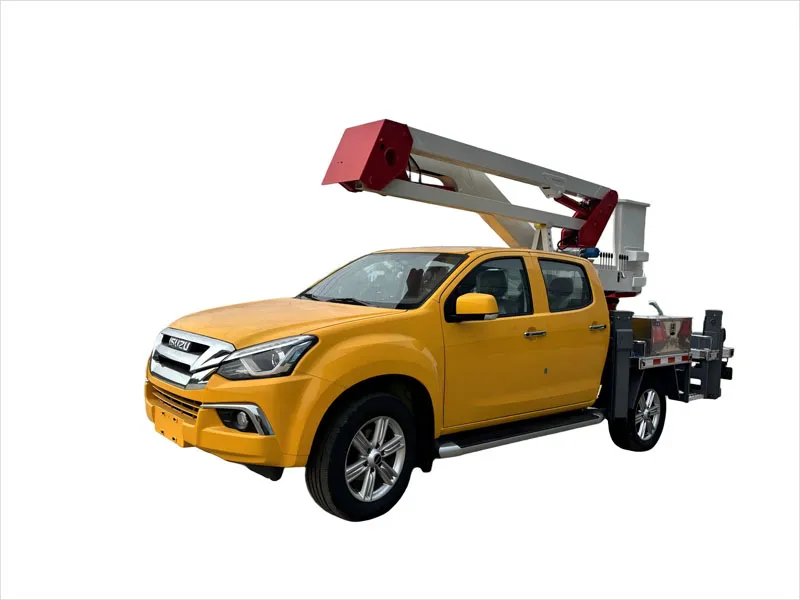

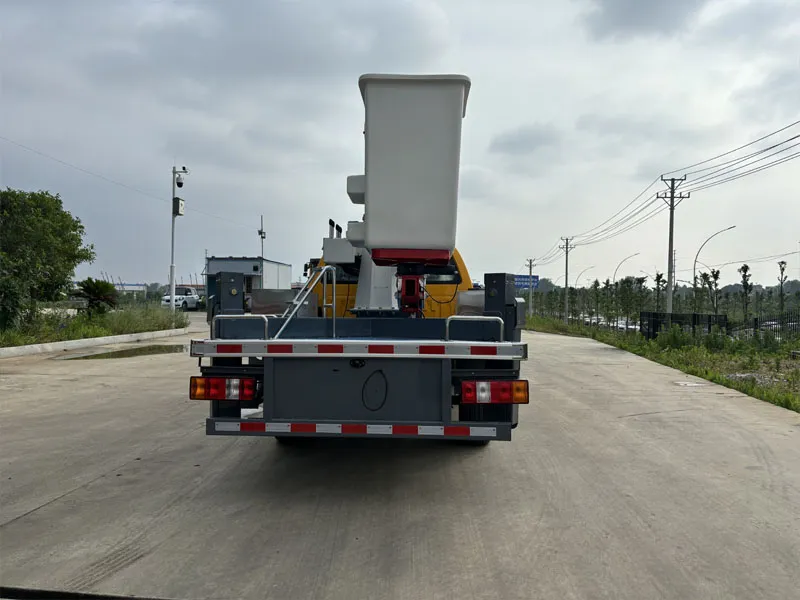

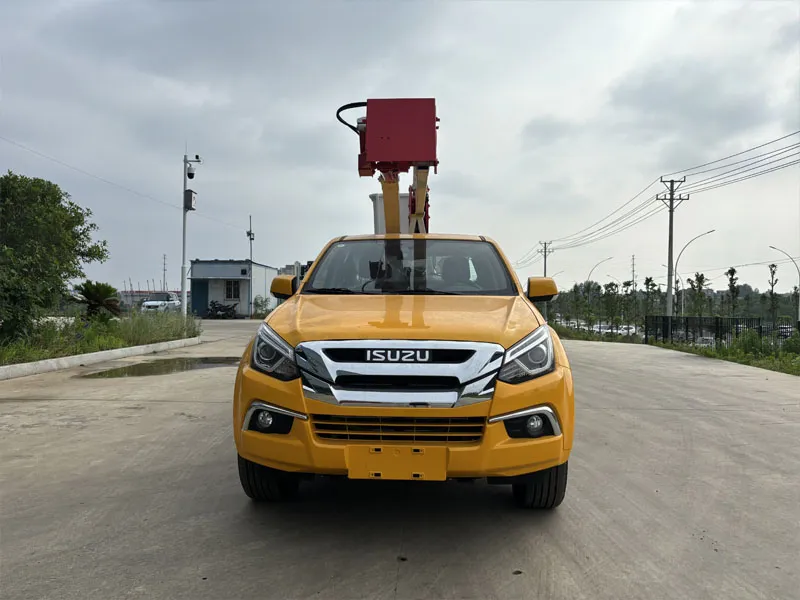

ISUZU pickup aerial work vehicle is versatile for high-altitude tasks, combining mobility with efficient lifting capabilities.
GVW 3500kg Driving Type 4x2 | GVW 3500kg Driving Type 4x2 | GVW 3500kg Driving Type 4x2 |
Model | QL5030JGKD | QL5030JGKD |
Cab | ISUZU light duty single row cab | ISUZU light duty single row cab |
Engine(Hp) | 140 | 140 |
Power(Kw) | 103 | 103 |
Wheelbase | 3150 | 3150 |
Front/Rear Suspension | 1050/1850 | 1050/1850 |
Steering | Power steering | Power steering |
Approach/departure angle | 19/15 | 19/15 |
Wheels & tire | 245/70R16 | 245/70R16 |
Tire number | 6+1 | 6+1 |
Working height(m) | 10 | 10 |
RHD or LHD | optional | optional |
Overall Dimensions(mm) | 6200×1950×2800 | 6200×1950×2800 |
Curb weight (Kg) | 3200 | 3200 |
Engine | 4JJ1-TCX | 4JJ1-TCX |
140 | 140 | |
103 | 103 | |
350 | 350 | |
4cylinders, in-line, 4-stroke, diesel engine | 4cylinders, in-line, 4-stroke, diesel engine | |
3.0L | 3.0L | |
ISUZU brand, Euro 5 | ISUZU brand, Euro 5 | |
Driving passenger | 2 | 2 |
Transmission | 6 speed forward and one reverse, manual | 6 speed forward and one reverse, manual |
Front Axle | 2.0T | 2.0T |
Rear Axle | 3.5T | 3.5T |
Brake System | hydraulic brake | hydraulic brake |
Color and LOGO | customized | customized |
Electric system | 24V | 24V |
Standard configuration | Double operation systems, bucket insulation, 2 booms, hydraulic oil tank, 300kg lifting hook, pickup truck body design, 4 hydraulic H-shape legs, 2 signal lamps, 2 tool boxes. | Double operation systems, bucket insulation, 2 booms, hydraulic oil tank, 300kg lifting hook, pickup truck body design, 4 hydraulic H-shape legs, 2 signal lamps, 2 tool boxes. |
Equipment | Platform Dimension | 950×550×1000 mm |
Max Working Height | 10m | |
Max Working Radius | 5m | |
Angle Of Rotation | 360 | |
Platform Loading | 150kg | |
Platform Passenger | 2 | |
Rotating Speed | 0-1.5m/min | |
Delivery date | Within 45 days after receipt advance | Within 45 days after receipt advance |
Packing | Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall take measures against moisture, shocks and rust according to the special needs of the commodity. | Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall take measures against moisture, shocks and rust according to the special needs of the commodity. |
