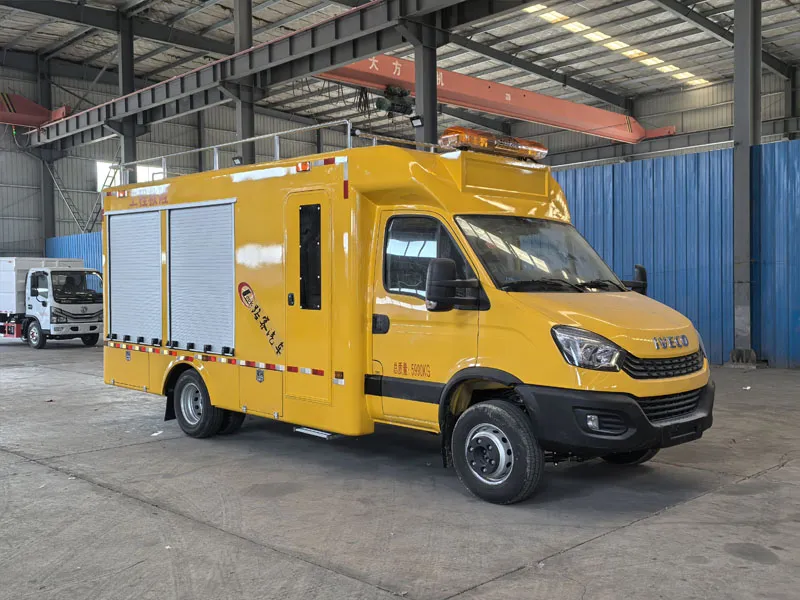

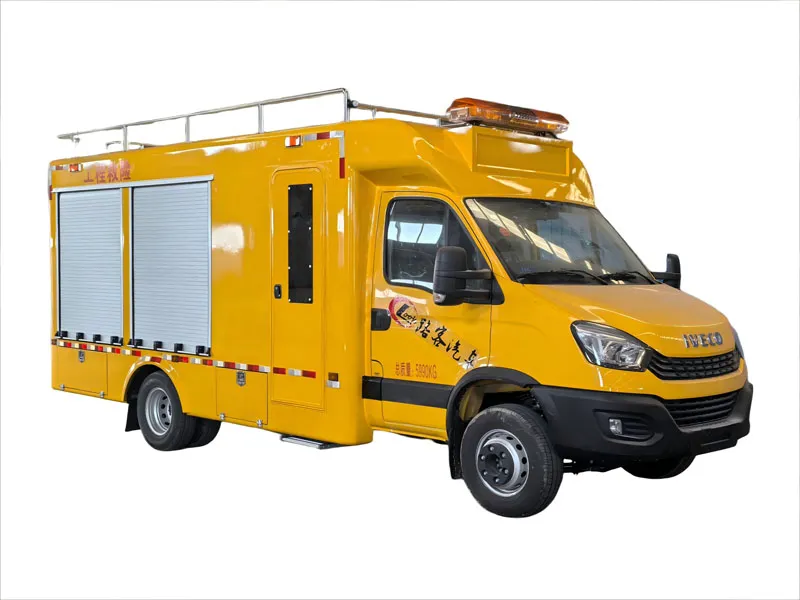

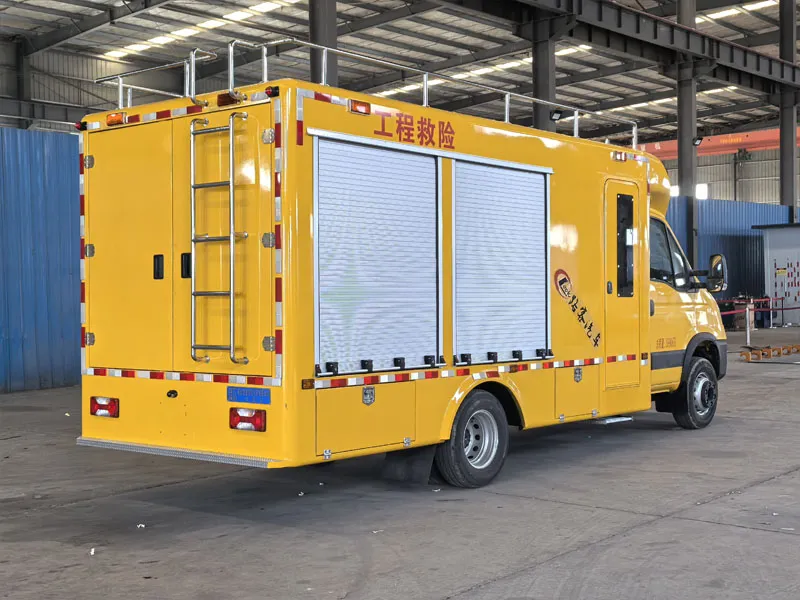

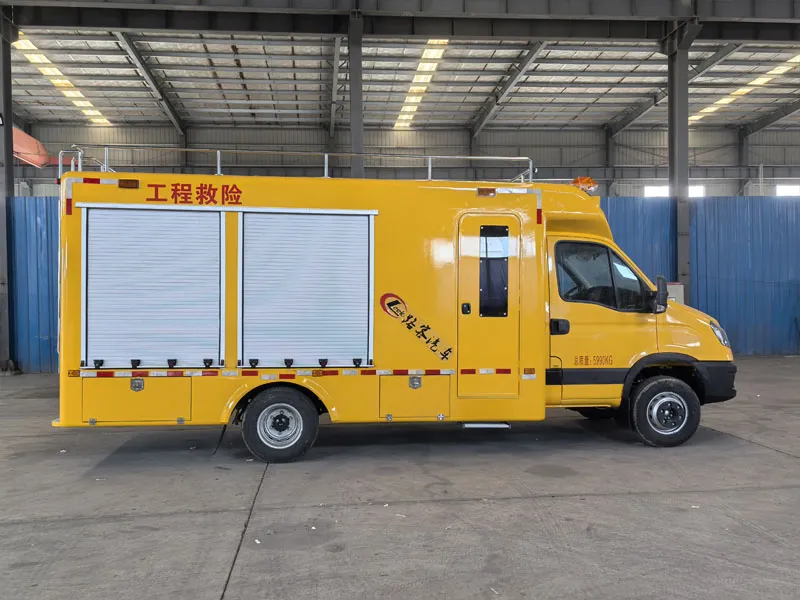

IVECO Power Supply Truck is widely used for uninterrupted operation of distribution networks, temporary network capacity expansion, outdoor emergency support, critical load maintenance, and mobile charging.
Item | Parameter |
Chassis Configuration | Front-rear drive, 6MT, front-rear ventilation fans, central control, remote control key, full-star grille, main & auxiliary airbags, etc.; 5kW front air conditioner, ESP 9.3, LDWS, 9-inch screen, 150A dual generator, etc. |
Special Function Overview | Multi-control functions (PFC, PQ, VF, etc.) for power distribution; three-phase half-bridge energy storage converter; comprehensive protections; parallel expansion via quick plugs; wireless 4G location/status transmission; USB/mobile charging; DC fast charging support. |
Battery Pack | Lithium iron phosphate battery; cycle life ＞10 years, ≥5000 cycles; capacity retention ≥80% after 75 years of operation. |
BMS Technology | Monitors battery voltage, charge/discharge current, temperature, single cell voltage, leakage, etc. |
Energy Storage Converter | Mature product with isolation transformer & independent inversion; stable voltage/frequency during power failure; supports 100% unbalanced three-phase load. |
Control System | 1 set of intelligent controller for converter-battery-storage system connection; intelligent unit with industrial computer, 4G terminal, ATS; controlled by TTU via intelligent integration terminal. |
Quick Switching Device | Cooperates with converter to realize seamless grid connection/disconnection. |
Coordination Control System | Three-layer structure: local equipment layer, monitoring system layer, energy management layer. |
Battery Safety Early Warning System | Equipped with gas, CO, smoke, temperature-humidity detectors & acousto-optic alarm; data uploaded to remote platform. |
Fire Protection System | Adopts HFC-227 fire suppression technology. |
AC/DC Converter (with STS & Seamless Grid Disconnection Device) | Rated capacity: 100kW; AC grid: 380V±10%, 50Hz (-1.5~1.5Hz); DC voltage: 200V–900V; seamless switching time: ≤10ms; overload capacity: 110% load ≥10min, 120% load ≥1min; air cooling; noise: ≤75dB (1m); with isolation transformer. |
Local Monitoring & Energy Management Module | Man-machine/circuit monitoring for coordinated control, safe operation & energy optimization; grid charging, independent grid inversion, automatic grid disconnection; touch screen; 4G/Beidou wireless transmission; multi-machine parallel expansion; remote mobile control. |
Battery & BMS System | Battery type: Lithium iron phosphate; capacity (output): ≥100kWh; max charging/discharging power: 100kW; cycle life: ≥5000 times; with security system & BMS. |
External Interfaces | AC primary: 2 grid interfaces (one for grid connection, one for diesel generator) and 1 load interface (380V, 100kW, three-phase four-wire); DC: compatible with standard DC charging pile; 2 parallel auxiliary interfaces. |
Internal Body & Auxiliary Materials | Structural design for load bearing, earthquake resistance & security; body protection class: IP20; built-in reserved wires, temperature control system, fire protection system, camera, quick connector, indicator light, emergency stop, on-site installation tools, etc. |
