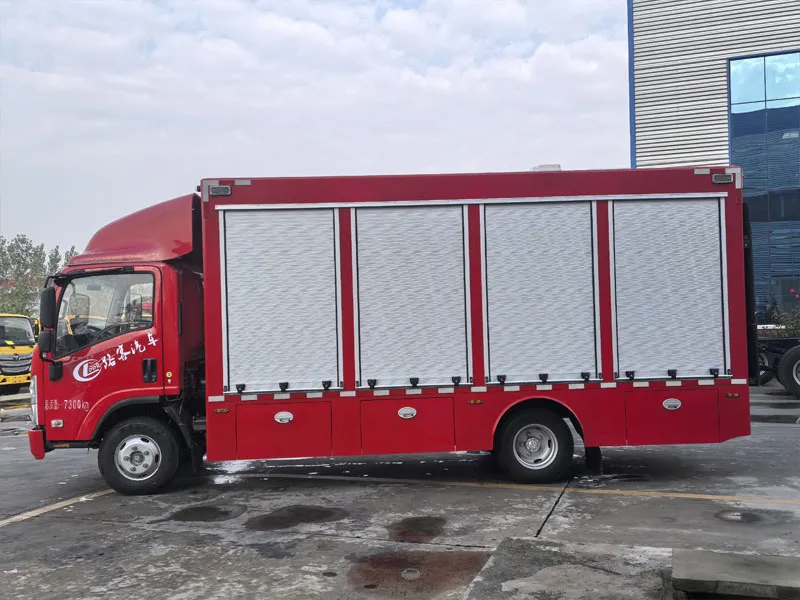

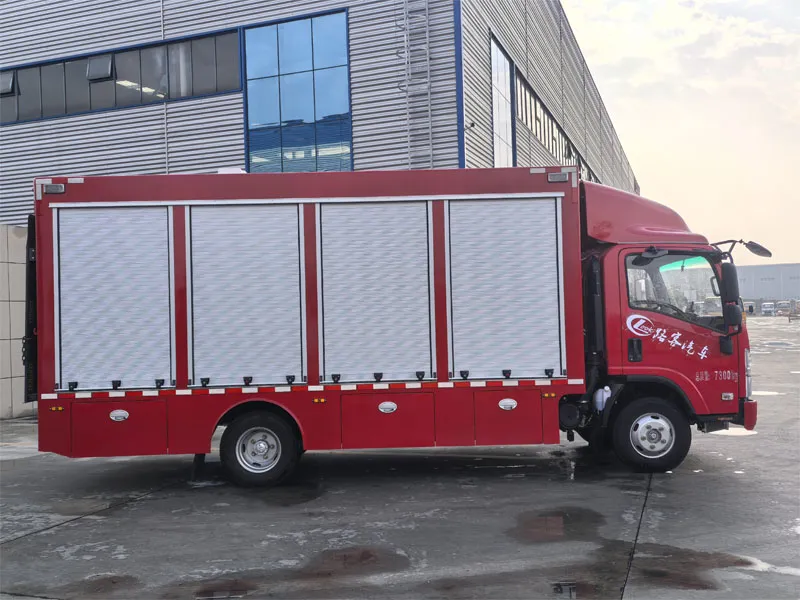

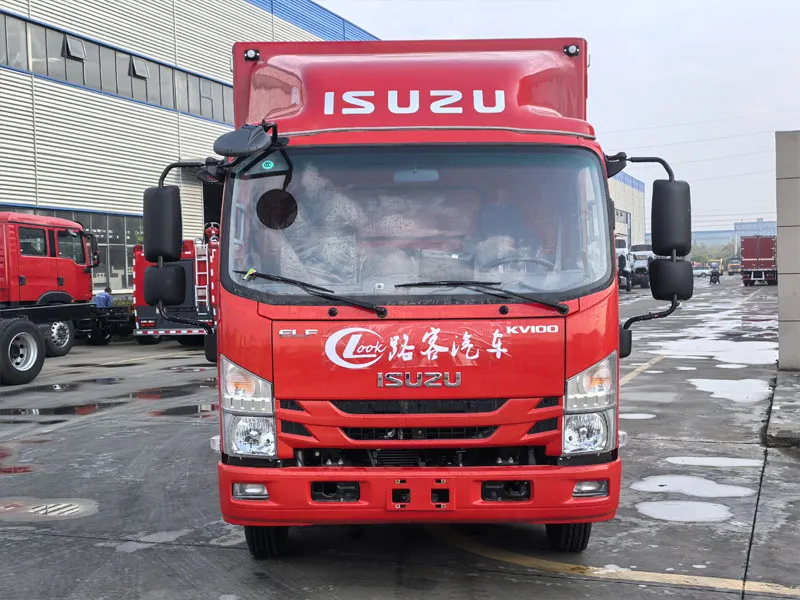

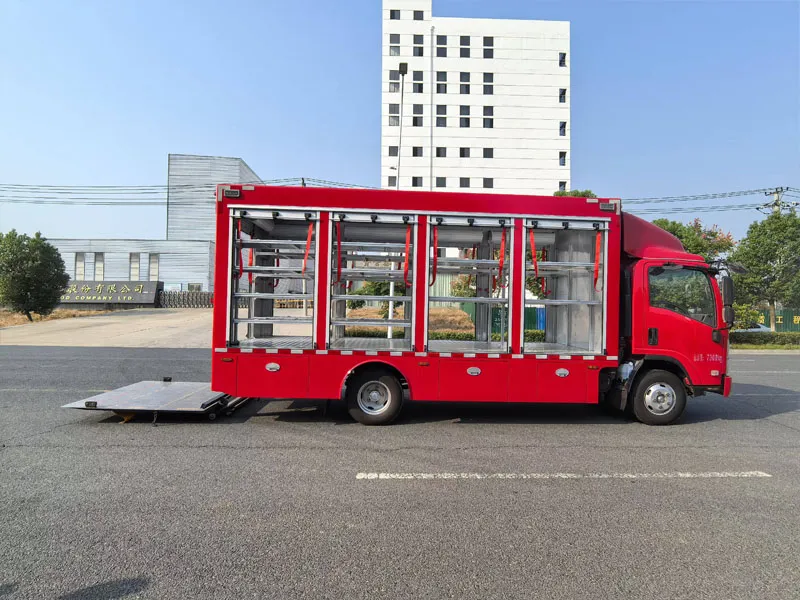

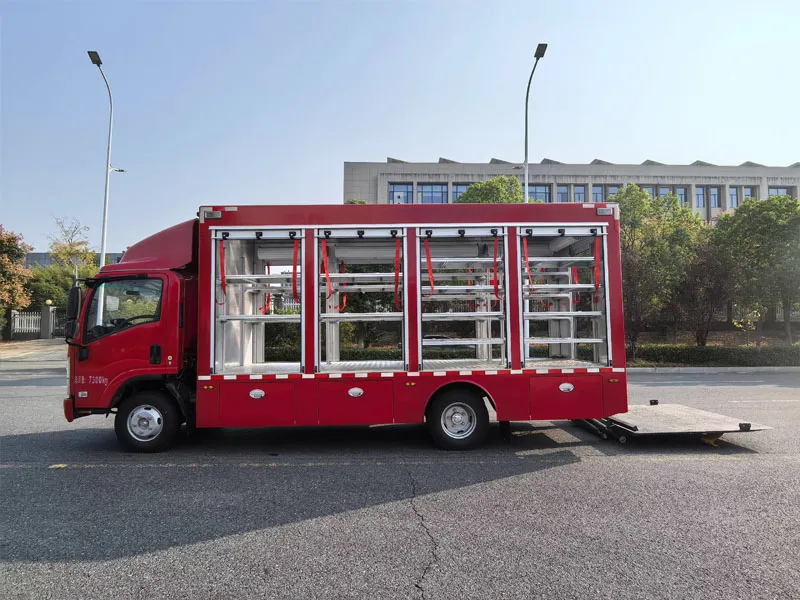

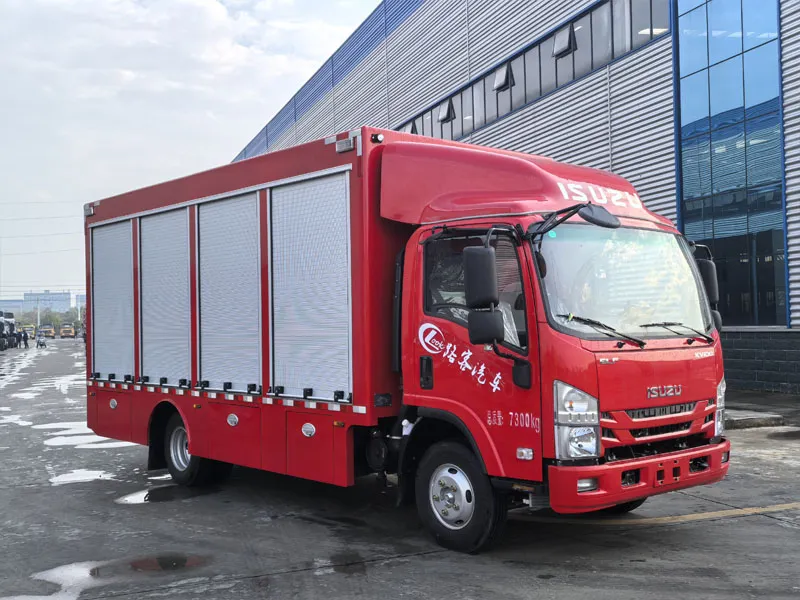

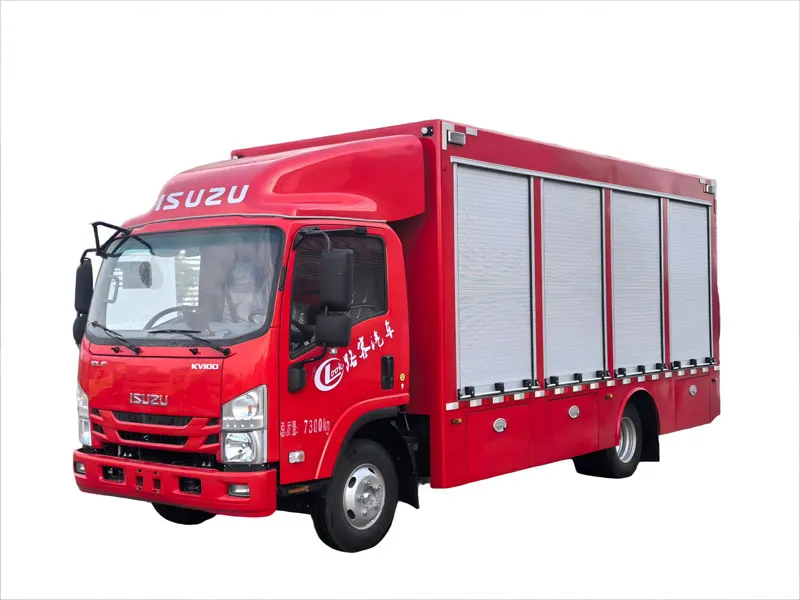

ISUZU Power Supply Truck delivers emergency power with a diesel generator, achieving speeds of ≥100 km/h, operating at ~48 dB(A) low noise, and equipped with comprehensive safety features.
Category | Item | Parameter Description |
1. Onboard System | Vehicle Speed | Adopts ISUZU engine & chassis; carriage length up to 4.5m; moving speed ≥100 km/h |
Load Capacity | 10%–15% margin reserved based on the total weight of all emergency power equipment | |
Humanized Operation & Maintenance Space | Operation (startup/shutdown) and instrument checking can be done in the on-board operation room; large space and auxiliary facilities in the carriage for easy unit maintenance | |
Safety Measures | - Fire extinguisher at carriage door- Smoke detector, explosion-proof AC/DC lighting, emergency lights- Grounding rod & grounding wire- Intelligent fire suppression system (unattended operation available) | |
2. Diesel Generator Set | Diesel Engine Brand | Internationally renowned brands: CAT (USA), Wilksch (UK), Cummins, Volvo |
Generator | Internationally renowned Stamford brushless self-excited AC synchronous generator with AVR automatic voltage regulation | |
Installation Base & Fuel Tank | Base adopts bottom fuel tank structure; fuel storage supports unit operation for over 8 hours | |
Power & Standby Performance | Power range: 20 kW–2000 kW- Equipped with cylinder liner water preheating device & starting battery floating charge device (always in standby state)- Can reach full load within 12 seconds after startup (meets emergency power supply requirements) | |
3. Control & Operation System | Control Panel | - Provides manual startup function- Automatically monitors unit operation & offers protection functions- Panel with indicator gauges for all operating parameters (easy to check unit status) |
Emergency Stop Button | Stops the unit immediately when pressed in emergency; resets after fault elimination | |
Miniature Air Switch | Automatically disconnects when current exceeds the set value | |
Abnormal Protection | Automatic alarm or shutdown for abnormal conditions (low oil pressure, high coolant temperature, unit overspeed, etc.) | |
4. Outlet Cable System | Power Cable | YC series heavy-duty rubber-sheathed flexible cable; general length: 30m (meets emergency power needs in special scenarios) |
Cable Winding/Unwinding Control | Electric or manual control optional | |
5. Technical Highlights | Unit Vibration Damping | Adopts patented rubber damping pads (structure: bowl-shaped upper cover + funnel-shaped bottom plate with rubber in between)- Features: high load-bearing capacity, low stiffness, large damping ratio- Advantages: no resonance easily, fast vibration attenuation; no structural damage if rubber pads are damaged under extreme conditions |
Mute & Noise Reduction Technology | - Ordinary diesel generator noise: ~110 dB- Air inlet/outlet windows: patented design (air spring opening, built-in sound-absorbing baffles) – ensures air flow, no impact on power output/temperature rise- Exhaust system: combination of resistive muffler + reactive muffler (noise reduction: 35–40 dB(A))- Carriage: 50–100mm thick sound-absorbing cotton in side panels; rubber gaskets in all doors/windows- Noise level: ~48 dB(A) at 1m from carriage under full load (superior to domestic similar products) |
