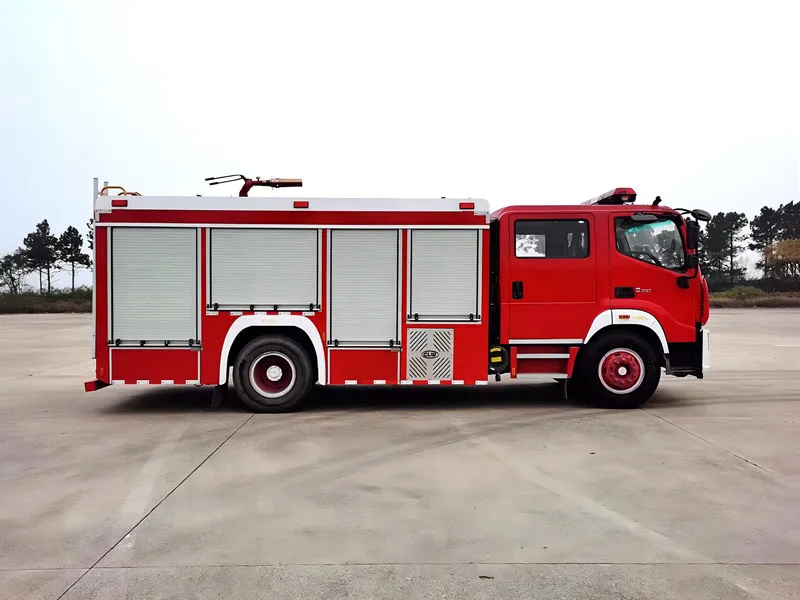

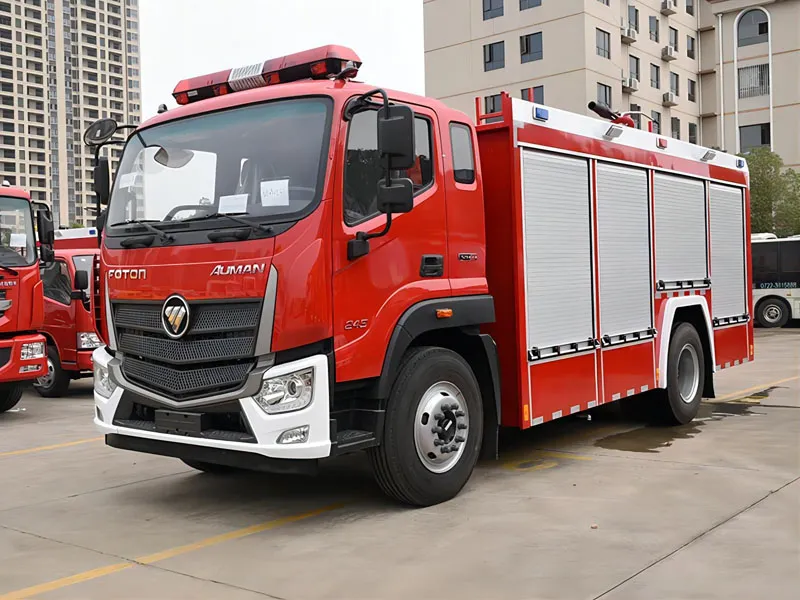

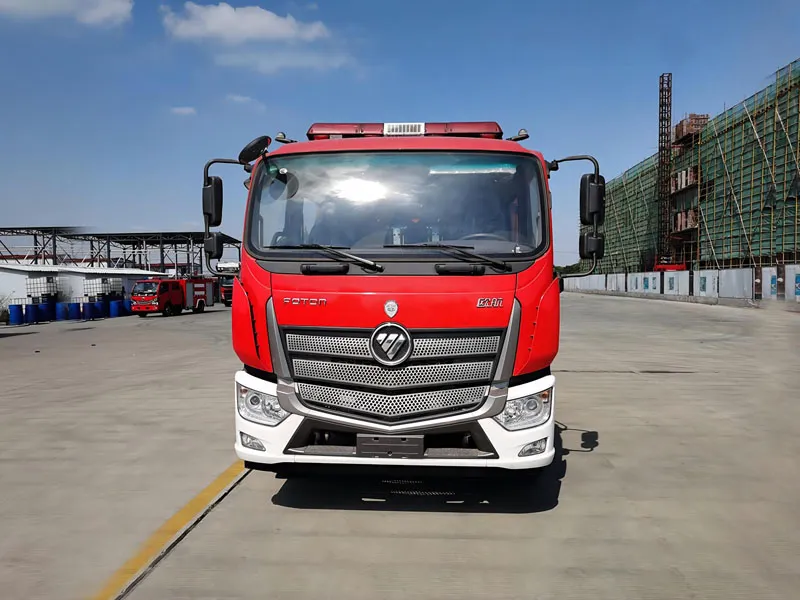

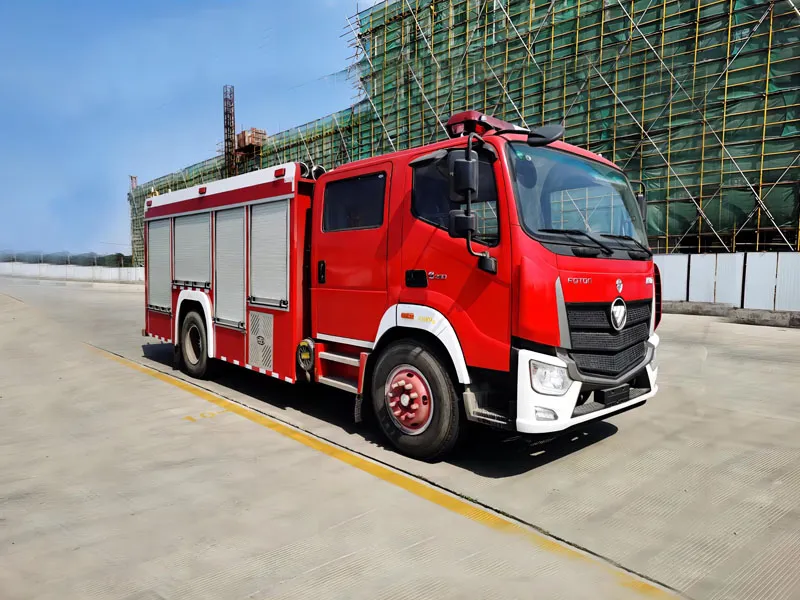

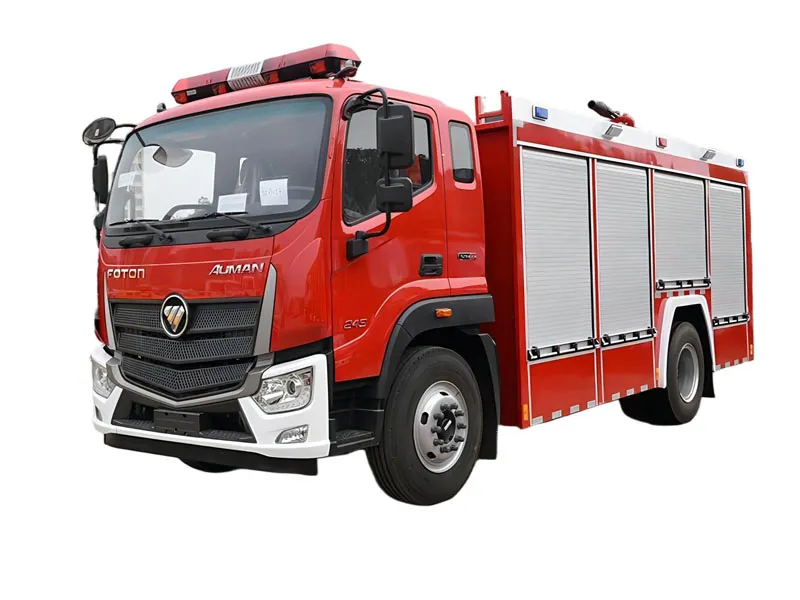

Foton Auman 6,000 L fire truck is a reliable medium-duty vehicle featuring a 6,000 L anti-corrosion water tank, a 160 kW (217 hp) diesel engine with 4×2 drive, and a 55 L/s pump. Its sturdy chassis makes it ideal for urban and rural medium-scale emergencies, ensuring stable performance.
Foton Auman 6000L Fire Truck Specifications
Category | Parameter | Specification |
Chassis | Model | BJ5251THB-FA |
Drive Type | 4×2 | |
Wheelbase | 4600mm | |
Maximum Speed | 89km/h | |
Engine Model | YC6A300-50 (National V, Diesel) | |
Power | 221kW | |
Cab | Length | 8270mm |
Width | 2550mm | |
Height | 3650mm | |

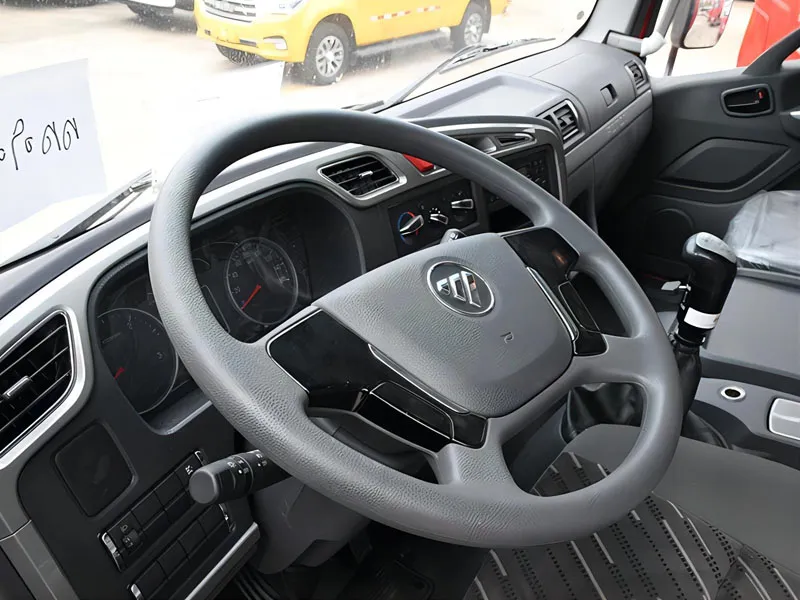

Structure | Flat head, four-door double-row cab | |
Seat Arrangement | 2 persons in front row (including driver), 4 persons in back row | |
Equipment | 100W siren, revolving light switch, power take-off control switch and indicator light (in addition to original windows) | |
Tank | Water Capacity | 7800kg (equivalent to 6000L) |
Water Tank Material | High-quality carbon steel plate, with high-tech anti-corrosion treatment | |
Foam Tank Material | High-quality carbon steel plate, with high-tech anti-corrosion treatment | |
Structure | Steel plate welded, with anti-sloshing plate inside | |
Manhole | 1 with quick tightening and opening device | |
Overflow Device | 1 | |
Liquid Level Indicator | 1 | |
Sewage Outlets | 2, manually controlled | |
Technical Requirement | Comply with the relevant provisions of GA439 | |
Fire Pump | Model | CB10/60 Fire Pump |
Flow Rate (Low Pressure) | 60L/s | |
Pressure (Low Pressure) | 1.0Mpa | |
Priming Time | ≤50s | |
Installation Form | Rear-mounted | |

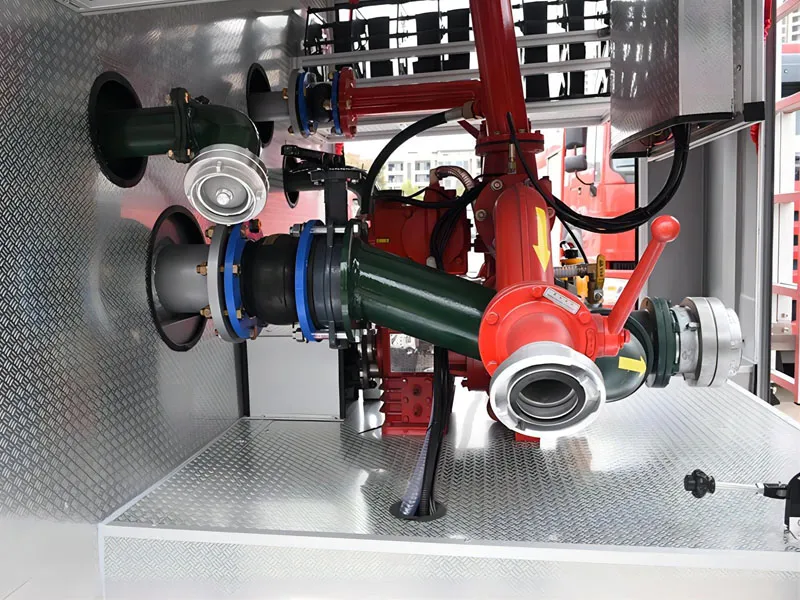

Pipeline System | External Water Inlet | 1 at rear, diameter Φ150mm, internal thread interface |
Suction Pipes | 2 Φ150×4m | |
Internal Water Inlet | 1 Φ150mm, with Φ150mm butterfly valve, connecting tank to pump | |
Water Outlet | 2 normal pressure outlets (Φ80mm ball valves), 2 medium pressure outlets (Φ65mm ball valves), 1 gun pipeline (Φ89mm with Φ80mm quick coupling) | |
Water Injection | 1 Φ76mm internal pipeline, 1 external water inlet per side | |
Drain Pipeline | Drain valve at lowest point to protect pump and valves | |
Cooling Water Pipeline | Equipped with cooling water pipeline and stainless steel ball valve | |
Power Take-off | Model | Full-power Power Take-off |
Operation | Solenoid valve control, with indicator light and switch on cab panel | |
Lubrication Method | Flyweight type oil lubricator | |
Fire Monitor | Model | PS50 Fire Monitor |
Flow Rate | 50L/s | |
Range | Water ≥60m | |
Pressure | 1.0Mpa | |
Rotation Angle | Horizontal ≥270°, Pitch -15°~45° | |
Equipment Box | Frame Material | High-quality steel |
Structure | Steel structure divided interior, firm and reliable, improving space utilization | |

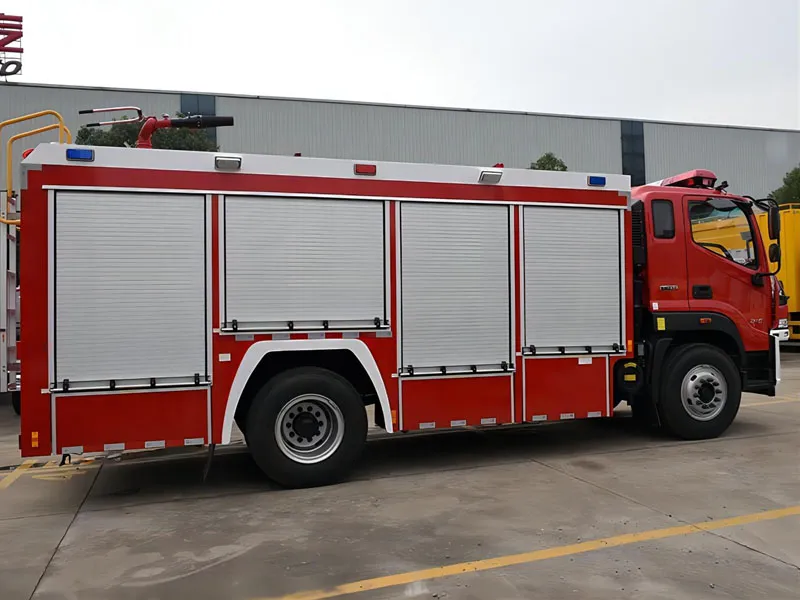

Door | Aluminum alloy roller shutters on left, right, and rear sides; light, reliable, low noise |
