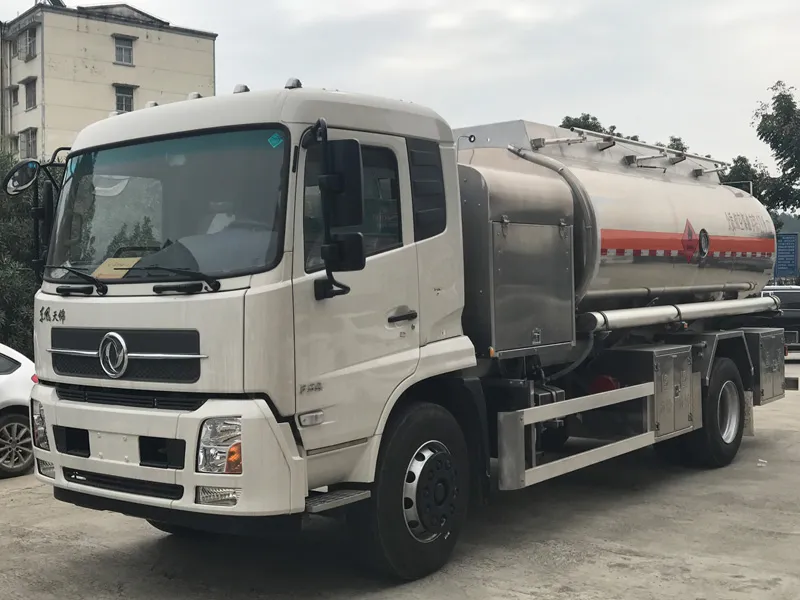

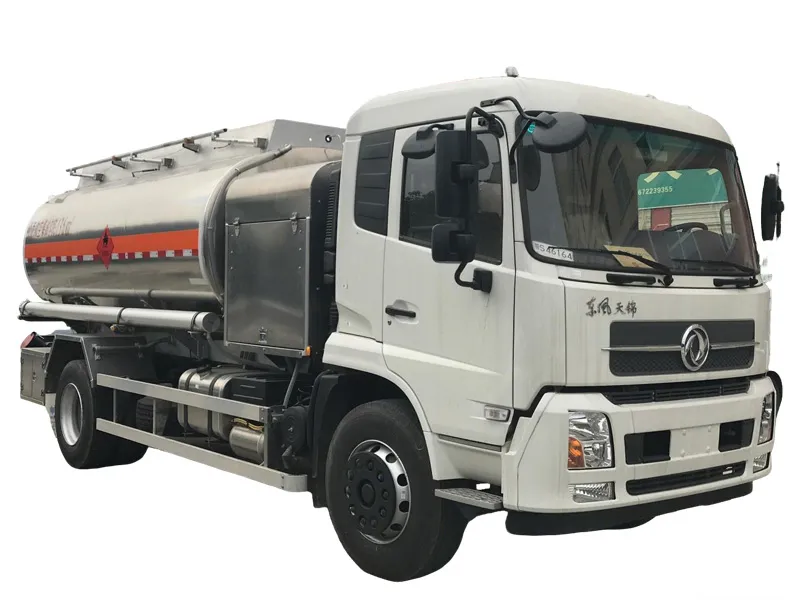

Dongfeng Tianjin aircraft refueling trucks are specially designed for refueling various large and small aircraft with aviation kerosene. The tanks are made of aluminum alloy, which provides better insulation, making them safer and more efficient.
Technical parameters of the Dongfeng Tianjin aircraft refueling truck | |||
Product Trademark | Chengli brand | Announcement batch | 386（Extend） |
Product Name | Aircraft refueling truck | Product Model | CL5180GJYD6 |
Total mass(Kg) | 18000 | Tank volume(m3) | 13.4 |
Rated load capacity(Kg) | 10065,10000 | External dimensions(mm) | 8600×2500×3300 |
curb weight(Kg) | 7805 | Number of passengers allowed in the driver's cab (persons) | 2,3 |
Approach angle/departure angle( °) | 16/10 | Front/Rear Suspension(mm) | 1430/2470 |
Axle load(Kg) | 6500/11500 | Top speed(Km/h) | 80 |
EBS Model/Manufacturer: EBS5/Dongke Knorr Commercial Vehicle Braking System (Shiyan) Co., Ltd., VIE EBS/ESC-Ⅱ/Zhejiang Wan'an Technology Co., Ltd. Maximum density of permitted transport medium: 780 kg/m³. Total tank capacity: 13.4 m³, effective tank volume: 12.82 m³. Tank dimensions (length × major axis × minor axis) (mm): 4700 × 2300 × 1600. Only radial tires are used. The vehicle has disc brakes on the front wheels, a front-mounted exhaust pipe, and a speed limiter of 80 km/h. A driving recorder with satellite positioning function is installed. Type of dangerous goods transport vehicle (FL type). Overall length/wheelbase/front overhang/rear overhang correspondence (mm): 8600/4700/1430/2470. The cab front grille and side windows are optional, along with the chassis. The three decorative lights in the center of the cab roof are optional; front fog lights are optional; and the cab front spoiler is optional. Tire blowout emergency protection devices are installed on the steering wheels. The rear axle uses air suspension. Optional features include movable guardrails and marker light holders. Air filters and urea tank location are optional. Tank style is optional. After-treatment system appearance is optional. | |||
Chassis Technical Specifications | |||
Chassis Model | DFH1180EX9 | Chassis Name | Cargo truck chassis |
Trademark Name | Dongfeng brand | manufacturing enterprises | Dongfeng Commercial Vehicle Co., Ltd. |
Number of axes | 2 | Number of tires | 6 |
wheelbase (mm) | 4700,5000,5800 | ||
Tire specifications | 275/80R22.5 18PR | ||
Number of leaf springs | 3/- | Front wheel track(mm) | 1910,1840,1980 |
Fuel types | diesel fuel | Rear wheel track(mm) | 1840,1860,1800,1820 |
Emission standards | GB17691-2018 Country VI | ||
Engine Model | Engine manufacturers | Displacement(ml) | power(Kw) |
B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 6200 | 154 |
Dongfeng Tianjin Aircraft Refueling Truck Performance Parameters:
Tank Body: Made of high-quality aluminum alloy, lightweight, large capacity, corrosion-resistant, and pollution-free, ensuring fuel quality.
Refueling Pump: Self-priming centrifugal pump, reel refueling flow rate 100L-150L/min, pipeline pumping flow rate 700L/min, working pressure 0.25MPa.
Flow Meter: 0.2 accuracy, 50mm diameter rotary valve flow meter.
Filter Separator: Rated flow rate 400L/min, rated working pressure 1.0MPa, maximum allowable pressure difference 0.15MPa, conforming to API 1581 Third Edition requirements.
Gravity Refueling Reel: Automatically reset reel, refueling hose diameter 38mm, length 15m.
Level Gauge: Stainless steel float inside the tank, 4-inch aluminum alloy dial on the left side of the tank, clearly showing the current liquid volume.
Operating System: Centralized control from an independent control room. Instrument indicators include a pump inlet vacuum gauge, pump outlet pressure gauge, oil pump tachometer, and filter differential pressure gauge. Valve operation includes a main power switch, lighting switch, emergency stop switch, oil pump speed control knob, refueling valve, circulation filter valve, sampling valve, and bottom valve control combination switch.
Dongfeng Tianjin Aircraft Refueling Truck Function Introduction:
1. Reel Refueling—Fuel from the truck's tanks, after filtration and metering, is injected into the aircraft's fuel tanks or other receiving equipment via a gravity refueling nozzle on the reel hose in the control room.
2. Pumped Fuel Filtration—Fuel from the truck's tanks or external pipelines, after filtration, is returned to the truck's tanks or other receiving equipment via the pump outlet connector, achieving a circulation filtration function.
3. Tank Filling—Fuel is filled from the bottom of the tanks using a connector valve connected to an external pipeline, or the oil pump can be used for pumping.
Dongfeng Tianjin aircraft refueling truck chassis configuration |
It adopts the Dongfeng Tianjin D530 extended-cab standard roof engine that meets China VI emission standards, with a Cummins B62NS6B210 China VI engine, Dongfeng 8JS85TE-C transmission, 4700MM wheelbase, frame size: 250x80x7+4, front and rear axles: 4.5T/9T single reduction, aluminum 160L fuel tank, 275/70R22.5 18PR tires, electric windows, driving recorder, air suspension, front-mounted exhaust pipe, front disc and rear drum, ABS air brake, power steering, clutch booster, EBS (electroplated brake system), FCWS/LDWS (forward collision/lane departure warning), TPMS (front axle single tire pressure monitoring), and factory-installed air conditioning. |
Configuration of Dongfeng Tianjin aircraft refueling truck (basic configuration - single compartment) |

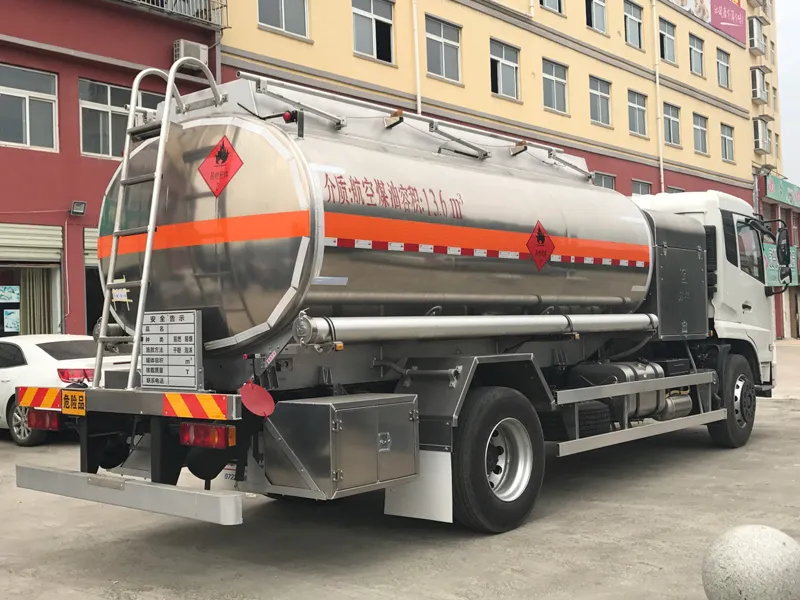

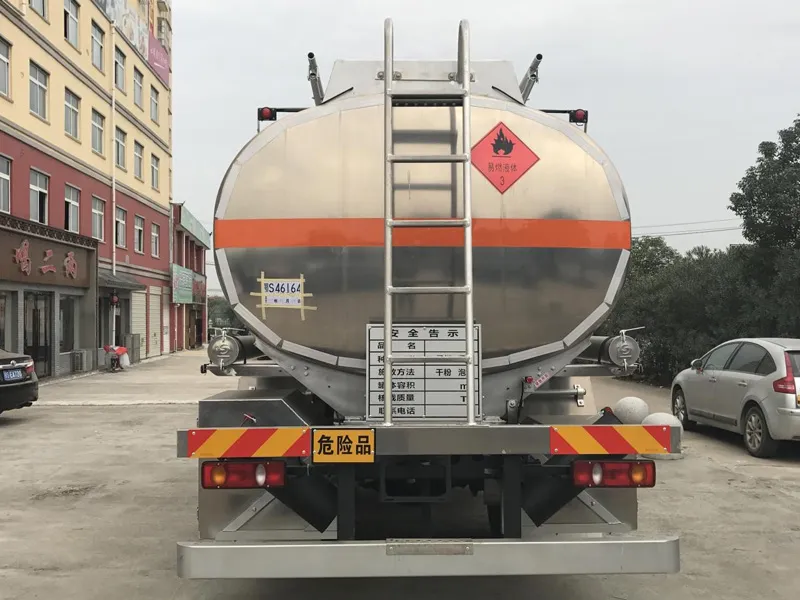

The tank is square-round, with a volume of 13.4 cubic meters. It is a single-compartment tank made of 5182 aluminum alloy, with a cylinder thickness of 5.5mm and end cap thickness of 5.7mm. A single aluminum alloy European standard manhole with a built-in breather valve is located in the center of the tank top. Manual aluminum alloy guardrails are located on both sides of the tank top, and a removable aluminum alloy rear ladder is included. The control cabinet (aluminum alloy) includes one set of explosion-proof lights and one set of electrostatic reel. The refueling pump is an aluminum alloy pump (mechanical seal type). The flow meter is a Hefei Jingda Instrument 0.2-grade accuracy, 50mm diameter rotary valve flow meter. The filter separator is a 5-core filter (including 2 separators and 3 coalescing filter elements). Gravity refueling is provided via a 15-meter aviation kerosene-specific hose reel with an aviation kerosene-specific nozzle. The level gauge has a 4-inch aluminum alloy dial. The operation control system is integrated. The unloading box on the left side of the tank is equipped with an oil and gas recovery system and an emergency shut-off valve with a voice alarm, in accordance with new regulations. A red button for the emergency shut-off valve is installed at the rear of the tank. One standard aluminum alloy toolbox and two drain hoses are included. Each side of the tank has a 1-inch drain valve installed at the front end of an aluminum alloy circular nozzle. All boxes are equipped with container locking bars for easy locking. A rubber stopper is installed at the bottom of the outlet box. Plastic fire extinguisher cartridges (8KG) are installed on both sides of the rear of the tank. An aluminum alloy anti-slip mesh walkway is installed inside the tank top panel. The rear protection is an I-beam bumper made according to the announcement photo, with equal length from top to bottom, and the lower layer can be moved and flipped backward. Safety notices are installed on the left, right, and rear of the tank (500X550mm). All vehicle accessories are made of aluminum alloy and have special hazardous materials markings. Two anti-static tethering strips are included. The gaps in the rear beams of the chassis are sealed with aluminum alloy anti-slip corrugated plates. Medium: aviation kerosene, aviation gasoline. |
