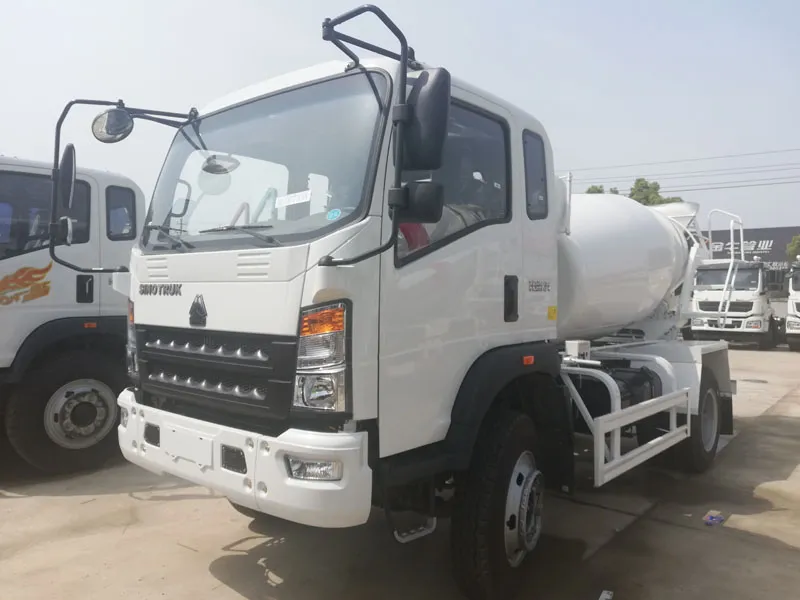

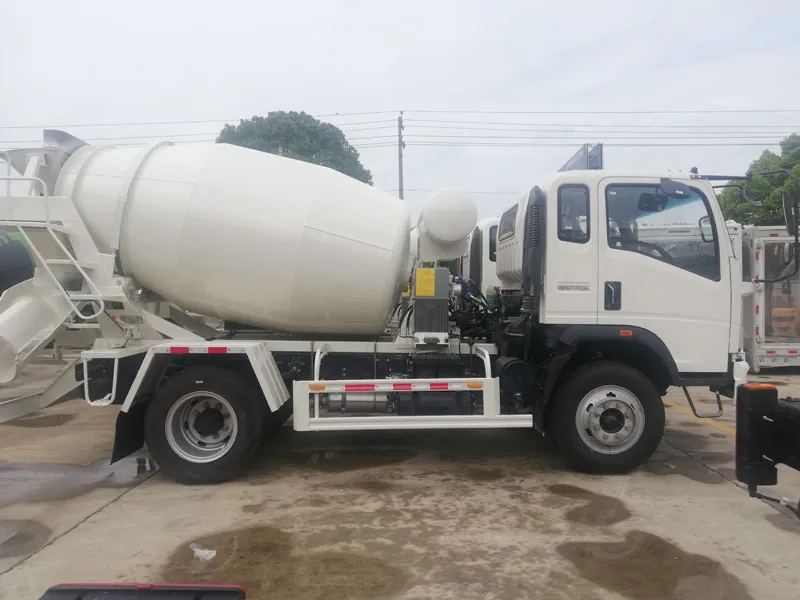

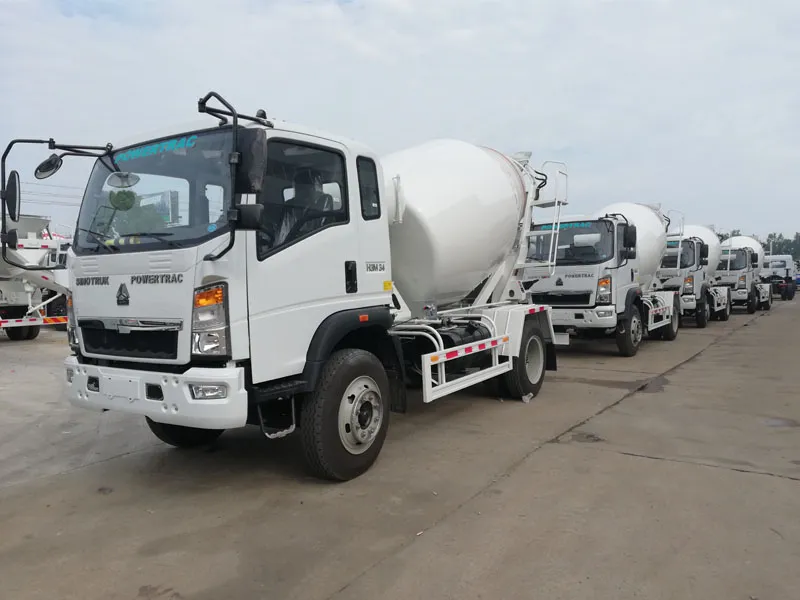

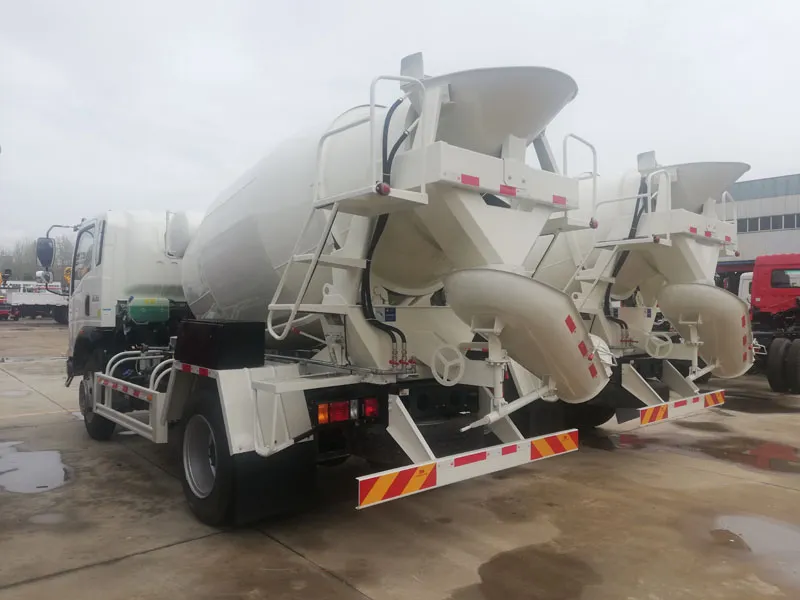

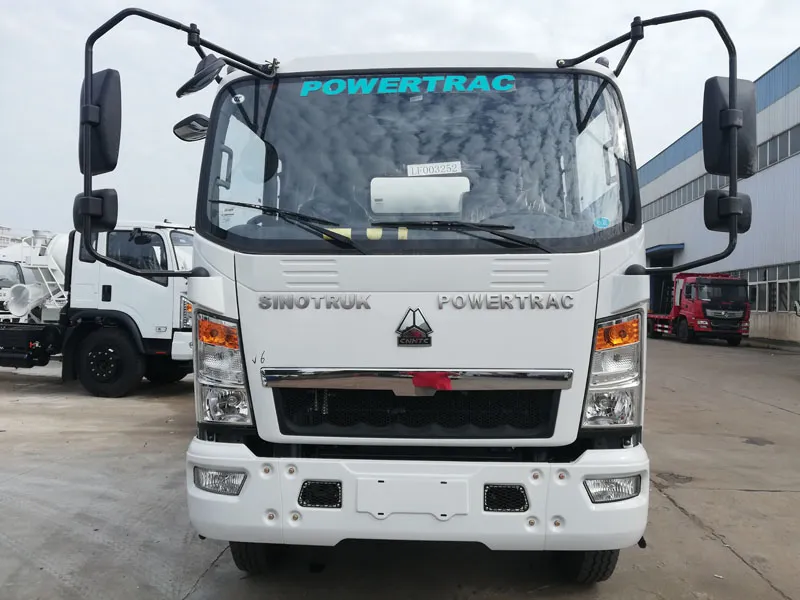

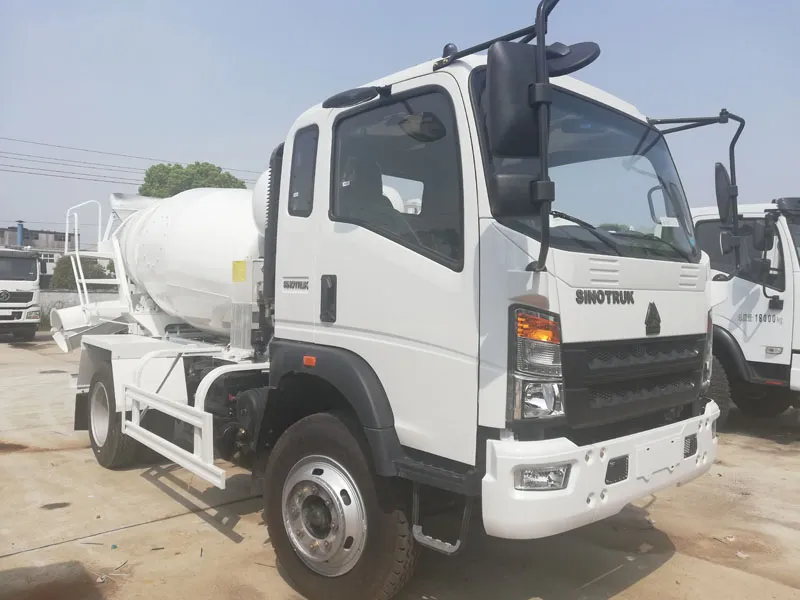

Sinotruk Howo 5m³ concrete mixer truck delivers efficient and uniform mixing, ideal for small to medium construction projects. It ensures reliable performance, easy operation, and stable transportation of fresh concrete.
| GVW16000kg | Driving Type 4x2 | ||
Model | Luke5167GJB | ||
Cab | Howo light duty one and half row cab, allowable 3 passengers. | ||
Engine(Hp) | 130 | ||
Power(Kw) | 96 | ||
Wheelbase | 3800 | ||
Front/Rear Suspension | 1280/2200 | ||
Steering | Power steering | ||
Approach/departure angle | 20/19 | ||
Wheels & tire | 9.00R20 | ||
Tire number | 6+1 | ||
Tank capacity(m3) | 4 | ||
RHD or LHD | optional | ||
Overall Dimensions(mm) | 7300×2400×3250,3500 | ||
Curb weight (Kg) | 7085 | ||
Engine | Model | YC4D130-33 | |
Horsepower | 130 | ||
Maximum output Kw | 96 | ||
Maximum torque N.m | 420 | ||
Type | 4cylinders, in-line,4-stroke,water-cooled,turbo, diesel engine | ||
Displacement | 4.214L | ||
Yuchai brand, Euro 3 | |||
Driving passenger | 2,3 | ||
Transmission | 6 speed forward and 1 reverse, manual | ||
Front Axle | 3.6T | ||
Rear Axle | 9T | ||
Brake System | air brake exhaust brake | ||
Color and LOGO | customized | ||
Electric system | 24V | ||
Tank material | alloy steel | ||
Standard configuration | Mixer tank, reducer, hydraulic pump, hydraulic motor, radiator, water tank, cleaning hose ,feed port, discharge port, climbing ladder, air pressure water supply device. | ||
Equipment | Tank capacity | 4m3 | |
Hydraulic pump | China brand(Italy or German or America brand optional) | ||
Hydraulic motor | China brand(Italy or German or America brand optional) | ||
Reducer | China brand(Italy or German or America brand optional) | ||
Water supply ststem | 400L tank , air pressure supply | ||
Radiator | Kaitong brand | ||
Charging speed | ≥3M3/ min | ||
Discharging speed | ≥3M3/ min | ||
Discharging residual rate | ≤0.5% | ||
Delivery date | Within 30 days after receipt advance | ||
| Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||
