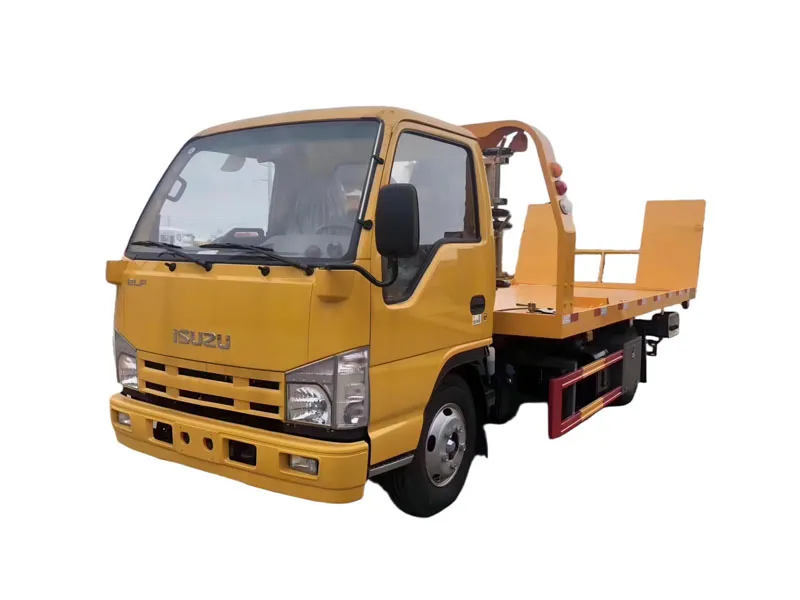

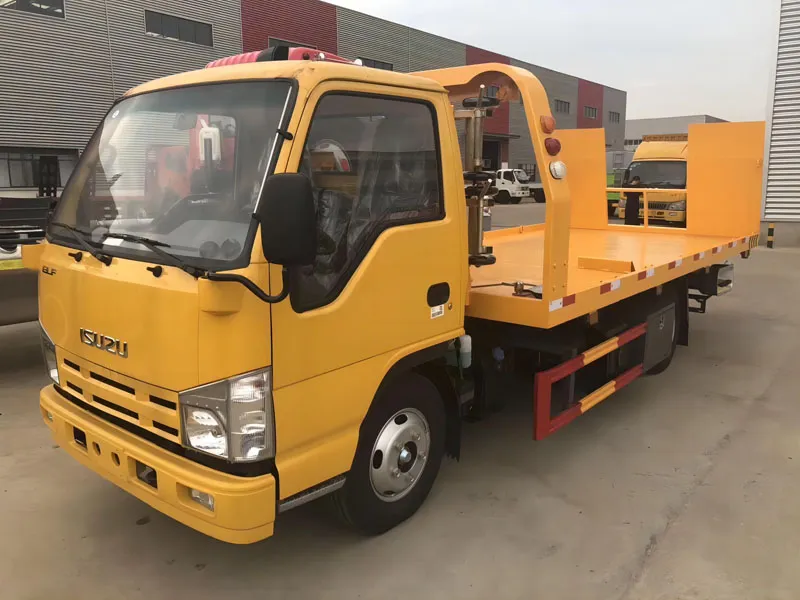

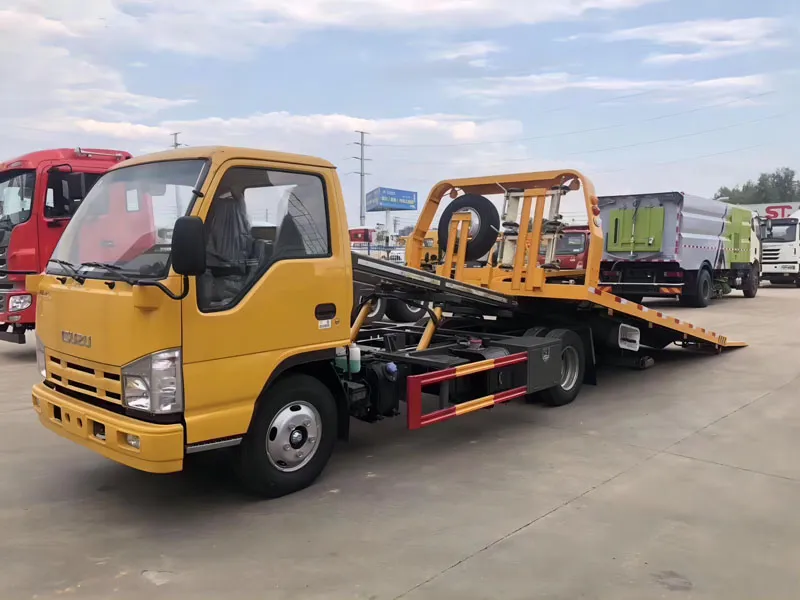

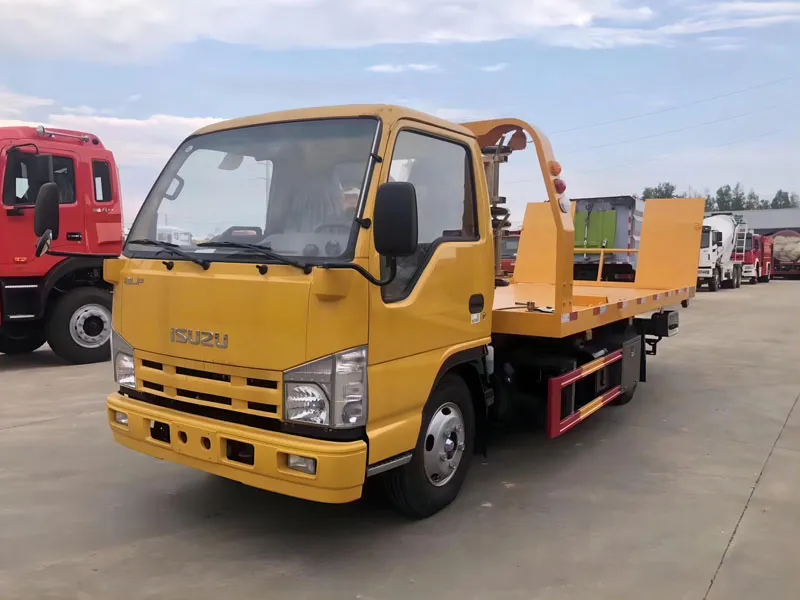

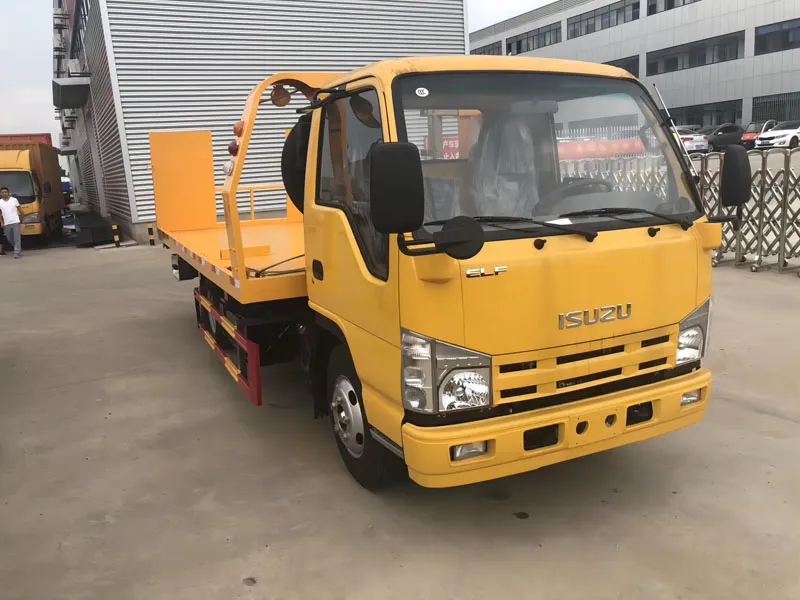

The ISUZU 100P wrecker truck is built on the robust ISUZU 100P chassis, offering reliable towing performance for small to medium-sized broken-down or accident vehicles. Its fuel efficiency and agile handling make it ideal for urban and suburban rescue operations, ensuring fast and efficient vehicle recovery.
| GVW4495kg | Driving Type 4x2 | |||
Model | Luke5040TQZQ | |||
Cab | One row cab, tilted | |||
Engine(Hp) | 98 | |||
Power(Kw) | 72 | |||
Wheelbase | 3360 | |||
Front/Rear Suspension | 1015/1620 | |||
Steering | Power steering | |||
Approach/departure angle | 24/15 | |||
Wheels & tire | 7.0R16 | |||
Tire number | 6+1 | |||
Loading capacity(kg) | 3000 | |||
Plate dimension(mm) | 4200×2300 | |||
RHD or LHD | optional | |||
Overall Dimensions(mm) | 5995×2300×2300 | |||
Curb weight (Kg) | 3860 | |||
Engine | Model | 4KH1CN5LS | ||
Horsepower | 98 | |||
Maximum output Kw | 72 | |||
Maximum torque N.m | 220 | |||
Type | 4 cylinders, in-line diesel engine | |||
Displacement | 2.999L | |||
ISUZU brand, Euro 5 | ||||
Driving passenger | 2 | |||
Transmission | ISUZU MSB 5 speed forward and one reverse, manual | |||
Front Axle | 2T | |||
Rear Axle | 4.8T | |||
Brake System | oil brake | |||
Color and LOGO | customized | |||
Electric system | 24V | |||
Major parameter | Winch capacity | 4000kg | Lift capacity | 2500kg |
Platform | 4200×2300mm | Steel wire rope | 21m | |
Standard configuration | 2 units of towing wheel, 1 unit of 4 ton winch, 1 unit of steel wire rope, 1 unit of spare tire, 1 unit of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm lamp. | |||
Optional configuration | Flexible tail plate | |||
Delivery date | Within 40 days after receipt advance | |||
Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |||
