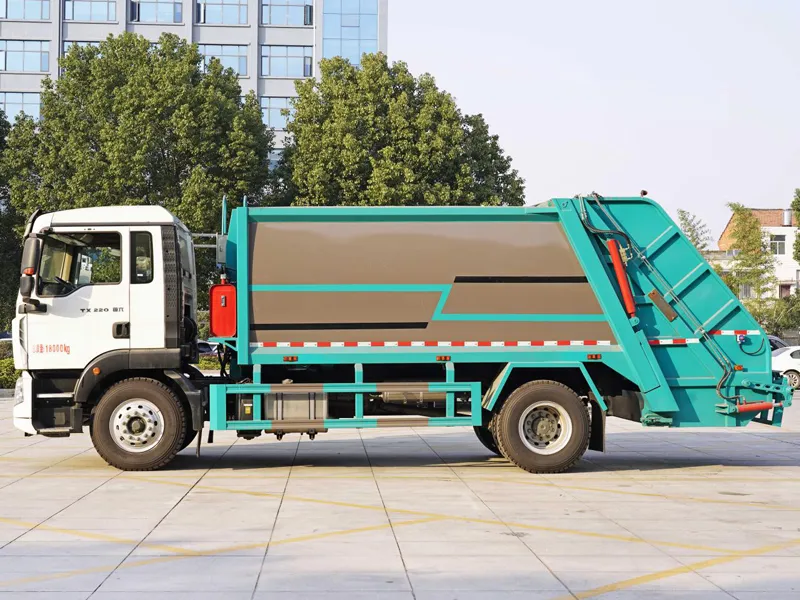

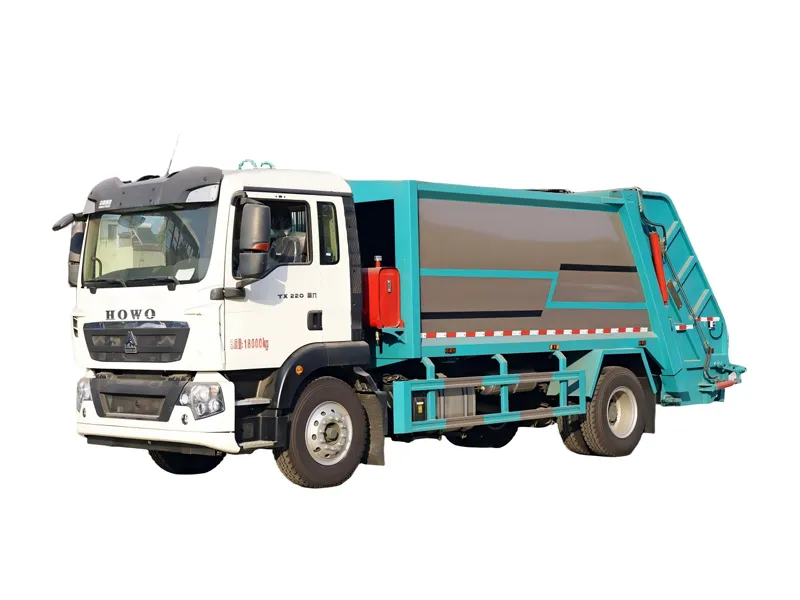

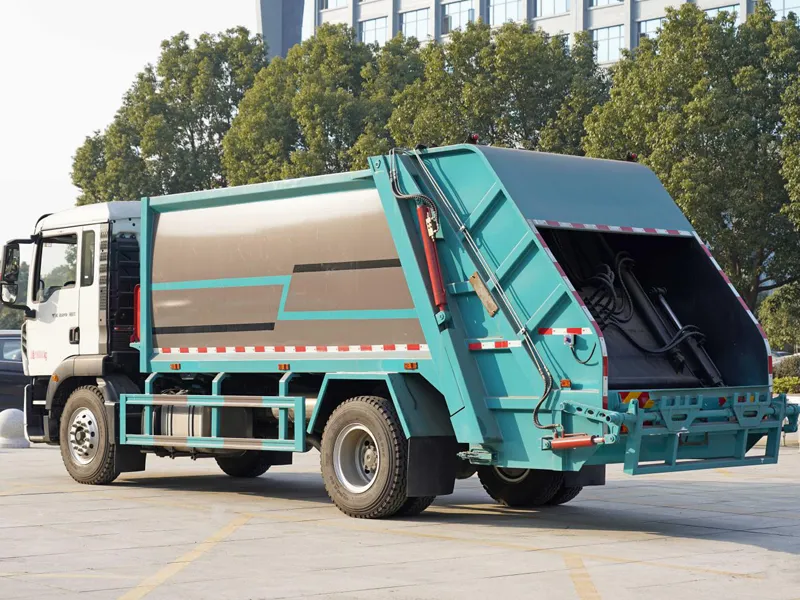

Sinotruk Howo 15 cbm garbage truck is ideal for municipal waste transport, offering large capacity and reliable performance for efficient operations.
Parameter Category | Detailed Specifications |
Basic Information | |
Model Number | ZZ5167ZYFK501GF1 (Standard municipal garbage transport model, customizable) |
Product Name | Sinotruk Howo 15cbm Garbage Truck (4×2 Drive, Euro 3 Emission) |
Emission Standard | Euro 3 (Compliant with ECE R49 emission regulation) |
Application | Municipal solid waste collection, residential area waste transport, industrial waste handling (non-hazardous) |
Power System | |
Engine Model | Sinotruk WD615.92E (Euro 3 diesel engine) |
Engine Power | 147 kW (199 HP) @ 2200 rpm |
Maximum Torque | 700 N·m @ 1200-1600 rpm |
Fuel Type | Diesel (API CF-4 or higher grade recommended) |
Fuel Tank Capacity | 200 L (High-strength steel tank with anti-corrosion coating) |
Load & Garbage Handling System | |
Garbage Compartment Volume | 15 m³ (Effective volume) |
Compartment Material | Q345 carbon steel (2-3 mm thick; optional 304 stainless steel for corrosion-prone areas) |
Discharge Method | Hydraulic lifting + rear-tilting (lifting angle: ≥45°; discharge time: 30-45 seconds) |
Sealing Performance | Rubber sealing strip around compartment door (prevents liquid leakage during transport) |
Loading Port | Top flip-up cover (manual/electric optional) + side feeding port (for small waste bins) |
Dimensions & Weight | |
Overall Length × Width × Height | 7600 × 2490 × 3200 mm |
Wheelbase | 3800 mm |
Curb Weight | 9800 kg |
Gross Vehicle Weight (GVW) | 16000 kg |
Axle Load Distribution | Front Axle: 5000 kg; Rear Axle: 11000 kg (meets 4×2 drive load requirements) |
Chassis Configuration (4×2 Drive) | |
Axle Configuration | Front axle (rated load: 5 tons) + Rear driving axle (rated load: 11 tons) |
Suspension System | Front: Leaf spring (9/10 leaves); Rear: Leaf spring (12/14 leaves) |
Tire Specification | 10.00R20 16PR (Radial tubeless tires; 6 tires total + 1 spare tire optional) |
Braking System | Full air brake + ABS (Anti-lock Braking System) + Handbrake (spring-loaded parking brake) |
Steering System | Hydraulic power steering (low steering effort, suitable for urban narrow roads) |
Other Configurations | |
Operating System | Dual-control mode: In-cab electric control panel + ground manual operation (for loading adjustment) |
Safety Equipment | Reverse radar, warning lights (amber flashing), reflective strips (full-body), fire extinguisher (2kg) |
Optional Accessories | Rear-view camera, waste compaction device, automatic bin lifter (for 120L/240L bins) |
Warranty Period | 12 months or 20,000 operating kilometers (whichever comes first; covers engine, chassis, and hydraulic system) |
