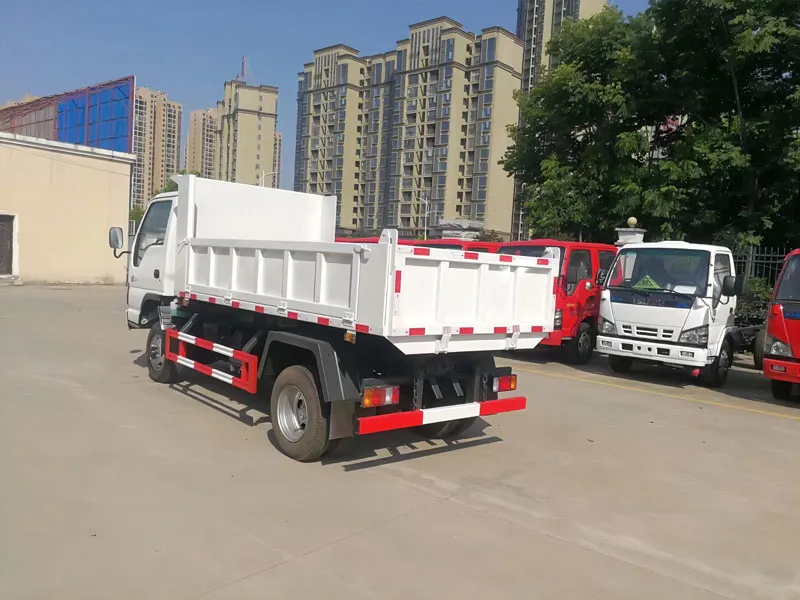

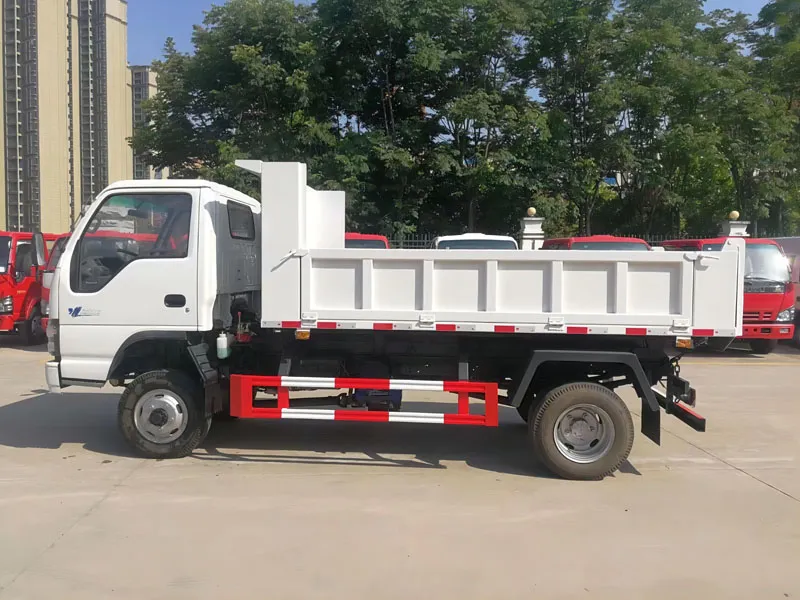

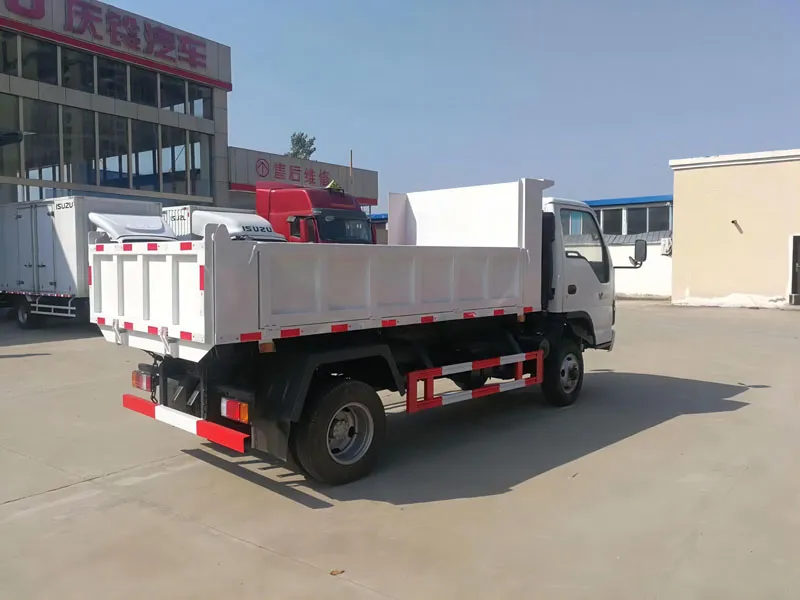

Isuzu 5-ton tipper truck features a diesel engine, manual transmission, and robust 5-ton payload. Its hydraulic tipping system enables efficient unloading, ideal for construction, logistics, and material transport tasks.
| GVW7300kg | Driving Type 4x2 | |
Model | Luke5073ZLJQ | |
Cab | ISUZU 600P cab, tilted,air con | |
Engine(Hp) | 130 | |
Power(Kw) | 96 | |
Wheelbase | 3360 | |
Front/Rear Suspension | 1015/1345 | |
Steering | Power steering | |
Approach/departure angle | 24/20 | |
Wheels & tire | 7.00R16 | |
Tire number | 6+1 | |
Tank Dimensions(mm) | 3600×1800×400 | |
Cubage (m3) | 4 | |
Steel thickness | Side 3 ,Bottom 4 | |
RHD or LHD | LHD | |
Overall Dimensions(mm) | 5720×1900×2300 | |
Curb weight (Kg) | 3500 | |
Engine | Model | 4KH1CN5HS |
Horsepower | 130 | |
Maximum output Kw | 96 | |
Maximum torque N.m | 290 | |
Type | 4 cylinders, in-line,4-stroke ,turbo inter-cooling, high pressure common rail, DOC ,diesel engine | |
Displacement | 2.999L | |
ISUZU brand, Euro 5 | ||
Driving passenger | 2 | |
Transmission | ISUZU MSB 5 speed forward and one reverse, manual | |
Front Axle | 2-2.5T | |
Rear Axle | 4.8T | |
Brake System | oil brake | |
Color and LOGO | customized | |
Electric system | 24V | |
Standard configuration | The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 3mm, bottom 4mm. | |
Delivery date | Within 40 days after receipt advance | |
Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |
