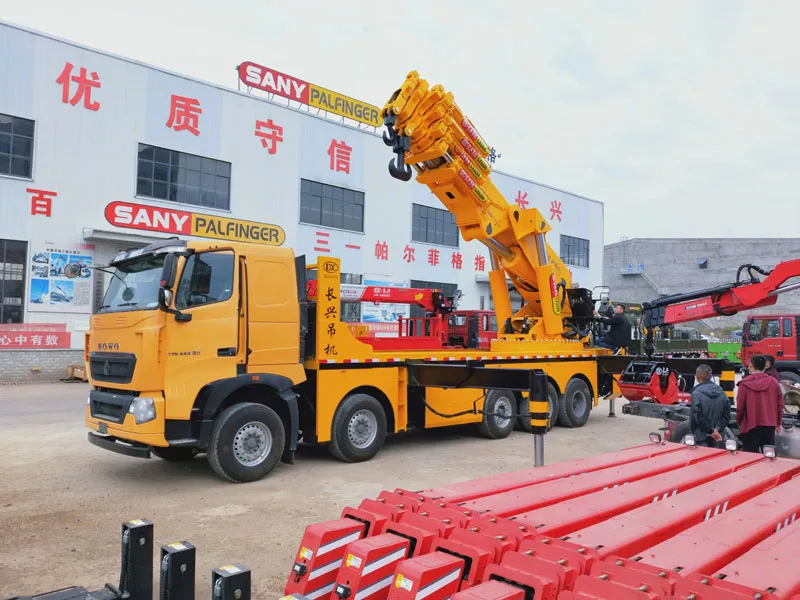

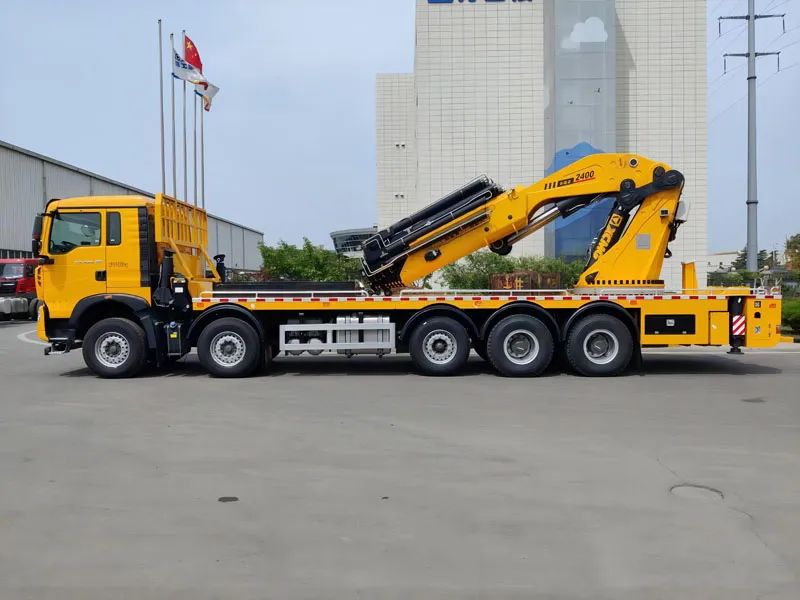

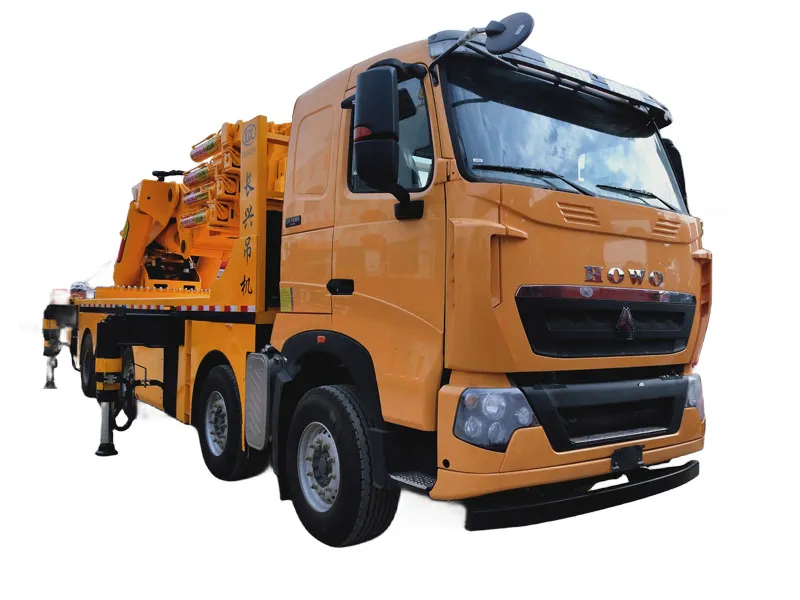

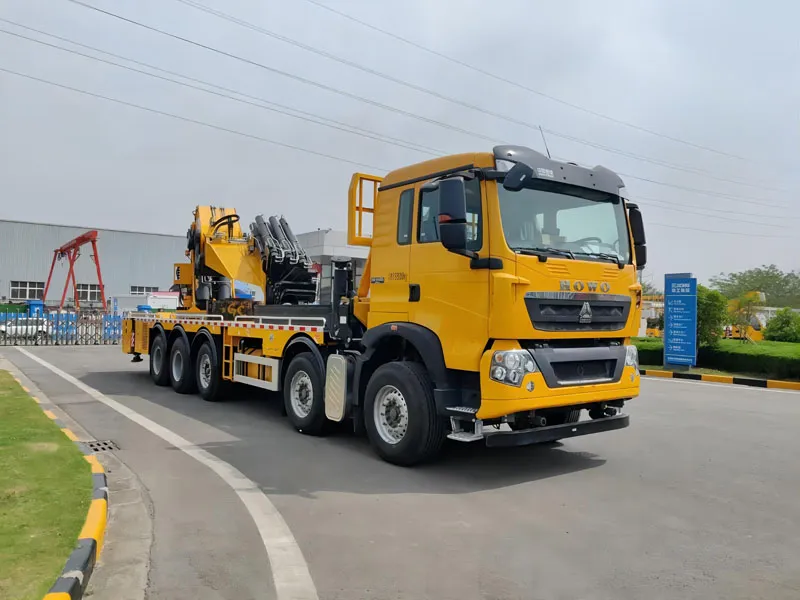

Sinotruk 140-ton truck with crane delivers exceptional lifting capacity and stability, making it perfect for large-scale engineering, infrastructure, and oversized cargo handling.
Parameter Item | Specific Configuration |
Chassis Brand | Sinotruk HOWO |
Drive Configuration | 8×4 (Multi-axle drive, ensuring heavy-load passability) |
Engine Power | 440 hp (Sinotruk MC series engine, with sufficient power) |
Transmission | Fast 12-speed manual transmission (or automatic transmission, optional on demand) |
Wheelbase | Example: 1800+3200+1350 mm (slightly adjusted for different vehicle models) |
Tire Specification | 12.00R20 steel-belted radial tire (enhancing load-bearing and wear-resistant performance) |
Parameter Item | Specific Configuration |
Crane Brand | XCMG |
Model | SQS2400 |
Maximum Lifting Moment | 2400 kN·m (core indicator for heavy-load hoisting) |
Maximum Lifting Capacity (Short Distance) | Approximately 50 tons (hoisting capacity when the boom length is short) |
Working Radius Range | 3-25 meters (covering operating distances for multiple scenarios) |
Number of Boom Sections | 5 main folding booms + 1 auxiliary boom (flexible luffing) |
Slewing Angle | 360° full slewing (no dead angle in operation) |
Operation Method | Wireless remote control + manual operation in the control cab (dual protection) |
Parameter Item | Specific Configuration |
Crane Brand | Changxing |
Model | Changxing XXX Type (e.g., 100-ton customized model) |
Maximum Lifting Moment | Customized on demand (e.g., 2000 kN·m class) |
Maximum Lifting Capacity (Short Distance) | Approximately 40 tons (calibrated according to design) |
Number of Boom Sections | Multi-section folding boom (e.g., 5 sections, meeting complex working conditions) |
Slewing Angle | 360° continuous slewing |
Operation Method | Wireless remote control + manual operation |
Parameter Item | Specific Configuration (Example value, subject to official announcement) |
Overall Vehicle Dimensions (Length × Width × Height) | 13000×2550×3990 mm (slightly adjusted for different configurations) |
Curb Weight | Approximately 30-35 tons (matching the crane and chassis) |
Gross Vehicle Weight | Approximately 49-50 tons (meeting regulatory heavy-load requirements) |
Outrigger Type | Hydraulic telescopic multi-point outriggers (2 front + 4 rear layout, enhancing stability) |
Maximum Outrigger Span | ≥7 meters horizontally, ≥5 meters vertically (ensuring the support range during heavy-load hoisting) |
Configuration Item | Specific Description |
Hydraulic System | High-pressure hydraulic circuit (pressure up to 25-30 MPa), equipped with balance valves and hydraulic locks (preventing falling/leakage) |
Safety Devices | Overload protection valves (preventing damage from overloading), high-pressure hose explosion-proof devices (improving operational safety) |
Accessory Expansion | Optional hooks, grabs, aerial work baskets, etc. (adapting to different operating scenarios) |
