Dongfeng 5,000 L fire truck features a 5,000 L water tank, a stable chassis, a high-efficiency pump (≥30 L/s), and a monitor with a range of ≥45 m, making it ideal for urban and industrial fire suppression and emergency rescue.
| GVW | Driving Type 4x2 | |
Model | Dongfeng | |

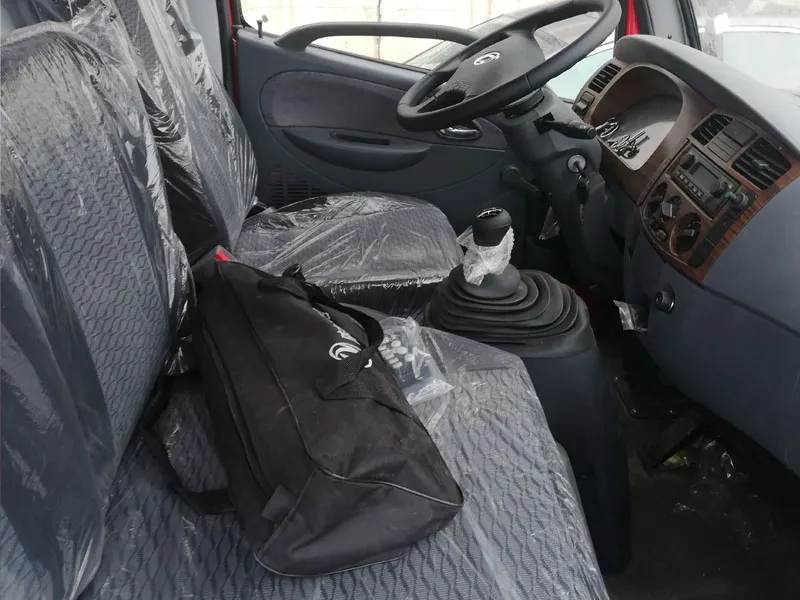

Cab | Dongfeng Duolika single row cab, tilted, air con | |
Engine(Hp) | 115(diesel) | |
Power(Kw) | 85 | |
Wheelbase | 3800 | |
Front/Rear Suspension | 1040/1892 | |
Steering | Power steering | |
Approach/departure angle | 24/15 | |
Wheels & tire | 7.50R16 | |
Tire number | 6+1 | |
Tank Dimensions(mm) | 2000×1600×1580 | |
Cubage (m3) | 5 | |
Steel thickness of tank(mm) | 4 | |
RHD or LHD | LHD | |
Overall Dimensions(mm) | 5800×2000×2450 | |
Curb weight (Kg) | 3250 | |
Engine | Model | Yunnei |
Horsepower | 115 | |
Maximum output Kw | 85 | |
Maximum torque N.m | 220 | |
Type | 4 cylinders, in-line, 4-stroke, diesel engine | |
Displacement | 2.7L | |
Dongfeng brand, Euro 3 | ||
Driving passenger | 2 | |
Transmission | 5 speed forward and one reverse, manual | |
Front Axle | 2.5T | |
Rear Axle | 4.5T | |
Brake System | Gasl brake | |
Color and LOGO | customized | |
Electric system | 12V | |
Tank material | Carbon steel | |
Standard configuration | The tank of the fire engine has a volume of 5000 liters. The tank is made of high-quality steel plates and has undergone high-tech anti-corrosion treatment inside. There is 1 manhole with a quick locking and opening device. There is 1 liquid level indicator, 1 sewage outlet equipped with a stainless steel ball valve, and 2 water filling ports (one on the left and one on the right). The fire pump has a flow rate of 20 liters per second. The equipment racks inside the vehicle compartment are made of aluminum alloy profiles, and the interior panel is an aluminum plate that has been oxidized. A red long-row luxury warning light is installed on the top of the cab. All equipment boxes are equipped with LED lighting lamps, which are convenient for lighting during nighttime operations. The equipment on the instrument panel in the pump room includes a liquid level gauge, a tachometer, a pressure gauge, a vacuum gauge, the lighting switch for the equipment boxes, etc. There are English labels next to all control handles, switches, and indicator lights. | |
Delivery date | Within 20 days after receipt advance | |
Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |
