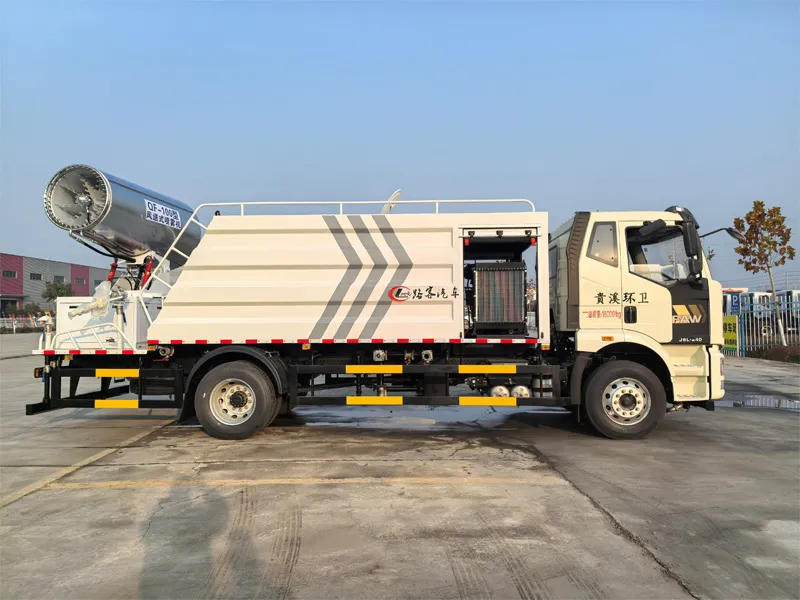

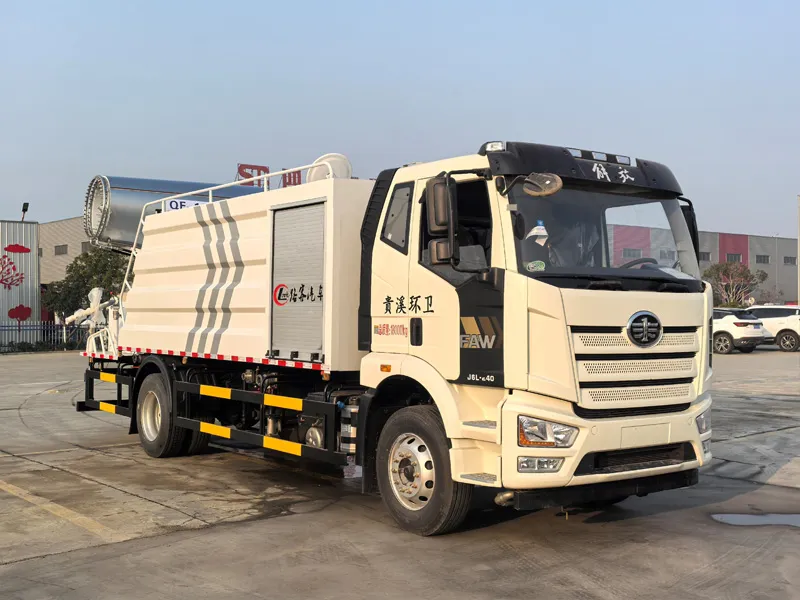

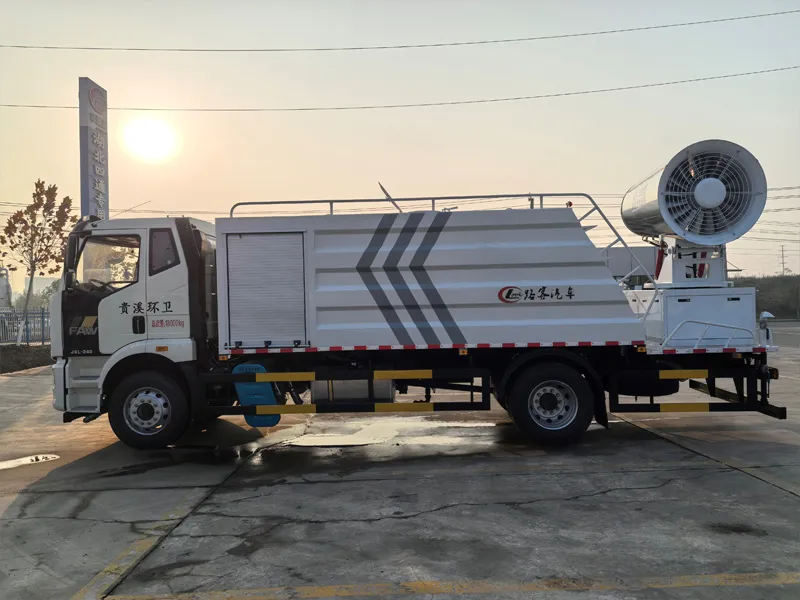

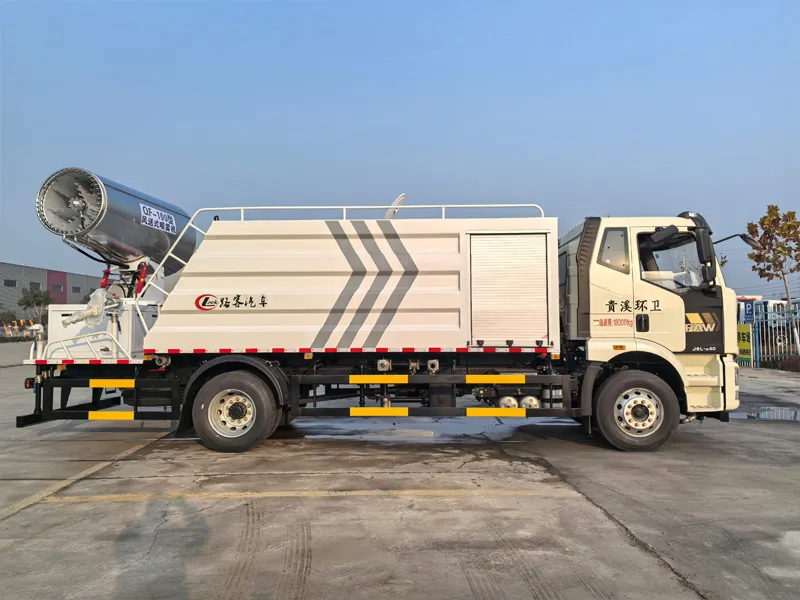

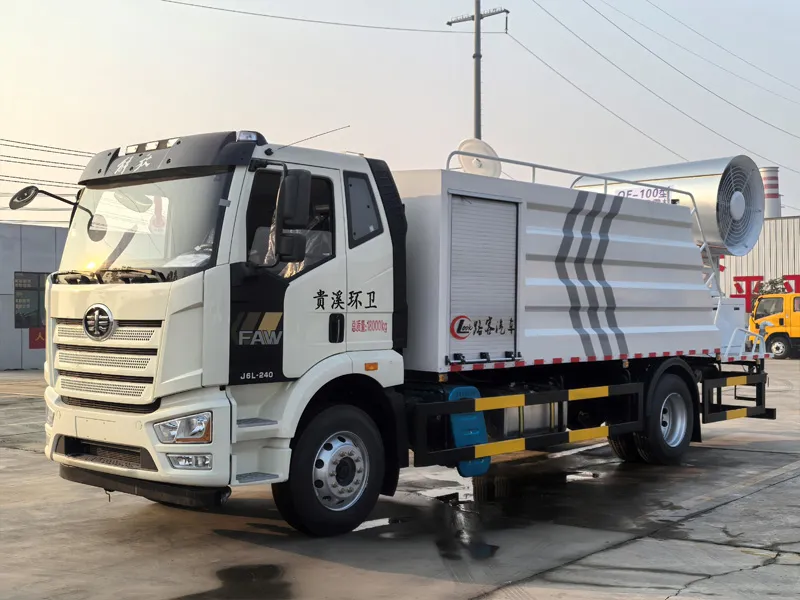

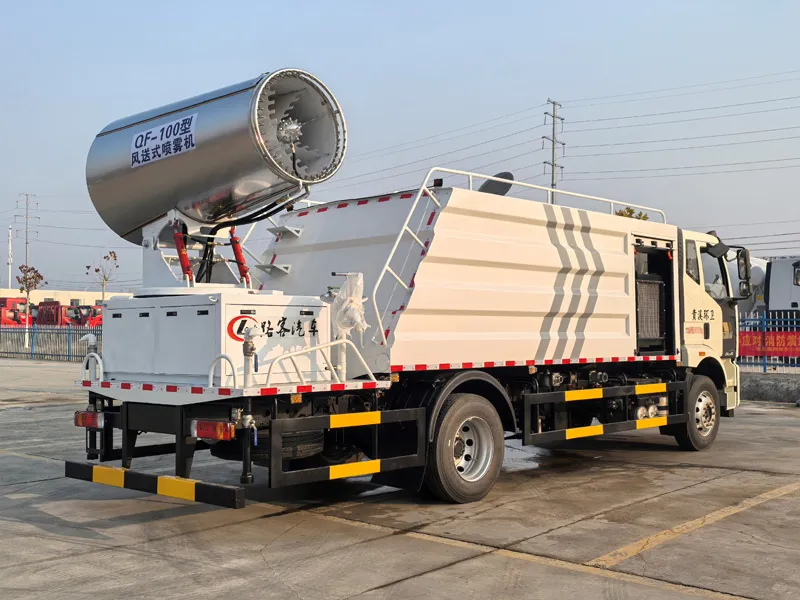

Jiefang 4×2 water sprinkler trucks are used for dust suppression in cities or construction sites.
| Parameters of Jiefang Single-Axle 10m³ Multi-functional Dust Suppression Truck | |||
| Product Trademark | Casal | Announcement batch | 381 |
| Product Name | Multi-functional dust suppression vehicle | Product Model | LOOK5183TDYGF6 |
| Total mass(Kg) | 18000 | Tank volume(m3) | 7.0 |
| Rated load capacity(Kg) | 6770 | External dimensions(mm) | 10200×2550×3800 |
| curb weight(Kg) | 11100 | Passenger capacity (persons) | 3 |
| Approach angle/Departure angle(°) | 17/10 | Front/Rear Suspension(mm) | 1400/2900 |
| Axle load(Kg) | 6500/11500 | Top speed(Km/h) | 89 |
| ABS Model: CM4XL; ABS Manufacturer: Changchun Ruili Kemi Automotive Electronics Co., Ltd.; Speed Limiter Installed; Speed Limiter (km/h): 89; Optional Features: Front fascia and lights are optional with the chassis; optional cab without FAW logo; optional wide bumper, foot pedals, optional body exterior, optional fog cannon style, optional passenger side duct network; Material, Connection Method, and Main Dimensions (Cross-section Dimensions and Ground Clearance) of Rear Protection Device: Side and rear protection material is Q235, connected to the vehicle by bolts; Rear protection device cross-section dimensions (width × height) 80 × 140 (mm); Rear protection ground clearance 390 mm; Special Functions and Devices: The special device of this vehicle is a dust suppression fog cannon, used for dust reduction in urban areas or construction sites; Effective tank volume is 7.0 cubic meters; Tank dimensions (length × width × height) (mm) are: ( (Top side length 3100, bottom side length 3938) × 2480 × 1718; | |||
| Chassis technical parameters | |||
| Chassis Model | CA1180P62K1L2A1E6Z | Chassis Name | Flat-head diesel truck chassis |
| Trademark Name | Liberation brand | manufacturing enterprises | China FAW Group Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| wheelbase (mm) | 5300 | Tire specifications | 10.00R20 |
| Number of leaf springs | 10/12+8 | Front wheel track(mm) | 1928 |
| Fuel types | diesel fuel | Rear wheel track(mm) | 1878 |
| Engine Model | Engine manufacturers | Displacement(ml) | power(Kw) |
| CA6DH1-26E61 | China FAW Group Co., Ltd. | 5700 | 194 |
The LOOK5183TDYGF6 multi-functional dust suppression truck is a specialized sanitation vehicle manufactured by Hubei Luke Special Vehicle Co., Ltd. The following is its detailed information:
Basic Information: Product name: Jiefang brand multi-functional dust suppression truck; chassis model: CA1180P62K1L2A1E6Z; gross vehicle weight: 18000kg; passenger capacity: 3 people; fuel type: diesel; meets emission standards.
Dimensions: Overall dimensions (length × width × height): 10200x2550x3800mm; wheelbase: 5300mm; rear track: 1878mm; rear protection ground clearance: 390mm.
Chassis Configuration: Chassis brand: Jiefang; tire specification: 11.00R20; leaf springs: 12/12+8; ABS model: CM4XL; manufacturer: Changchun Ruili Kemi Automotive Electronics Co., Ltd.; equipped with a speed limiter, limiting speed to 89km/h.
Powertrain: Can be equipped with various engines, such as FAW's CA4DK1-26E6 engine, with a displacement of 5700ml and a power output of 194kW;

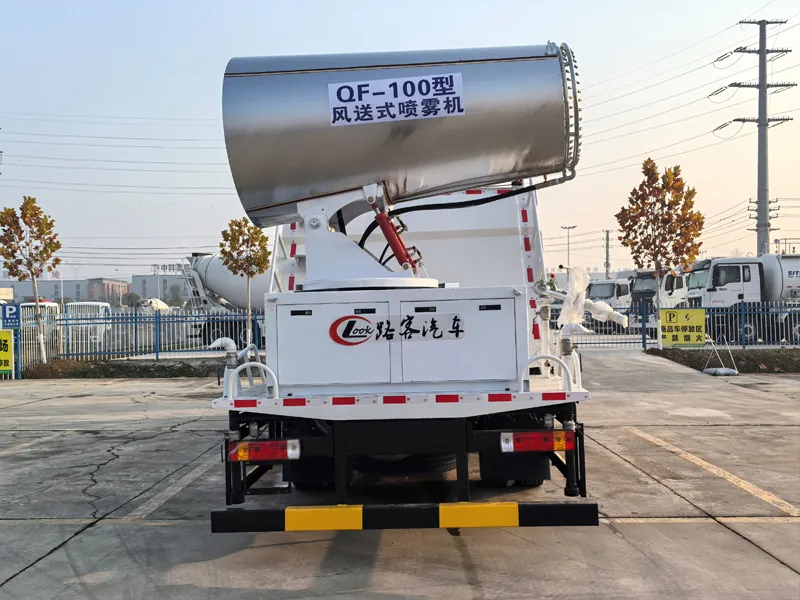

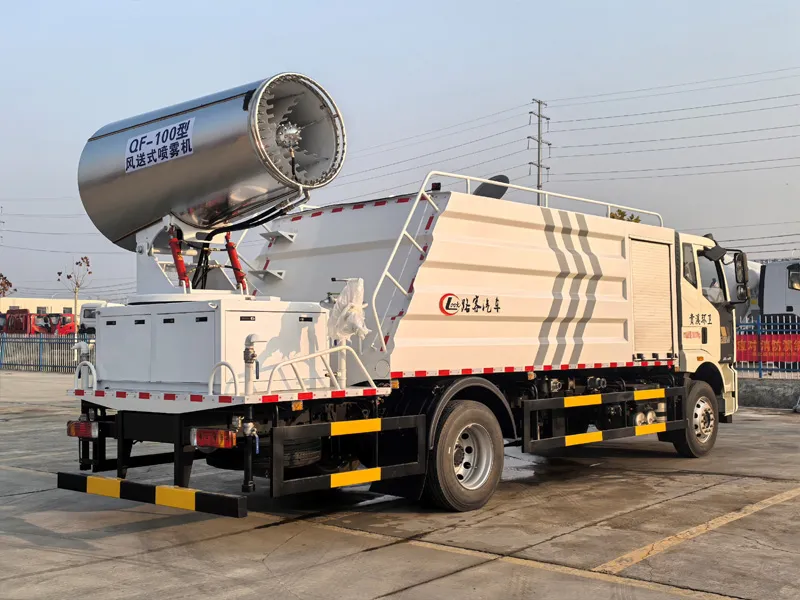

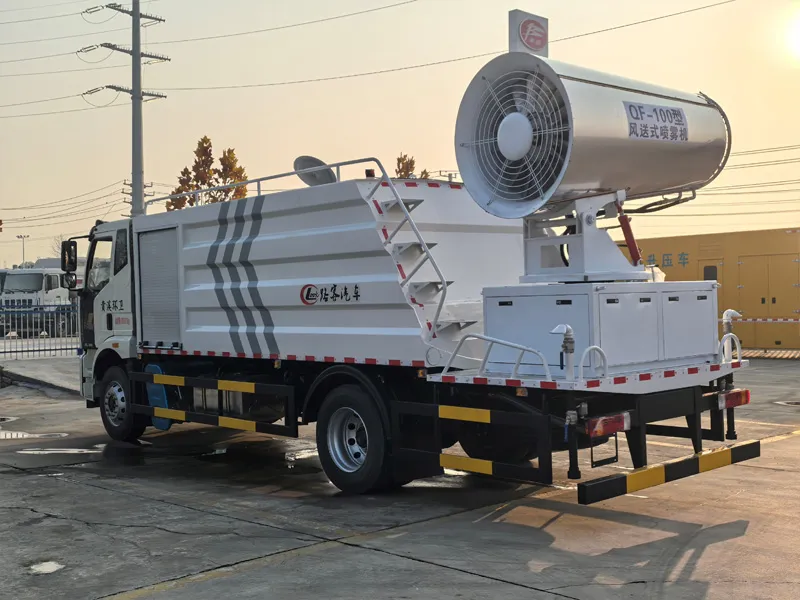

Upper Structure Configuration: The tank has an effective volume of 7.0 cubic meters, and the dedicated device is a dust suppression fog cannon for dust reduction in urban areas or construction sites. Different tank exteriors and fog cannon styles are available as options.
