The Solar Photovoltaic Panel Cleaning Truck is a specialized cleaning equipment designed, developed, and manufactured by our company to address the unique environmental conditions of desert photovoltaic power stations in China. It is primarily used for cleaning solar panels in solar power plants, enabling the washing process to be completed efficiently in a single operation. This significantly saves manual labor and water usage, making the process more time-efficient and labor-saving.

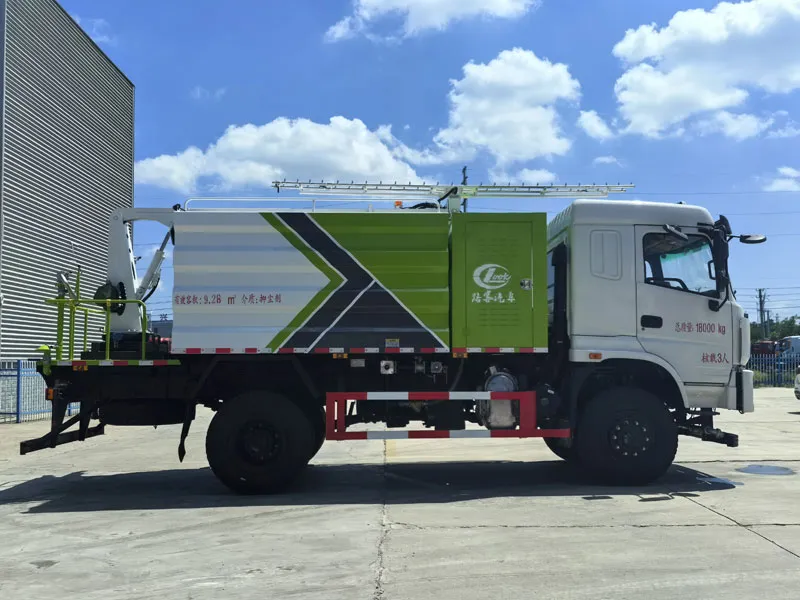

Dongfeng Four-wheel Drive Solar Photovoltaic Panel Cleaning Vehicle Parameters | |||
| Product Brand | Fengba | Announcement Batch | 379 |
| Product Name | Spray Dust Suppression Truck | Product Model | STD5180GPY |
| Total Mass (Kg) | 18000 | Tank Volume (m³) | 9.7 |
| Rated Load Mass (Kg) | 8355, 8420 | Overall Dimensions (mm) | 7570, 7840 × 2550 × 3550 |
| Curb Mass (Kg) | 9450 | Number of Passengers | 3 |
| Approach/Departure Angle (°) | 15/12 | Front/Rear Overhang (mm) | 1490/2180 |
| Axle Load (kg) | 6500/11500 | Maximum Speed (Km/h) | 89 |
| This vehicle is designed for covering and suppressing dust instantly generated at mine blasting sites to achieve dust-free blasting. The special equipment consists of a tank and a spray dust suppression device, among other components. Total tank capacity: 9.7 cubic meters, effective tank volume: 9.28 cubic meters. External tank dimensions (L × W × H) (mm): 2870 × 2520 × 1500. Side and rear protection material is Q235B; side protection is bolted to the frame; rear protection is welded. Cross-sectional dimensions (width × height) of the rear protective device: 50 × 120 (mm). The lower edge of the rear protection is 470mm from the ground. ABS system manufacturer: Dongfeng Knorr Commercial Vehicle Brake System (Shiyan) Co., Ltd. Model: ABS/ASR-24V-4S/4M.20/3/8/1/r5. The indicator lights at the rear and top are to be used only during operation and must be turned off while the vehicle is in motion. | |||
| Chassis Technical Parameters | |||
| Chassis Model | STQ2186L07Y3E6 | Chassis Name | Off-road Dump Truck Chassis |
| Brand Name | Shitong | Manufacturer | Hubei Sanhuan Automobile Co., Ltd. |
| Number of Axles | 2 | Number of Tires | 6 |
| Wheelbase (mm) | 4200 | Tire Specification | 10.00R20 18PR |
| Leaf Spring Count (Front/Rear) | 6+4/10+8 | Front Track (mm) | 1820 |
| Fuel Type | Diesel | Rear Track (mm) | 1800 |
| Emission Standard | GB17691-2018 China VI | ||
| Engine Model | Engine Manufacturer | Displacement (mL) | Power (Kw) |
| YCS06245-60 | Guangxi Yuchai Machinery Co., Ltd. | 6234 | 180 |
Our advantages:
1. The chassis is modified from the original Sanhuan Shitong four-wheel drive chassis. The 4x4 drive mode is more suitable for various harsh road conditions. The Yuchai six-cylinder 245 horsepower engine provides stronger power. The Fast eight-speed gearbox ensures smooth operation. It features a 280mm double-layer frame, a 6.5-ton wheel-reduction single front axle/13-ton wheel-reduction rear drive axle (super load-bearing capacity), a Hangzhou Gearbox transfer case designed for four-wheel drive, original air conditioning, 10.00R20 18PR steel wire tires for greater durability, a multi-function steering wheel, Bluetooth radio, and most importantly, a forklift lock. All other components are provided according to Sanhuan's factory standards.
2. Basic standards and related options for the upper body construction are shown in the table below:
| Engine Power: 57-64 KW / Optional | Nozzles: Approx. 20-40 pcs | Tank Volume: 10.8 m³ |
| Operation Mode: Hydraulic, Electric Control Drive | Water Supply System: Pinfu 170-215 | Normal Pressure Water Pump: 60-90 Type |
| Auxiliary Engine: Jiangling (Phase II) / Optional | Power Unit: 3-stage | Arrow Light: Upper rear section |
| Spray Bar Length (mm): 3300-4300 | Boom Length (mm): 4000 | Reel: Rear right side, optional |
| Adjustable Height (mm): 930-2500 | Left/Right Adjustment Angle: 270° | Anti-sinking: Hydraulic outriggers, optional |
| Spray Frame Adjustment Angle: 180° | Operating Speed (km/h): 3 km/h | Sweeping Brush: Top of tank, optional |
| Cleaning Efficiency: ≥90% (surface dust) | Water Spray Pressure (MPa): 5-22 | Filters: Air filter, oil filter, optional |
| Max. Water Flow Rate (L/min): 50-215 | Control Voltage (V): 12V/24V | Spray Bar: Single bar, optional |
| Tank Shape: Square | Tank Plate Thickness: 4 mm | Body Color: Customizable per customer request or factory standard |
3. Picture display of optional functional components, as shown below:
This configuration parameter is for reference only when purchasing a car and does not serve as the final basis for ordering. All quotations do not include optional parts! The final interpretation right belongs to our company, subject to the signing of the contract! For more inquiries about solar photovoltaic panel cleaning vehicles, please contact our Global Sales Director Peter Liu at +86 186 7222 4040.
Our solar photovoltaic panel cleaning truck is a professional cleaning equipment designed, developed, and manufactured by our company specifically for the unique environment of desert photovoltaic power stations in my country. It is mainly used to clean solar panels in solar power plants. In my country, solar power plants are primarily located in the western regions, which are rich in solar energy but sparsely populated. Therefore, the natural conditions at these plants are quite harsh. The solar panels are mainly installed along both sides of roads, making manual cleaning labor-intensive and resource-intensive. The photovoltaic panel cleaning machine can complete the cleaning of solar panels in one go, significantly saving labor and water, and saving time and effort.
The main equipment consists of a chassis walking system, a power system, a hydraulic system, a remote control system, a cleaning boom system, and a cleaning spray system.
1. Walking System: Adopting a four drive second-class chassis, it adapts to various terrains and landforms, and maximizes the stability of the vehicle when using a clean platform.
2. Power System: Employs a diesel engine, providing sufficient power for the walking system and cleaning spray system.
3. Hydraulic System: Employs advanced oil pumps, valve bodies, and valve blocks to transmit power from the diesel engine, ensuring the normal operation of the walking system and spray system.
4. Remote Control System: Utilizes advanced remote control products, enabling independent remote operation and control of the cleaning equipment.
5. Cleaning Boom System: Features rotation, lifting, secondary angle adjustment, control of spray distance, and boom lifting.
6. Cleaning Spray Function: Employs a high-pressure nozzle structure for powerful cleaning of dust adhering to the surface of photovoltaic modules.
1. The photovoltaic panel cleaning truck consists of a tank, robotic arm, water pump, and nozzles, all integrated into one unit. The robotic arm can rotate 180° on one side. All operations are completed from the driver's cab. It is powered by electro-hydraulic and pneumatic systems.
2. High-pressure cleaning function: A high-pressure cleaning pump delivers the cleaning support frame, which is then moved to the working position by the robotic arm. The robotic arm can rotate, lift, and adjust to different angles, making it flexible and convenient to use.
1. To achieve the desired cleaning effect, a two-stage reduction gear is installed on the four-wheel drive chassis transmission. During operation, the reduction gear is activated from the cab, allowing the vehicle to move forward at a low and constant speed.
2. Tank shape: Square tank, volume 10.8 cubic meters, tank body made of carbon steel plate, 4 mm thick, tank color: (chassis color) or user-specified color.
3. Dual spray boom design, cleaning support set at approximately 3-4 meters in length, equipped with approximately 20 high-pressure nozzles.
4. The main cleaning boom can be electrically controlled from the cab. The entire machine uses a 270° rotating base, allowing for all-around, no-dead-angle cleaning of the photovoltaic panels.
1. High cleaning efficiency, approximately 10 times faster than manual cleaning.
2. Assuming each truck can clean 700KWp of polycrystalline silicon solar panels per hour, covering an area of 4800㎡.
3. Assuming each truck cleans for 3 hours per day, it can clean 2100KWp of polycrystalline silicon solar panels daily.
4. Can complete the cleaning of solar panels in one operation, significantly saving labor and water, saving time and effort.
5. This vehicle consists of a power-driven rotating cleaning arm device with an adjustable angle, and has all the major functions of a water sprinkler truck. It is equipped with a high-power high-pressure water cannon and is suitable for cleaning photovoltaic panels under various harsh weather conditions.
