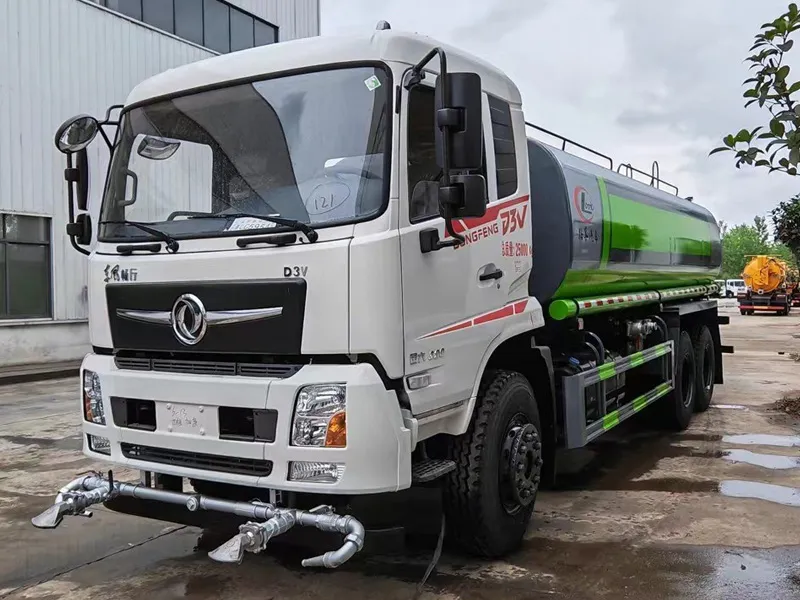

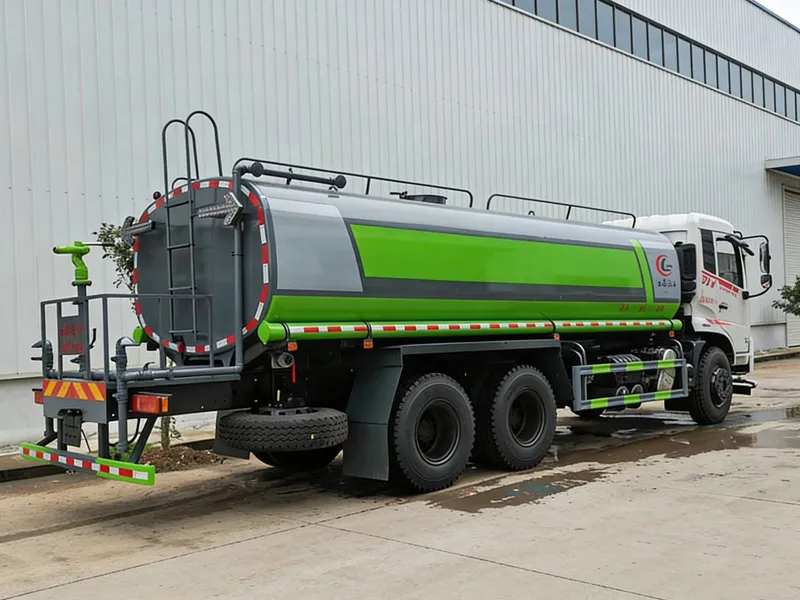

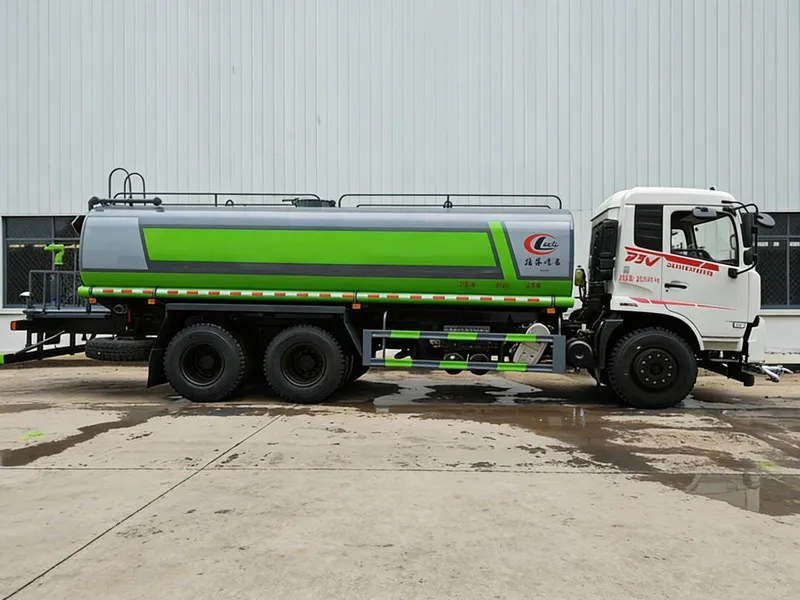

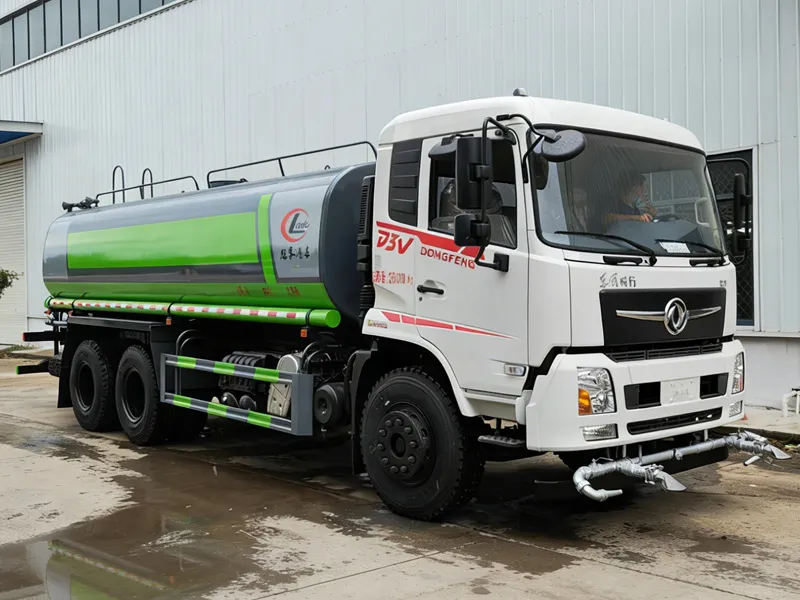

The 20-cubic-meter Dongfeng 6×4 multi-functional water tanker is mainly used for large-scale watering and dust suppression and greening irrigation in scenarios such as dust reduction on urban main roads, watering on highways, dust suppression at large construction sites, and haze removal in mining areas. It is the main vehicle for sanitation operations.
| Technical Specifications of Dongfeng Rear Dual-Axle Water Tanker Truck | |||
| Product Name | Green spray truck | Product Model | KLF5250GPSD6 |
| Total mass(Kg) | 25000 | Tank volume(m3) | 15.58 |
| Rated load capacity(Kg) | 14670 | External dimensions(mm) | 11150×2550×3450 |
| curb weight(Kg) | 1.02001E+14 | Passenger capacity(人) | 3 |
| Approach angle/Departure angle(°) | 23/9 | Front/Rear Suspension(mm) | 1440/2610 |
| Axle load(Kg) | 7000/18000(Two-axis assembly) | Top speed(Km/h) | 89 |
| 1. This vehicle is mainly used for landscaping. Its main specialized equipment includes a water tank and spray assembly. Optional features include a mist cannon, a rear platform, and different piping styles. The total tank capacity is 15.58 cubic meters. Options include a cab, fuel tank, urea tank, battery, air tank installation location, rear platform piping style, mist cannon style, square hose box, high-level shower, water cannon style, ladder handrail style, front-mounted duckbill nozzle, high-level shower, rear counter-spray style, pneumatic valve, toolbox, front-mounted duckbill valve style, arrow light style, duckbill ball valve installation location, mist cannon style, electronic water cannon style, high-pressure water cannon style, side spray style, and rear arrow lights. | |||
| Chassis technical parameters | |||
| Chassis Model | DFV1253GP6DJ | Chassis Name | Cargo truck chassis |
| Trademark Name | Dongfeng brand | manufacturing enterprises | Dongfeng Commercial Vehicle Xinjiang Co., Ltd. |
| Number of axes | 3 | Number of tires | 10 |
| wheelbase (mm) | 4350+1350 | Tire specifications | 11.00-20 16PR |
| Number of steel plates | 9/10 | Front wheel track(mm) | 2040 |
| Fuel types | diesel fuel | Rear wheel track(mm) | 1860 |
| Emission standards | GB17691-2018 Country VI | ||
| Engine Model | Engine manufacturers | Displacement(ml) | power(Kw) |
| D6.7NS6B320 | Dongfeng Cummins Engine Co., Ltd. | 6700 | 231 |
The 20-cubic-meter water tanker truck is a specialized vehicle integrating water spraying and dust suppression functions. With a tank volume of 20 cubic meters, it is widely used in road dust control, landscaping, disinfection, and other fields. The following is an introduction to the Dongfeng rear dual-axle water tanker truck:
Chassis Configuration: Diesel engine, Shaanxi Fast gearbox, 4350+1350mm wheelbase, 11.00R16 steel radial tires, air brakes, power steering, equipped with a Dongfeng Huashen 2075 single-row cab with tilting mechanism.
Upper Structure Configuration: The tank body is made of 5mm carbon steel plate with internal anti-surge baffles. The vehicle comes with a dedicated water pump with a maximum vertical suction lift of 6 meters and a spraying width of 14 meters. A high-pressure water cannon for landscaping is installed on the rear working platform; it can rotate 360 degrees and the mist spray is adjustable.
