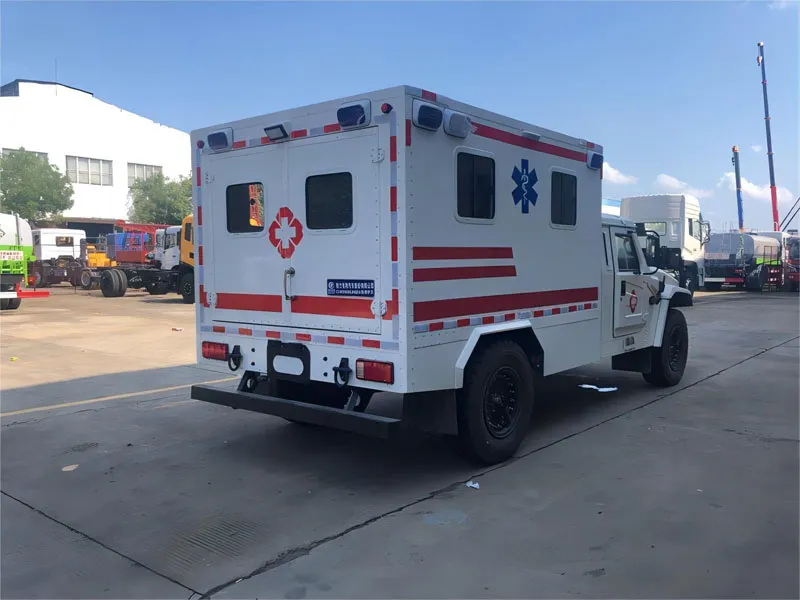

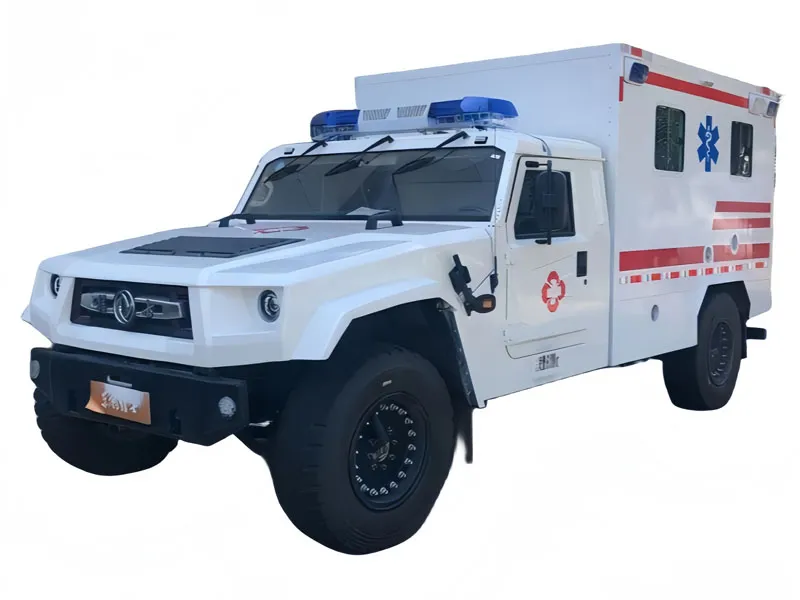

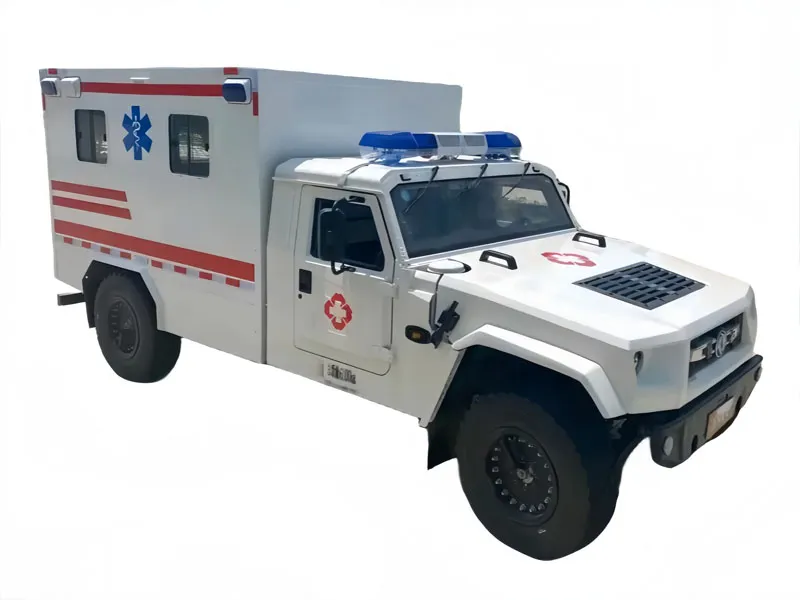

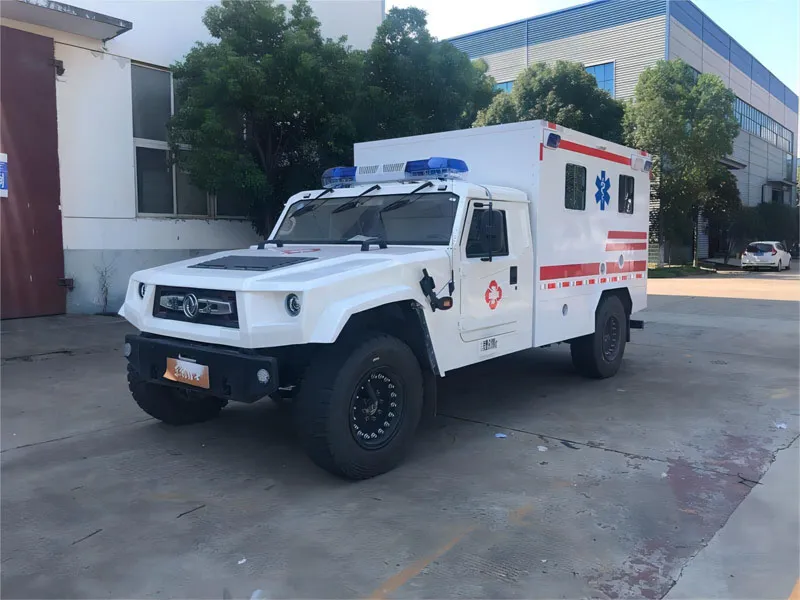

Dongfeng All-Terrain Ambulance offers excellent off-road capability, equipped with oxygen supply and UV disinfection for harsh-terrain emergencies.
No. | Item | Specification |
1 | Vehicle Dimension (mm) | 5320X2310X2482 |
2 | Engine Model | EQ2063EYY6J |
3 | Wheelbase (mm) | 3800 |
4 | Emission Standard | GB17691 - 2018 National Ⅵ |
5 | Front Track | 1880 |
6 | Rear Track | 1850 |
7 | Tire | 305/80R18 |
8 | Air Conditioner | Front & rear ** air conditioners |
9 | Transmission | 5MT |
10 | Drive Mode | 4WD (Four - Wheel Drive) |
11 | Number of People | 6 persons |
12 | Fuel | Diesel |
13 | Displacement | 4000ml |
14 | Power | 143Kw |
No. | System/Assembly | Details |
1 | Appearance Identification | 1. Emergency Identification 2. Appearance Stripes: Refer to Announcement Pictures |
2 | ** Indication System | 1. 100W Siren & Handheld 2. Strip-type Installed on the Front of Roof 3. Strobe Lights on Left & Right Sides 4. Rear Strobe Light 5. Rear Scene Illumination Light |
3 | Oxygen Supply System | 1. 1 Oxygen Inhalator 2. 1 Set of Hidden Oxygen Pipeline 3. 2 10L Oxygen Cylinders (with Pressure Reducing Valve) 4. 2 International Oxygen Outlets |
4 | Air Conditioning System | 1. Original Air Conditioner in Driving Cabin 2. High-power Cooling & Heating Air Conditioner in Medical Cabin |
5 | Lighting System | 1. 4 Ceiling-Mounted Lighting Lamps |
6 | Sterilization System | 1. 1 Ultraviolet Sterilization Lamp |
7 | Stretcher System | 1. 1 Automatic Loading Stretcher Frame 2. Stretcher Cushion & Baffle |
8 | Power Supply System | 1. 1 500W Inverter 2. 2 220V Power Sockets |
9 | Floor Assembly | 1. Environmentally Friendly & Corrosion-Resistant Compressed Wood Floor 2. Medical-grade Anti-corrosion Floor Mat (with flame retardancy, anti-slip, mildew resistance, easy cleaning, corrosion resistance, acid & alkali resistance, etc.) |
10 | Partition Assembly | High - molecular Partition Wall (with a movable window at the upper middle part) |

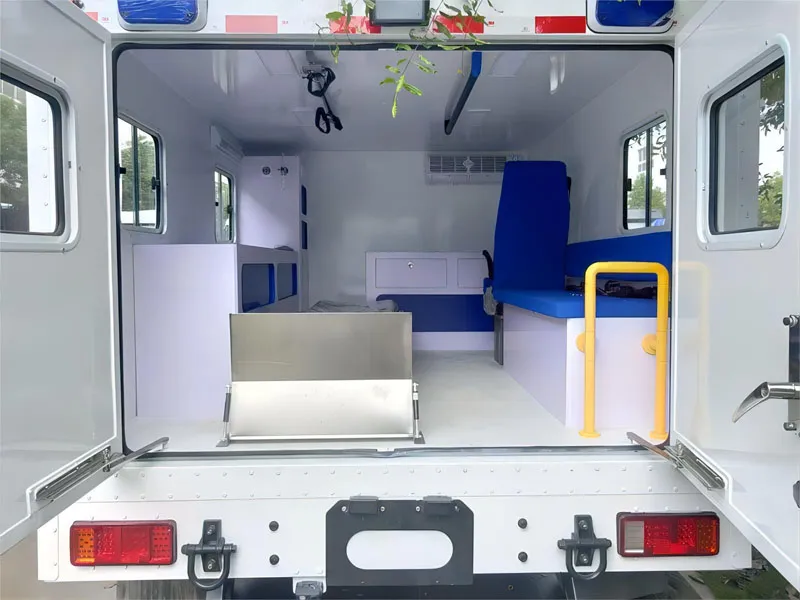

11 | Operating Cabinet Assembly | 1. 1 Cabinet for 10L Oxygen Cylinder (front left of medical cabin) 2. Combined Cabinet for Common Drugs & Instruments (on left long strip) 3. Small Cabinet (behind the partition) 4. 1 Forward-facing Seat (right side of medical cabin) 5. 2 - person Long Bench Seat & Safety Belts (rear right) |
12 | Others | 1. 1 Fire Extinguisher (in rear cabin) 2. 2 Infusion Bottle Hangers 3. 1 Contaminated Material Bucket |
