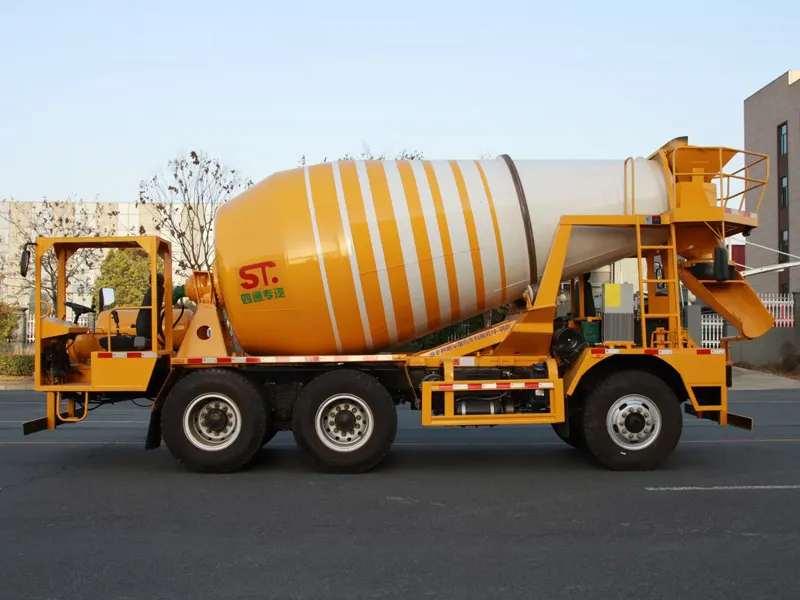

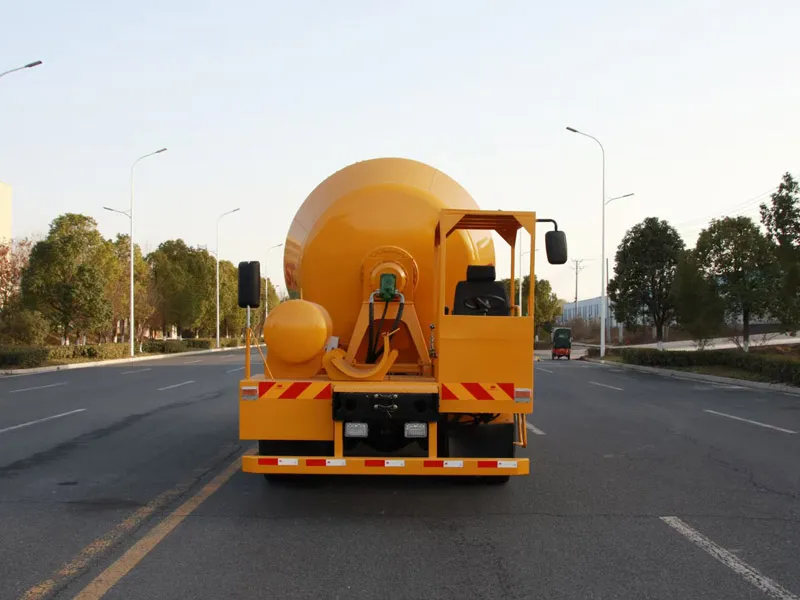

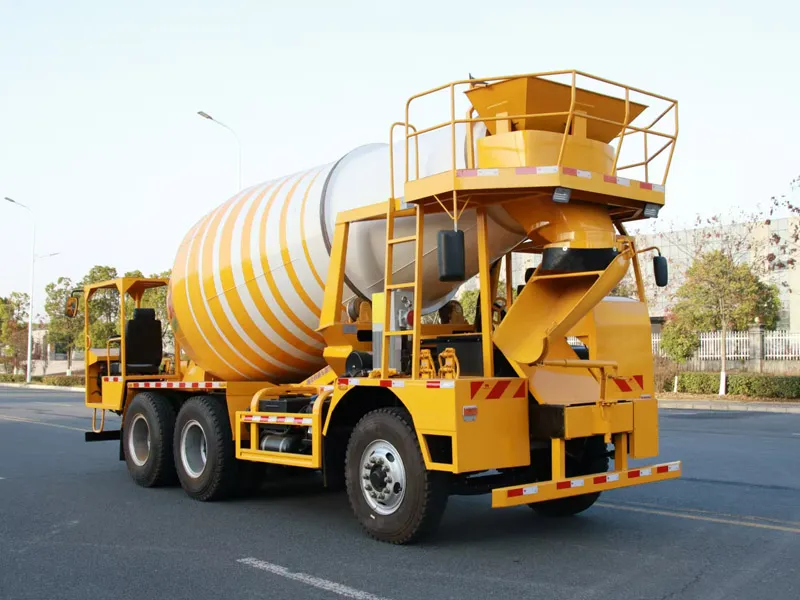

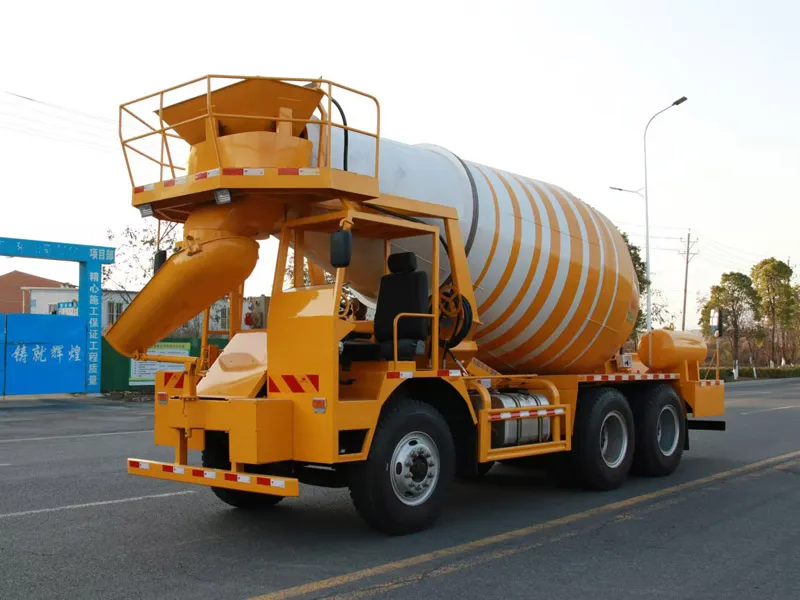

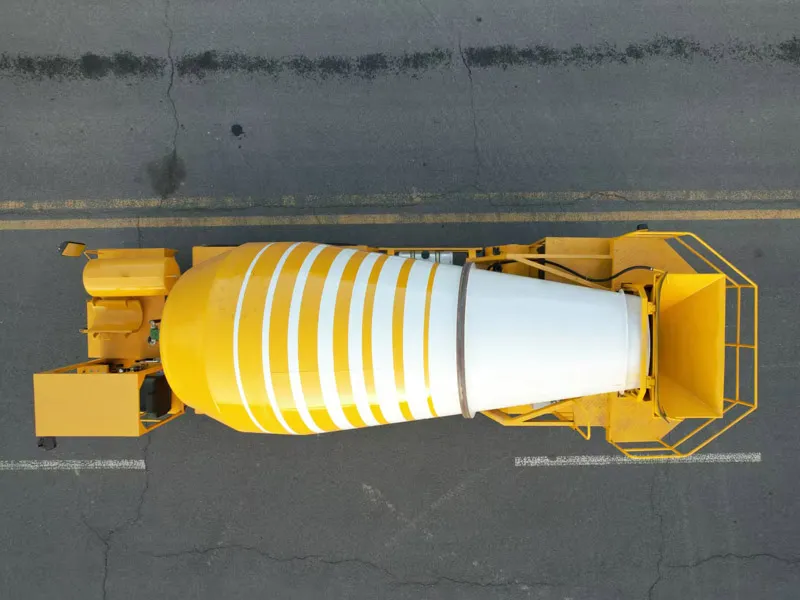

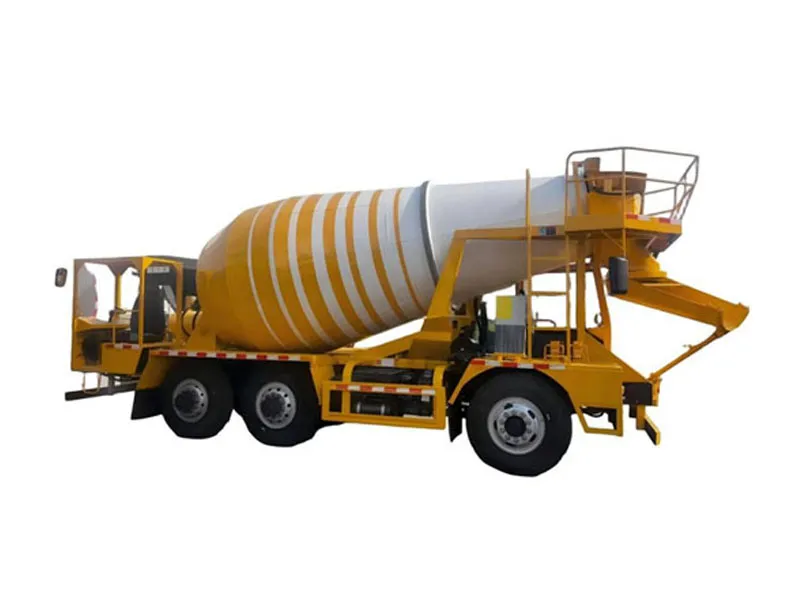

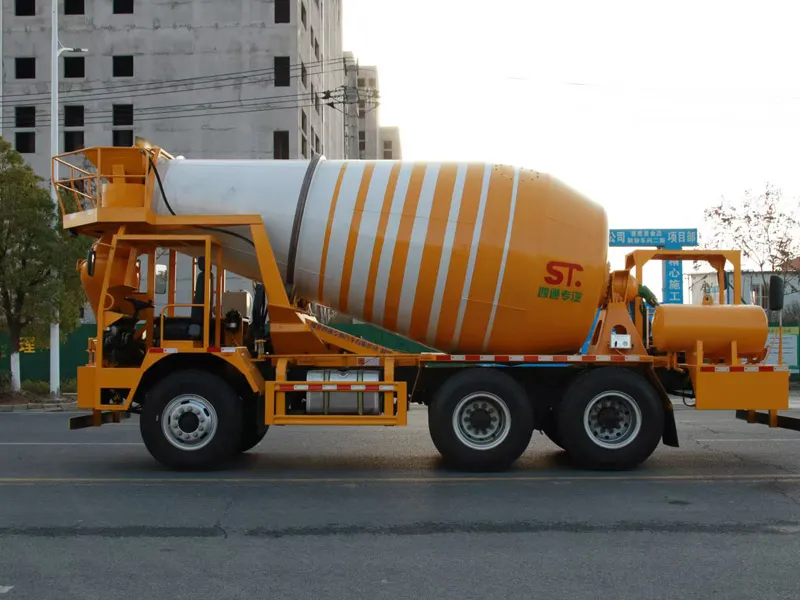

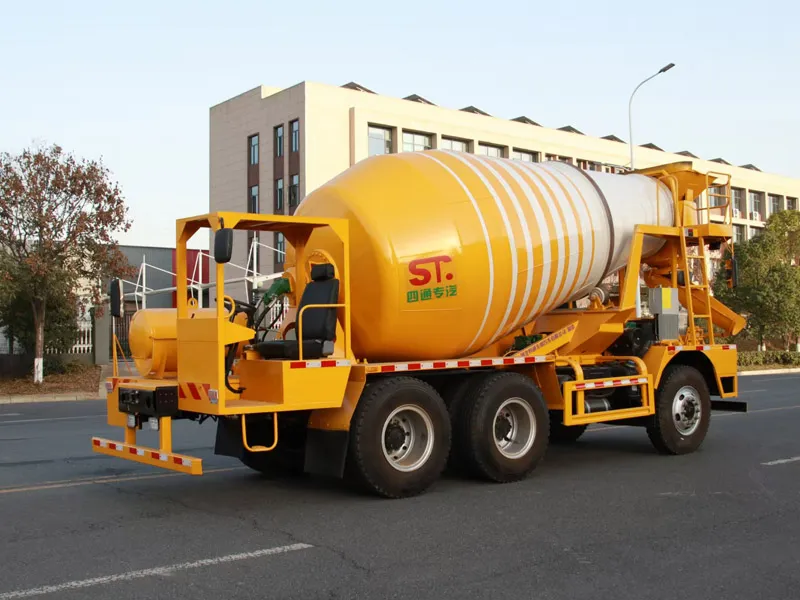

A two-way drive concrete mixer truck can move both forward and backward, allowing flexible operation in confined construction areas. It efficiently mixes, transports, and discharges concrete, enhancing on-site productivity.
Category | Parameter | Specification |
Chassis & Power | Drive Type | 6×4 (Four front wheels & eight rear wheels) |
Engine | Yuchai 245HP (National VI) / Dongfeng Cummins 300HP (National V) | |
Transmission | Fast 8-speed (with high/low speed) | |
Wheelbase | 1850 + 3000 mm (Lightweight design) | |
Mixing Drum | Volume | 8 m³ (Actual loading: approx. 7.7–8 m³) |
Material | High-strength wear-resistant alloy steel (6mm drum + 5mm blades) | |
Discharging Performance | Supports 180° rotating discharging; residue rate ＜ industry standard | |
Hydraulic System | Key Components | Reducers & hydraulic pumps from international brands (Germany ZF, Italy PMP, etc.); high stability |
Application & Advantages | Narrow Space Adaptability | Two-way driving for tunnels/rails; reduces turnaround time; curb weight 11.8t boosts legal loading |
Efficient Transportation | Drum speed adjustable (8–23 r/min) for diverse mixing needs; standard cleaning system (15m hose + pneumatic water supply) for easy maintenance |
