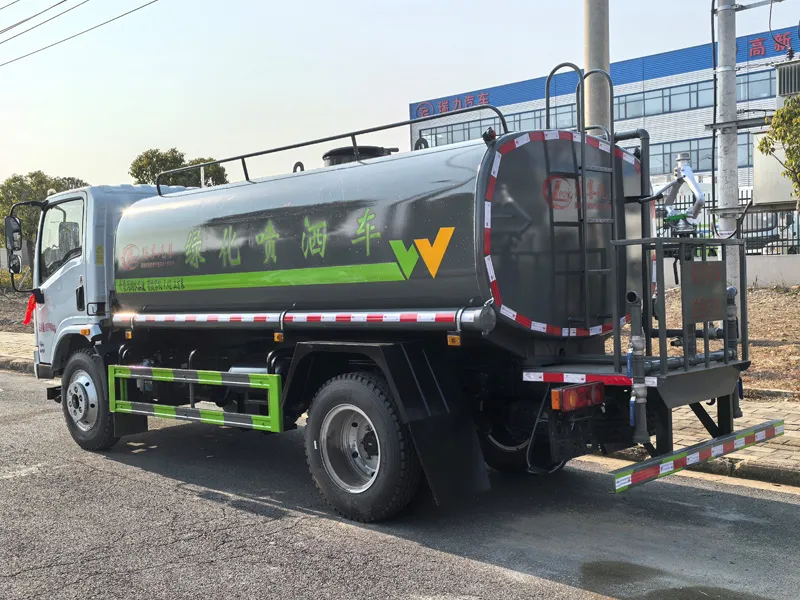

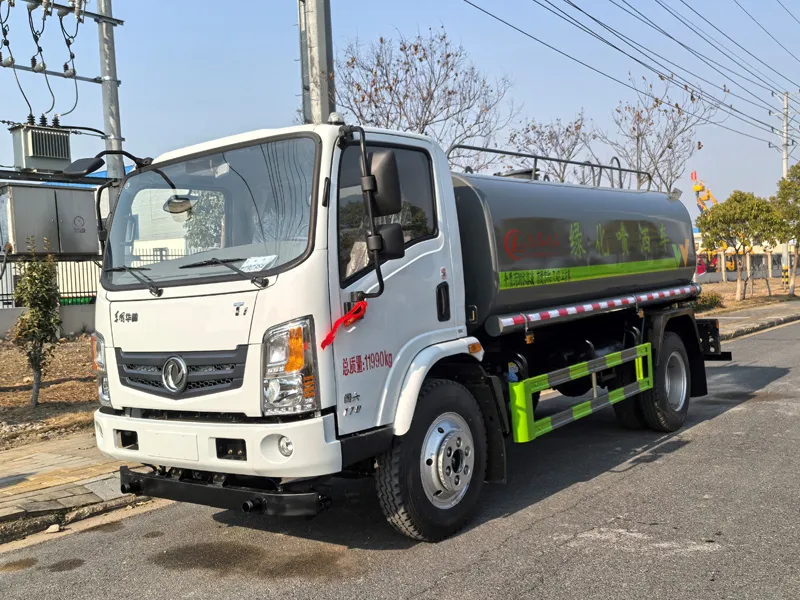

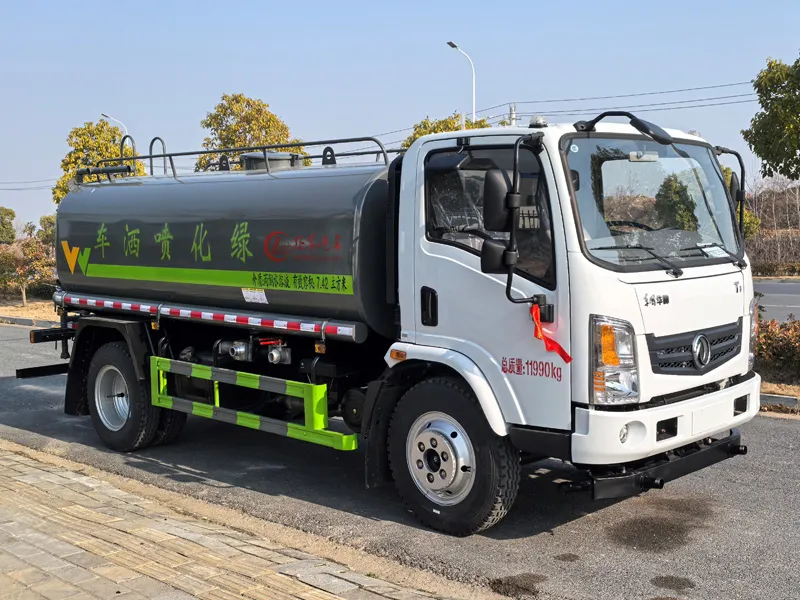

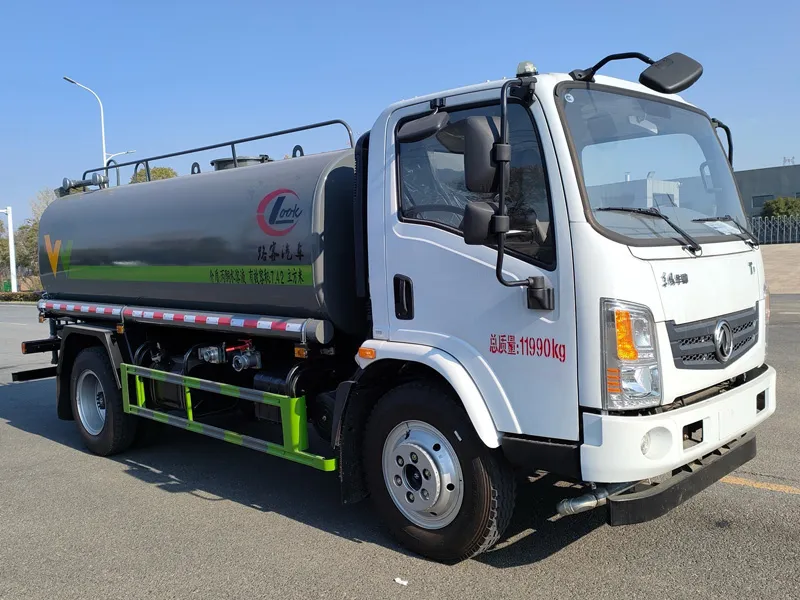

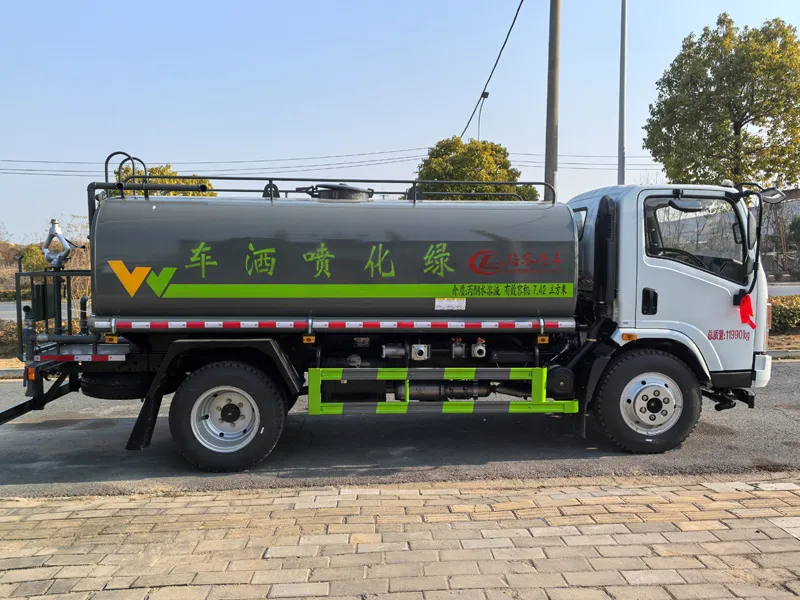

The 9-cubic-meter Dongfeng Huashen sprinkler truck is mainly used for large-scale watering and dust suppression and greening irrigation in scenarios such as urban main roads, highway watering, large construction site dust suppression, and mining area haze removal. It is the main vehicle for sanitation operations.
| Dongfeng Huashen 9-cubic-meter sprinkler truck technical parameters | |||
| Product Name | sprinkler | Product Model | LOOK5120GSSE6 |
| Total mass(Kg) | 11990 | Tank volume(m3) | 7.63 |
| Rated load capacity(Kg) | 7340 | External dimensions(mm) | 7850×2500×3800 |
| curb weight(Kg) | 4520 | Number of passengers allowed in the driver's cab (persons) | 3 |
| Approach angle/Departure angle | 17/21 | Front/Rear Suspension(mm) | 1220/2050 |
| Axle load(Kg) | 4300/7690 | Top speed(Km/h) | 88 |
| Optional Equipment Description: Optional cab of the same series; optional installation positions for accessories such as filter, urea tank, fuel tank, battery, and air tank, depending on the chassis; optional cab with chassis; optional electronic water cannon style; optional high-level shower; optional rear counter-flushing style; optional front-mounted duckbill; optional toolbox; optional rear structure style; optional square hose box; optional front-mounted duckbill style; optional upper greening irrigation system; optional lower spray device; optional upper arc-shaped spray and special device structure; optional rear platform pipe style; optional high-pressure water cannon style; optional pneumatic valve; optional side spray style; optional rear arrow light (only used in operation); optional automatic water cannon device at the front of the cab, extending 500mm; total tank capacity 7.63 cubic meters, effective tank volume 7.27 cubic meters; tank dimensions... (Length × Major Axis × Minor Axis) (mm): 4200 × 2000 × 1300; Special Functions and Devices: This vehicle is used for road washing and watering operations. The main special devices are the tank and the water pump. | |||
| Chassis technical parameters | |||
| Chassis Model | EQ1120GL6DJ | Chassis Name | Cargo truck chassis |
| Trademark Name | Dongfeng brand | manufacturing enterprises | Dongfeng Motor Group Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| wheelbase (mm) | 3800 | Tire specifications | 8.25R20 14PR |
| Number of leaf springs | 8/10+7 | Front wheel track(mm) | 1750 |
| Fuel types | diesel fuel | Rear wheel track(mm) | 1660 |
| Emission standards | GB17691-2018 Country VI | ||
| Engine Model | Engine manufacturers | Displacement(ml) | 功率(Kw) |
| YCY30165-60 | Guangxi Yuchai Machinery Co., Ltd. | 2970 | 121 |
The Dongfeng Huashen water sprinkler truck is a specialized vehicle integrating water sprinkling and dust suppression functions. With a tank capacity of 9 cubic meters, it is widely used in road dust control, landscaping, disinfection, and other fields. The following is an introduction to the Dongfeng Huashen water sprinkler truck:
Chassis Configuration: Diesel engine, Shaanxi Fast gearbox, 3800mm wheelbase, 8.25R14 steel radial tires, air brakes, power steering, equipped with a Dongfeng Furika 1730 single-row cab with tilting mechanism.
Upper Structure Configuration: The tank is made of 4mm carbon steel plate with internal anti-surge baffles. The vehicle comes with a dedicated water pump with a maximum vertical suction lift of 6 meters and a sprinkling width of 14 meters. A high-pressure water cannon for landscaping is installed on the rear working platform; it can rotate 360 degrees and the mist spray is adjustable.
