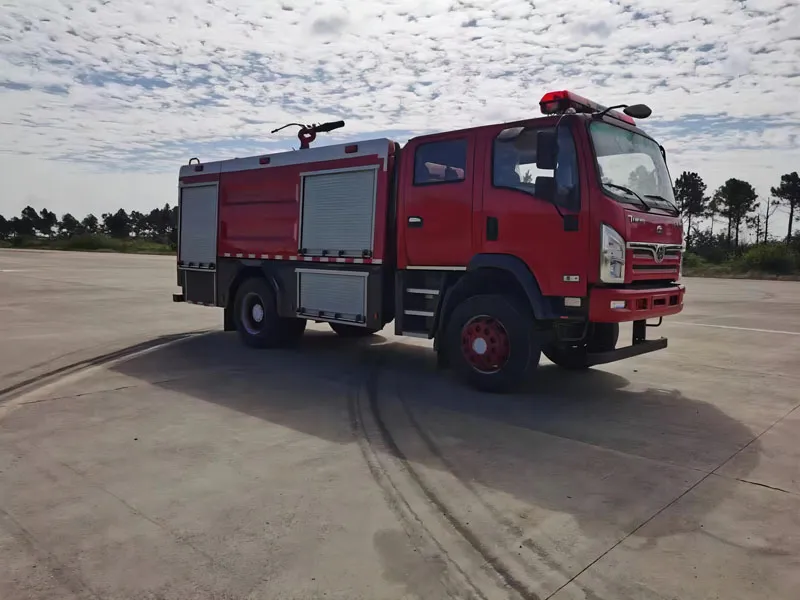

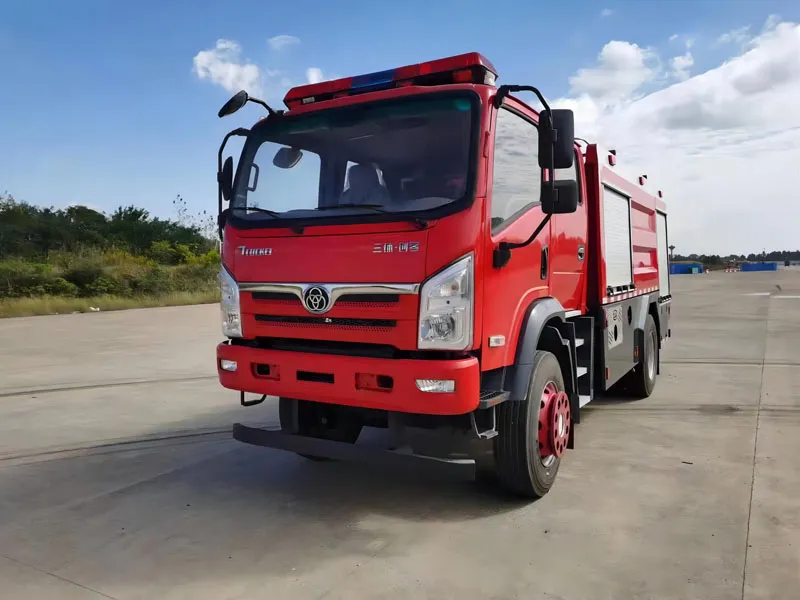

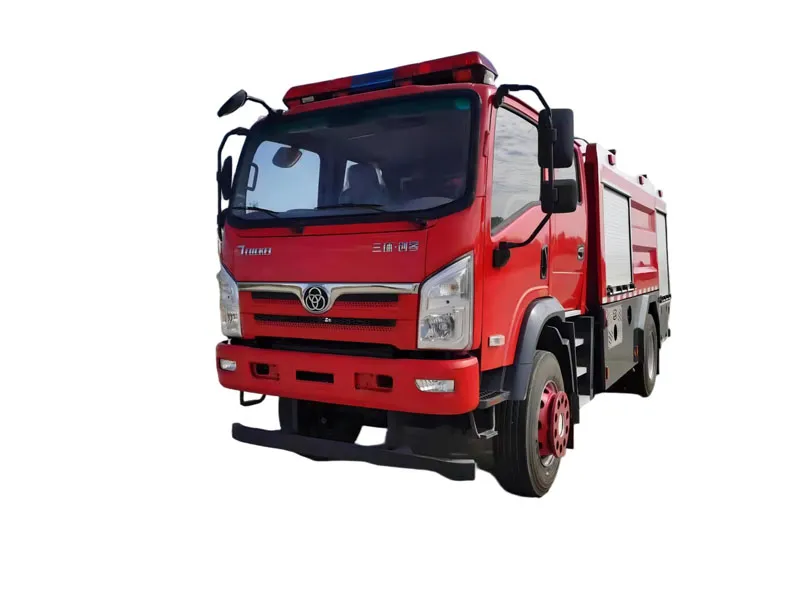

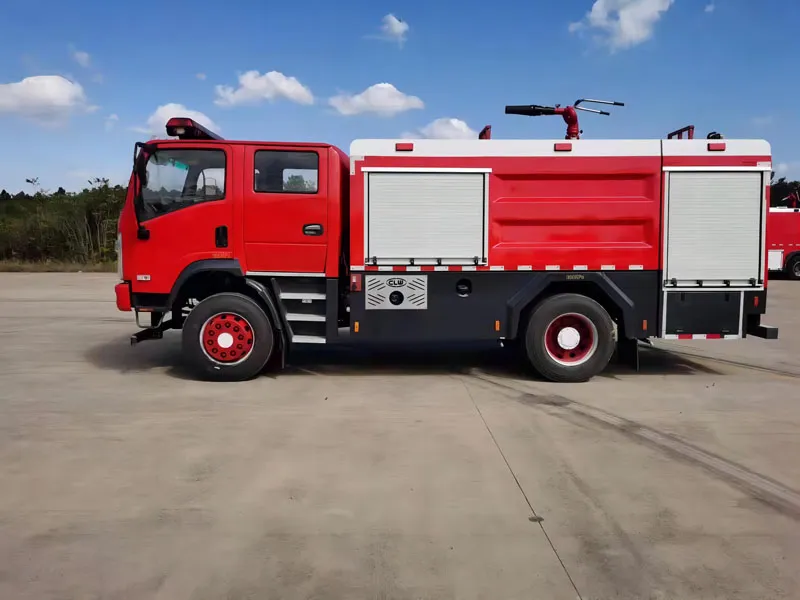

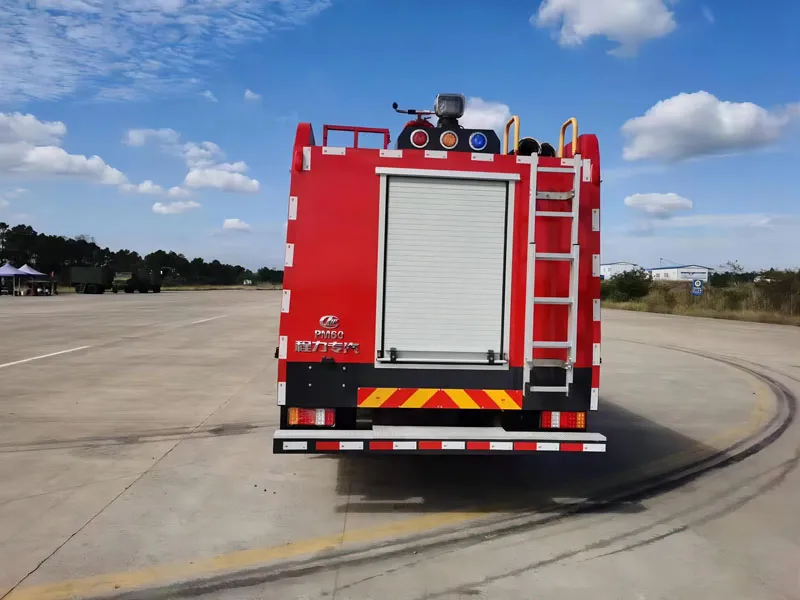

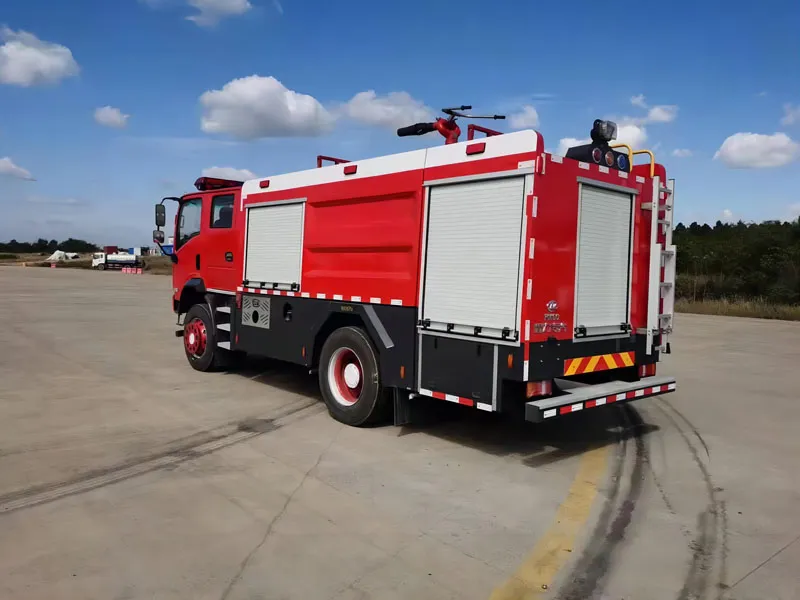

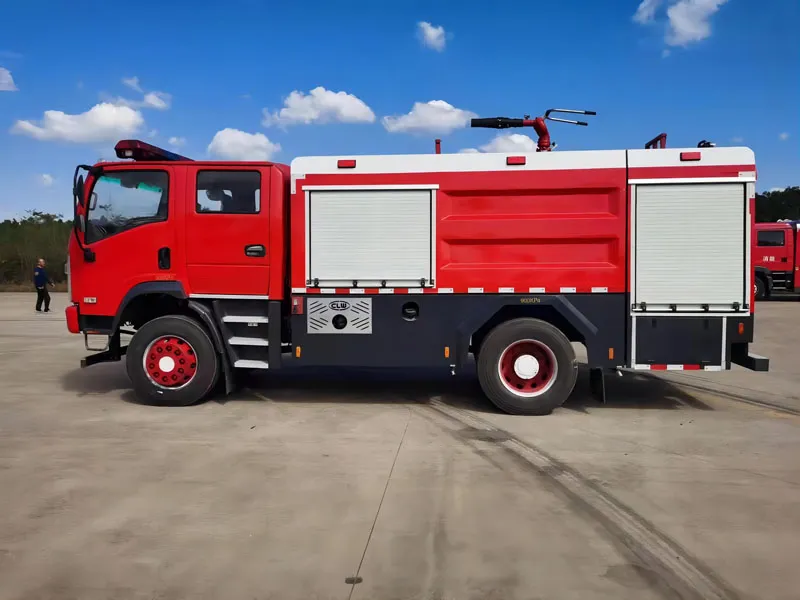

TRI-RING 4×4 fire truck is a rugged vehicle with 4×4 drive for enhanced traction on rough terrain, making it ideal for remote or challenging areas. It ensures efficient fire suppression and reliable emergency response.
Category | Parameter | Specification |
Basic Information | Model Name | TRI-RING 4×4 Fire Truck |
Product Type | Off-Road & Urban Dual-Purpose Medium-Duty Firefighting Vehicle | |
Compliance Standard | ISO 3833 (Firefighting Vehicle Classification), EN 1846 (Water Pump Performance) | |
Powertrain | Engine Model | 4-Cylinder Turbocharged Diesel Engine |
Maximum Power | 165 kW (224 hp) @ 2,800 rpm | |
Peak Torque | 650 N·m @ 1,400-2,200 rpm | |
Fuel Type | Diesel (Compliant with Euro V / China VI Emission Standard) | |
Fuel Tank Capacity | 120 L | |
Continuous Operation Range | ≥ 400 km (Under Standard Firefighting Load) | |
Transmission & Mobility | Drive System | Full-Time 4×4 Drive with Front/Rear Differential Lock |
Transmission Type | 6-Speed Manual Transmission (Optional 6-Speed Automatic Transmission) | |
Maximum Gradability | ≥ 40% (19.7°) | |
Minimum Ground Clearance | 260 mm | |
Turning Radius | ≤ 7.8 m (Minimum Turning Diameter) | |
Firefighting Core System | Water Tank Capacity | 6,500 L High-Density Polyethylene (HDPE) Tank (Anti-Corrosion, Lightweight) |
Fire Pump Type | Centrifugal Fire Pump (Single-Stage / Double-Stage Switchable) | |
Pump Flow Rate | 90 L/s (5,400 L/min) @ 1.0 MPa Working Pressure | |
Maximum Pump Pressure | 1.6 MPa | |
Water Monitor (Cannon) | Remote-Controlled Hydraulic Monitor- Range: ≥ 65 m (Horizontal)- Rotation: 360° Continuous- Tilt Angle: -15°~+85° | |
Foam System (Optional) | 3%~6% Automatic Foam Proportioner + 800 L Foam Tank (Suitable for Oil Fire) | |
Fire Hose Configuration | 4×20 m High-Pressure Fire Hoses (DN 65) + 2×30 m Medium-Pressure Hoses (DN 50) | |
Chassis & Structure | Chassis Model | TRI-RING Customized Off-Road Chassis (Based on Isuzu NPR Off-Road Platform) |
Frame Material | High-Strength Carbon Steel (Q345B) with Anti-Rust Coating | |
Suspension System | Front: Reinforced Leaf Spring + Stabilizer BarRear: Multi-Leaf Spring (Load-Bearing ≥ 8,000 kg) | |
Braking System | Dual-Circuit Air Brake + ABS + EBD + Engine Brake | |
Tires | 12.00R20 Off-Road Radial Tires (4 Pcs + 1 Spare Tire) | |
Dimension & Weight | Overall Dimensions (L×W×H) | 7,200 mm × 2,550 mm × 3,400 mm |
Wheelbase | 4,000 mm | |
Curb Weight | 7,500 kg | |
Gross Vehicle Weight (GVW) | 12,000 kg | |
Axle Load Distribution (Front/Rear) | 4,500 kg / 7,500 kg (Under Full Water Load) | |
Safety & Operation | Safety Equipment | - Roll-Over Protection Structure (ROPS, ISO 3471)- Driver/Passenger Airbags- 3×2 kg ABC Dry Powder Fire Extinguishers- Rearview Camera + 4 Parking Sensors |
Operation Convenience | - In-Cab Digital Control Panel (Pump Speed, Water Pressure, Tank Level Display) - Wireless Remote Control for Water Monitor (Effective Range: ≥ 50 m) - LED Emergency Light Bar (360° Visibility) + 150 W Electronic Siren | |
After-Sales & Warranty | Warranty Period | 2 Years or 60,000 km (Whichever Comes First; Covers Engine, Pump, Chassis) |
Optional Accessories | - LED Work Lights (4 Pcs)- Tool Storage Cabinet (Stainless Steel)- GPS Navigation & Fleet Management System |
