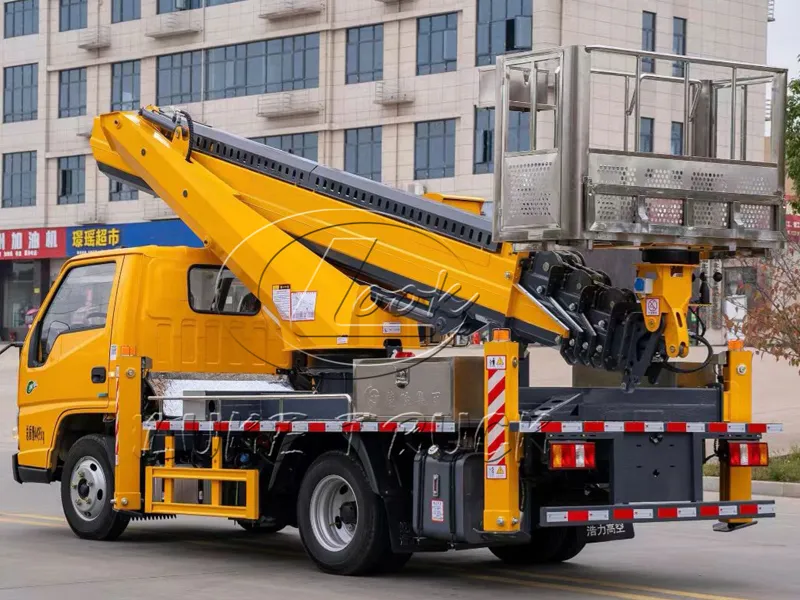

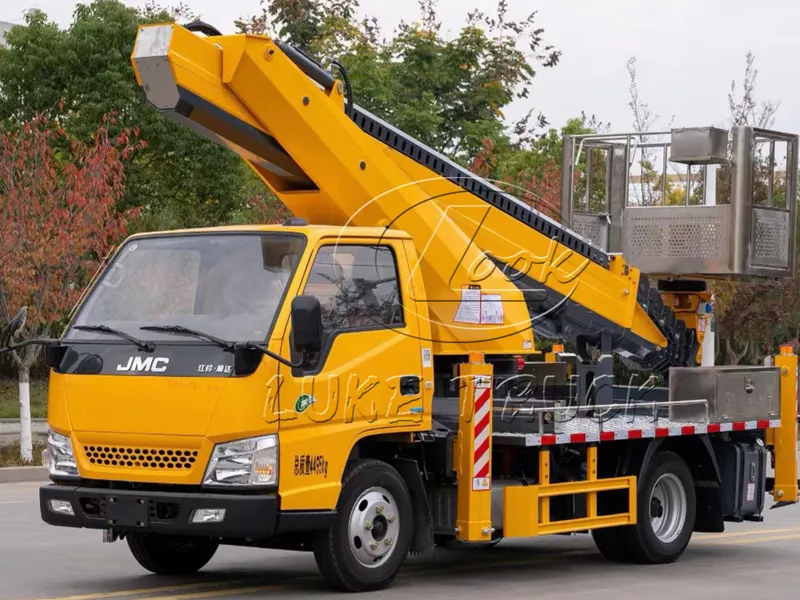

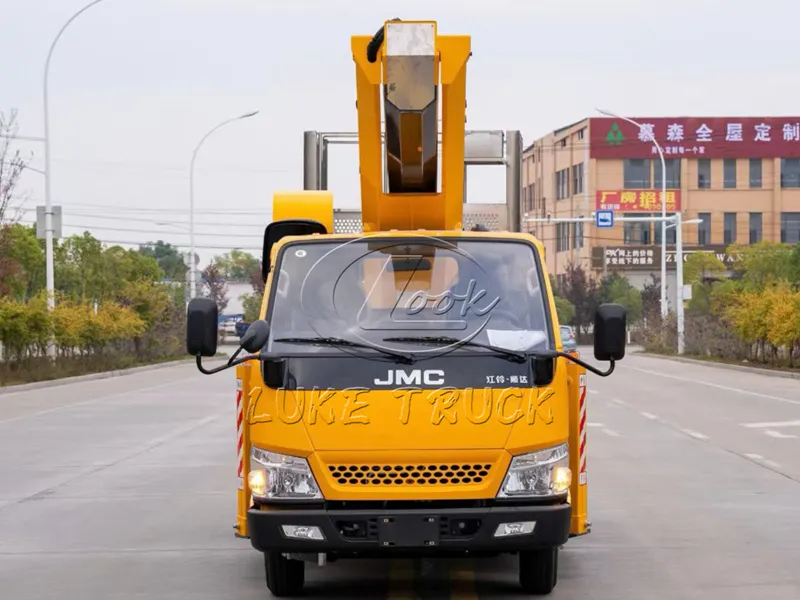

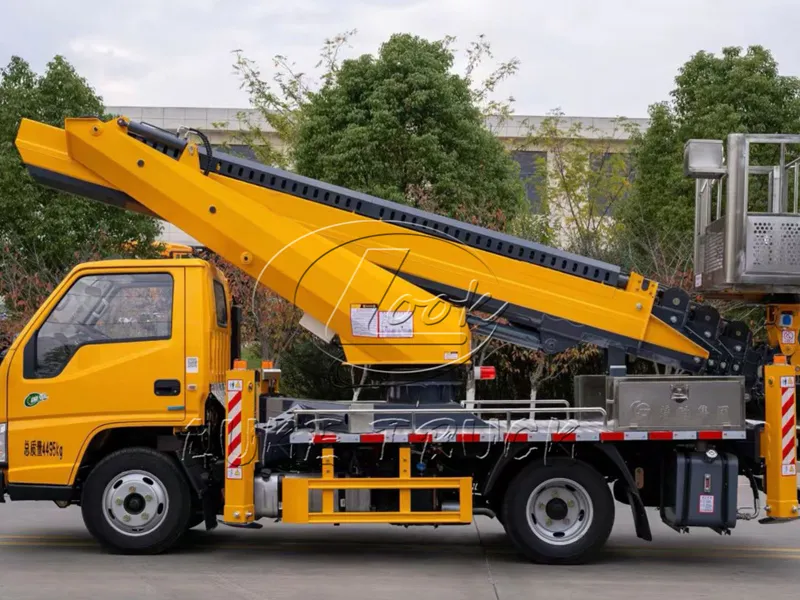

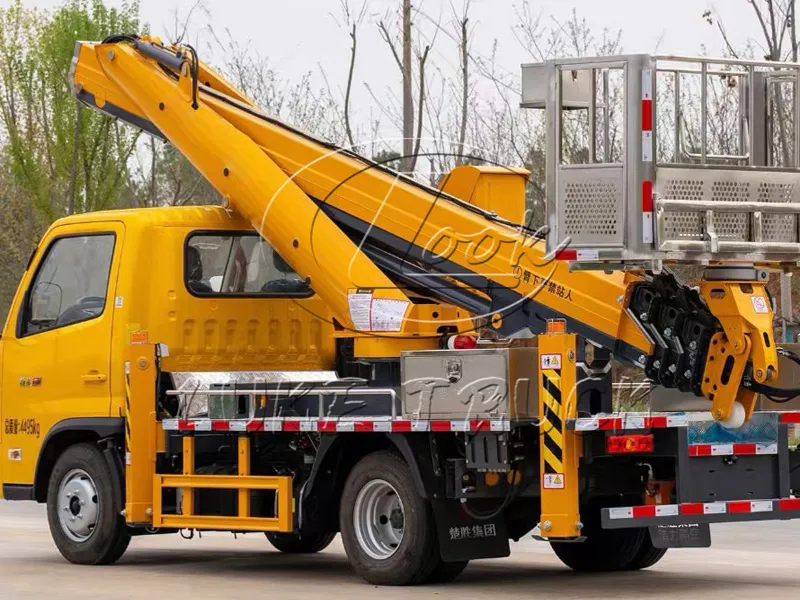

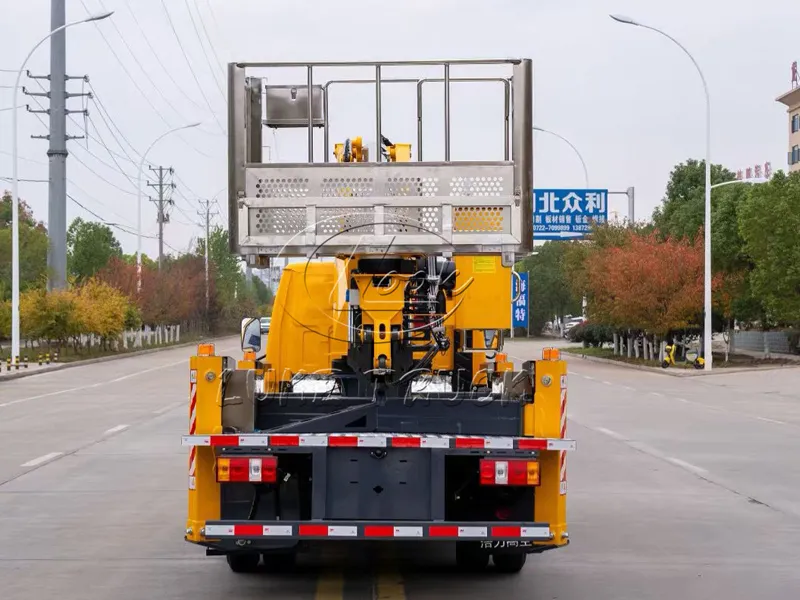

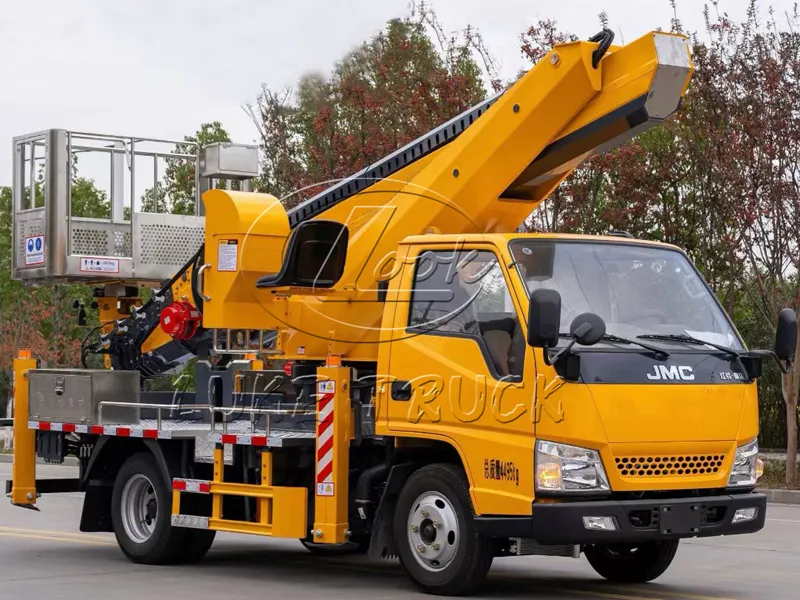

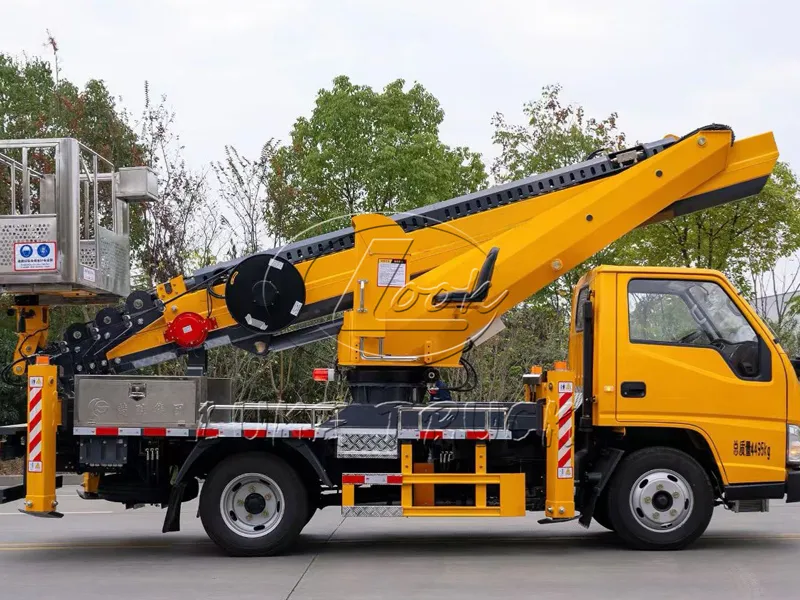

Jiangling 23-meter single-row Aerial Working Platform Truck, with its reliable performance and flexible operation, is widely used in various high-altitude work scenarios.
| [Jiangling 23m Single Row Aerial Working Platform Truck Technical Parameters] | |||
| Product trademark | Casal card | Announcement batch | 400 |
| product name | Aerial Working Platform Truck | product model | LOOK5066JGK6ADS |
| gross mass （Kg） | 5880 | outline dimension （mm） | 6100×2090×3200 |
| Number of passengers in the cab (per person) | 2 | curb weight （Kg） | 5750 |
| Approach Angle/Departure Angle (°) | 20/12 | Front/rear suspension (mm) | 1075/1665 |
| axle weight （Kg） | 2060/3820 | Maximum speed (Km/h) | 100 |
| This vehicle is primarily designed for high-altitude operations such as power grid repairs, telecommunications maintenance, and street lighting installations. Its specialized components include a lifting platform and an operational boom. The side protective panel is constructed from Q235 carbon steel with bolted connections, while the rear lower protective panel is also made of Q235 carbon steel but welded. An optional direct power supply ETC system is available. The vehicle is equipped with a work warning light that activates only during stationary operations and remains off during movement. A rear-mounted night lighting system provides illumination for nighttime work but stays off during driving. Optional chassis accessories include a cab, an upper-mounted exterior design, a work bucket configuration, a turntable-specific control cabin, an upper-mounted operation system, and a winch with sensor assembly. | |||
| [Chassis Technical Parameters] | |||
| Chassis model | JX1061TG26 | Chassis name | truck chassis |
| brand name | Jiangling brand | manufacturing enterprise | Jiangling Automobile Co., Ltd. |
| number of axles | 2 | Number of tires | 6 |
| wheel base （mm） | 3360 | tyre size | 7.00R16LT 10PR |
| Number of leaf springs | 7/5+6 | front gauge （mm） | 1385 |
| fuel type | diesel oil | rear track （mm） | 1425 |
| standard of emission | GB17691-2018 National VI | ||
| engine type | engine manufacturer | displacement （ml） | power （Kw） |
| JX4D30A6H | Jiangling Automobile Co., Ltd. | 2892 | 95 |
With their reliable performance and flexible operation, Jiangling Aerial Working Platform Trucks are widely used in various high-altitude operations. Below are the key features of some common models:
The main components are: ① The working arm consists of the upper folding arm, the main arm, and the balancing mechanism. The main arm forms a maximum horizontal angle of 70° with the upper folding arm, which in turn forms a maximum angle of 140° with the main arm. This operating system can perform dual-position operations on both the working bucket and the turntable. The four legs are individually adjustable, enabling the entire vehicle to level on uneven roads.
② Equipped with a four-section hexagonal working arm that extends/sinks synchronously, the turntable can be operated manually or remotely, with 360-degree rotation capability. The four hydraulic legs adopt a front V-back H configuration, adjustable individually or in linkage, and the working bucket has a rated load capacity of 200kg.
③ Equipped with an electro-hydraulic proportional control system for stepless speed regulation, along with multiple safety features including a hydraulic automatic leveling system and automatic interlock devices for boarding and alighting.
