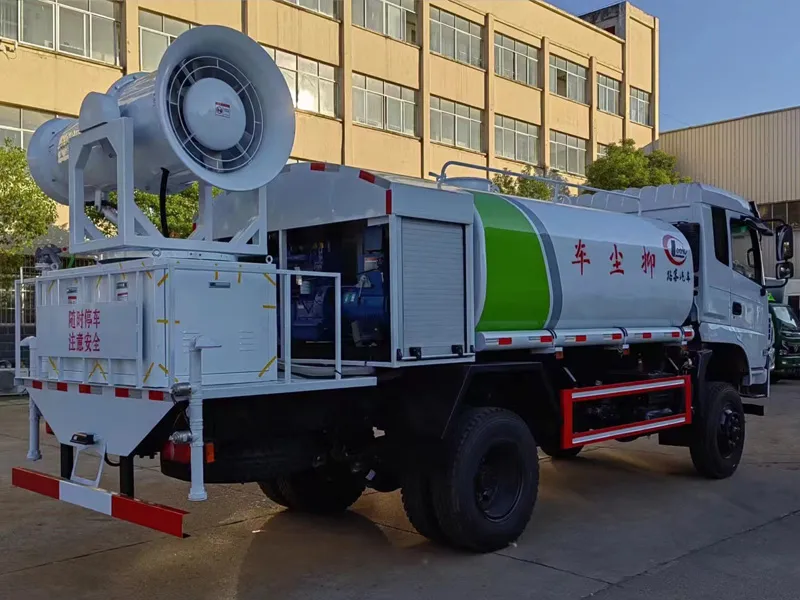

The 10-cubic-meter Dongfeng Huashen F3 multi-functional dust suppression tanker is mainly used for large-scale watering and dust suppression and greening irrigation in scenarios such as dust reduction on urban main roads, watering on highways, dust suppression at large construction sites, and haze removal in mining areas. It is the main vehicle for sanitation operations.
| Dongfeng Huashen F3 Multi-functional Dust Suppression Tank Truck Overall Vehicle Technical Parameters | |||||
| Product Name | Multi-functional dust suppression vehicle | Product Model | LOOK5160TDYE6 | ||
| Total mass(Kg) | 16000 | Tank volume(m3) | 10.3 | ||
| Rated load capacity(Kg) | 9610 | External dimensions(mm) | 8460×2520×3150 | ||
| curb weight(Kg) | 6260 | Number of passengers allowed in the driver's cab (persons) | 3 | ||
| Approach angle/Departure angle(°) | 15/11,17/11 | Front/Rear Suspension(mm) | 1250/2560 | ||
| Axle load(Kg) | 5600/10400 | Top speed(Km/h) | 88 | ||
| Notes: 1. This vehicle is used for dust suppression and haze reduction. Its main components are a dust suppression tank and a spray system. Only the 3950mm wheelbase version is available. 2. The cab is optional and depends on the chassis. The installation positions of the filter, battery, fuel tank, air tank, separator, and urea tank are also optional. Optional features include an exhaust gas processor, water outlet installation position, mist cannon style, rear platform and pipe style, front-mounted duckbill nozzle, high-level shower head, front-mounted electronic water cannon, arrow lights, toolbox, rear counter-flushing system, pneumatic ball valve, and mist cannon style. 3. Tank dimensions (mm): 4000×2400×1500 (length×major axis×minor axis), total tank capacity 10.3 cubic meters, effective tank volume 9.54 cubic meters. Optional side spray style and high-pressure water cannon style are available. Rear arrow lights are optional and only used during operation. | |||||
| Chassis Technical Specifications | |||||
| Chassis Model | EQ1160GL6DJ | Chassis Name | Cargo truck chassis | ||
| Trademark Name | Dongfeng brand | manufacturing enterprises | Dongfeng Motor Group Co., Ltd. | ||
| Number of axes | 2 | Number of tires | 6 | ||
| wheelbase (mm) | 3950 | Tire specifications | 9.00R20 16PR | ||
| Number of leaf springs | 9/11+8 | Front wheel track(mm) | 1900 | ||
| Fuel types | diesel fuel | Rear wheel track(mm) | 1800 | ||
| Emission standards | GB17691-2018 Country VI | ||||
| Engine Model | Engine manufacturers | Displacement(ml) | power(Kw) | ||
| YCS04200-68 | Guangxi Yuchai Machinery Co., Ltd. | 4156 | 4156 | ||
The 10-cubic-meter mist cannon truck is a specialized vehicle integrating water spraying and dust suppression functions. With a tank volume of 10 cubic meters, it is widely used in road dust control, landscaping, disinfection, and other fields. The following is an introduction to the Dongfeng Huashen F3 multi-functional dust suppression tank truck:

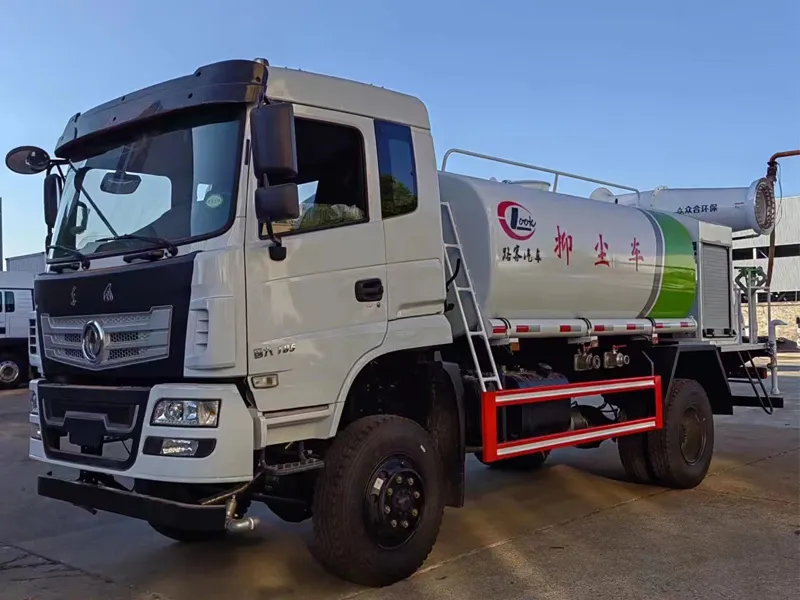

Chassis Configuration: Diesel engine, Shaanxi Fast gearbox, 3950mm wheelbase, 9.00R16 steel radial tires, air brakes, power steering, equipped with a Dongfeng Huashen 2050 single-row cab with tilting mechanism.
Upper Structure Configuration: The tank is made of 4mm carbon steel plate with internal anti-surge baffles. The vehicle comes with a dedicated water pump with a maximum vertical suction lift of 6 meters and a spraying width of 14 meters. A high-pressure water cannon for landscaping is mounted on the rear working platform, which can rotate 360 degrees and has an adjustable mist spray.

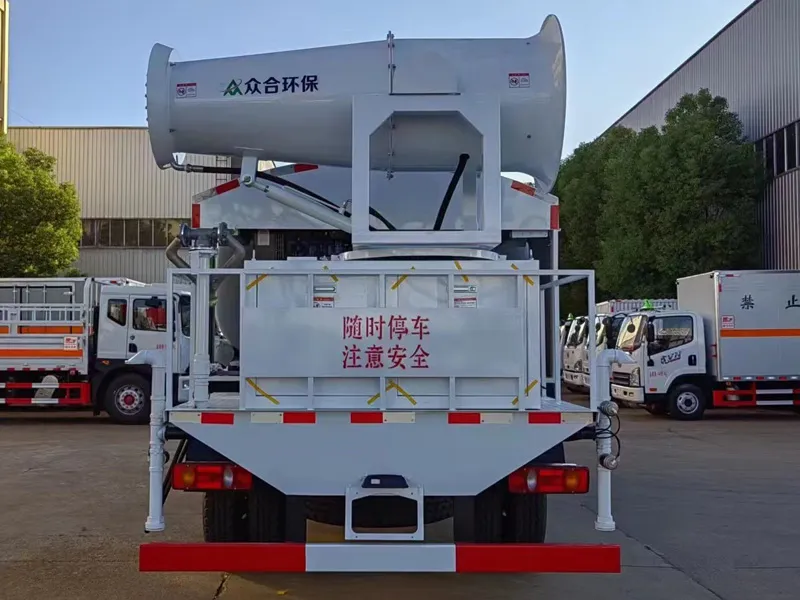

Fog Cannon Configuration: Equipped with a 50-meter sprayer, a 10.75KW diesel generator, electric start, spray flow rate 6-18L/min, horizontal range 25-50M, fog spectrum range 50-250um, elevation angle -10°～90° (remote control), and 360° rotation angle (reciprocating).
