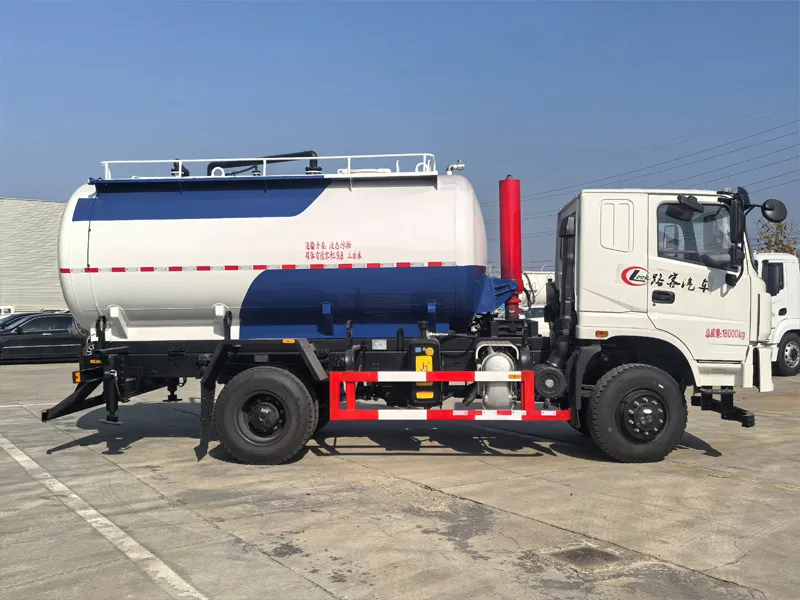

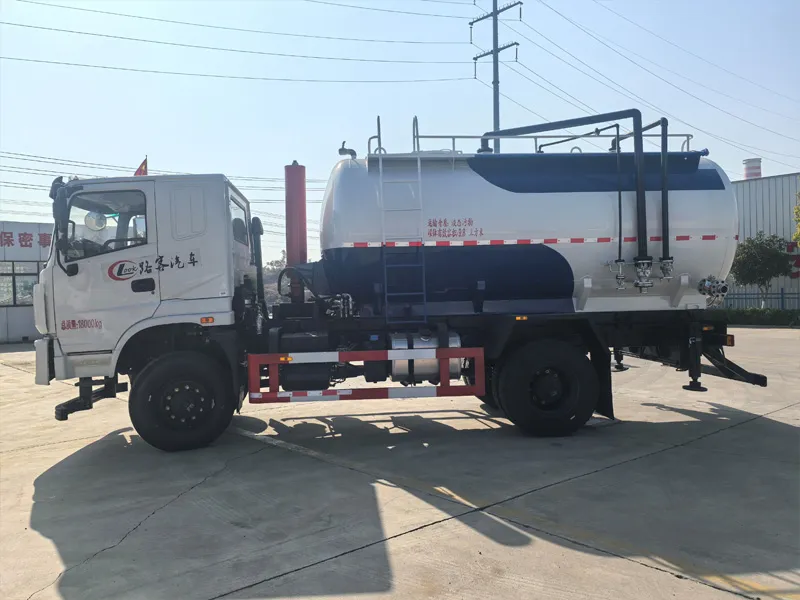

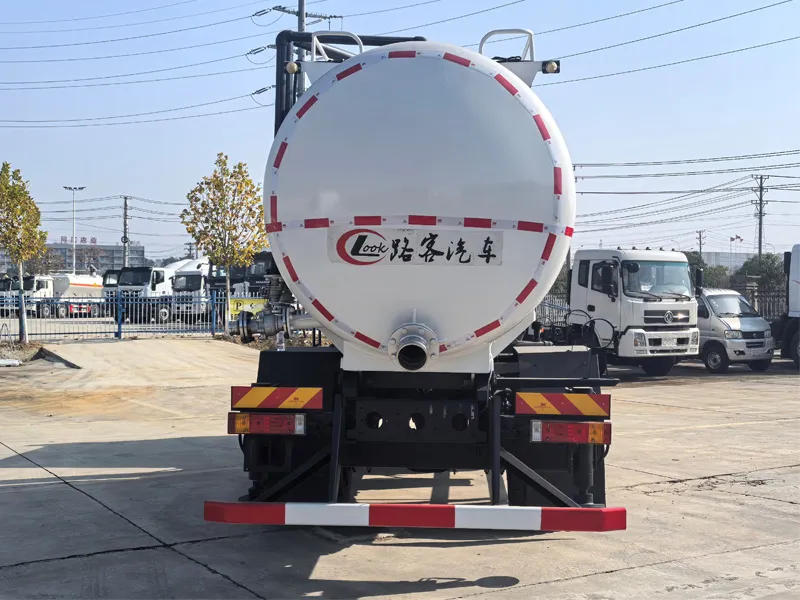

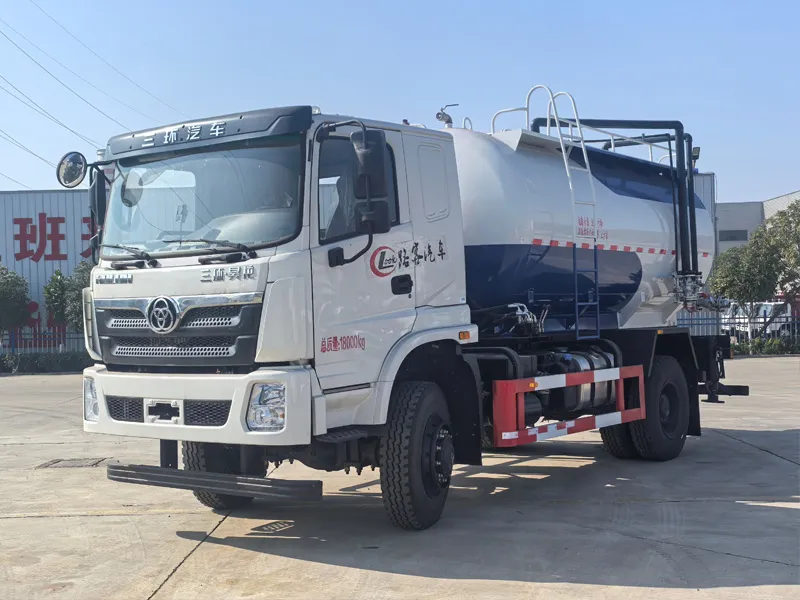

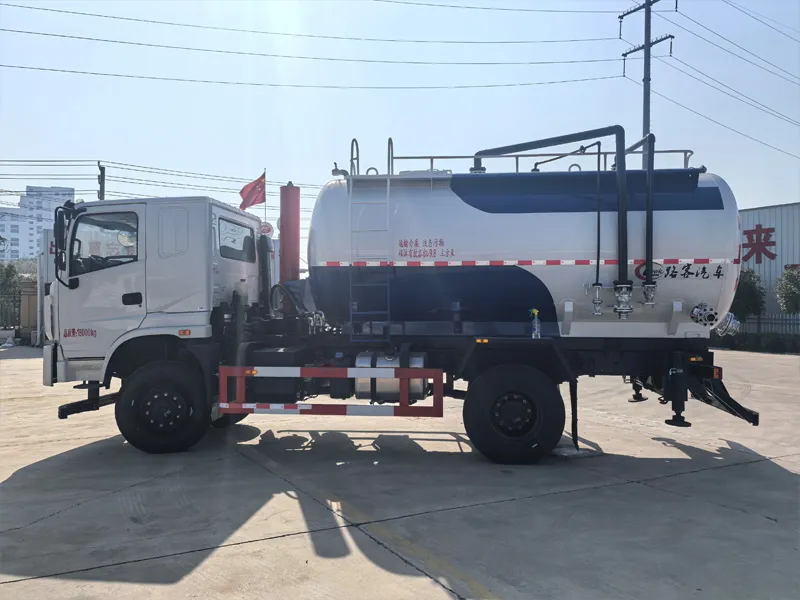

The 10m³ Dongfeng vacuum truck is used to remove sludge from puddles and sewers; its main components include a tank and a vacuuming device. The truck has a lifting function. Specialized equipment includes a tank and a vacuum pump, used for the suction, transportation, and unloading of sludge from sewers.
| Dongfeng vacuum truck product technical parameters | |||
| Product Trademark | Casal | Passenger capacity (persons) | 3, 2 |
| Product Name | Sewage suction truck | Product Model | STD5180GXWLK6 |
| Total mass(Kg) | 18000 | Tank volume(m3) | 10.8 |
| Rated load capacity(Kg) | 8355 | External dimensions(mm) | 7840×2550×3690 |
| curb weight(Kg) | 9450 | Cargo box dimensions(mm) | ×× |
| Approach angle/Departure angle(°) | 15/12, 15/19 | Front/Rear Suspension(mm) | 1490/2180 |
| Axle load(Kg) | 6500/11500 | Top speed(Km/h) | 89 |
| This vehicle is used to remove sludge from puddles and sewers; its main components include a tank and a suction device. The vehicle has a lifting function. Total tank capacity: 10.8 cubic meters; Tank dimensions (total length × diameter) (mm): 6150 × 2000. Side and rear protective materials are both Q235 carbon steel, connected by bolts. Rear protective section dimensions (mm): 150 × 50; Rear protective ground clearance (mm): 490. ABS model/manufacturer: 3631010-C2000/Dongke Knorr Commercial Vehicle Braking System (Shiyan) Co., Ltd., J ABS/Jiaozuo Boruike Control Technology Co., Ltd. Optional side and rear drain styles. Cab optional with chassis. Optional rear style. Optional fuel tank and battery installation position. | |||
| Chassis technical parameters | |||
| Chassis Model | STQ2186L07Y3E6 | Chassis Name | Off-road dump truck chassis |
| Trademark Name | Shitong brand | manufacturing enterprises | Hubei Sanhuan Automobile Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| wheelbase (mm) | 3900 | Tire specifications | 10.00R20 18PR |
| Number of leaf springs | 6+4/10+ | Front wheel track(mm) | 1820 |
| Fuel types | diesel fuel | Rear wheel track(mm) | 1800 |
| Engine Model | Engine manufacturers | Displacement(ml) | power(Kw) |
| YCS06245-60 | Guangxi Yuchai Machinery Co., Ltd. | 6234 | 180 |
Basic Information: Brand is Casar, manufactured by Hubei Luku Special Vehicle Co., Ltd., located in Yuchai Automobile Industrial Park, Yuchai Avenue, Suizhou City, Hubei Province. Chassis model is STQ2186L07Y3E6, fuel type is diesel, and meets China VI emission standards.
Dimensions and Weight: Overall dimensions are 8200x2500x3450mm, gross vehicle weight is 18000kg, rated payload is 8355kg, curb weight is 9450kg, and wheelbase is 3950mm.
Chassis Configuration: Six tires, tire size is 10.00R20, leaf spring count is 8/10+7, approach and departure angles are 16/12°.
Powertrain: Can be equipped with a YCA07245N-60 engine, manufactured by Guangxi Yuchai Machinery Co., Ltd., with a displacement between 6700-6871ml and power output between 140-205kW.
Specialized Equipment: The specialized equipment consists of a tank and a vacuum pump, used for the suction, transportation, and discharge of sludge from the sewer system. The tank's external dimensions (length × diameter) are 4700 × 1800 mm, and its total volume is 10.8 cubic meters.
