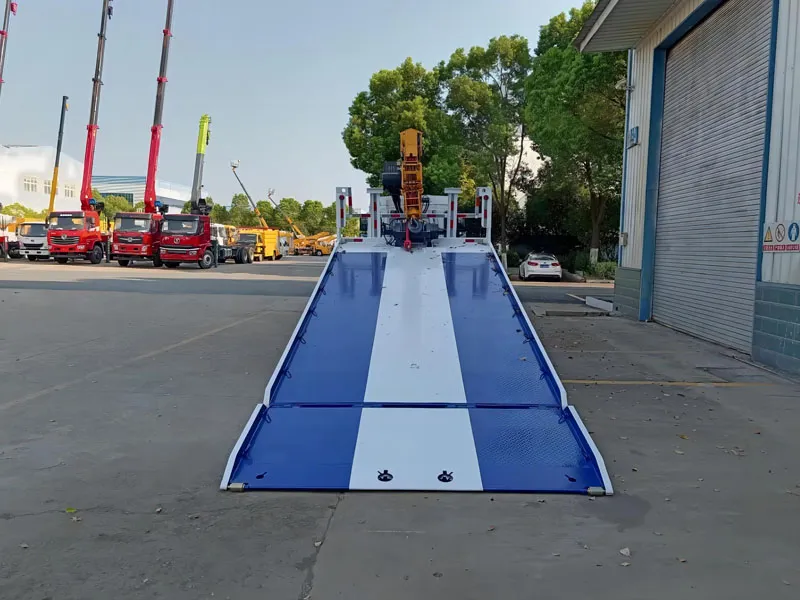

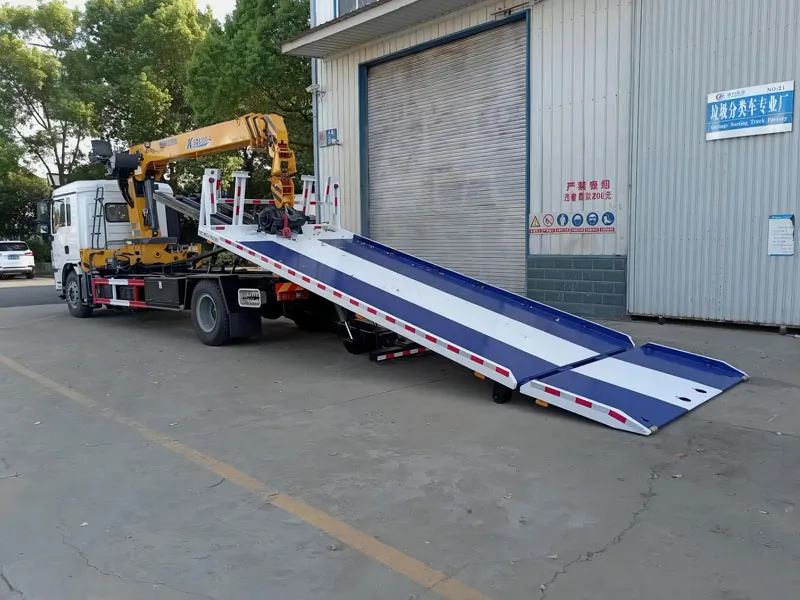

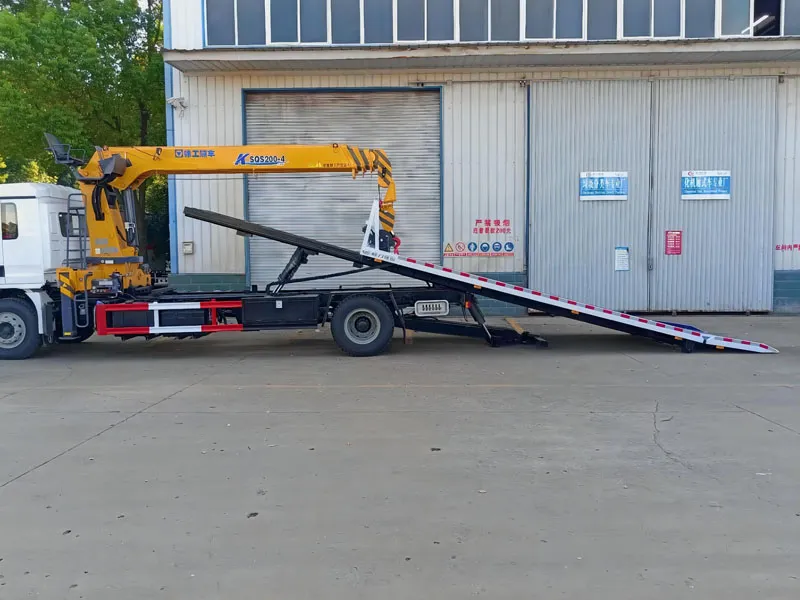

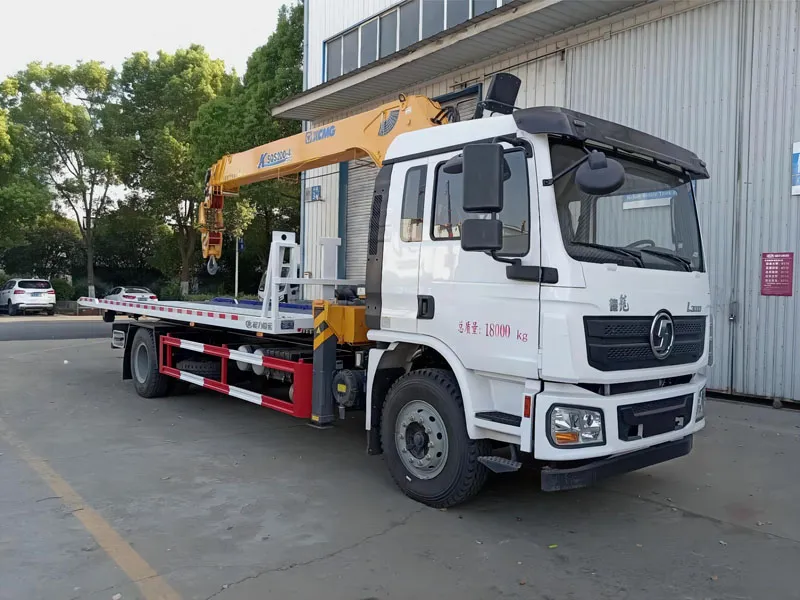

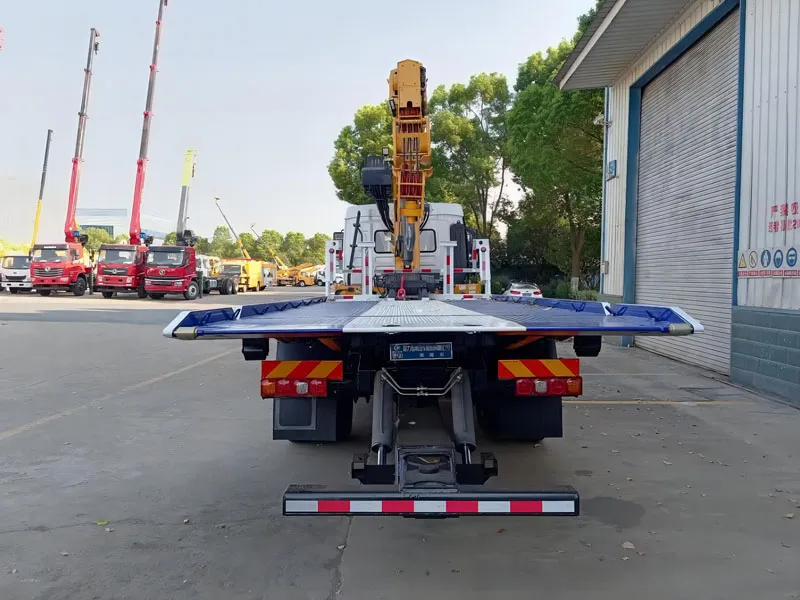

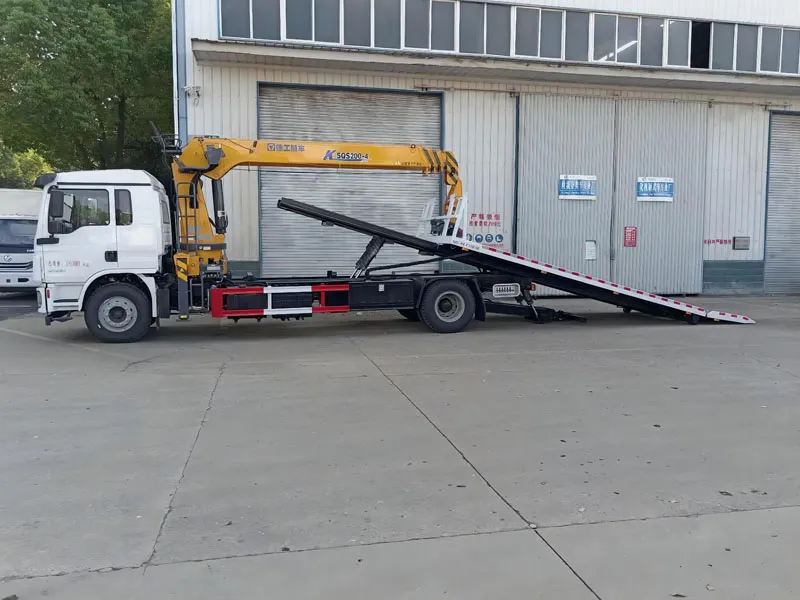

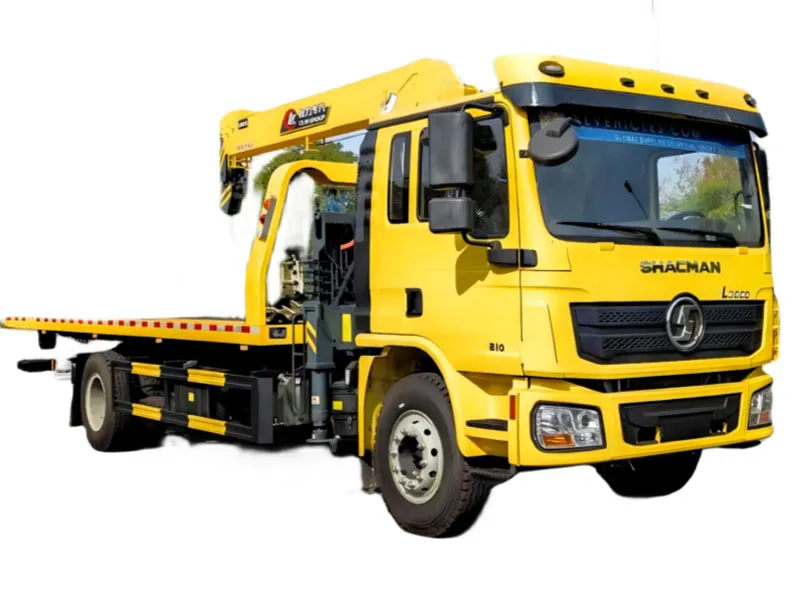

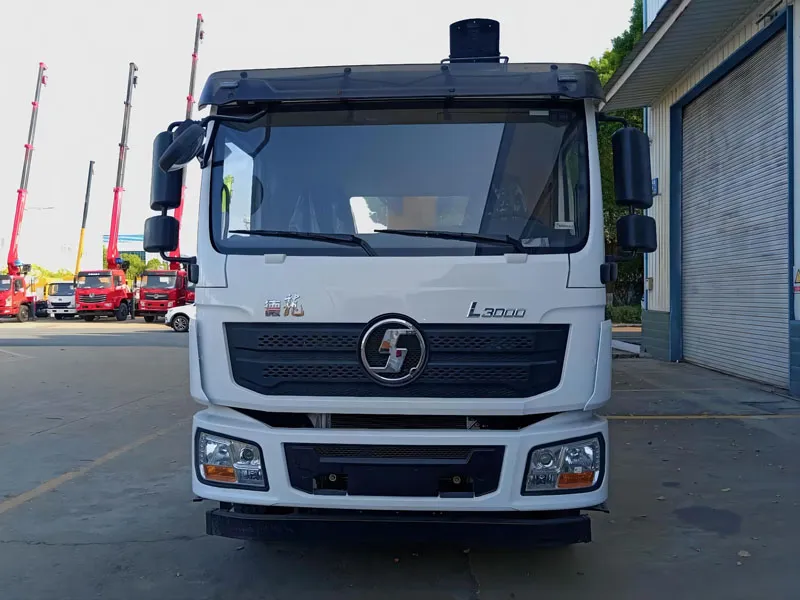

The Shacman wrecker truck with crane is built on a robust Shacman chassis and equipped with an integrated lifting crane. Designed to handle medium to heavy-duty breakdown or accident vehicles, it delivers stable performance and flexible operation, making it ideal for safe and efficient roadside recovery.
Shacman L3000 Wrecker Truck with Crane (Export Version) - Technical Specification Sheet
Parameter Category | Item | Specification |
Basic Information | Model Name | Shacman wrecker truck with crane |
Model Code | SX5180TQZLA501 (Typical Export Model) | |
Emission Standard | Euro V / Euro VI (Optional, Compliant with EU/Asian/African Standards) | |
Application | Urban/Rural Road Rescue, Medium-duty Vehicle Recovery, Emergency Towing | |
Chassis Configuration | Frame Material | High-strength Carbon Steel (280×80×(8+5)mm) |
Axle Configuration | 4×2 (2 Front Wheels, 2 Rear Driving Wheels) | |
Front Axle Load (kg) | 6500 | |
Rear Axle Load (kg) | 11500 | |
Wheelbase (mm) | 3800 (Optional: 3400/4200mm for Different Rescue Scenarios) | |
Tire Specification | 10.00R20 16PR Radial Tire (6 Pcs + 1 Spare Tire) | |
Fuel Tank Capacity (L) | 300 (Aluminum Alloy, Anti-corrosion) | |
Wrecker & Crane System | Crane Model | QYS-8Ⅱ Hydraulic Telescopic Crane (3 Sections) |
Max Lifting Capacity (kg) | 8000 @ 3.2m Working Radius | |
Max Working Radius (m) | 8.5 | |
Wrecker Max Towing Mass (kg) | 3500 (Front Lift) / 18000 (Full Drag) | |
Winch Capacity (kg) | 10000 (with 35m High-strength Steel Wire Rope) | |
Wrecker Platform Size (mm) | 4800×2300 (Anti-slip Steel Plate) | |
Power Train | Engine Model | Weichai WP4.6NQ190E50 Turbocharged Diesel Engine |
Max Power (HP/kW) | 190 HP / 140 kW @ 2600 rpm | |
Max Torque (N·m) | 650 N·m @ 1400-2000 rpm | |
Transmission Type | Fast 8JS85TE 8-speed Manual Transmission (with Synchronizer) | |
Clutch Type | Φ430 Dry Single-plate Clutch (Hydraulic Assistance) | |
Dimension & Weight | Overall Size (mm) | 7650×2500×3200 |
Curb Weight (kg) | 9800 | |
Gross Vehicle Mass (kg) | 18000 | |
Safety & Comfort | Safety Systems | ABS + EBD; Air Brake System; Driver Airbag; Emergency Stop Button |
Comfort Features | Air Suspension Driver Seat; Manual Air Conditioner; Power Windows; Central Door Lock; Adjustable Steering Wheel |
