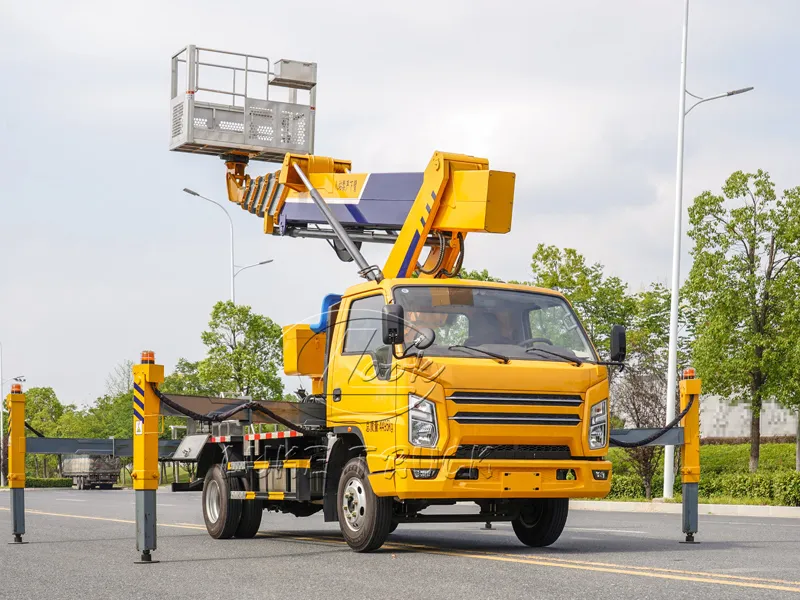

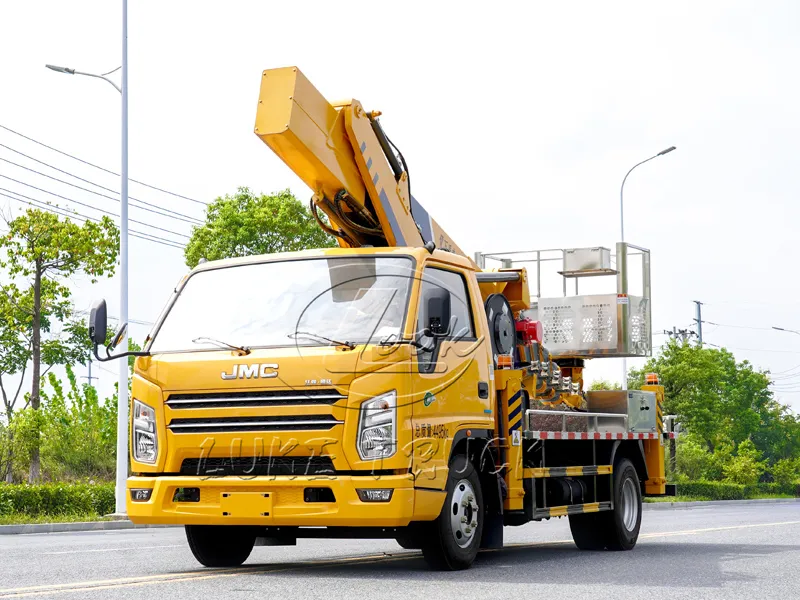

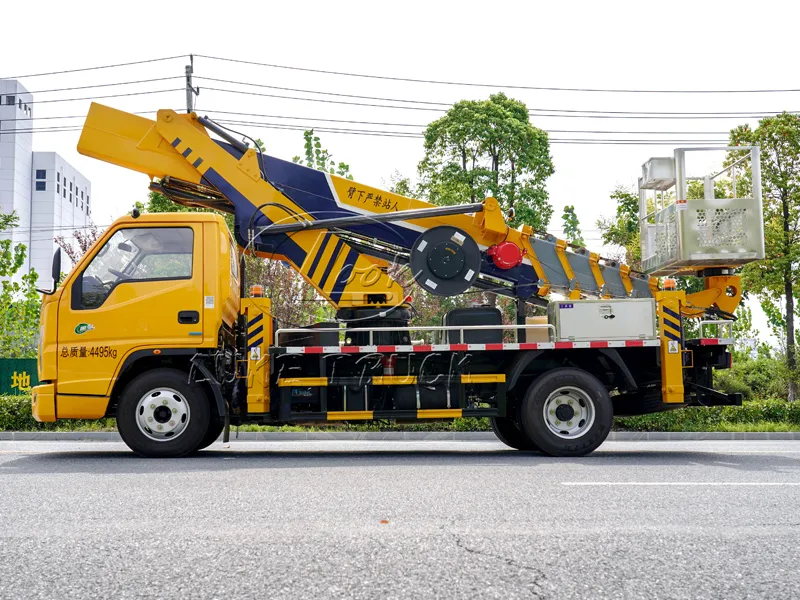

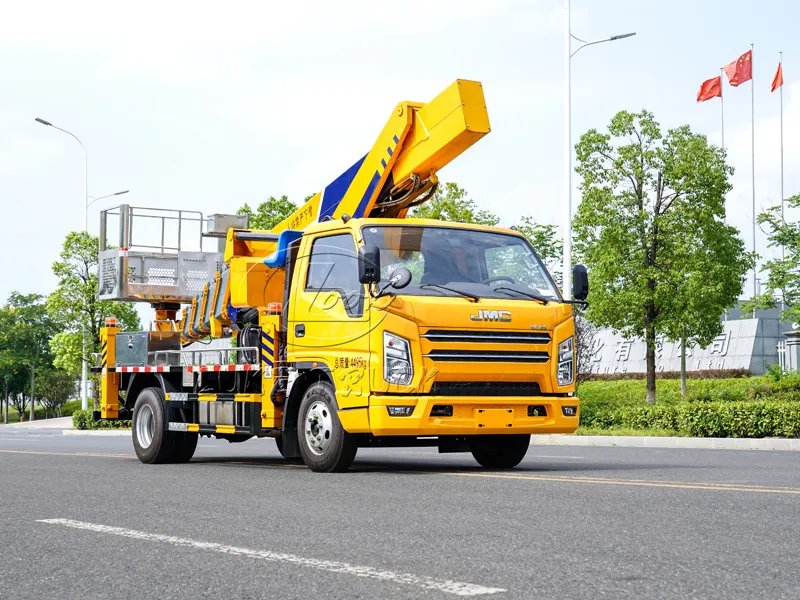

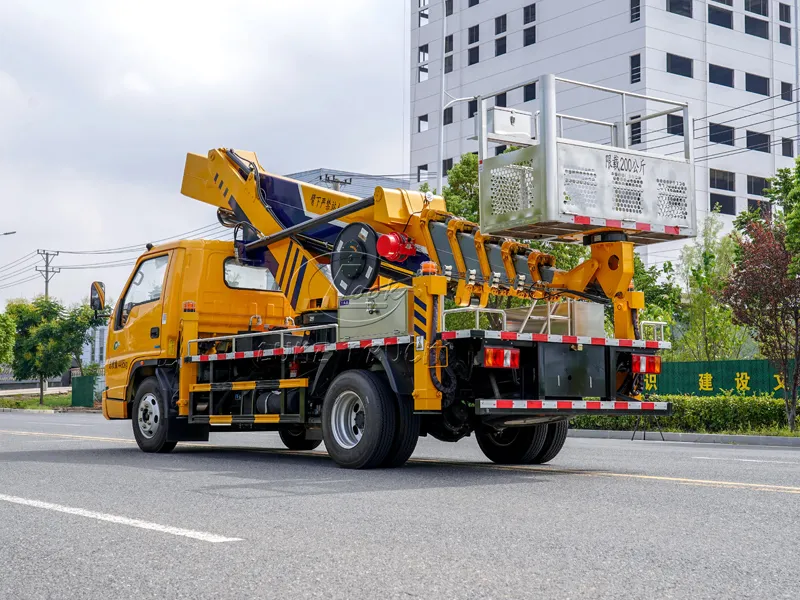

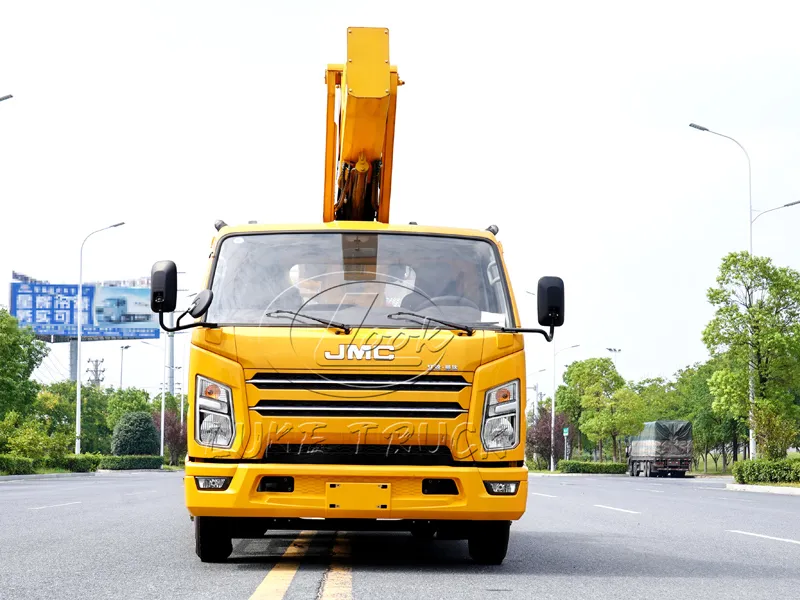

Jiangling 27-meter Aerial Working Platform Truck features an electro-hydraulic proportional control system for stepless speed adjustment, along with multiple safety configurations including a hydraulic automatic leveling system and an automatic interlock device for vehicle entry/exit.
| [Jiangling 27m Aerial Working Platform Truck technical parameters] | |||
| Product trademark | CLW brand | Announcement batch | 400 |
| product name | Aerial Working Platform Truck | product model | CL5040JGK6AJB |
| gross mass （Kg） | 4495 | outline dimension （mm） | 5998×2090×3350 |
| Number of passengers in the cab (per person) | 2,3 | curb weight （Kg） | 4365 |
| Approach Angle/Departure Angle (°) | 20/11 | Front/rear suspension (mm) | 1090/1548 |
| axle weight （Kg） | 1840/2655 | Maximum speed (Km/h) | 100 |
| This vehicle is primarily designed for high-altitude operations including power grid repairs, telecommunications maintenance, and street lighting installations. Its specialized equipment comprises a lifting platform and an operational boom. The side protective panels are constructed from Q235 steel with welded and bolted connections, while the rear lower protective device also uses Q235 steel with welded joints. The rear lower protective device measures 50×100 mm in width and height, with a ground clearance of 430 mm. The hydraulic brake ABS system (model/manufacturer: 3550A500/Apg3550500A, Zhejiang Asia-Pacific Electromechanical Co., Ltd.) and pneumatic brake ABS system (model/manufacturer: CM4XL-4S/4M, Guangzhou Ruilike Mi Automotive Electronics Co., Ltd.) are optional. Optional configurations include a direct power supply ETC on-board device, adjustable boom styles, customizable work bucket designs, and specialized turntable operation room styles. Additional optional features include rear exterior styling, upper-mounted operation styles, and winch/sensor configurations. The chassis may be equipped with fuel tanks, urea tanks, batteries, and exhaust pipe mounting positions. | |||
| [Chassis Technical Parameters] | |||
| Chassis model | JXW1040CDJ2 | Chassis name | truck chassis |
| brand name | Jiangxi Isuzu brand | manufacturing enterprise | Jiangxi Isuzu Motors Co., Ltd. |
| number of axles | 2 | Number of tires | 6 |
| wheel base （mm） | 3360 | tyre size | 7.00R16LT 8PR |
| Number of leaf springs | 7/5+6 | front gauge （mm） | 1565 |
| fuel type | diesel oil | rear track （mm） | 1508 |
| standard of emission | GB17691-2018 National VI | ||
| engine type | engine manufacturer | displacement （ml） | power （Kw） |
| JE493ZLQ6G | Jiangxi Isuzu Engine Co., Ltd. | 2771 | 85 |
With their reliable performance and flexible operation, Jiangling Aerial Working Platform Trucks are widely used in various high-altitude operations. Below are the key features of some common models:

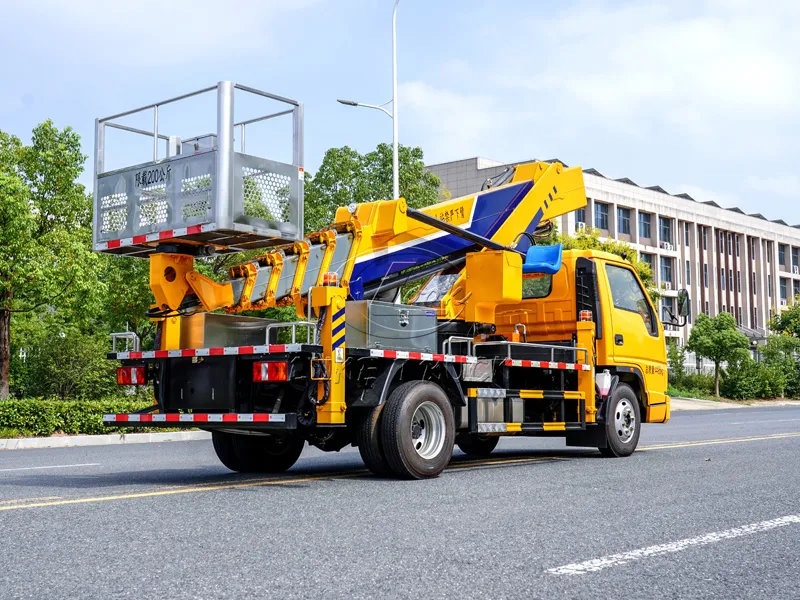

The main components are: ① The working arm consists of the upper folding arm, the main arm, and the balancing mechanism. The main arm forms a maximum horizontal angle of 70° with the upper folding arm, which in turn forms a maximum angle of 140° with the main arm. This operating system can perform dual-position operations on both the working bucket and the turntable. The four legs are individually adjustable, enabling the entire vehicle to level on uneven roads.

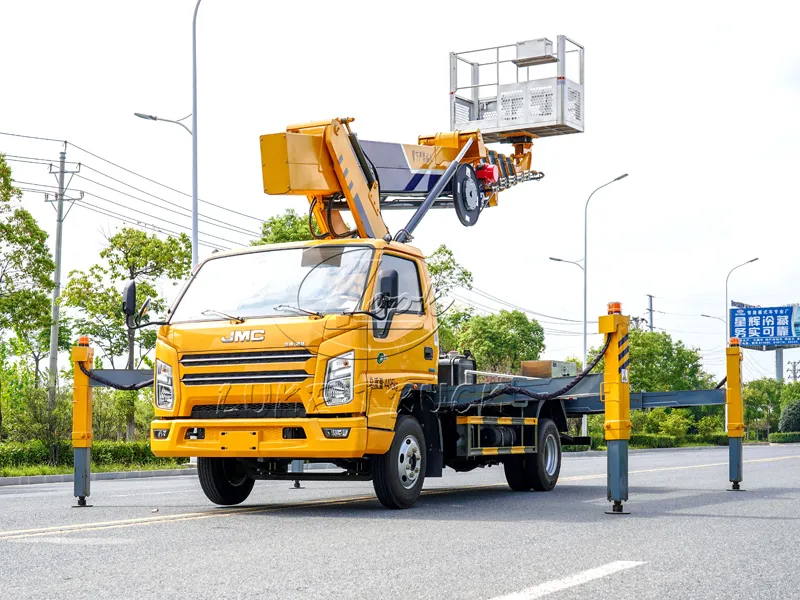

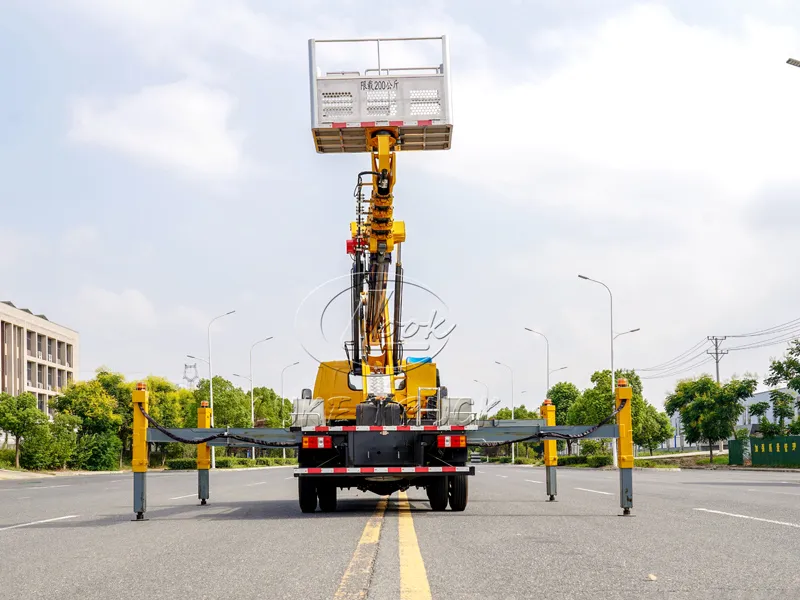

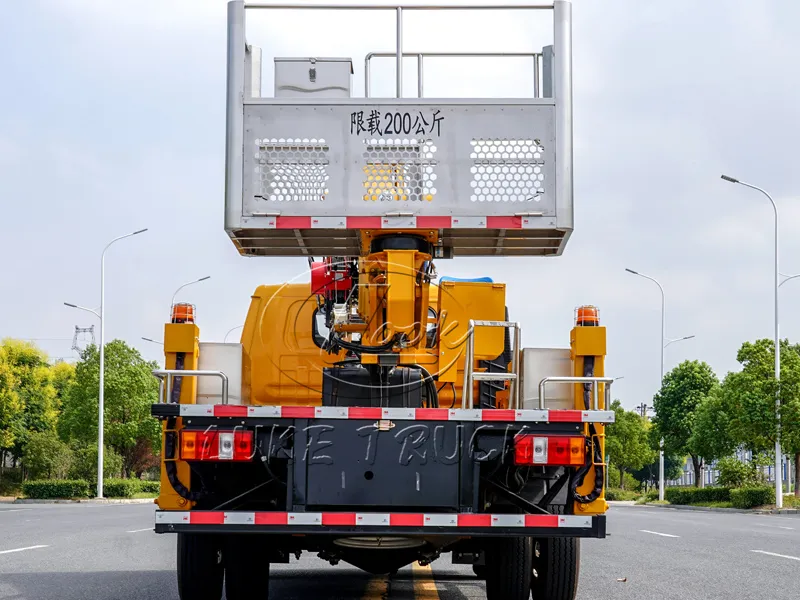

② Equipped with a four-section hexagonal working arm that extends/sinks synchronously, the turntable can be operated manually or remotely, with 360-degree rotation capability. The four hydraulic legs adopt a front V-back H configuration, adjustable individually or in linkage, and the working bucket has a rated load capacity of 200kg.
③ Equipped with an electro-hydraulic proportional control system for stepless speed regulation, along with multiple safety features including a hydraulic automatic leveling system and automatic interlock devices for boarding and alighting.
