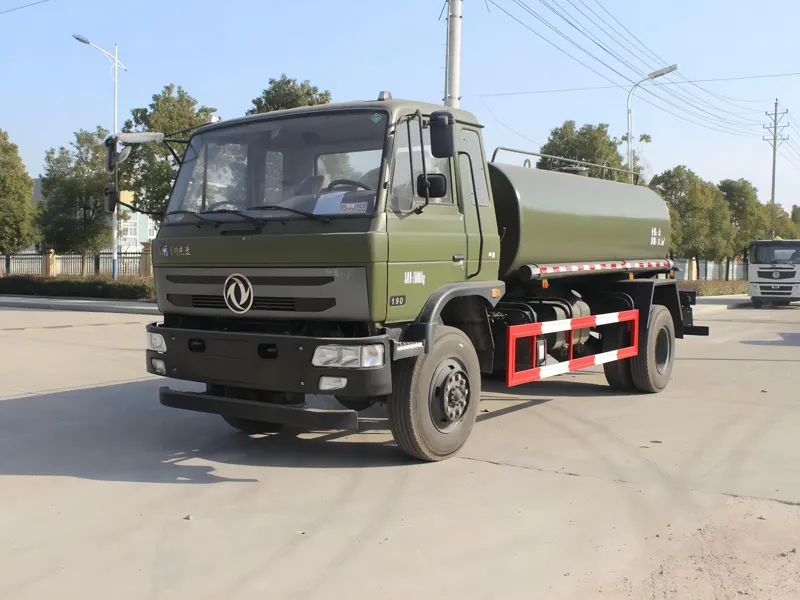

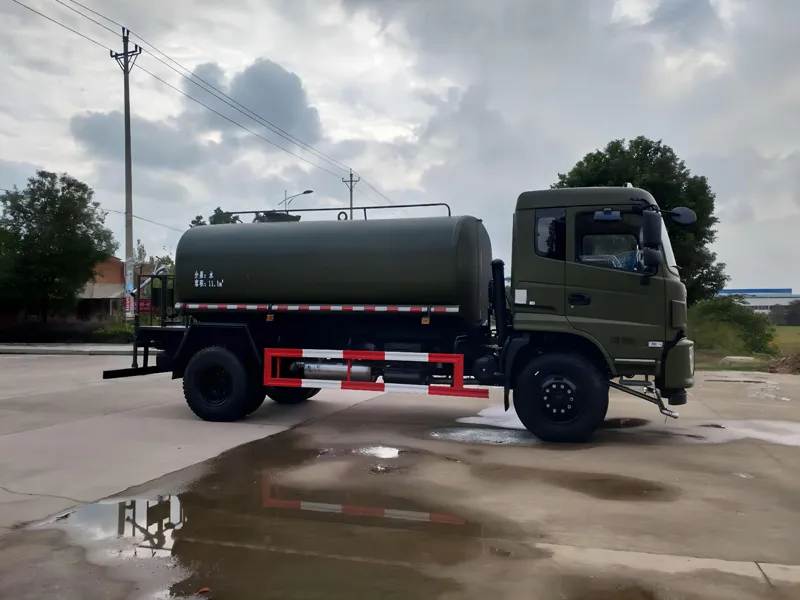

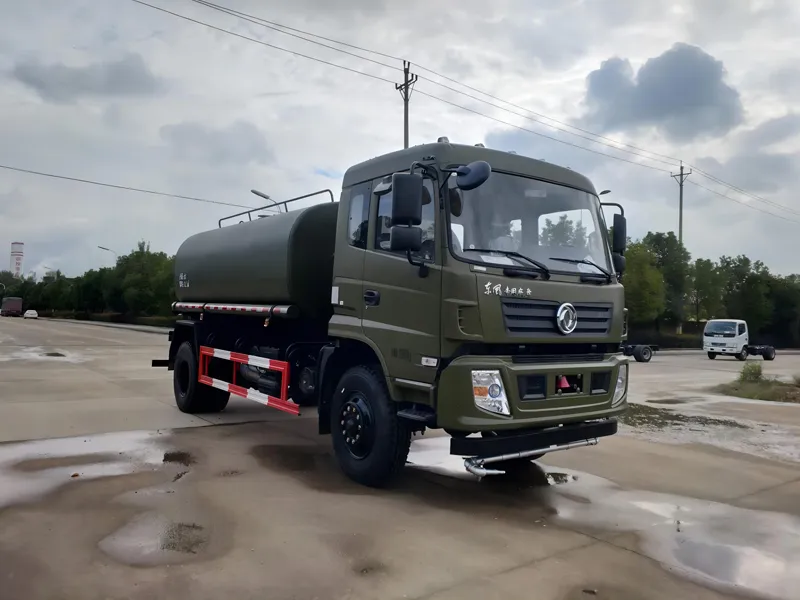

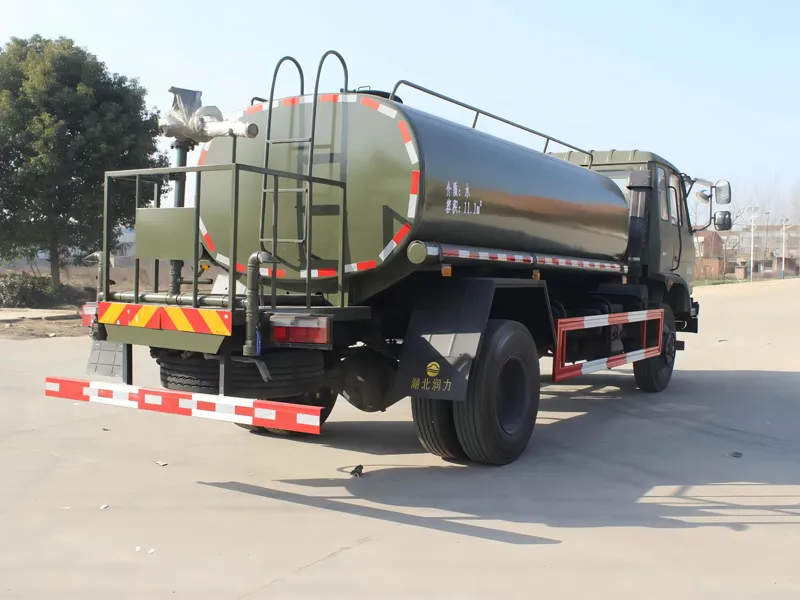

Dongfeng 4×4 water tanker truck is designed for watering, dust suppression, and road maintenance, featuring strong 4×4 traction for diverse terrains.
Here’s a comprehensive technical specification table for the Dongfeng 4×4 water tanker truck, compiled from verified sources and industry standards:
Parameter | Specification |
Model | Dongfeng 4×4 Water Tanker Truck (Typical models: DFV2163GP6DJ, EQ2180GD5DJ) |
Driving System | 4×4 all-wheel drive (AWD) with mechanical transfer case (pneumatic operation) |
Chassis | Dongfeng Tianjin D530 off-road chassis, double-layer 280mm steel frame |
Engine | Dongfeng Cummins B6.2NS6B210 (6-cylinder diesel, 210hp/154kW, 850N·m torque) |
Transmission | 6-speed manual gearbox + 2-speed transfer case, synchronized engagement |
Axle Configuration | Front: 3.8T driving axle; Rear: 10T driving axle, differential lock optional |
Tire | 10.00R20 16PR steel radial tires (6+1 tires including spare) |
Wheelbase | 4,500mm (also available: 4,700mm for extended tank versions) |
Overall Dimensions | 7,900×2,500×3,000mm (L×W×H); customizable for different tank capacities |
Curb Weight | 7,205kg |
Gross Vehicle Weight (GVW) | 18,000kg |
Payload Capacity | 10,600kg (10.6 cubic meters water tank) |
Tank Material | 4mm thick Q235 carbon steel with anti-corrosion coating; 5mm optional for heavy-duty |
Tank Structure | Welded steel with longitudinal/transverse anti-sloshing baffles, pressure-tested |
Pump System | Hangzhou Weilong 60/90 self-priming centrifugal pump (60m³/h flow, 90m head) |
Spraying Functions | - Front flush (15m range), rear sprinkler (20m width), side spray (6m coverage) |

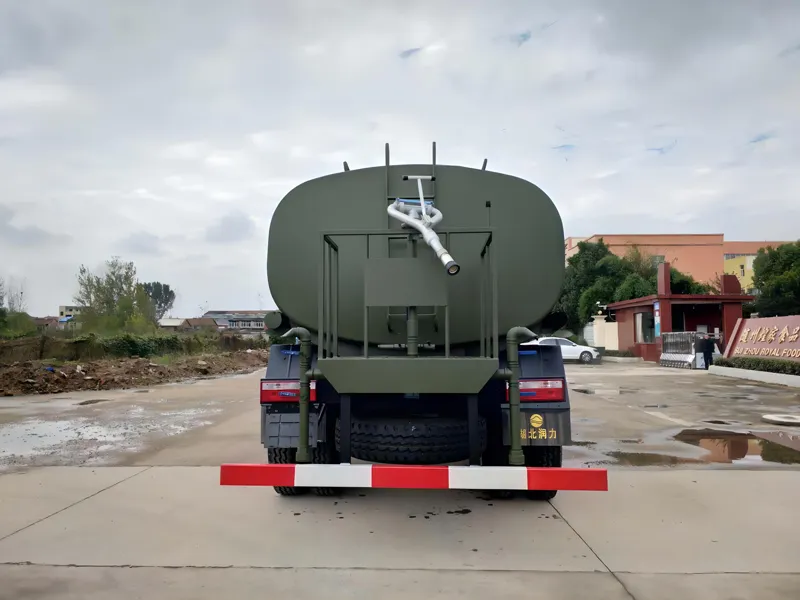

- Rear platform high-pressure cannon (28m range, adjustable from mist to jet) | |
Firefighting Capability | Optional CB10/40-RS fire pump (40L/s flow, 1.25MPa pressure) with ≥50m cannon range |
Braking System | Dual-circuit air brakes with ABS + EBD, spring parking brake |
Steering | Hydraulic power-assisted steering, minimum turning radius 12m |
Suspension | Front/rear leaf spring suspension with telescopic shock absorbers |
Fuel Tank Capacity | 200L diesel tank |
Electrical System | 24V DC system, LED lighting, waterproof connectors, and remote control module |
Environmental Compliance | China VI emission standards (GB17691-2018), compatible with Euro VI |
Operation Range | - Self-priming depth: ≥7m |
- Continuous working time: 8+ hours | |
Optional Features | - Stainless steel tank, polyurea anti-corrosion lining |
- Cab-mounted electric control panel, GPS navigation, and snowplow attachment | |
Application Scenarios | Urban road cleaning, dust suppression, fire-fighting, off-road water transport |
Key Notes:
1. Tank Capacity: Standard models offer 8.7–15 cubic meters; larger capacities (up to 20m³) available upon request.
2. Performance: The 4×4 drivetrain ensures 35° approach angle and 18° departure angle, enabling off-road traversal on slopes up to 30%.
3. Safety: Equipped with rollover protection bars, reinforced bumpers, and reflective warning strips.
4. Maintenance: Modular design for easy access to pumps, valves, and pipelines; service intervals every 10,000km.
This specification table balances technical precision with practical applicability, reflecting Dongfeng’s reputation for robust, versatile, and reliable off-road water tanker solutions.
