1. Product Overview
This 27 cubic meters LPG (Liquefied Petroleum Gas) storage tank is a specialized pressure vessel designed for the safe storage and transportation of liquefied petroleum gas. It adopts advanced manufacturing technology and strict quality control standards to ensure reliability, safety, and durability in various operating environments.
2. Basic Parameters
Parameter Item | Specification |
Model | Customizable (e.g., HX-LPG-27) |
Volume | 27 Cubic Meters |
Medium | Liquefied Petroleum Gas (LPG) |
Design Pressure | 1.77 MPa (Customizable based on requirements) |
Working Pressure | 1.6 MPa |
Design Temperature | -20℃ ~ 50℃ |
Material | Carbon Steel (Q345R, or other pressure vessel special steels) |
Overall Dimensions (L×W×H) | Customizable (e.g., 12000×2438×2896 mm, subject to actual design) |
Net Weight | Varies with specific configuration, approx. 8000 kg (example) |
3. Structural Features
Tank Body: The cylindrical tank body is fabricated with high-quality carbon steel plates through processes like rolling, welding, and heat treatment, ensuring excellent pressure-bearing capacity and structural integrity.
Insulation & Protection (if applicable): Optional insulation layers can be added to reduce heat exchange and maintain the medium’s state. The tank is also equipped with anti-corrosion coatings to extend service life in different environments.

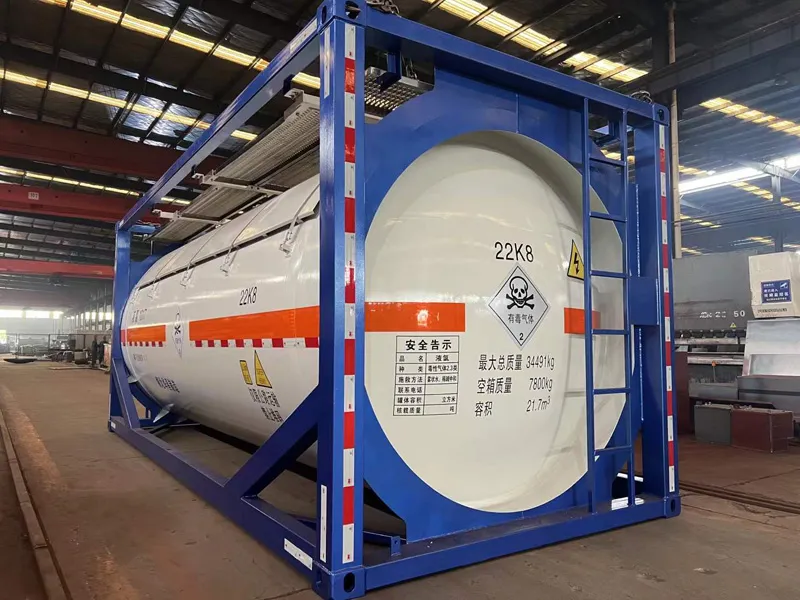

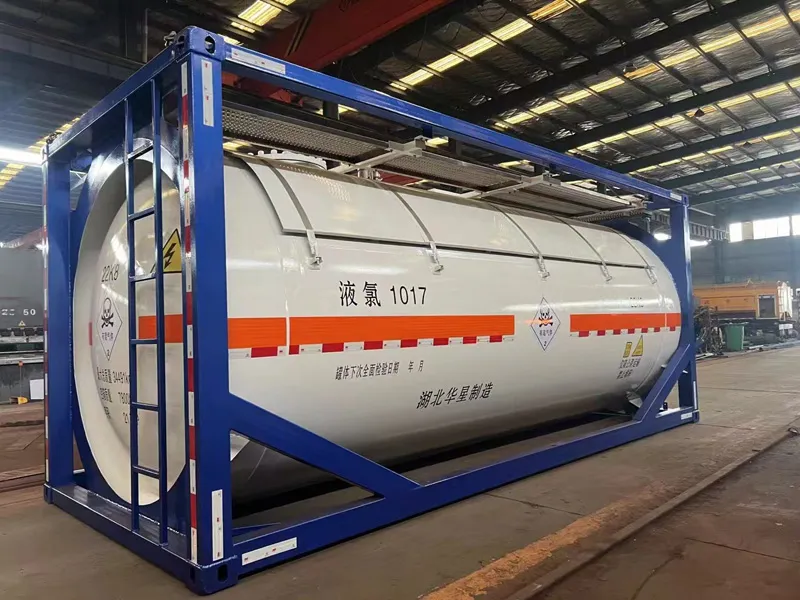

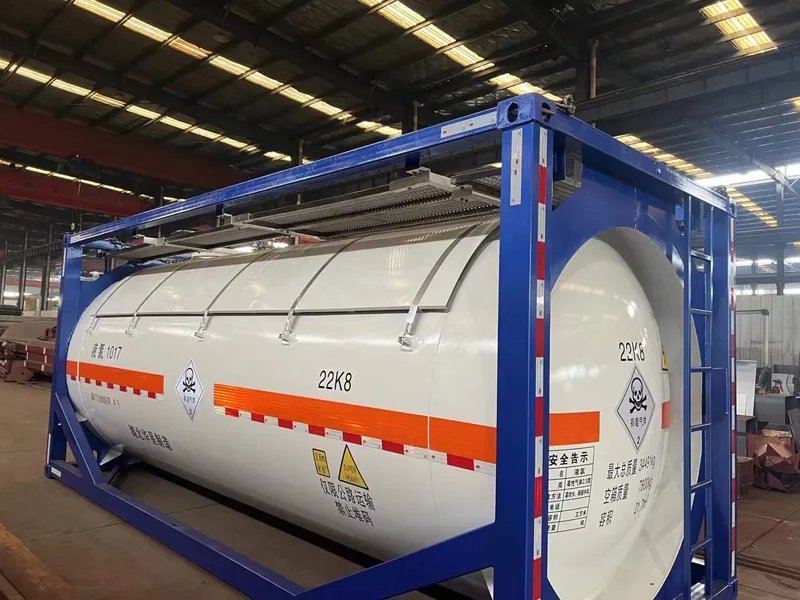

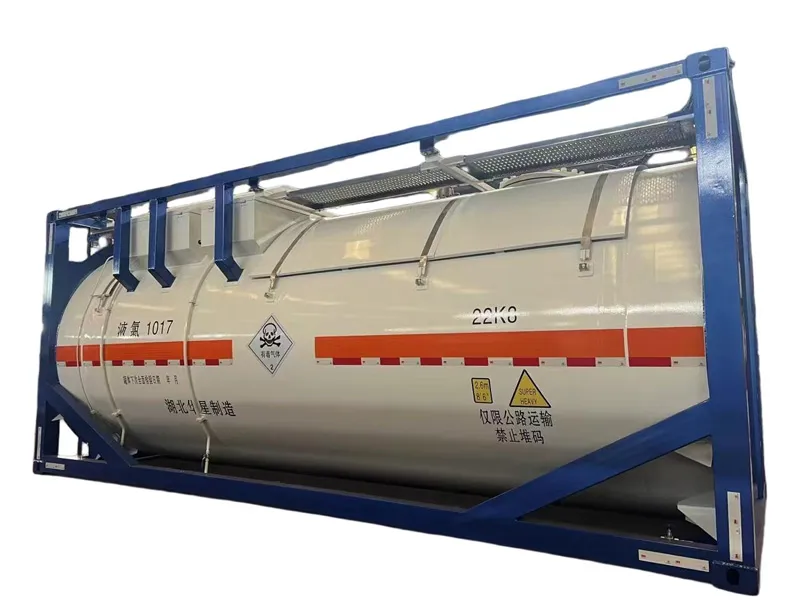

Support & Mounting: Robust support structures (similar to the frame shown in the reference image) are designed to ensure stable placement and transportation, with features to prevent displacement and vibration.
4. Safety Devices
Pressure Relief Device: Equipped with a spring-type safety valve that automatically releases excess pressure when it exceeds the set limit, preventing overpressure risks.
Pressure Gauge: A high-precision pressure gauge is installed to monitor the internal pressure of the tank in real-time.
Level Gauge: A reliable level gauge (e.g., magnetic flap level gauge) is provided to indicate the liquid level of LPG inside the tank.
Emergency Cut-off Valve: Installed to enable quick shutdown in case of emergencies, minimizing potential hazards.
5. Manufacturing Standards & Certifications
Complies with national and international pressure vessel standards, such as GB150-2011 Pressure Vessels (China) and ASME BPVC (USA).
Undergoes strict quality inspections during manufacturing, including non-destructive testing (NDT) for welds, hydrostatic testing, and air-tightness testing.
Available with relevant certifications like ASME U Stamp, GB certification, etc., based on customer requirements.
6. Application Scenarios
This storage tank is widely used in:
Petroleum and chemical industries for LPG storage and intermediate transfer.
Energy supply sectors for distributing LPG to residential, commercial, and industrial users.
Transportation fields (with appropriate modifications) for the safe delivery of LPG.
7. Maintenance & Inspection
Regular Inspection: It is recommended to conduct external inspections annually, internal inspections every 3~6 years, and comprehensive inspections as per regulatory requirements.
Maintenance Measures: Regularly check the integrity of coatings, the functionality of safety devices, and the tightness of seals. Promptly address any corrosion, leakage, or component failure.
