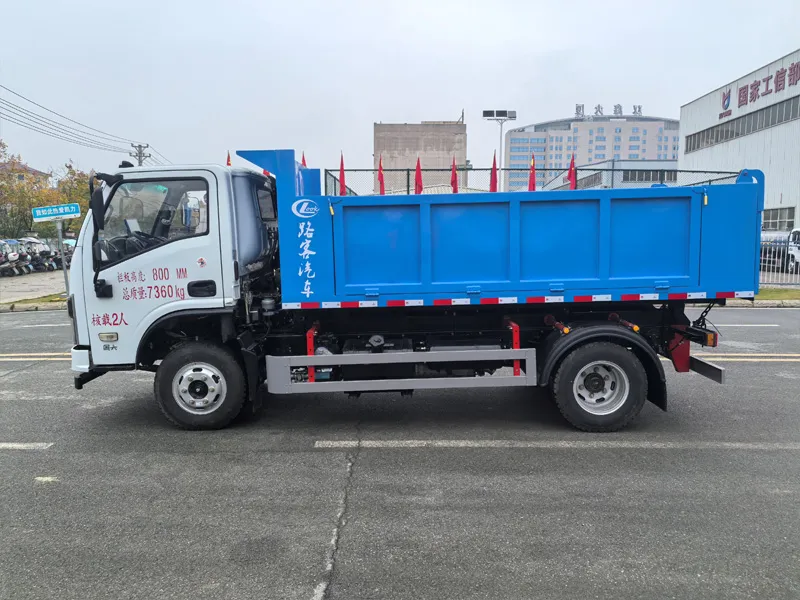

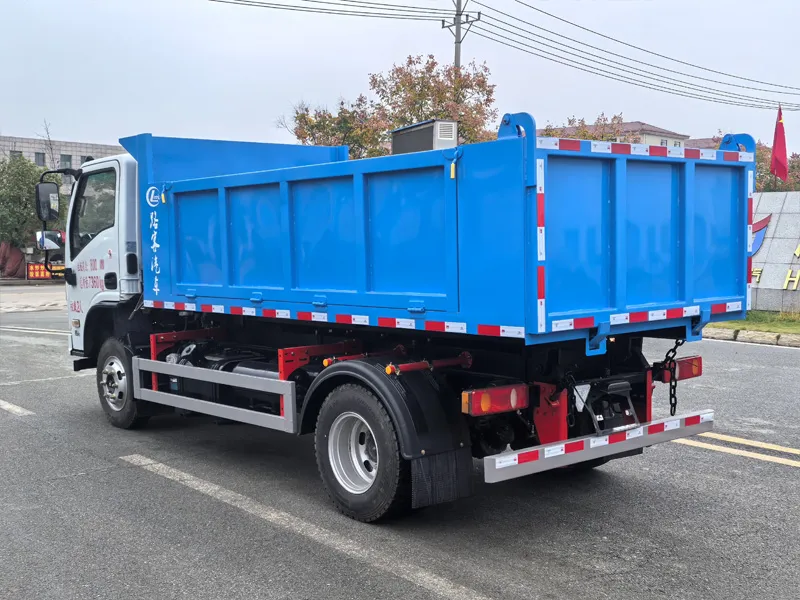

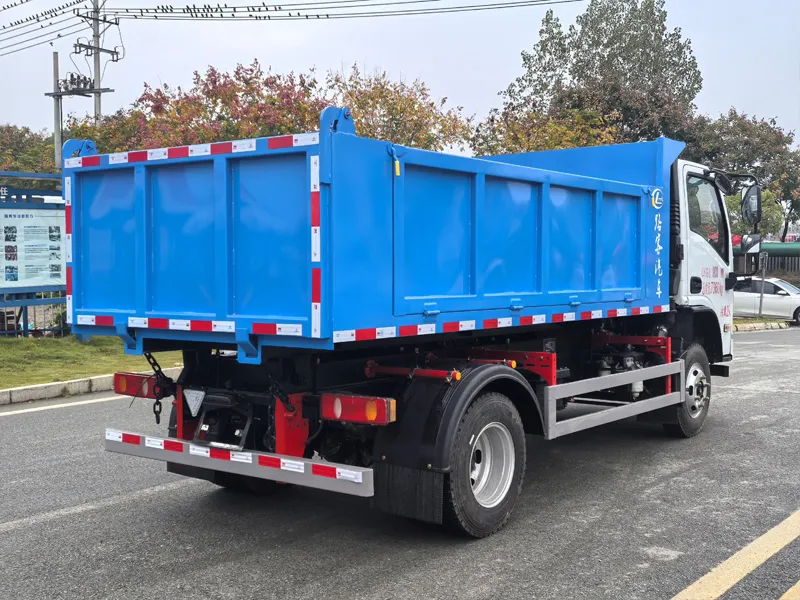

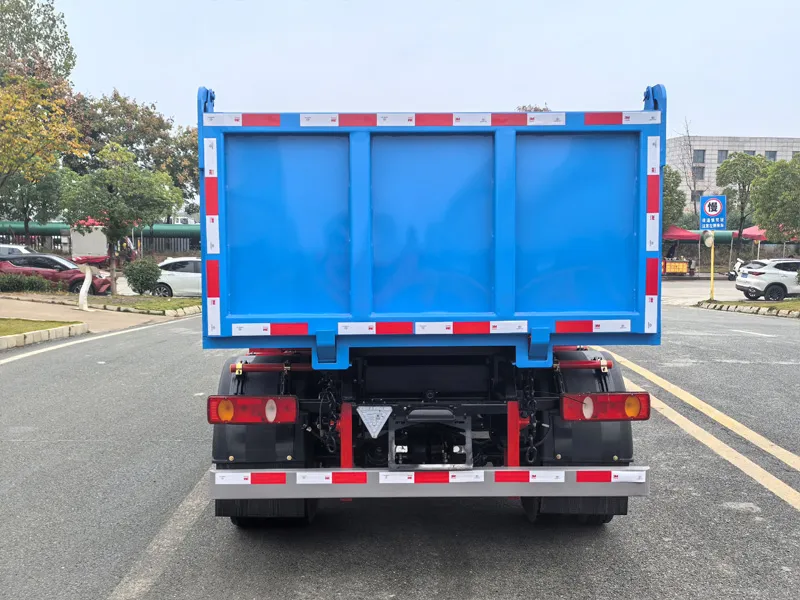

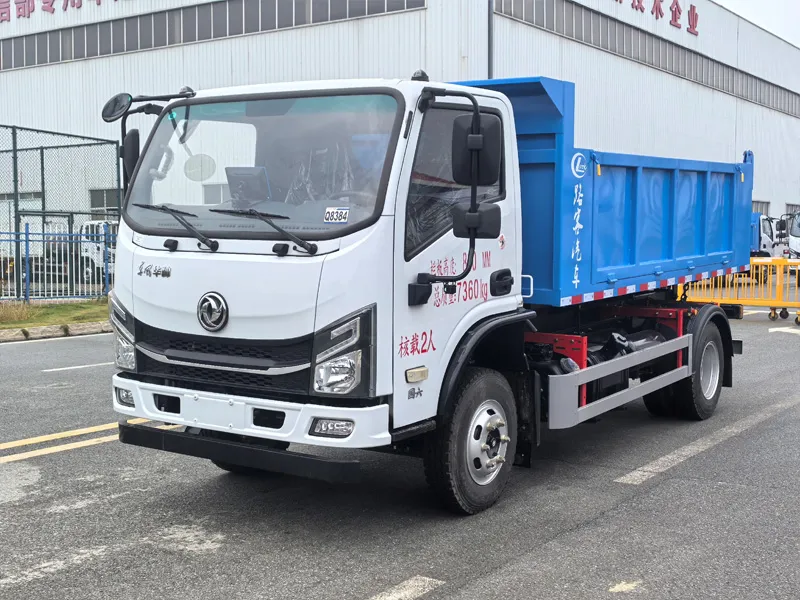

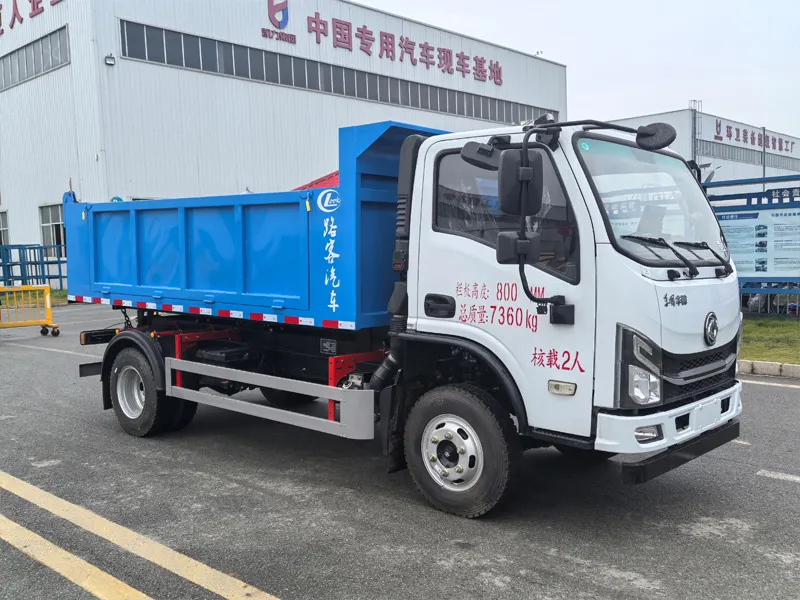

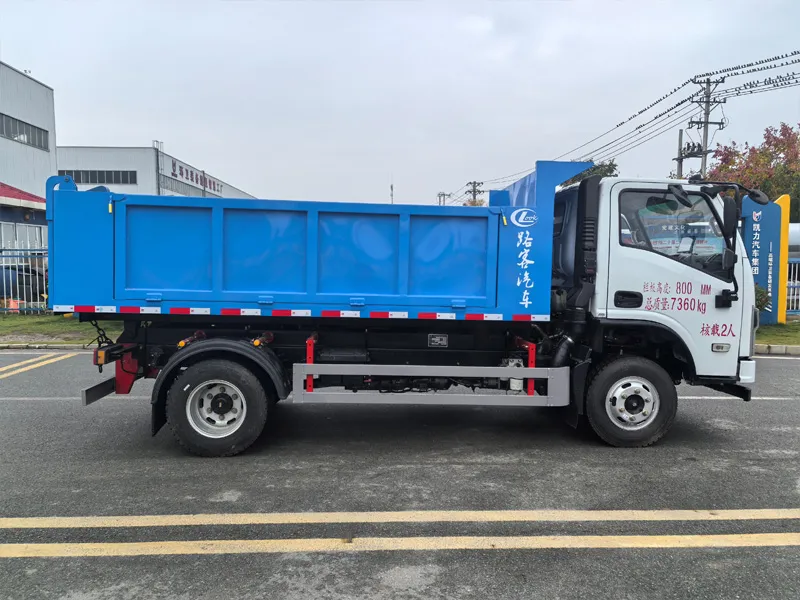

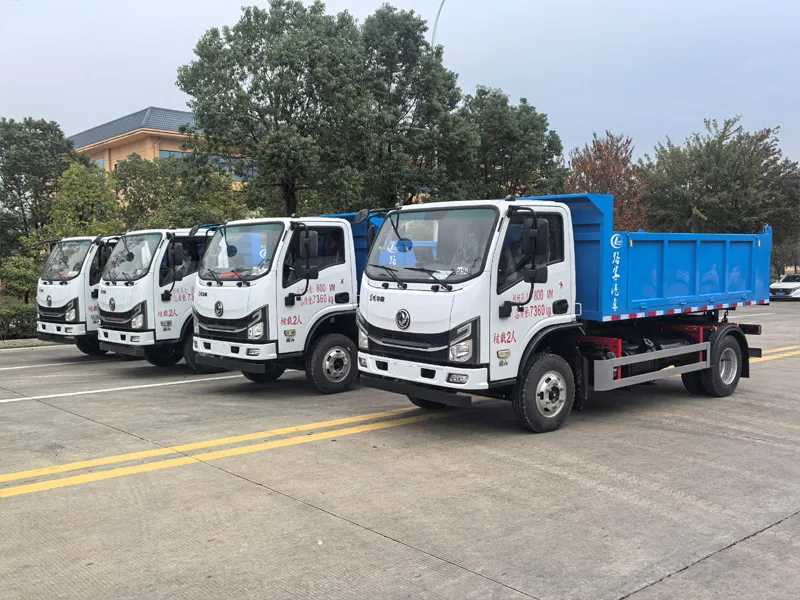

The Dongfeng self-loading and unloading garbage truck is an urban garbage transport vehicle used for urban garbage transportation. It can be equipped with a winged box structure to facilitate garbage loading and unloading and protect the environment. The cover is to prevent secondary pollution.
| Dongfeng self-loading garbage truck technical parameters | |||
| Product Trademark | Casal | Announcement batch | 399 |
| Product Name | Self-dumping garbage truck | Product Model | KLF5071ZLJE6 |
| Total mass(Kg) | 7360 | Passenger capacity (persons) | 2,3 |
| Rated load capacity(Kg) | 3730 | External dimensions(mm) | 5895×2100×2400 |
| curb weight(Kg) | 35003800 | Cargo box dimensions(mm) | 3750×1800×800 |
| Approach angle/Departure angle(°) | 27/21 | Front/Rear Suspension(mm) | 1075/1375 |
| Axle load(Kg) | 2640/4720 | Top speed(Km/h) | 89 |
| The self-unloading method is rear-discharge; special functions and devices: this vehicle is mainly used for urban waste transportation, and the main devices are the box body and hydraulic system. Only a 3300mm wheelbase is selected. Side/rear protection material is Q235B, side protection is bolted, rear protection is bolted, cross-section dimensions (mm): 120×50, ground clearance (mm): 400. ABS model and manufacturer: 3550D-1010C2000/Dongfeng Welfare Enterprise Company, J ABS/Jiaozuo Boruike Control Technology Co., Ltd.; The corresponding relationship between engine and fuel consumption (L/100km) is: D20TCIF11/16.2, YCDV2561-115/13.2, YCDV2561-150/12.65, Q23A-142E60/13.79, D20TCIF61/14.11, YCF25160-66A/14.75; This model can be equipped with an ETC on-board unit. A box-type structure with wingspan is optional. The cab is optional with the chassis. The corresponding dimensions (length/wheelbase/front overhang/rear overhang) in mm are: 5750/3300/1075/1375, 5800/3300/1075/1425, 5810/3300/1135/1375, 5860/3300/1135/1425, 5825/3300/1150/1375, 5875/3300/1150/1425, 5845/3300/1170/1375, 5895/3300/1170/1425. Optional chassis accessory locations and styles are also available. | |||
| Chassis technical parameters | |||
| Chassis Model | EQ1070GL6DJ | Chassis Name | Cargo truck chassis |
| Trademark Name | Dongfeng brand | manufacturing enterprises | Dongfeng Motor Group Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| wheelbase (mm) | 3300 | Tire specifications | 7.00R16LT 14PR |
| Number of leaf springs | 6/6+5 | Front wheel track(mm) | 1525 |
| Fuel types | diesel fuel | Rear wheel track(mm) | 1510 |
| Engine Model | Engine manufacturers | Displacement(ml) | power(Kw) |
| D20TCIF11 | Kunming Yunnei Power Co., Ltd. | 1999 | 93 |
The LOOK5071ZLJE6 self-dumping garbage truck is an urban waste transport vehicle manufactured by Hubei Luke Special Vehicle Co., Ltd. The following is its detailed introduction:
Basic Information: Brand: Casarte; Model: LOOK5071ZLJE6; Chassis: EQ1070GL6DJ; Rear-dumping type.
Dimensions: Overall length: 5750-5800mm; Width: 2050-2100mm; Height: 2300-2350mm. Cargo box length: 3700-3750mm; Width: 1750-1800mm; Height: 600-800mm. Wheelbase options: 2650mm, 2950mm, and 3300mm.
Weight Parameters: Gross vehicle weight 7360kg, rated load 3365-3730kg, curb weight 3500-3800kg, axle load 2640/4720kg.
Performance Parameters: Maximum speed 89km/h, cab seating capacity 2 or 3 people. Tire specifications: 7.00R16LT 14PR or 7.50R16LT 14PR, approach and departure angles 27/20° or 27/21°.
Powertrain: Can be equipped with Kunming Yunnei Power Co., Ltd.'s D20TCIF11 or D20TCIF61 engines, or Anhui Quanchai Power Co., Ltd.'s Q23A-142E60 engines, with displacement between 1999-2488ml and power output between 85-116kW.
Special functions: The main components of this vehicle are the cargo box and hydraulic system, which are used for urban waste transportation. An optional cargo box structure with wings can be installed to facilitate the loading and unloading of waste.
