Category | Item | Specification |
Tank Body | Manufacturing Standard | Complies with industry standards and customer requirements |
Tank Structure | Single-compartment | |
Outer Tank Material | Q235 carbon steel plate, 4.2mm thick | |
Tank Head | Butterfly-shaped head | |
Inner Lining | Polyethylene, 16mm thick | |
Anti-Sloshing Device | 3 sets of double-layer steel-lined polyethylene anti-wave plates | |
Top Tank Openings | 2 full-plastic tank openings with acid-receiving trays | |
Top Enclosure | Square box-type upper coaming + movable guardrail; SBS anti-corrosion treatment inside coaming | |
Walkway | FRP (fiberglass reinforced plastic) walkway | |
Bottom Valve (Rear Tank) | 1 set of DN100 stainless steel-lined PTFE (Teflon) subsea valve (with sound and light alarm device) | |
Gravity Outlets (Rear) | 1 gravity outlet on left and right under rear girder respectively; controlled by DN80 PTFE-lined ball valves, with full-plastic outlet trays and full-plastic protective boxes | |

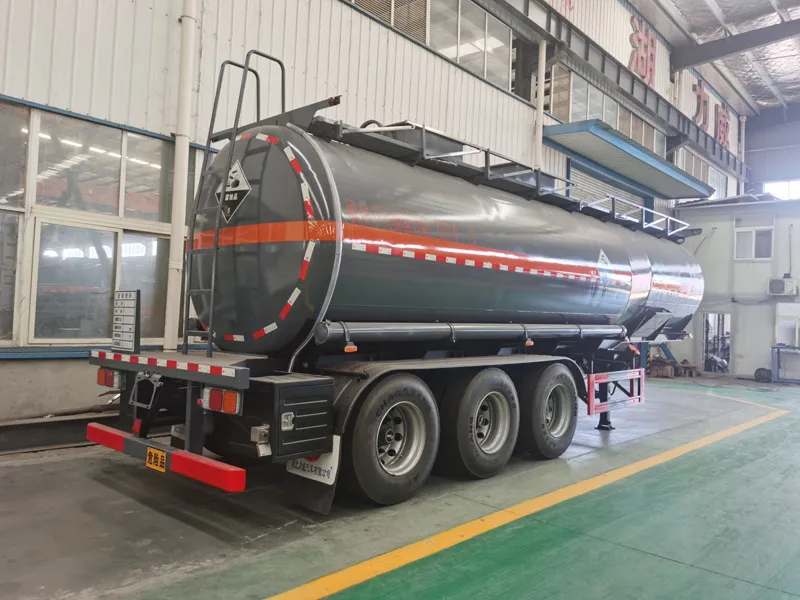

Accessory (Rear) | Carbon steel ladder (rear), 2 acid and alkali resistant discharge hoses with PVC cannon tubes | |
Fire Protection | 2×8KG fire extinguishers | |
Other Tank Accessories | Standard factory configurations (except specified above) | |
Chassis Frame | Axles | 3-axle Shijiazhuang Aotong disc brake axles |
Suspension | Air suspension | |
Tires & Rims | 12 Chaoyang 12.00 vacuum tires with carbon steel rims | |
Brake System | Axle 1 & Axle 3 with EBS; automatic slack adjusters; brake lining alarm; air brake | |
Fifth Wheel Pin | 50-type fifth wheel pin | |
Landing Gear | 28-ton single-acting landing gear | |
Spare Tire Rack | 1 spare tire rack (no spare tire included) | |
Tool Storage | 1 toolbox | |
Static Protection | 1 static grounding strip | |
Other Frame Accessories | Standard factory configurations (except specified above); tractor head provided by user (specific traction height available upon request) | |
Exterior & Safety Marking | Paint | Gray anti-corrosion paint |
Reflective Devices | Reflective strips, reflective tapes | |
Safety Signs | Safety notice boards |
