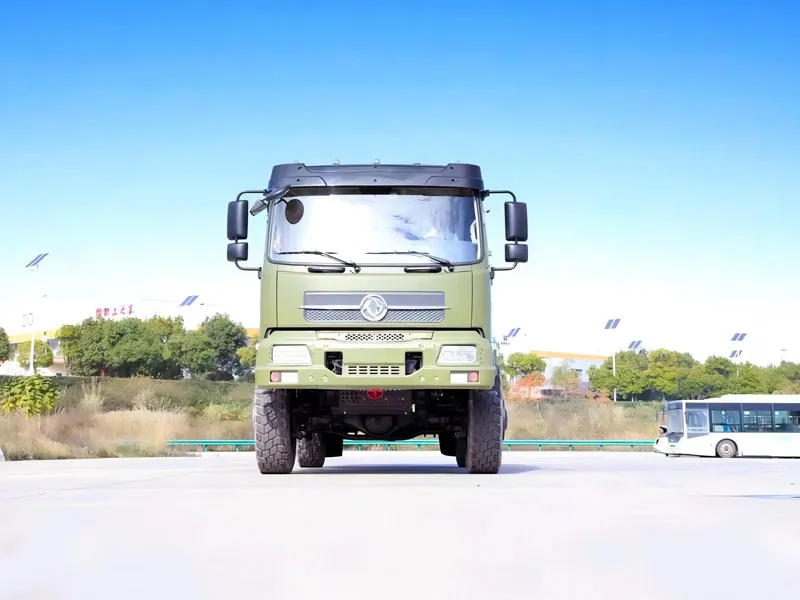

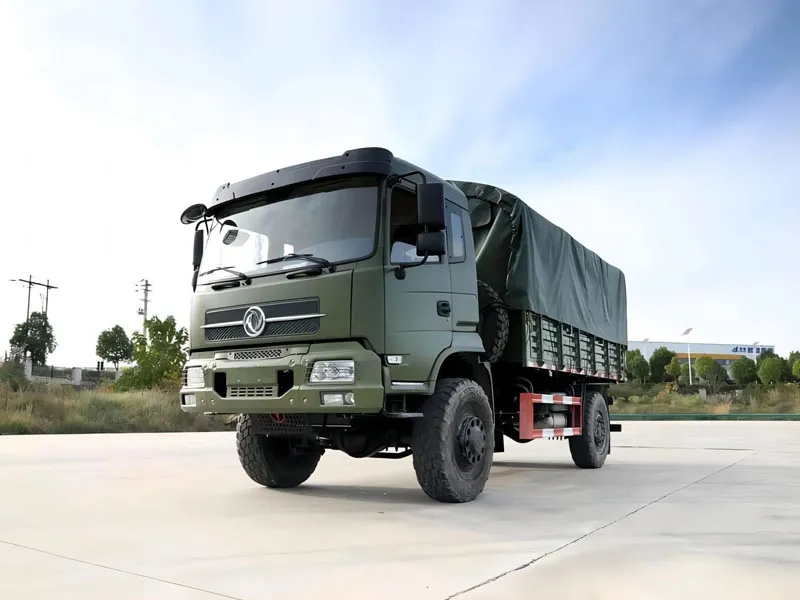

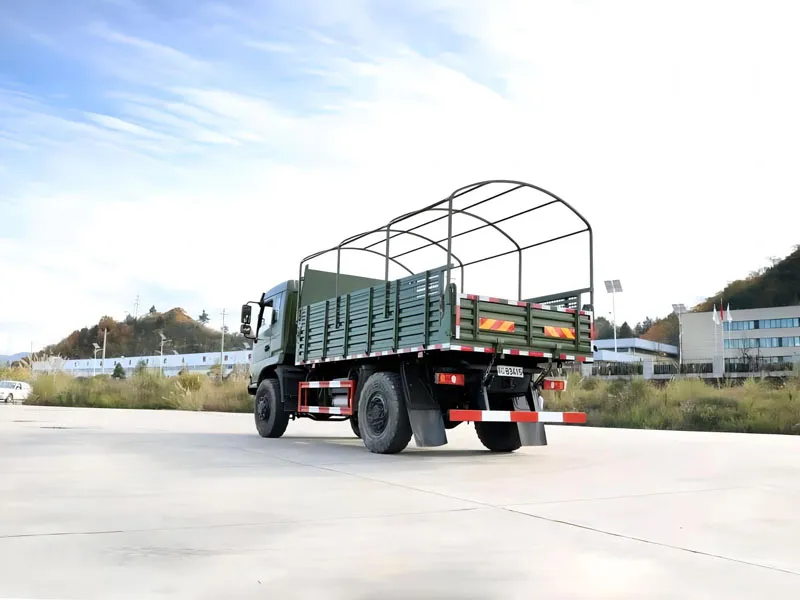

Dongfeng 4×4 personnel carrier features 10–19 seats, a Cummins diesel engine, 6-speed manual transmission, and 4.5-ton payload, built for military transport and extreme off-road operations.
Category | Specifications |
Power System | - Engine: Weichai WP4.1NQ170E61 China VI diesel engine, 170 hp, torque 600N·m (1300-1900rpm) - Transmission: Fast 6-speed manual transmission, matched with mechanical full-time 4WD system, with high-low speed transfer case |
Chassis & Load Capacity | - Drive form: 4×4 full-time 4WD, equipped with Dongfeng Dana 2.7-ton front axle and 5.5-ton rear axle, strong load capacity - Suspension/Braking: Front and rear leaf spring suspension; front disc and rear drum brakes with ABS; air brake parking - Tires: 8R19.5 12-ply tubeless tires, diameter approx. 1m, enhancing passability on complex roads |

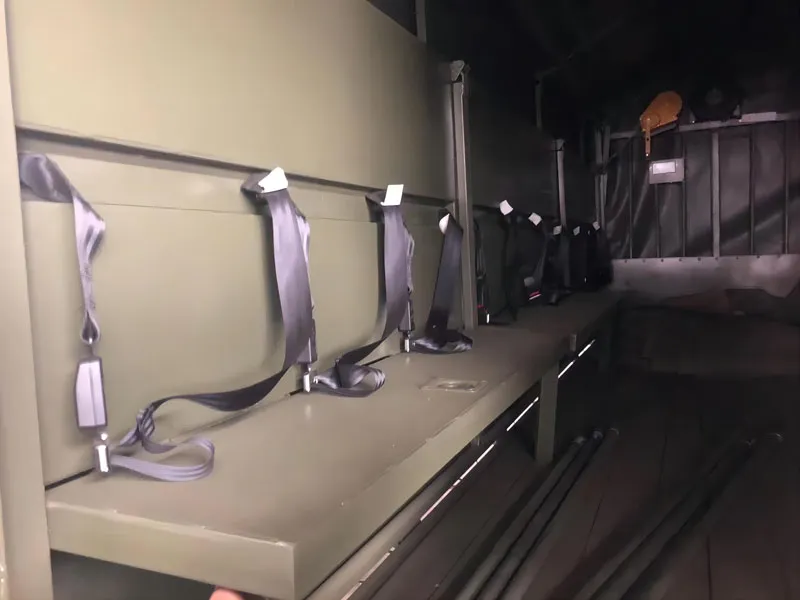

Body & Space | - Overall dimensions: 5990×2280×2750-3030mm (L×W×H); wheelbase 3300mm; interior height 1.63m - Seating capacity: 17 seats (including driver); optional pneumatic folding door and rear double-door structure |
Off-road Performance | - Passability: Approach angle/departure angle approx. 40°/30°; ground clearance 305mm; wading depth 1m; climbing ability 40% - Off-road configuration: Mechanical full-time 4WD with differential lock, capable of handling extreme environments such as sand and mud |
Other Parameters | - Maximum speed: 100km/h; curb weight approx. 6 tons; fuel tank capacity 160L - Safety features: Full vehicle seat belts, GPS positioning, reversing camera, fire extinguisher, etc. |
