Category | Specification Details |
Core Capacity | - Feed Storage Volume: 5000 Liters (5m³) - Suitable Material: Granular/Powdered Feed |
Chassis | - Brand: Dongfeng Original Heavy-Duty Chassis - Frame Structure: Reinforced Steel Frame- Axle Configuration: 4×2 / 6×2 (Optional) |
Engine | - Emission Standard: National VI (Euro VI Equivalent) - Power Range: 160-220 HP - Fuel Type: Diesel - Fuel Consumption: ≤28 L/100km (Under Rated Load) |

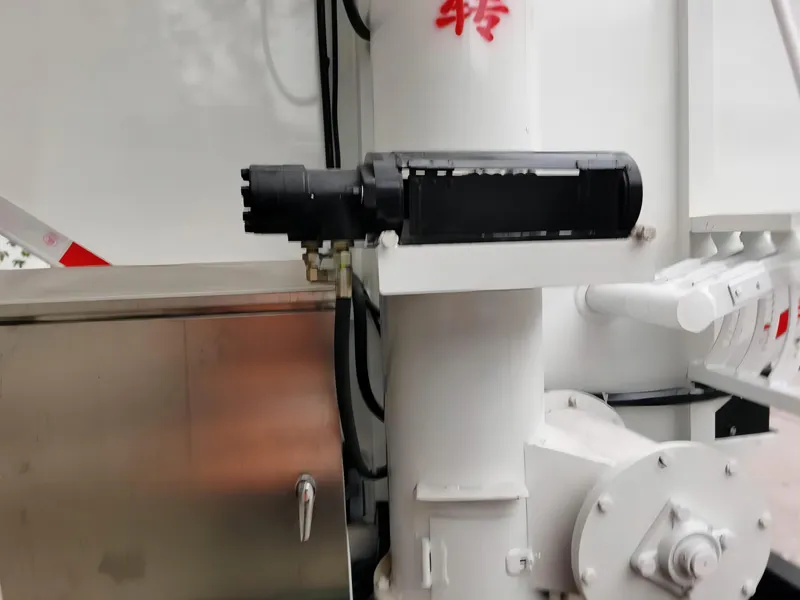

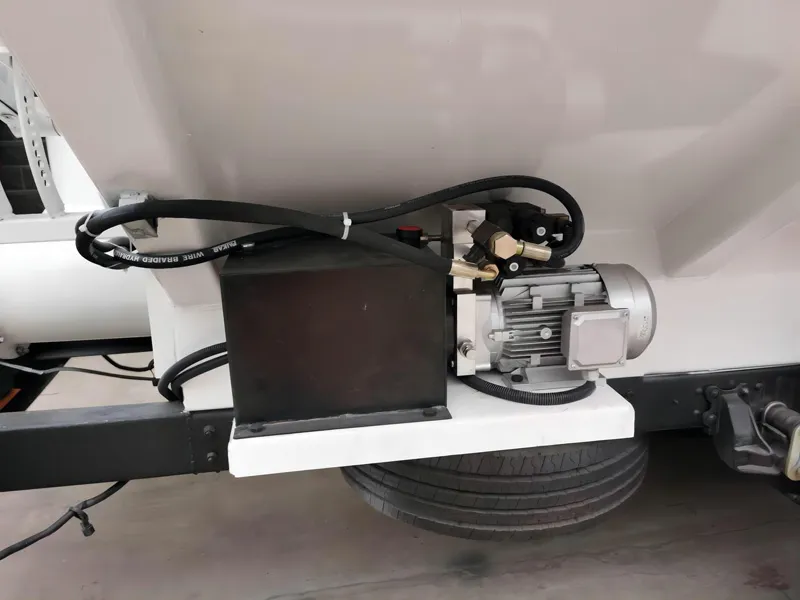

Unloading System | - Type: Pneumatic Conveying System - Unloading Speed: ≥2.5 Ton/Hour- Residue Rate: ≤0.5% - Conveying Distance: Horizontal ≤15m, Vertical ≤8m - Power Source: Independent Hydraulic Pump |
Dimensions (L×W×H) | - Overall: Approx. 8900×2500×3800 mm - Feed Tank: Approx. 6200×2450×2200 mm - Wheelbase: 4500/4700 mm (Optional) |
Weight Parameters | - Curb Weight: Approx. 10.5 Ton - Gross Vehicle Weight (GVW): ≤18 Ton - Maximum Payload: Approx. 7.5 Ton |
Safety & Reliability | - Safety Devices: Pressure Relief Valve, Anti - Leakage Seal, Overload Alarm- Tank Material: High - Strength Carbon Steel (Anti-Corrosion Coated) - Cooling System: Forced Air Cooling (Prevents Feed Caking) |
Auxiliary Configurations | - Control: Manual + Electric Dual-Control System - Accessory: Telescopic Unloading Hose (Length: 5m) - Optional: Feed Level Sensor, GPS Positioning |
