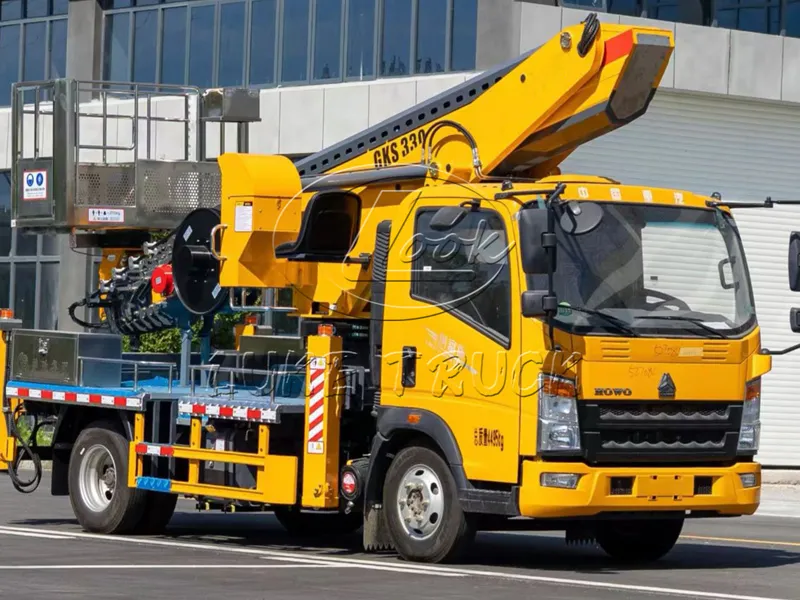

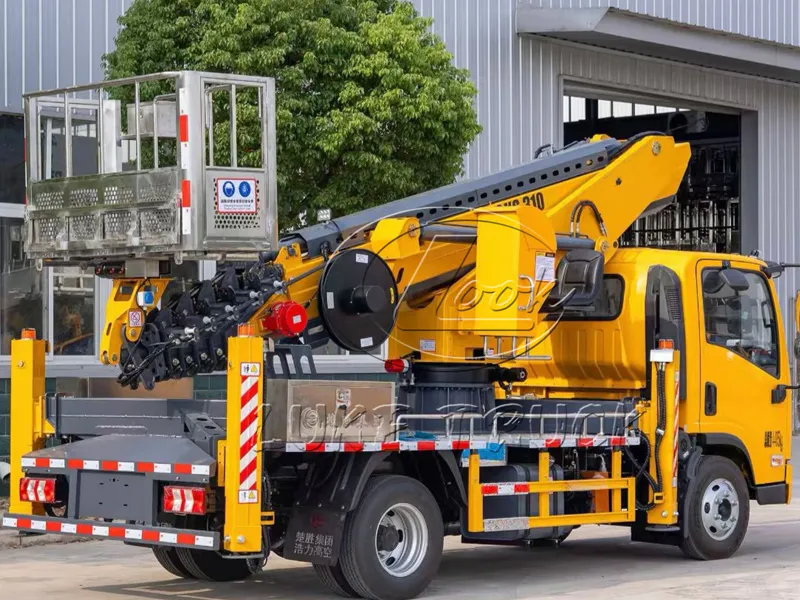

Heavy Duty Truck Wangpai 28-meter Aerial Working Platform Truck leverages China Heavy Duty Truck's global network of over 1,000 service outlets to provide premium services featuring 24/7 response, extended warranty, and lifetime technical support, ensuring every aerial operation with exceptional service.
| Technical Parameters of 28m Aerial Working Platform Truck | |||
| Product trademark | Casal card | Announcement batch | 369 |
| product name | Aerial Working Platform Truck | product model | LOOK5120JGKZ6 |
| gross mass （Kg） | 11995 | outline dimension （mm） | 8650×2500×3700 |
| Number of passengers in the cab (per person) | 3 | curb weight （Kg） | 11800 |
| Approach Angle/Departure Angle (°) | 18/17 | Front/rear suspension (mm) | 1180/2250 |
| axle weight （Kg） | 4285/7710 | Maximum speed (Km/h) | 95 |
| This model features a high-altitude work platform equipped with outriggers, a rotating platform, boom, and work platform components, enabling the delivery of personnel and tools to designated heights for operations. The side and rear protective materials are Q235 steel, with side protection connected by bolts and rear protection welded. The rear protective device has a cross-sectional dimension (width × height) of 50×100 mm and a ground clearance of 490 mm. The ABS system model is XH-KQ4S4M-E01, manufactured by Guangzhou Xihé Automotive Electronic Equipment Co., Ltd.; the model is CM4XL-4S/4M, produced by Guangzhou Ruilike Mi Automotive Electronics Co., Ltd.; and the model is VIE ABS-Ⅱ, manufactured by Zhejiang Wan'an Technology Co., Ltd. Optional accessories include a cab, tool box, and exterior styling. | |||
| [Chassis Technical Parameters] | |||
| Chassis model | ZZ1127H4515F1 | Chassis name | truck chassis |
| brand name | Hawo brand | manufacturing enterprise | China Heavy Duty Truck Group Commercial Vehicle Co., Ltd. |
| number of axles | 2 | Number of tires | 6 |
| wheel base （mm） | 3800 | tyre size | 245/70R19.5 16PR |
| Number of leaf springs | 3/3+2 | front gauge （mm） | 1776 |
| fuel type | diesel oil | rear track （mm） | 1555 |
| standard of emission | GB17691-2018 National VI | ||
| engine type | engine manufacturer | displacement （ml） | power （Kw） |
| WP3NQ160E61 | Weichai Power Co., Ltd. | 2970 | 118 |
All models are compatible with China VI, Euro V, and Euro III emission standards, and can be flexibly customized according to the regulatory requirements of different regions worldwide. They are exported to over 50 countries and regions, including Southeast Asia, the Middle East, Africa, and South America, becoming the "star equipment" for overseas infrastructure projects. Relying on China National Heavy Duty Truck Corporation's global network of over 1,000 service outlets, we provide premium services featuring 24/7 response, extended warranty, and lifetime technical support, ensuring every high-altitude operation is safeguarded by exceptional service.
Robust as a rock, precise control, and zero errors in aerial operations: Chongqing Heavy Duty Truck's Aerial Working Platform Truck prioritizes safety above all, featuring a nine-tier safety protection system that sets new industry benchmarks. Its boom is crafted from aviation-grade hexagonal high-strength profiles through integrated forging, delivering 35% enhanced torsional strength. Equipped with multi-section synchronized telescoping technology, it ensures smooth and stable lifting without wobbling. With a maximum working radius of 25 meters and 360° continuous rotation, it effortlessly reaches any operational point.
The innovative front-V rear-H hydraulic outriggers achieve a maximum span of 7.2 meters. Featuring intelligent interlocking with the vehicle body, they automatically level with a single button press, securely anchoring the vehicle even on 15° inclines to prevent rollovers. Equipped with a German-imported electro-hydraulic proportional control system, the system delivers millimeter-level precision and supports three operation modes: turntable control, basket control, and wireless remote operation, ensuring accurate performance in complex conditions. Additionally, it includes multiple safety features such as wind speed monitors, emergency braking systems, and overload protection devices, providing robust safeguards for high-altitude workers.
Hardcore quality trusted worldwide, legendary craftsmanship forged through precision engineering. As a global benchmark for premium equipment, SINOTRUK Aerial Working Platform Trucks integrate cutting-edge international supply chain resources. Their core hydraulic components are sourced from Italy's Bosch Rexroth, sealed systems utilize Germany's Parker technology, and critical bearings are SKF-branded from Sweden. Having passed extreme environment tests including-40°C freezing temperatures, 50°C scorching heat, and high-altitude oxygen deprivation, these platforms demonstrate failure rates far below industry averages with a service life exceeding 15 years.
