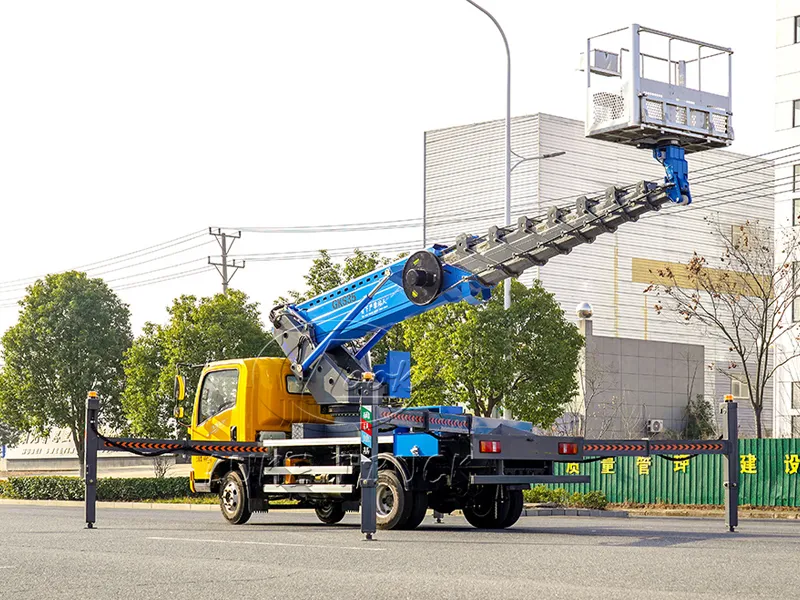

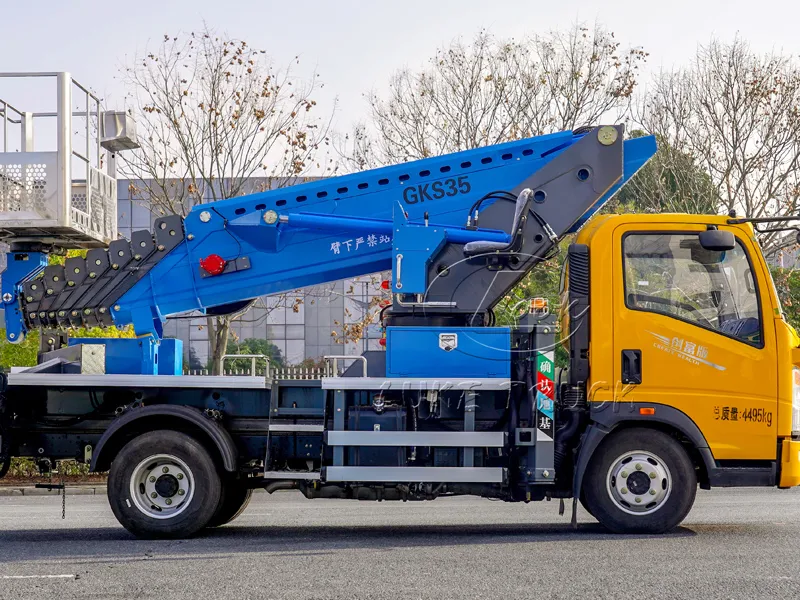

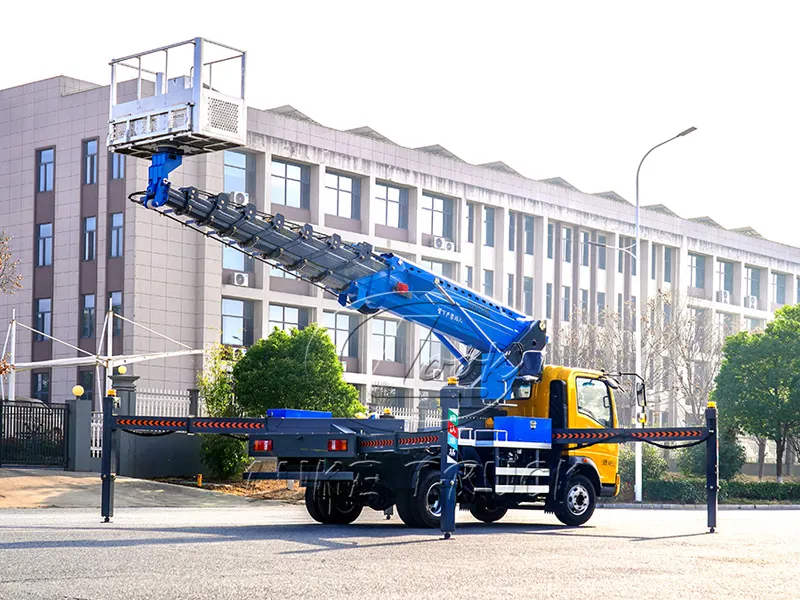

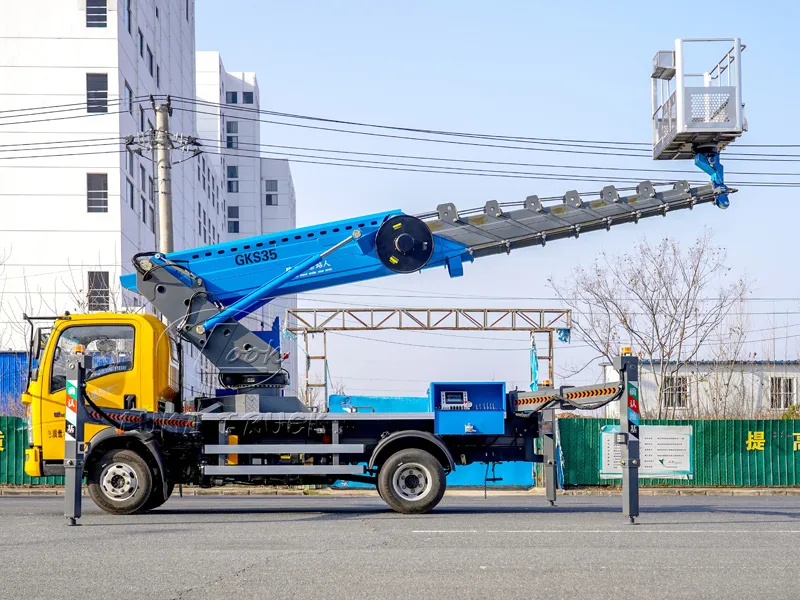

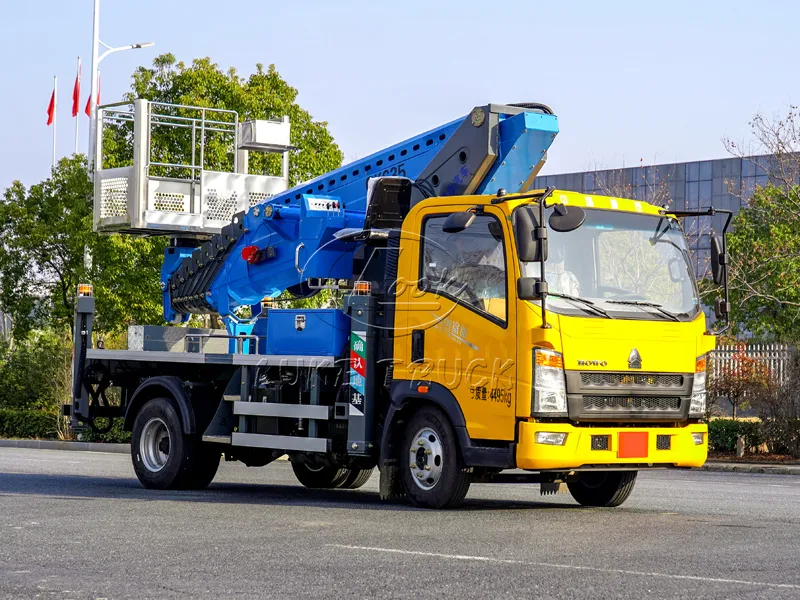

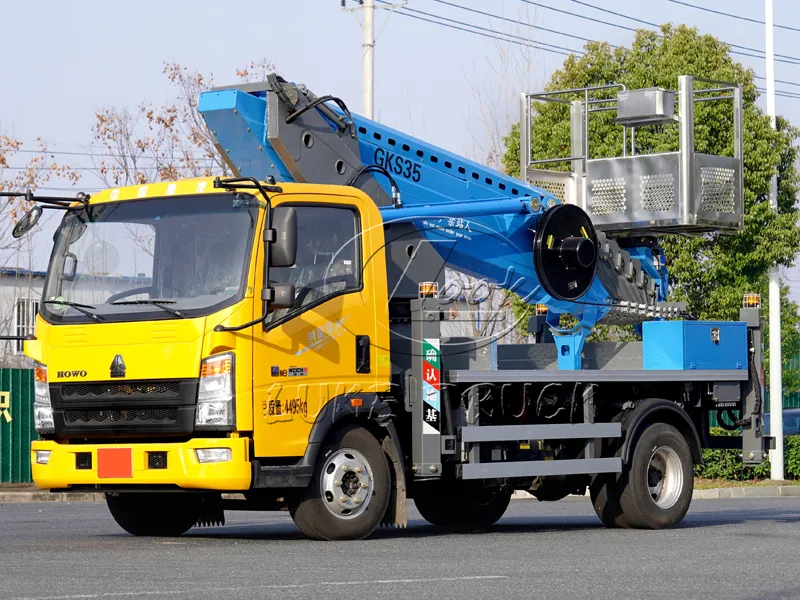

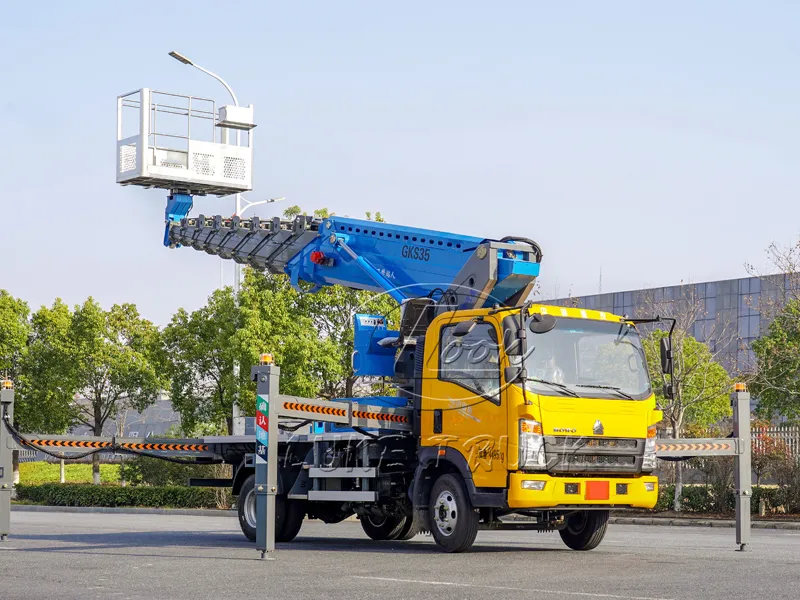

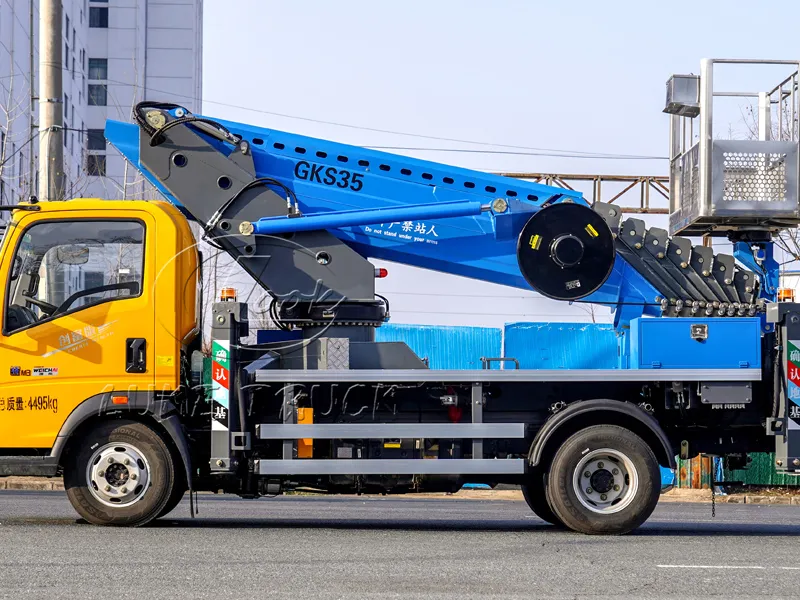

Yellow and Blue Heavy Duty Truck's Howo 35-meter Aerial Working Platform Truck extends its reach from 18 to 50 meters, comprehensively addressing low-altitude maintenance, mid-altitude construction, and high-altitude emergency repairs. It truly embodies the concept of ' one vehicle, all scenarios covered'.
| Technical Parameters of Heavy Duty Truck Howo 35m Aerial Working Platform Truck | |||
| Product trademark | Runzhi Star brand | Announcement batch | 400 |
| product name | Aerial Working Platform Truck | product model | SCS5071JGKZZ6 |
| gross mass （Kg） | 73,606,800 | curb weight （Kg） | 7230 |
| Maximum number of passengers (people) | 3 | outline dimension （mm） | 7470×2200×3650 |
| Approach angle/Departure angle (°) | 19/12 | Front/rear suspension (mm) | 1160/2340 |
| axle weight （Kg） | 2640/4720 | Maximum speed (Km/h) | 80,95 |
| This vehicle is designed for high-altitude operations such as power line repairs, communication maintenance, and street lighting installations. Its primary component is the working arm, with Q235B steel used for side and rear protective materials. The protective bolts are welded to the sides and rear, forming a protective section measuring 50×100 mm (width×height), with the lower rear protection extending 500 mm above ground. Warning lights are mounted on the front and rear outriggers, which remain off during operation and only activate when extended. A night work light is installed on the hoist basket for nighttime use, though it stays off during movement. Optional exterior styles are available, including a cab option with the chassis, aluminum alloy rims, and a customizable bumper design. | |||
| [Chassis Technical Parameters] | |||
| Chassis model | ZZ1077G3815F174Z | Chassis name | truck chassis |
| brand name | Hawo brand | manufacturing enterprise | China Heavy Duty Truck Group Commercial Vehicle Co., Ltd. |
| number of axles | 2 | Number of tires | 6 |
| wheel base （mm） | 3360 | tyre size | 7.00R16LT 14PR |
| Number of leaf springs | 3/3+2 | front gauge （mm） | 1610 |
| fuel type | diesel oil | rear track （mm） | 1555 |
| standard of emission | GB17691-2018 National VI | ||
| engine type | engine manufacturer | displacement （ml） | power （Kw） |
| WP3NQ160E61 | Weichai Power Co., Ltd. | 2970 | 118 |
Thunderous power delivers unimpeded performance, harnessing wind for all-terrain operation. All heavy-duty Aerial Working Platform Trucks from China National Heavy Duty Truck Corporation (CNHTC) are equipped with Weichai's customized engines, delivering robust and rapid power output. With displacement ranging from 3.0L to 6.2L, these engines exceed 220Ps peak horsepower and 800N·m torque, effortlessly handling mountainous climbs, muddy terrains, and heavy-load transfers. Paired with Faust's fully synchronized transmission, the vehicles achieve smooth gear shifts without jerks, boasting industry-leading transmission efficiency. This design balances exceptional power with fuel economy, while achieving dual breakthroughs in both range and operational duration.
The chassis is constructed from military-grade high-strength alloy steel, having passed 80,000 fatigue impact tests and achieving a 40% increase in load-bearing capacity. Whether navigating rugged mountain roads or maneuvering through urban streets, it delivers rock-solid stability. The full range of models spans from blue-plate light trucks to heavy-duty chassis, with working heights extending from 18 meters to 50 meters. This comprehensive coverage meets all operational needs—from low-altitude maintenance and mid-level construction to high-altitude emergency repairs—truly embodying the concept of "one vehicle, all scenarios covered."
Robust as a rock, precise control, and zero errors in aerial operations: Chongqing Heavy Duty Truck's Aerial Working Platform Truck prioritizes safety above all, featuring a nine-tier safety protection system that sets new industry benchmarks. Its boom is crafted from aviation-grade hexagonal high-strength profiles through integrated forging, delivering 35% enhanced torsional strength. Equipped with multi-section synchronized telescoping technology, it ensures smooth and stable lifting without wobbling. With a maximum working radius of 25 meters and 360° continuous rotation, it effortlessly reaches any operational point.

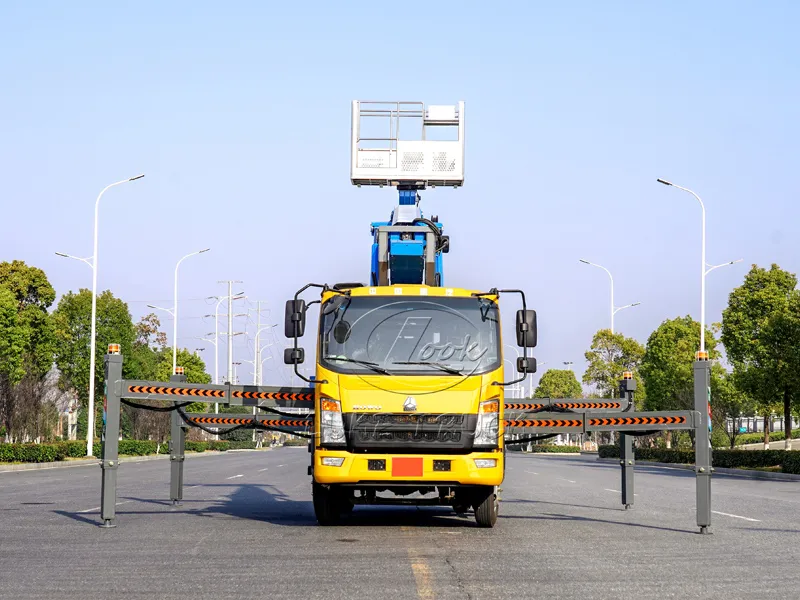

The innovative front-V rear-H hydraulic outriggers achieve a maximum span of 7.2 meters. Featuring intelligent interlocking with the vehicle body, they automatically level with a single button press, securely anchoring the vehicle even on 15° inclines to prevent rollovers. Equipped with a German-imported electro-hydraulic proportional control system, the system delivers millimeter-level precision and supports three operation modes: turntable control, basket control, and wireless remote operation, ensuring accurate performance in complex conditions. Additionally, safety features like wind speed monitors, emergency braking systems, and overload protection devices provide comprehensive safeguards for high-altitude workers.
Hardcore quality trusted worldwide, legendary craftsmanship forged through precision engineering. As a global benchmark for premium equipment, SINOTRUK Aerial Working Platform Trucks integrate cutting-edge international supply chain resources. Their core hydraulic components are sourced from Italy's Bosch Rexroth, sealed systems utilize Germany's Parker technology, and critical bearings are SKF-branded Swedish products. Having passed extreme environment tests including-40°C freezing temperatures, 50°C scorching heat, and high-altitude oxygen deprivation, these platforms demonstrate failure rates far below industry averages with a service life exceeding 15 years.
All models are compatible with China VI, Euro V, and Euro III emission standards, and can be flexibly customized according to the regulatory requirements of different regions worldwide. They are exported to over 50 countries and regions, including Southeast Asia, the Middle East, Africa, and South America, becoming the "star equipment" for overseas infrastructure projects. Relying on China National Heavy Duty Truck Corporation's global network of over 1,000 service outlets, we provide premium services featuring 24/7 response, extended warranty, and lifetime technical support, ensuring every high-altitude operation is safeguarded by exceptional service.
