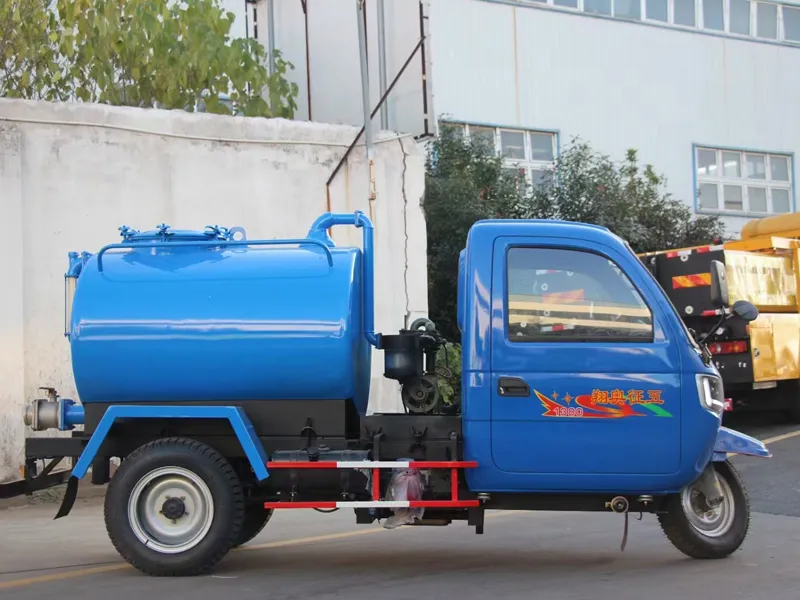

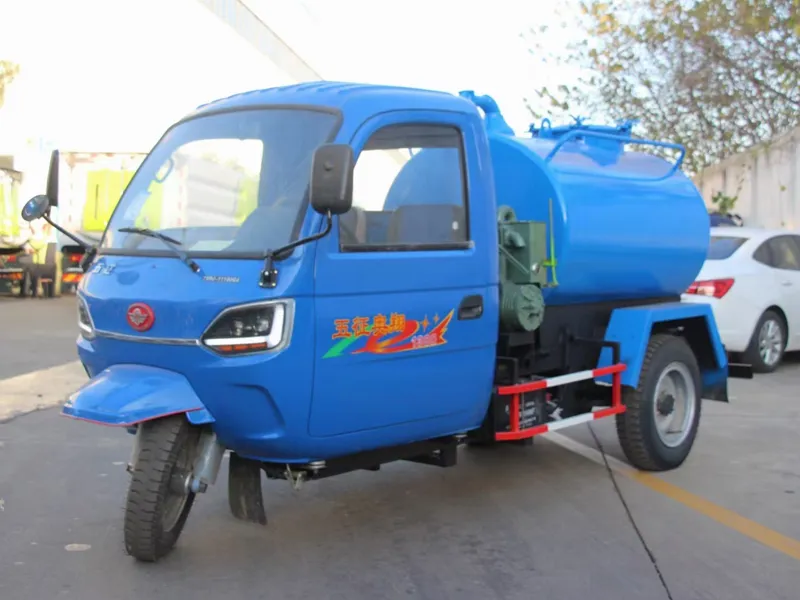

Three-wheeled fecal suction truck efficiently suctions and discharges waste for sanitation tasks, offering high flexibility in narrow or confined areas.
Parameter Category | Specifications |
Brand | Wuzheng (example brand) |
Model | Three-wheeled Fecal Suction Truck |
Tank Capacity | 2–3 cubic meters (typical) |
Tank Material | Carbon steel with anti-corrosion coating |
Vacuum System | - Vacuum degree: ≥80 kPa- Suction depth: ≤5 m |
Vacuum Pump Type | Rotary vane vacuum pump |
Engine Type | Diesel engine |
Engine Power | 18–25 HP |
Overall Dimensions | - Length: ~3500–4000 mm- Width: ~1300–1500 mm- Height: ~2000–2200 mm |
Wheelbase | ~2000–2200 mm |
Curb Weight | ~800–1000 kg |
Gross Vehicle Weight | ~1500–1800 kg |
Suction Time | ≤6 mins (for full tank) |
Discharge Method | Gravity + pressure discharge |
Tires | 5.00-12 (typical) |
Fuel Tank Capacity | ~20–30 L |
Max Speed | ~40–50 km/h |
Control Mode | Manual hydraulic control |
