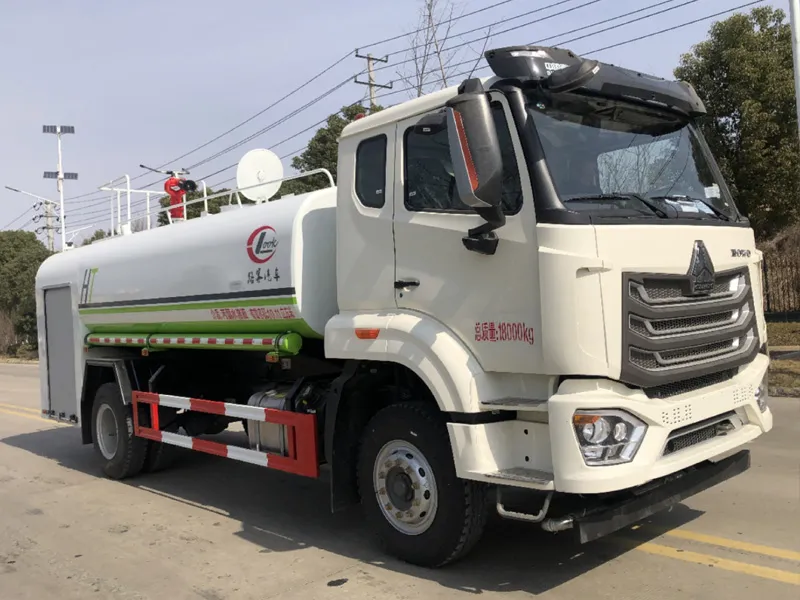

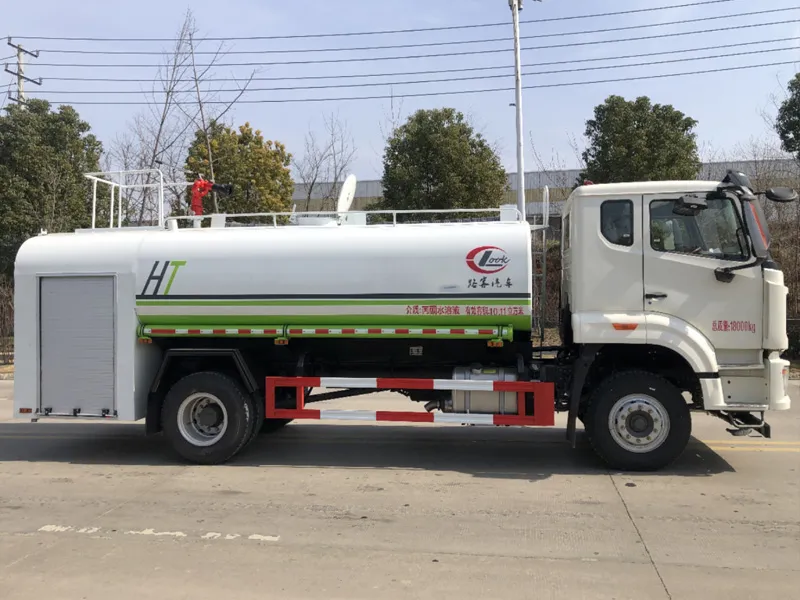

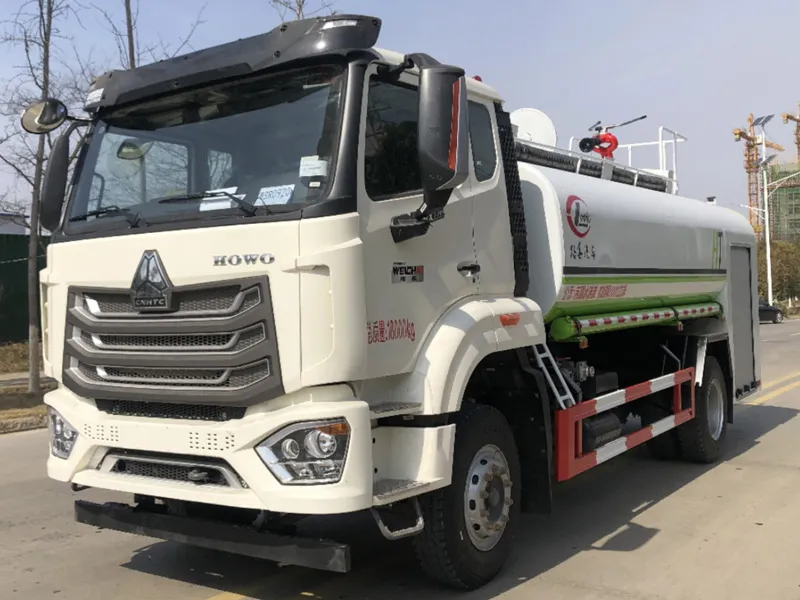

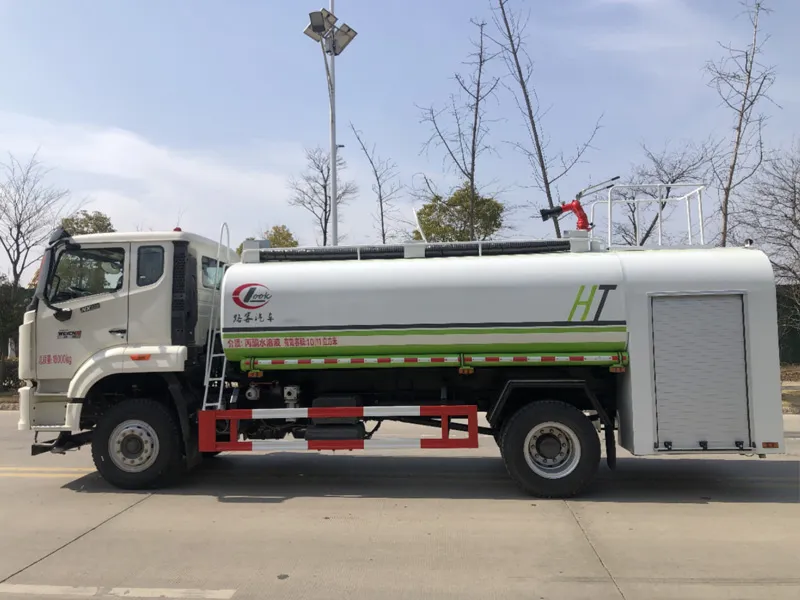

The 10-cubic-meter Sinotruk single-axle fire sprinkler truck is mainly used for large-scale watering and dust suppression and greening irrigation in scenarios such as dust suppression on urban main roads, watering on highways, dust suppression at large construction sites, and haze removal in mining areas. It is the main vehicle for sanitation operations.
| Sinotruk Single-Axle Fire Truck with Liquor and Water Supply | |||
| Product Name | Disinfection spray truck | Product Model | LOOK5180TSDD6 |
| Total mass(Kg) | 18000 | Tank volume(m3) | 10.6 |
| Rated load capacity(Kg) | 9660 | External dimensions(mm) | 8505×2550×3450 |
| curb weight(Kg) | 8210 | Number of passengers allowed in the driver's cab (persons) | 3 |
| Approach angle/Departure angle(°) | 17/12 | Front/Rear Suspension(mm) | 1400/2350 |
| Axle load(Kg) | 6500/11500 | Top speed(Km/h) | 89 |
| 1. This vehicle model is equipped with special devices for disinfection and protection, including a storage tank, primarily used for disinfection and protection. The tank's external dimensions (length × major axis × minor axis) (mm) are 4400 × 2300 × 1500, with a total capacity of 10.6 cubic meters and an effective volume of 10.1 cubic meters. It is modified with a 4700mm wheelbase, and an optional speed limiter is available, limiting the speed to 89km/h. The cab and exterior style are optional and can be selected based on the chassis. The installation positions of the fuel tank, air tank, urea tank, battery, and filter can be selected based on the chassis. | |||
| Chassis Technical Specifications | |||
| Chassis Model | ZZ5186XXYK501GF1 | Chassis Name | Cargo truck chassis |
| Trademark Name | Sinotruk brand | manufacturing enterprises | Sinotruk Commercial Vehicle Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| wheelbase (mm) | 4500 | Tire specifications | 10.00R20 18PR |
| Number of leaf springs | 7/9+6 | Front wheel track(mm) | 1876 |
| Fuel types | diesel fuel | Rear wheel track(mm) | 1820 |
| Emission standards | GB17691-2018 Country VI | ||
| Engine Model | Engine manufacturers | Displacement(ml) | power(Kw) |
| D4.5NS6B190 | Dongfeng Cummins Engine Co., Ltd. | 4500 | 140 |
The Sinotruk single-axle fire sprinkler truck is a specialized vehicle integrating water spraying and dust suppression functions. With a tank capacity of 10 cubic meters, it is widely used in road dust control, landscaping, disinfection, and other fields. The following is a product introduction of the Sinotruk single-axle fire sprinkler truck:

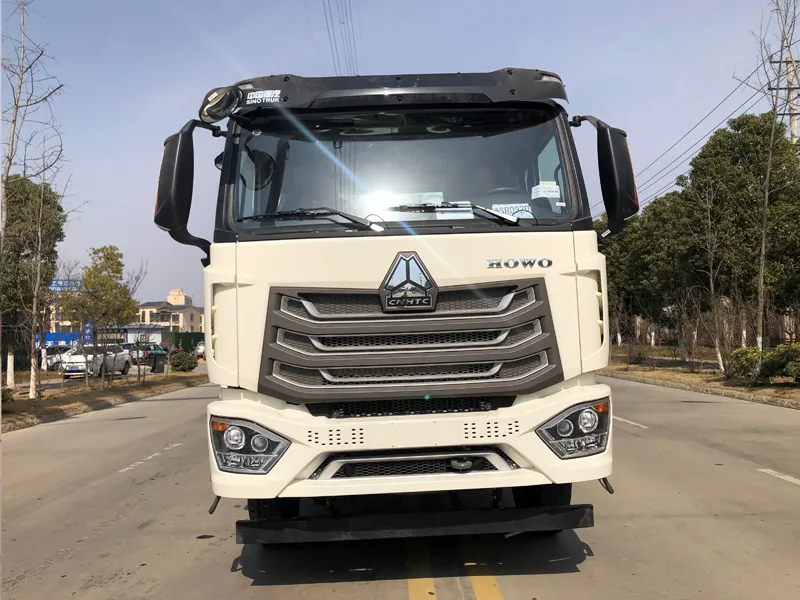

Chassis Configuration: Diesel engine, Sinotruk Howo gearbox, 4500mm wheelbase, 10.00R16 steel radial tires, air brakes, power steering, equipped with a Sinotruk original single-row cab with tilting mechanism.

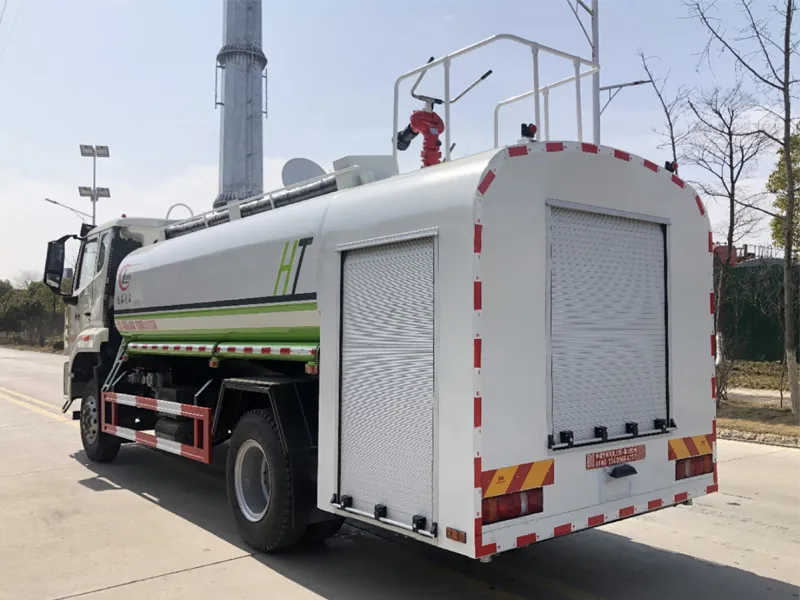

Upper Structure Configuration: The tank is made of 4mm carbon steel plate with internal anti-surge baffles. The vehicle comes with a dedicated water pump with a maximum vertical suction lift of 6 meters and a spray width of 14 meters. A high-pressure water cannon for landscaping is installed on the rear working platform; it can rotate 360 degrees and the mist spray is adjustable.
Fire Monitor Configuration: 50-meter range, high power and high efficiency, capable of immediately suppressing various emergencies and protecting basic infrastructure.
