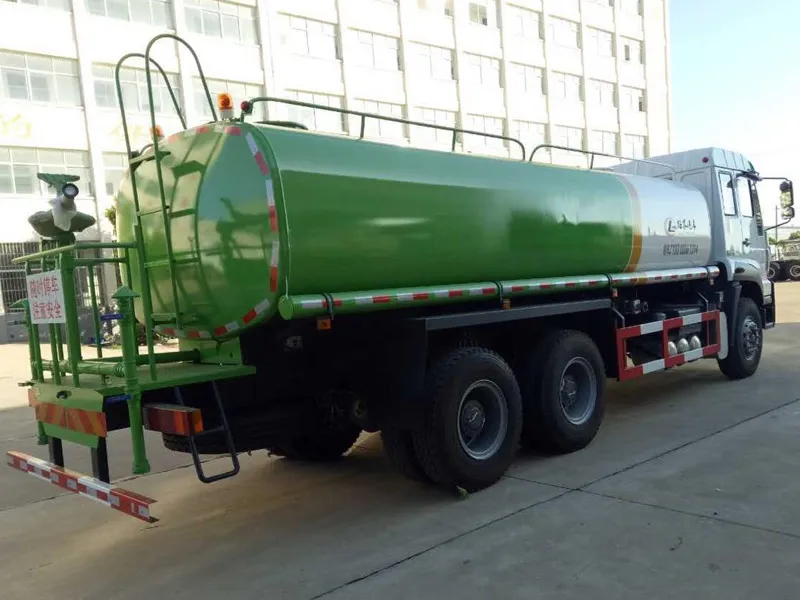

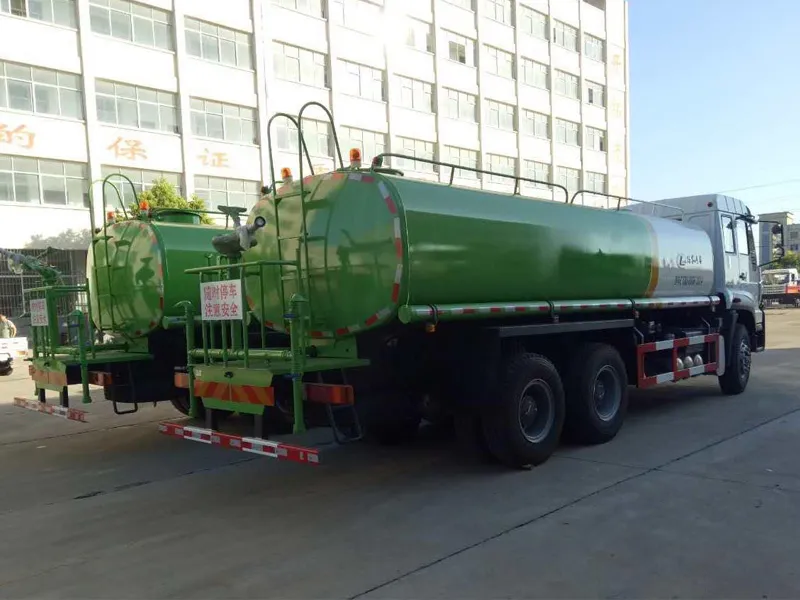

The 15-cubic-meter Sinotruk rear dual-axle 6×4 multi-functional sprinkler truck is mainly used for large-scale watering and dust suppression and greening irrigation in scenarios such as urban main roads, highway watering, large construction site dust suppression, and mining area haze removal. It is the main vehicle for sanitation operations.
| Technical parameters of Sinotruk rear dual-axle sprinkler truck | |||
| Product Name | sprinkler | Product Model | LOOK5250GSSZ6 |
| Total mass(Kg) | 25000 | Tank volume(m3) | 14.1 |
| Rated load capacity(Kg) | 14040 | External dimensions(mm) | 10520×2550×3220 |
| curb weight(Kg) | 11930 | Number of passengers allowed in the driver's cab (persons) | 3 |
| Approach angle/Departure angle(°) | 16/11 | Front/Rear Suspension(mm) | 1450/2500 |
| Axle load(Kg) | 7000/18000 | Top speed(Km/h) | 110, 89 |
| 1. This vehicle is mainly used for road sprinkling. Its main specialized equipment includes a water tank and a spray assembly. Transport medium: water. Density: 1000 kg/m³. Total tank capacity: 14.1 m³. Effective tank volume: 13.43 m³. Overall dimensions (length × major axis × minor axis) (mm): 6500 × 2300 × 1500. Wheelbase only: 4300 + 1350 mm. 2. Optional features include a cab and air tank, depending on the chassis. Fuel tank and battery installation location; optional rear platform piping style; optional high-level shower; optional water cannon style; optional ladder style; optional front-mounted duckbill; optional pneumatic valve; optional rear counter-flushing style; optional toolbox; optional duckbill ball valve installation location; optional high-pressure water cannon style; optional side spray style; optional electronic water cannon style. Rear arrow light is optional; this arrow light is only used in operation. When the front electronic water cannon is optionally installed, the extension is 500mm. | |||
| Chassis Technical Specifications | |||
| Chassis Model | ZZ5256XXYN504GF1 | Chassis Name | Box truck chassis |
| Trademark Name | Shande Cards | manufacturing enterprises | China National Heavy Duty Truck Group Jinan Commercial Vehicle Company |
| Number of axes | 3 | Number of tires | 10 |
| wheelbase (mm) | 3875+1400 | Tire specifications | 12.00R20 16PR |
| Number of leaf springs | 11/10 | Front wheel track(mm) | 2041 |
| Fuel types | diesel fuel | Rear wheel track(mm) | 1850 |
| Emission standards | GB17691-2018 Country VI | ||
| Engine Model | Engine manufacturers | Displacement(ml) | power(Kw) |
| WP7.300E61 | Weichai Power Co., Ltd. | 7470 | 220 |

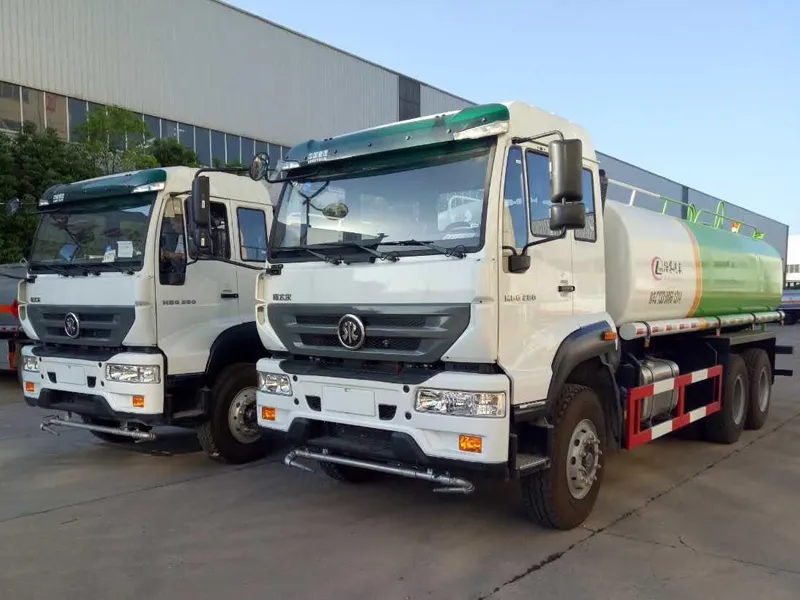

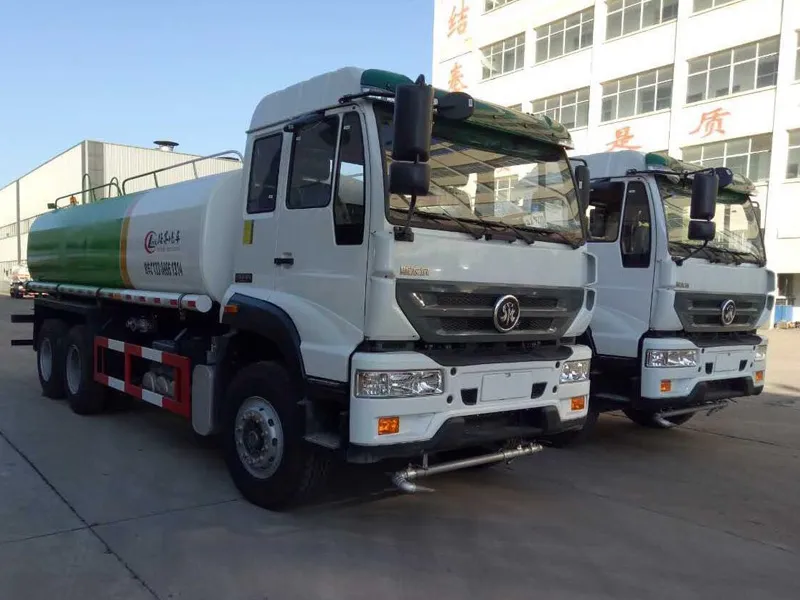

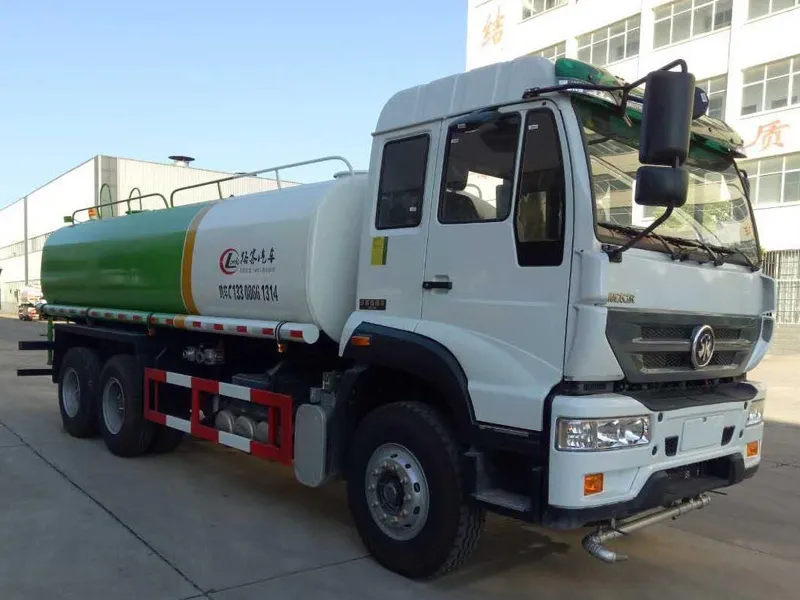

The Sinotruk 6×4 rear dual-axle multi-functional sprinkler truck is a special-purpose vehicle integrating water spraying and dust suppression functions. With a tank capacity of 15 cubic meters, it is widely used in road dust control, landscaping, disinfection, and other fields. The following is a product introduction of the Sinotruk rear dual-axle sprinkler truck:
Chassis Configuration: Diesel engine, Sinotruk Howo 10-speed gearbox, 3875+1400mm wheelbase, 12.00R16 steel radial tires, air brakes, power steering, and equipped with a Sinotruk original single-row cab with tilting mechanism.

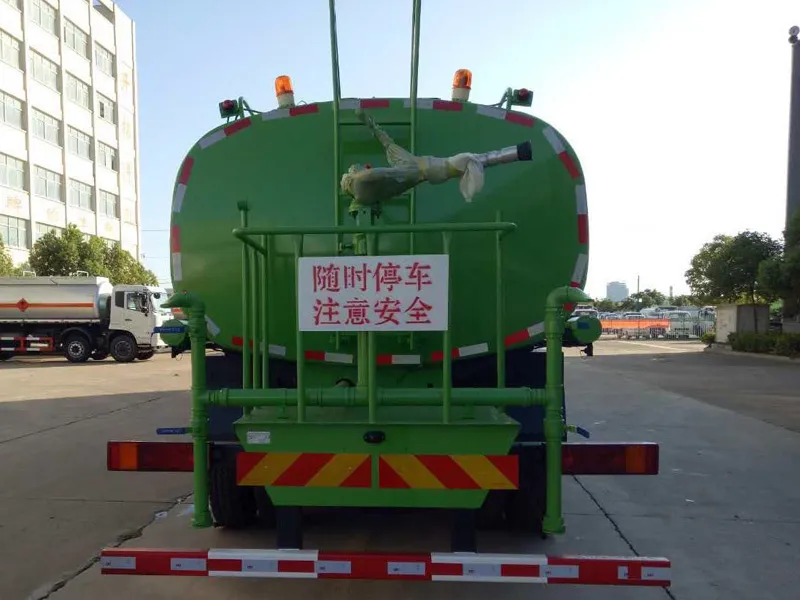

Upper Structure Configuration: The tank is made of 4mm carbon steel plate with internal anti-surge baffles. The vehicle comes with a dedicated water pump with a maximum vertical suction lift of 6 meters and a spraying width of 14 meters. A high-pressure water cannon for landscaping is installed on the rear working platform, which can rotate 360 degrees and has an adjustable mist spray.
