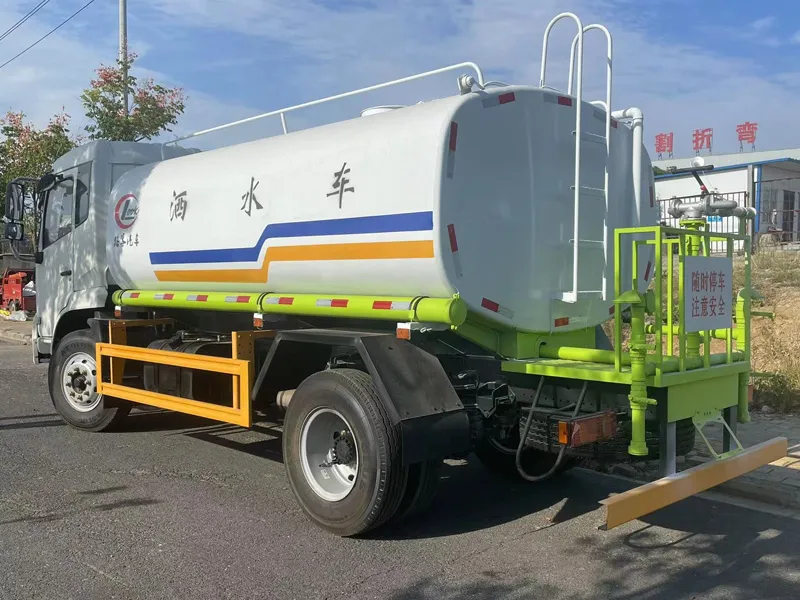

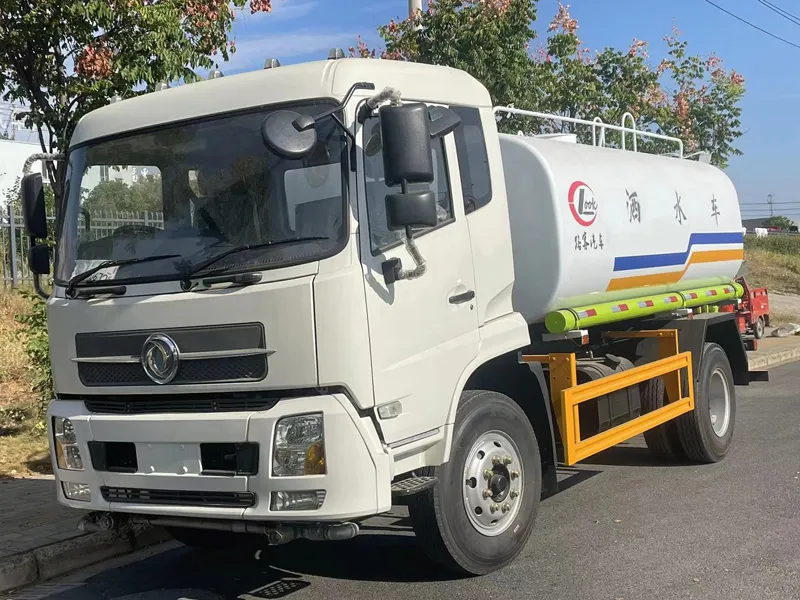

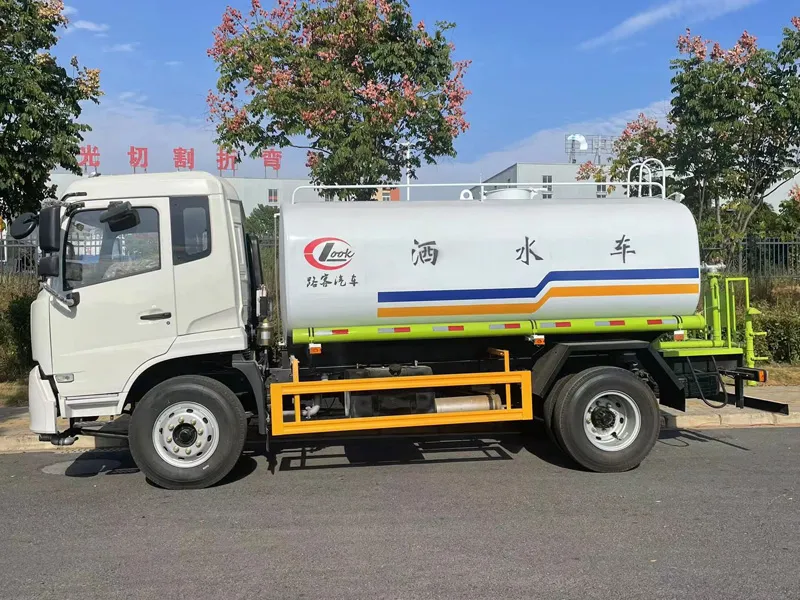

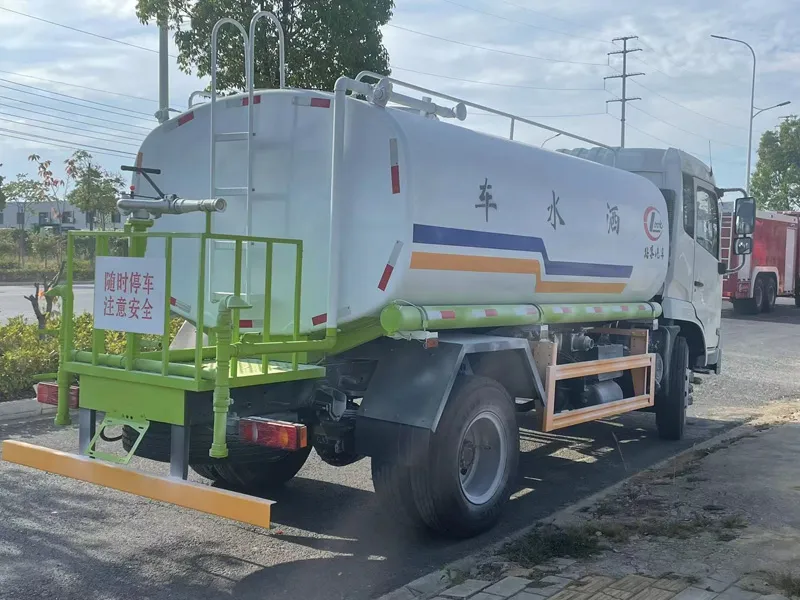

The 10-cubic-meter Dongfeng Tianjin sprinkler truck is mainly used for large-scale watering and dust suppression and greening irrigation in scenarios such as urban main roads, highway watering, large construction site dust suppression, and mining area haze removal. It is the main vehicle for sanitation operations.
| Technical Specifications of Dongfeng Tianjin Sprinkler Truck | |||
| Product Name | Multi-functional dust suppression vehicle | Product Model | LOOK5161TDYD6 |
| Total mass(Kg) | 16200 | Tank volume(m3) | 10.0 |
| Rated load capacity(Kg) | 9605 | External dimensions(mm) | 8400×2500×3300 |
| curb weight(Kg) | 6400, 6700 | Number of passengers allowed in the driver's cab (persons) | 3 |
| Approach angle/Departure angle(°) | 14/11 | Front/Rear Suspension(mm) | 1430/2420 |
| Axle load(Kg) | 5600/10600 | Top speed(Km/h) | 89 |
1. This vehicle is used for dust suppression and haze reduction. Its main components are a dust suppression tank and a spray system. The total tank capacity is 10.0 cubic meters, with an effective volume of 9.6 cubic meters. The tank dimensions (length × width × height) are 4000 × 2400 × 1500 mm. 2. Optional features include a driver's cab, a rear platform and mist cannon style, optional fuel tank, urea tank, battery, and air tank installation positions, a front-mounted duckbill nozzle, a front-mounted spray pipe style, a high-level shower head, a front-mounted electronic water cannon, arrow lights, a toolbox, a rear counter-spray system, a pneumatic ball valve, a mist cannon style, a side spray style, a front spray style, a front-mounted duckbill valve style, and a tank exterior style. A rear arrow light is optional and should only be used during operation. | |||
| Chassis Technical Specifications | |||
| Chassis Model | DFH1160BX1 | Chassis Name | Cargo truck chassis |
| Trademark Name | Dongfeng brand | manufacturing enterprises | Dongfeng Commercial Vehicle Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| wheelbase (mm) | 3950 | Tire specifications | 9.00R20 16PR |
| Number of leaf springs | 11/11+10 | Front wheel track(mm) | 1815 |
| Fuel types | diesel fuel | Rear wheel track(mm) | 1840 |
| Emission standards | GB17691-2018 Country VI | ||
| Engine Model | Engine manufacturers | Displacement(ml) | power(Kw) |
| DDi50E220-60 | Dongfeng Commercial Vehicle Co., Ltd. | 5000 | 162 |
The Dongfeng Tianjin water sprinkler truck is a specialized vehicle integrating water sprinkling and dust suppression functions. With a tank capacity of 10 cubic meters, it is widely used in road dust control, landscaping, disinfection, and other fields. The following is a product introduction of the Dongfeng Tianjin water sprinkler truck:
Chassis Configuration: Diesel engine, Shaanxi Fast Gearbox, 3950mm wheelbase, 9.00R20 steel radial tires, air brakes, power steering, equipped with a Dongfeng Tianjin original single-row cab with tilting mechanism.
Upper Structure Configuration: The tank is made of 4mm carbon steel plate with internal anti-surge baffles. The vehicle comes with a dedicated water pump with a maximum vertical suction lift of 6 meters and a sprinkling width of 14 meters. A high-pressure water cannon for landscaping is installed on the rear working platform; it can rotate 360 degrees and the mist spray is adjustable.
