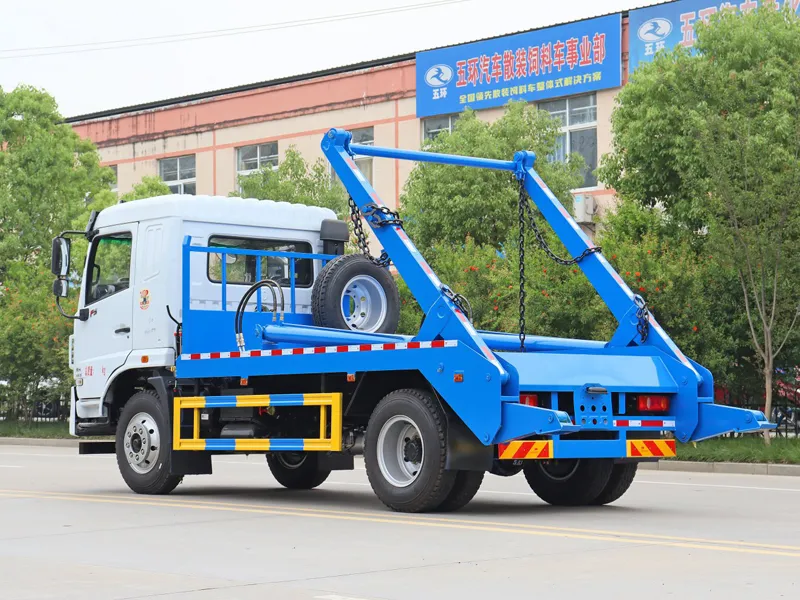

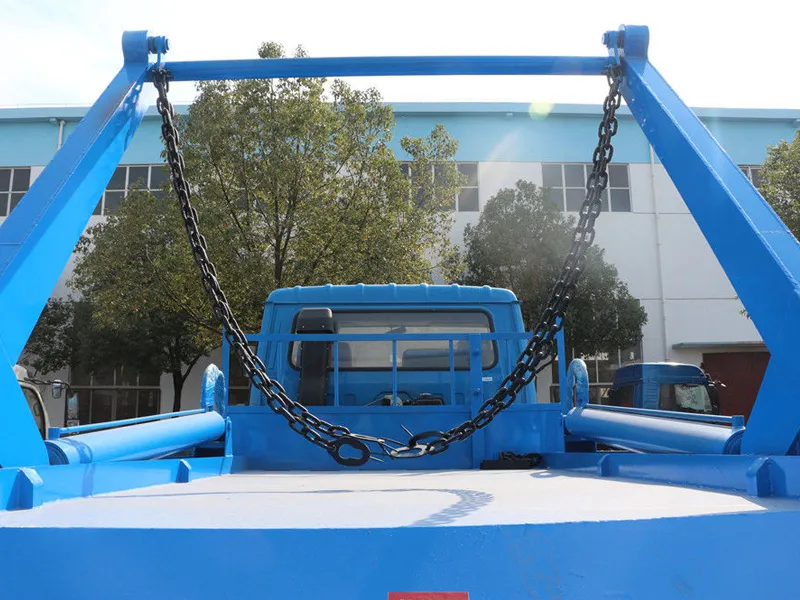

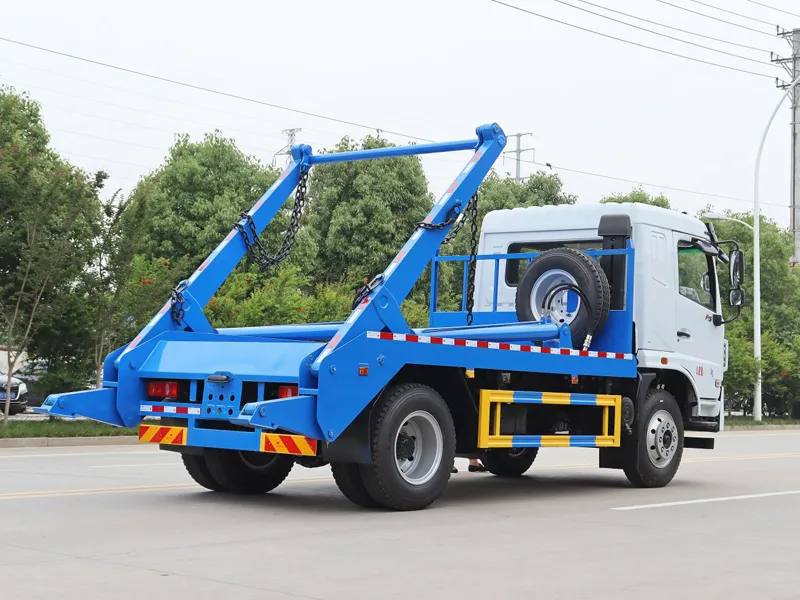

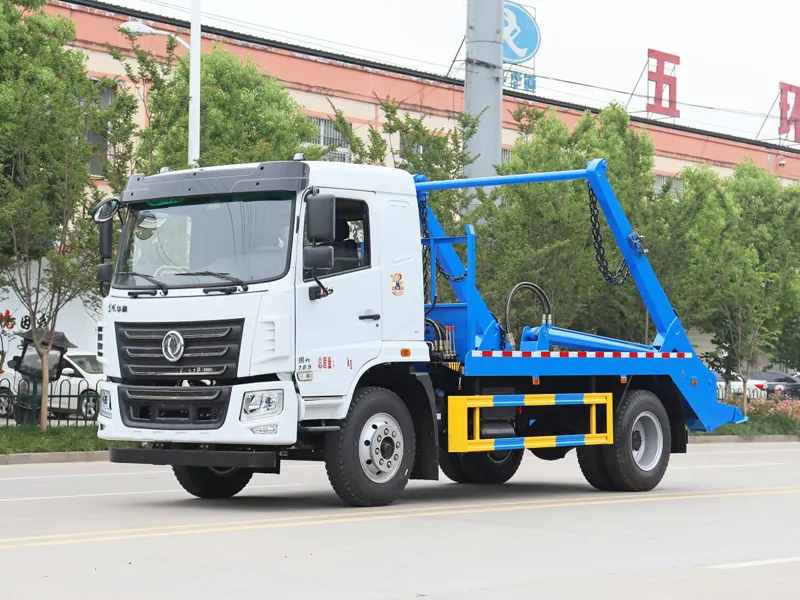

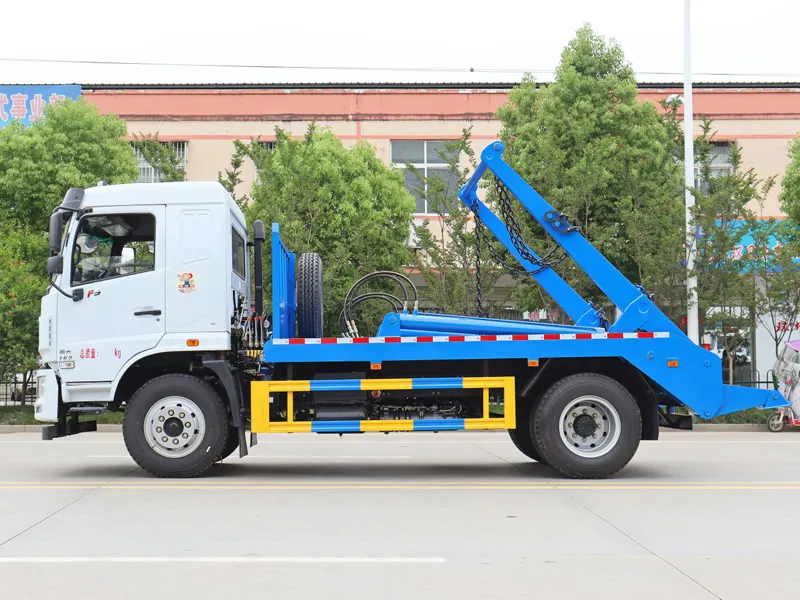

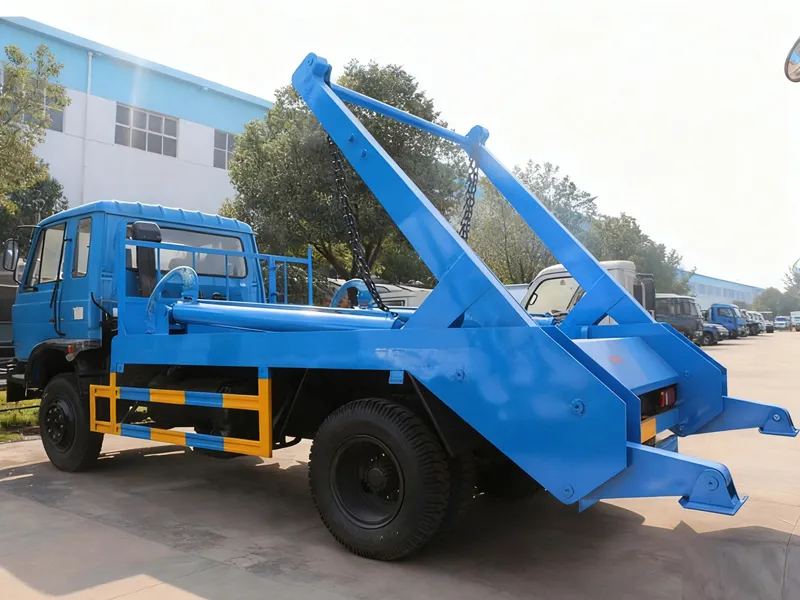

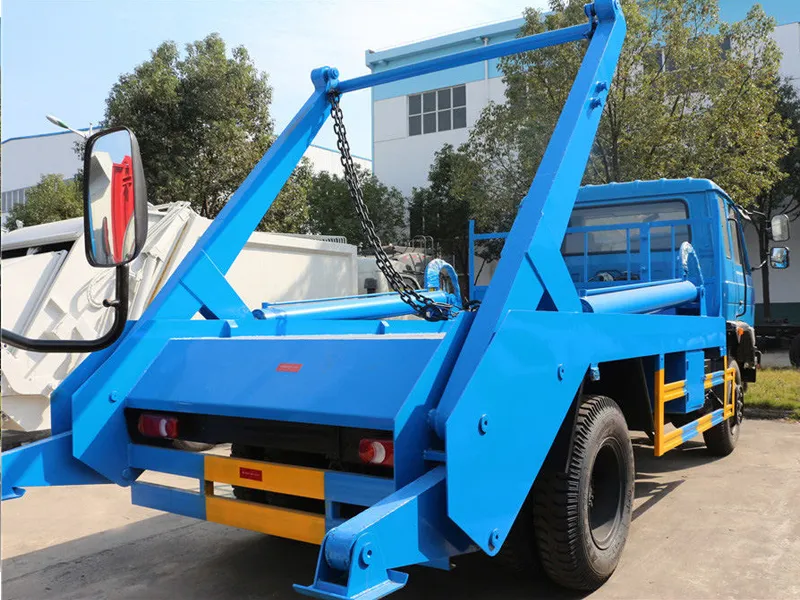

Dongfeng 15 ton swing-arm garbage truck supports municipal waste operations, featuring fast arm loading/unloading and reliable, durable performance.
Parameter Category | Technical Specifications |
Basic Vehicle Information | |
Model Number | EQ5160ZBSL (Standard model for Dongfeng 15ton swing arm garbage truck, customizable per customer needs) |
Product Name | Dongfeng 15ton Swing Arm Garbage Truck (4×2 Drive Configuration, Euro 3 Emission Standard) |
Emission Compliance | Euro 3 (Meets ECE R49 regulation for environmental protection, applicable to regions with Euro 3 emission requirements) |
Intended Application | Municipal solid waste collection & transfer, community garbage disposal, non-hazardous industrial waste transportation, suitable for urban and suburban waste management scenarios |
Power Train System | |
Engine Model | Yuchai YCD4F35-10 / Chaoyang CY4102-C3F (Euro 3 compliant diesel engine, widely used in Dongfeng medium-duty trucks for reliable performance) |
Rated Power | 95 kW (130 HP) @ 3200 rpm (ensures sufficient power for load-carrying and uphill driving) |
Maximum Torque | 380 N·m @ 1600-2000 rpm (provides strong low-speed torque for stable starting and swing arm operation) |
Fuel Type | Diesel (Recommended fuel grade: 0# diesel for ambient temperature ≥ 4℃; -10# diesel for -5℃ to 4℃; -20# diesel for -14℃ to -5℃ to prevent fuel freezing) |
Fuel Tank Capacity | 150 L (High-strength carbon steel tank with anti-rust coating, reduces fuel contamination and extends tank service life) |
Swing Arm & Waste Handling System | |
Swing Arm Rated Load | 15,000 kg (matches the truck’s 15ton waste handling capacity) |
Swing Arm Lifting Force | ≥ 180 kN (capable of lifting standard 15cbm sealed garbage bins without load deformation) |
Lifting Cycle Time | 30-40 seconds (from horizontal bin position to maximum dumping angle, improves work efficiency) |
Maximum Dumping Angle | ≥ 45° (ensures complete discharge of waste, no residual waste in the bin) |
Matching Garbage Bin Volume | 15 cbm (bin material: Q345 low-alloy high-strength steel, bin wall thickness: 5mm, bottom thickness: 8mm for wear resistance) |
Swing Arm Operation Mode | Hydraulic drive + electric control (in-cab operation panel with LCD display for real-time status monitoring; emergency stop button installed to cut off power in case of malfunction) |
Safety Mechanism for Swing Arm | Automatic mechanical locking device (locks the swing arm in both horizontal and lifted positions to prevent accidental falling during transportation or lifting; overload protection to avoid hydraulic system damage) |
Dimensions & Weight | |
Overall Length × Width × Height | 7200 mm × 2490 mm × 3150 mm (compact size suitable for narrow urban roads) |
Wheelbase | 4200 mm (optimized wheelbase for balanced load distribution and stable driving) |
Curb Weight | 8800 kg (weight of the truck without waste or additional accessories) |
Gross Vehicle Weight (GVW) | 16,000 kg (maximum allowable total weight including truck, waste, and crew) |
Front Axle Load | 6000 kg (matches front tire load capacity) |
Rear Axle Load | 10,000 kg (supports the main weight of the garbage bin and waste) |
Chassis Configuration (4×2 Drive) | |
Drive Type | 4×2 (2 front steering wheels, 2 rear driving wheels; suitable for flat to slightly undulating roads) |
Suspension System | Front: Leaf spring (3 main leaves + 4 auxiliary leaves); Rear: Leaf spring (6 main leaves + 8 auxiliary leaves) (provides strong load-bearing capacity and shock absorption for rough roads) |
Tire Specification | 8.25R20 16PR (radial tubeless tires, 6 tires in total; optional 1 spare tire with the same specification; good wear resistance and traction) |
Braking System | Full air brake system + ABS (Anti-lock Braking System) + Spring-loaded parking brake (ensures reliable braking during heavy load; ABS prevents wheel lock-up during emergency braking) |
Steering System | Hydraulic power-assisted steering (reduces steering effort for the driver, ensures flexible operation in narrow spaces) |
Safety & Additional Features | |
Warning Devices | Front/rear LED work warning lights (high visibility for daytime/nighttime operation); Reversing buzzer (alerts pedestrians and vehicles when reversing) |
Hydraulic System Pressure | 16-18 MPa (stable pressure for smooth swing arm lifting/lowering; equipped with pressure relief valve to prevent overpressure damage) |
Protective Accessories | Tire splash guards (prevents mud and water splashing); Rear anti-collision bumper (high-strength steel, reduces damage in minor collisions) |
Warranty Period | 12 months or 20,000 working kilometers (whichever comes first; covers main components including engine, hydraulic pump, and swing arm structure; excludes parts like tires and brake pads) |
