Benz Monitoring Ambulance, built on a reliable Benz chassis, features advanced monitors for real-time vital sign tracking. With a negative-pressure system and essential medical gear, it ensures safe and timely care during patient transport.

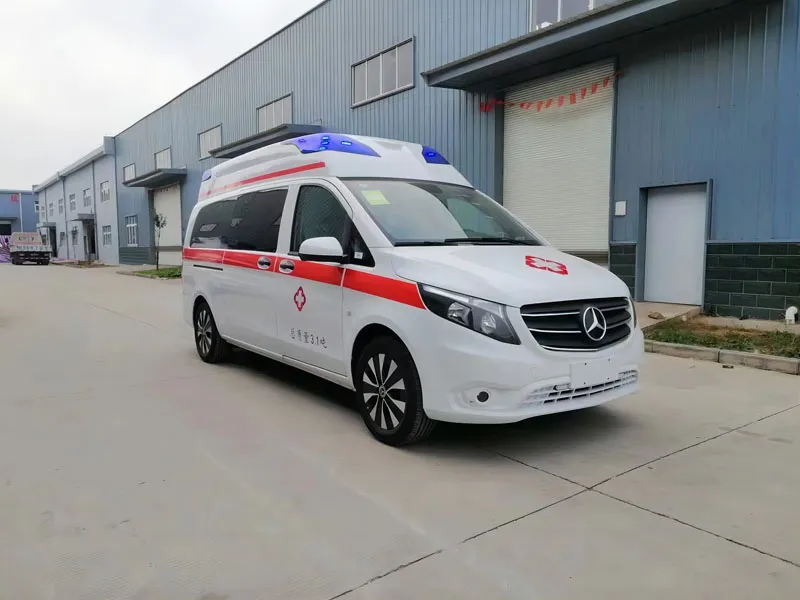

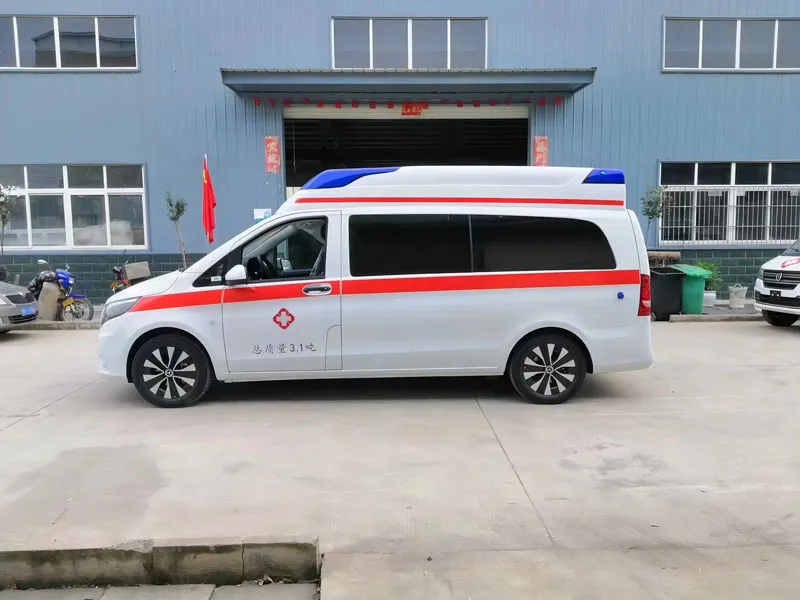

Benz negative pressure monitoring ambulance
| 1 | Vehicle technical parameters |
| Size and weight | |
| Size ( mm): Length 5370, Width 1928, Height 2280 | |
| Rescue cabin size ( mm): Length 2700, Width 1670, Height 1680 | |
| Wheelbase（mm）: 3430 | |
| Curb weight ( kg): 2480 | |
| GVW ( kg): 3100 | |
| Engine | |
| Model: 274920 | |
| Fuel type: Petrol | |
| Displacement ( cc): 1991 | |
| Rated power kw(hp)/rpm: 155/5500 | |
| Emission standard: Euro 6 | |
| Steering system | |
| Steering type: Steering wheel | |
| Power-assisted way: Hydraulic | |
| Steering wheel: Front wheel | |
| Transmission | |
| Transmission: 9-speed automatic gearbox (7G-TRONIC PLUS) | |
| Max speed ( km/h): 185 | |
| Fuel tank capacity (L): 75 | |
| Fuel consumption per hundred kilometers: 10.3 | |
| Tire: 235/55R17 | |
| 2 | Vehicle standard configuration |
| Two seats in the cab | |
| Power window | |
| Driver and passenger airbags | |
| Suspension system: double wishbone Macpherson independent suspension brake system | |
| Central control door lock with remote control function | |
| Electronic Anti-Slip System (ASR) | |
| Anti-lock braking system (ABS) | |
| Hatchback door opening | |
| Chassis rear suspension: helical spring front oblique positioning independent suspension | |
| Clear glass devices are installed on the left, right, and back doors of the medical compartment |
Medical cabin configuration table
| Vehicle standard configuration | |||
| A | 1 | Electronic Stability System (ESC) | |
| 2 | Anti-lock braking system (ABS) | ||
| 3 | Anti-lock braking system (ABS) | ||
| 4 | Electronic Differential Lock (EDL) | ||
| 5 | Braking force distribution system (EBD) | ||
| 6 | Cabin 2 seats | ||
| 7 | Driver and passenger airbags | ||
| 8 | Power window, central control door lock with remote control function | ||
| 9 | Halogen headlights, front and rear fog lights | ||
| 10 | AM/FM radio, single disc, digital time display. | ||
| 11 | Aluminum alloy wheels | ||
| 12 | Hatchback door opening. | ||
| 13 | The back door is equipped with transparent glass, 2/3 of the window is pasted with milky white opaque explosion-proof film | ||
| Air conditioning and lighting system | |||
| B | 1 | Original air conditioner for cab | 1 |
| 2 | Modification of medical cabin with direct exhaust air conditioning | 1 | |
| 3 | Medical cabin heating system | 1 | |
| 4 | Two-way air intake and exhaust system installed on the top of the medical cabin | 1 | |
| 5 | Illuminated square lights are installed on the top of the medical cabin | 4 | |
| 6 | Install infusion lamp on top of medical cabin | 2 | |
| 7 | UV disinfection lamp | 1 | |
| 8 | Install ambulance field lights at the rear of the roof | 2 | |
| Central Power Distribution System | |||
| C | 1 | Intelligent automatic charging system (car 12V/220V inverter power supply system) | 1 |
| 2 | 10m long mobile cable | 1 | |
| 3 | Cab 12v socket | 1 | |
| 4 | Install a 220v socket in the medical cabin | 3 | |
| 5 | Install a 12V socket in the medical cabin | 1 | |
| 6 | 220V/16A waterproof, external power socket with protective cover | 1 | |
| 7 | 12v DC power supply system installed in the medical cabin | 1 | |
| Emergency alert system | |||

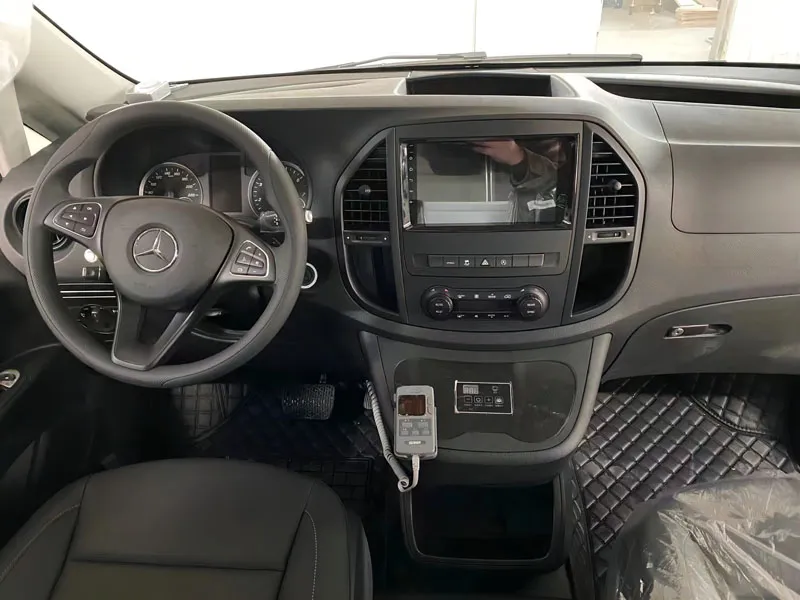

| D | 1 | Control buttons for alarm and warning lights installed in the cab | |
| 2 | The vehicle is equipped with dual electric horns, police siren, microphone, and siren with slow dual tone conversion | ||
| 3 | The loudspeaker outside the car is built into the siren | ||
| 4 | A long flashing warning light (blue) is installed on the front of the roof | 1 | |
| 5 | Install LED flashing lights at the rear of the vehicle | 2 | |

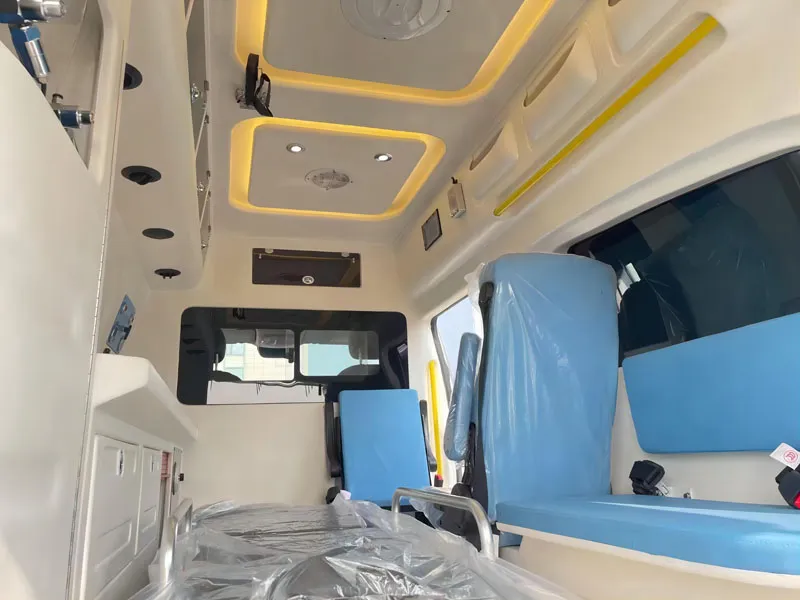

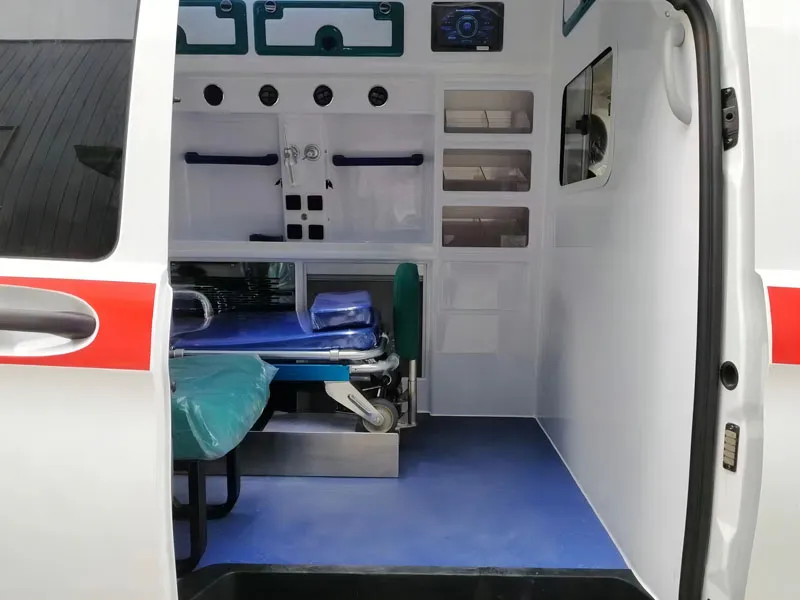

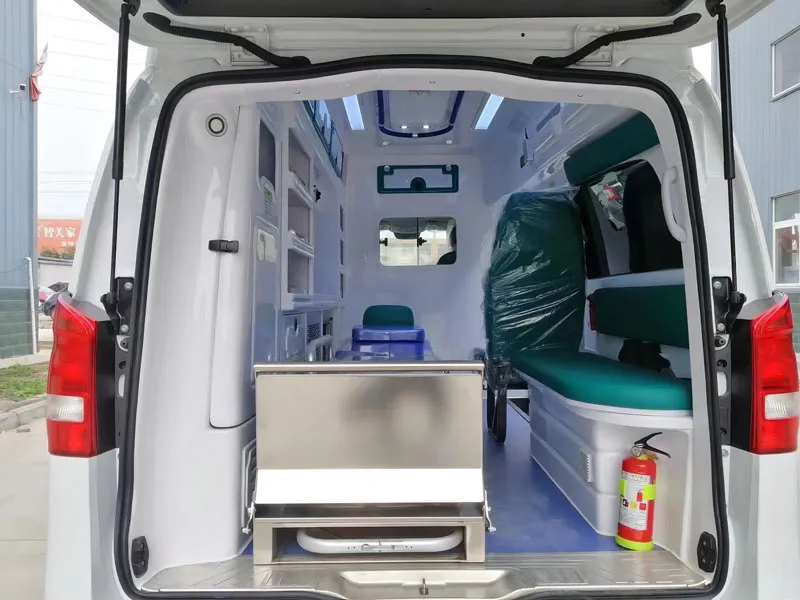

| Medical cabin device | |||
| E | 1 | A partition wall is installed between the cab and the medical cabin to separate the front and rear compartments. There are two sliding windows on the partition wall. | 1 |
| 2 | A cabinet that can hold 2 10L oxygen cylinders is installed on the left side of the medical cabin | 1 | |
| 3 | Install a doctor seat with a safety belt in the medical cabin | 1 | |
| 4 | Two-person bench seats with safety belts are installed on the right side of the medical cabin | 1 | |
| 5 | A long infusion hook is installed on the left side of the medical cabin | 1 | |
| 6 | Install a dedicated oxygen socket for the ventilator on the left side of the medical cabin | 1 | |
| 7 | Install a dedicated oxygen socket for humidifier on the left side of the medical cabin | 1 | |
| 8 | Install a 3-door transparent sliding storage cabinet on the top left side of the medical cabin | 1 | |
| 9 | Simple medical cabinet installed on the partition wall | 1 | |
| 10 | The medical cabin is equipped with a complete and closed oxygen supply system | 1 | |
| 11 | 10L oxygen cylinder (with pressure reducing valve) installed in the medical cabin | 2 | |
| 12 | Humidifier for medical cabin | 1 | |
| 13 | A set of foldable transfusion suspension device on top of medical cabin | 1 | |
| 14 | 1kg fire extinguisher and support frame | 1 | |
| 15 | Medical cabin front and rear intercom system | 1 | |
| 16 | Environmentally friendly materials for walls, doors, and car roofs on both sides of the medical cabin | 1 | |
| 17 | The floor in the car adopts acid, alkali, fireproof, non-slip, anti-static floor | 1 | |
| 18 | Protruding edging around the four sides of the medical cabin prevents the accumulation of dust and anti-skid, | 1 | |
| 19 | Red reflective tape on the waist and top of the body | 1 | |
| 20 | High-end automatic stretcher with stretcher warehouse | 2 | |
| 21 | Scoop stretcher | 1 | |
| 22 | Reversing image with 7-inch display | 1 | |
| 23 | Negative pressure device in medical cabin | 1 | |
| 24 | Negative pressure isolation cabin | 1 | |
| 25 | China brand vehicle-mounted portable transport ventilator | 1 | |
