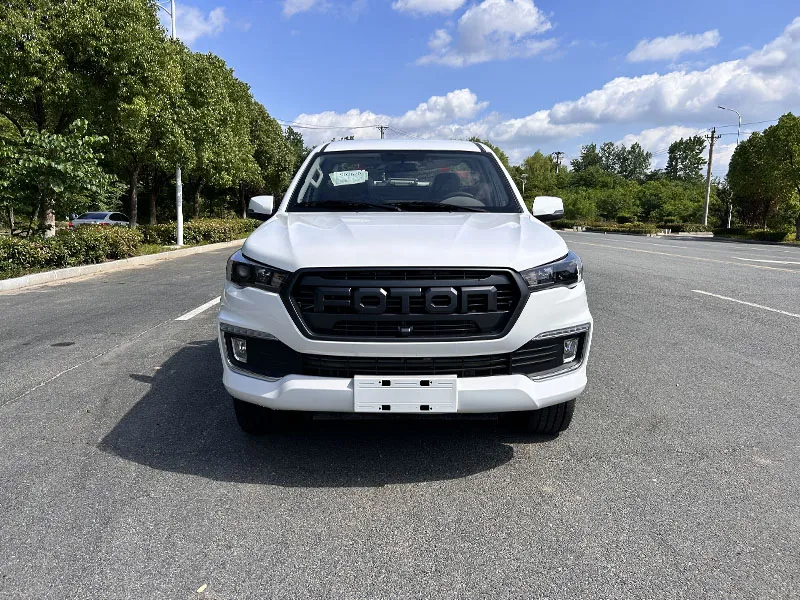

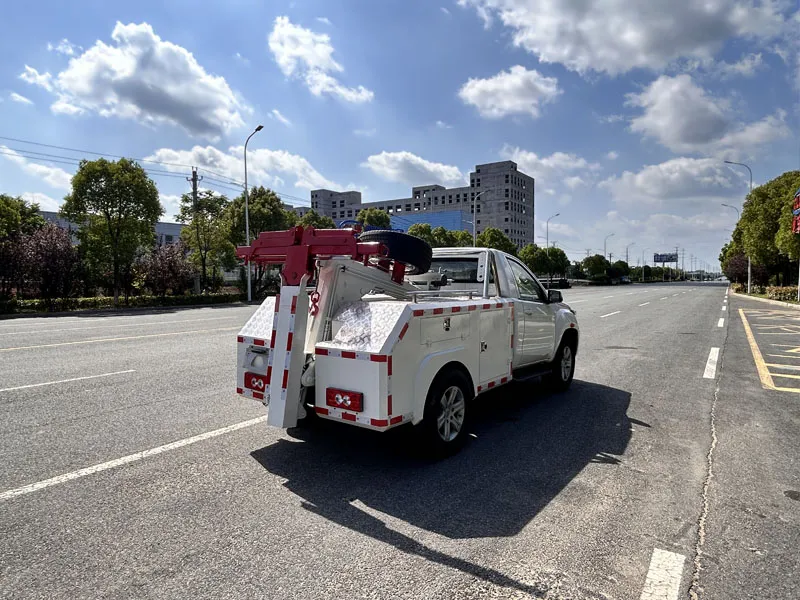

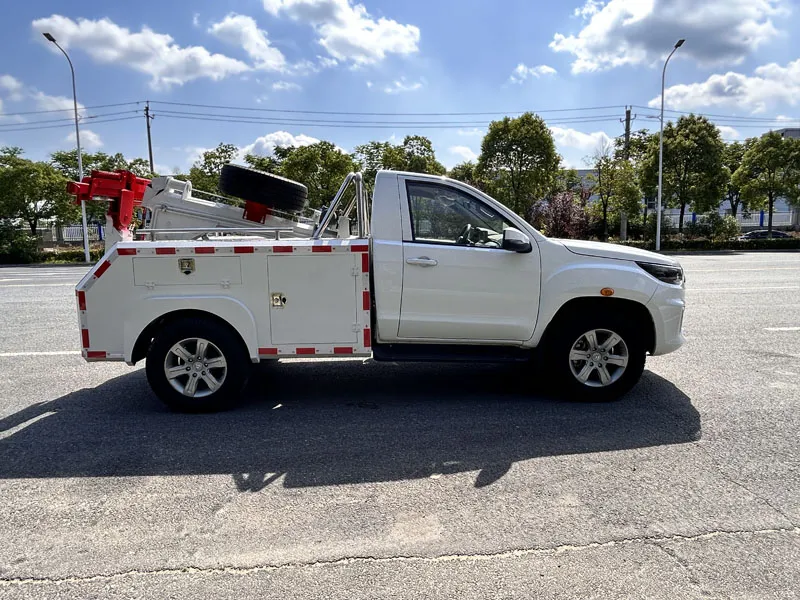

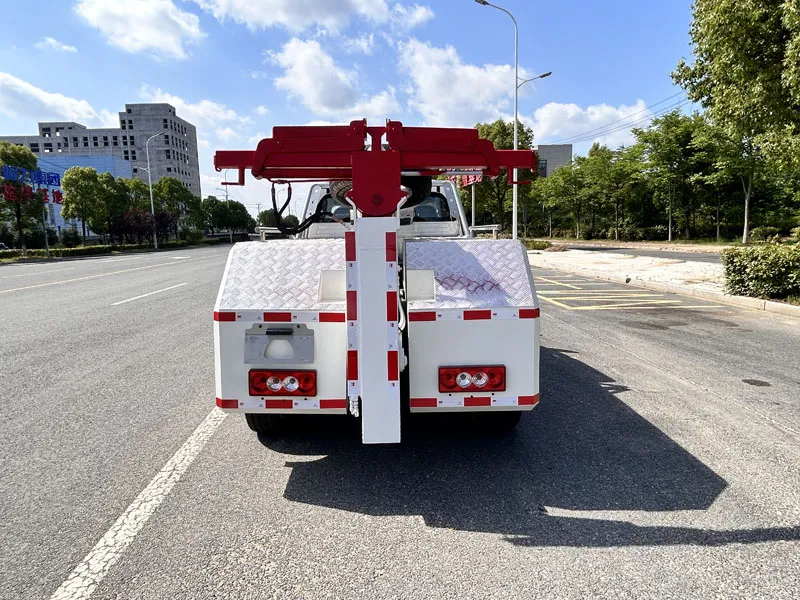

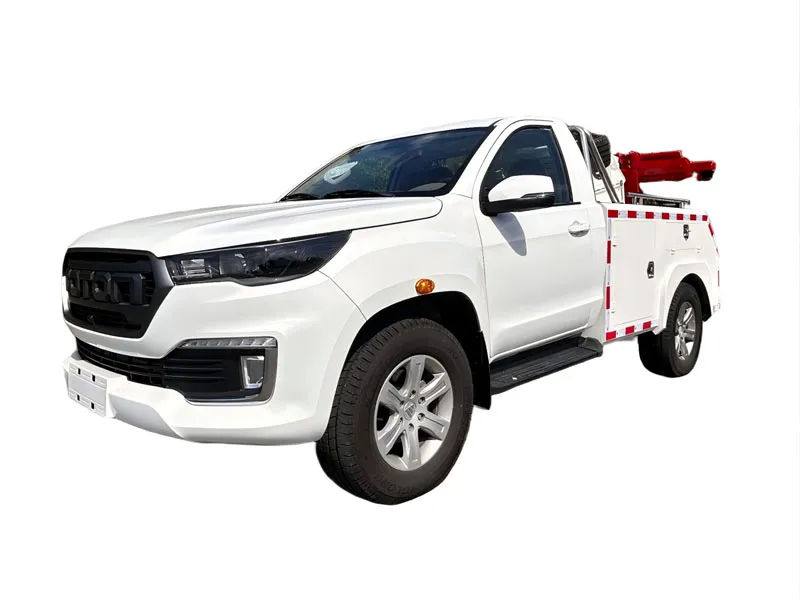

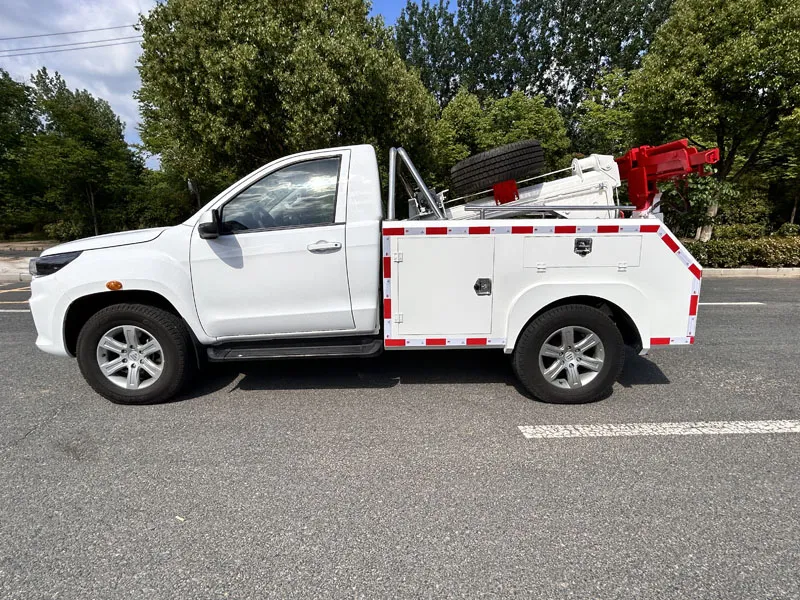

The Foton 4×4 wrecker truck features a total weight of 4,105 kg and a 3,110 mm wheelbase, with a single-row cab. Powered by a Euro Kang 2.5T diesel engine, it comes with a 4×4 drive system, front double wishbone suspension, and rear steel plate springs. Its lighting includes high and low beam integrated lens headlights, LED daytime running lights, and side turn signals compliant with heavy-duty regulations. The truck rides on LT265/65R17 tires, ensuring stability and durability in varied conditions.
Parameter Category | Item | Specification |
Basic Information | Chassis Model | BJ2047YAKBV-1D |
Version | Heavy-duty Version, with Original Factory Power Take-off (PTO) for more stable performance | |
Chassis Vehicle Type | Yutu 9 Diesel 4WD Standard Cab Pickup | |
Gross Vehicle Mass | 3510 kg | |
Curb Weight | 2880 kg | |
Chassis Configuration | Base Chassis | Foton Tuluzhe 9 Heavy-duty Pickup Chassis (Gross Mass: 4105 kg) |
Wheelbase | 3110 mm | |
Cab Type | Single-row Cab | |
Engine | Oukang 2.5T Diesel Engine | |
Drive Type | 4×4 | |
Suspension System | Front double wishbone + rear leaf spring | |
Lighting System | Integrated far/near beam lens headlights with LED daytime running lights; side turn signals | |
Tire Specification | LT265/65R17 | |

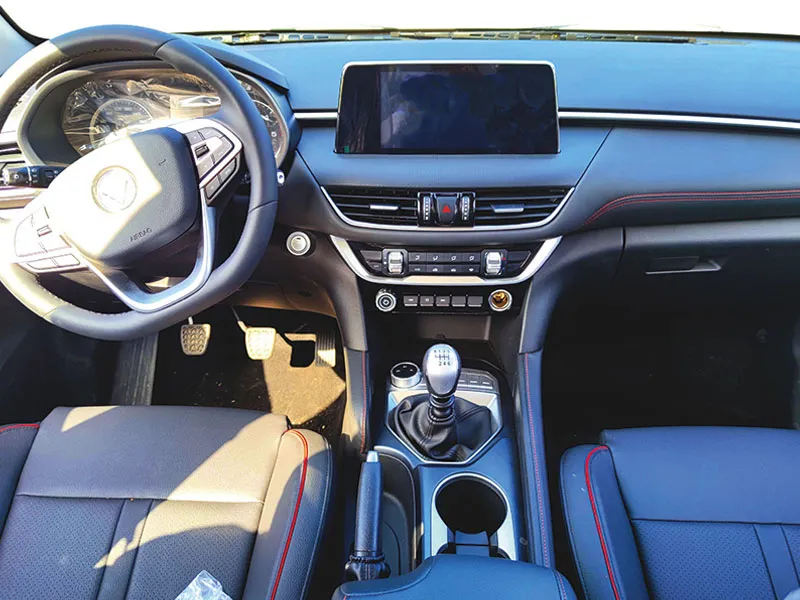

Steering Wheel & Controls | Standard multifunctional steering wheel with backlit buttons (FM + volume), Bluetooth, instrument page turning | |
Instrument Panel | 7-inch color screen instrument | |
Safety & Smart Features | BOS brake priority; Automatic Emergency Braking (AEB); 4G-T-BOX; Collision unlock; One-key start; ESP | |
Upper Mount Configuration | Max Effective Length of Towing Arm | 1550 mm |
L-arm Option | Automatic type (optional) | |
Max Lifting Capacity of Towing Arm | 1000 kg | |
Winch | Max pulling force: 2268 kg; with quick release device (enables hook quick release under no load) | |
Enhanced Components | Modified reinforced chassis frame; additional front bumper for cab; movable counterweight | |
Other Equipment | Universal auxiliary wheels; Hydraulic 3-section telescopic towing arm; Wireless operating system for electric hydraulic unit | |
Application Scenarios | Usage | Special vehicle for quickly, timely and safely removing road accident, faulty or illegal vehicles to unblock traffic. Mainly used for towing road faulty vehicles, urban illegal vehicles, and emergency rescue. Essential equipment for traffic management in busy urban areas and highways. |
