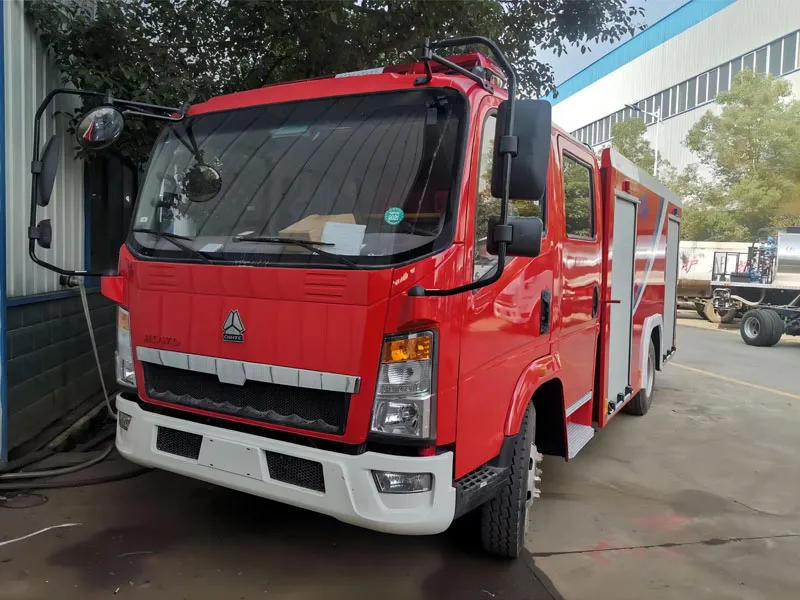

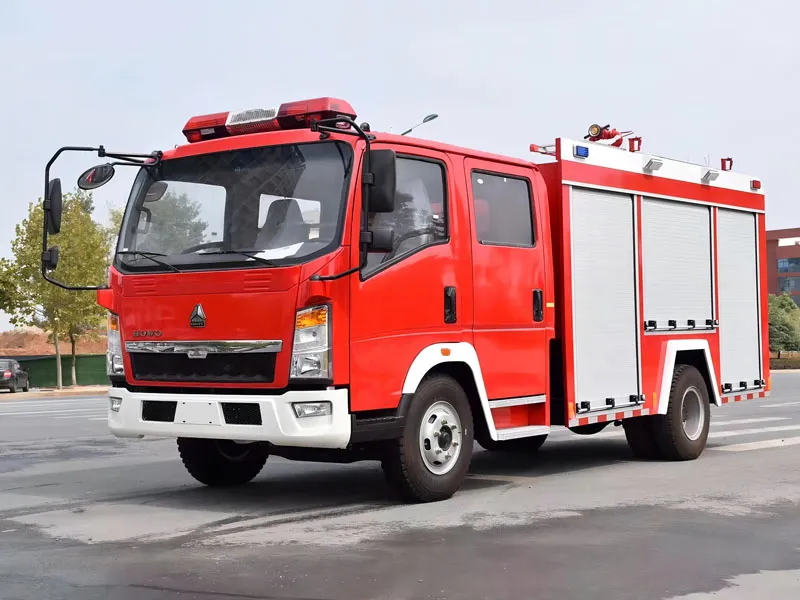

Built on a HOWO light truck chassis, this 4,000 L water fire truck features a CB series pump and PS30 monitor, delivering a water range of over 55 m and a maximum flow of 2,400 L/10 bar. Powerful and reliable, it ensures efficient urban firefighting.
| GVW9400kg | Driving Type 4x2 | ||
Model | Luke5091GXFSG30 | ||
Cab | Howo double row, air con, allowable 2+3 passengers | ||
Engine(Hp) | 116 | ||
Power(Kw) | 86 | ||
Wheelbase | 3800 | ||
Front/Rear Suspension | 1160/1955 | ||
Steering | Power steering | ||
Approach/departure angle | 27/22 | ||
Wheels & tire | 7.5R16 | ||
Tire number | 6+1 | ||
Tank Dimensions(mm) | |||
Cubage (m3) | 4 | ||
RHD or LHD | optional | ||
Overall Dimensions(mm) | 6995×2180×2850 | ||
Curb weight (Kg) | 4725 | ||
Engine | Model | YN4102QBZL | |
Horsepower | 116 | ||
Maximum output Kw | 86 | ||
Maximum torque N.m | |||
Type | 4 cylinders, in-line, 4-stroke, diesel engine | ||
Displacement | 3.76L | ||
Yunnei brand, Euro 2 | |||
Driving passenger | 2+3 | ||
Transmission | WLY 6 speed forward and one reverse, manual | ||
Front Axle | 2.4T | ||
Rear Axle | 4.2T | ||
Brake System | air brake | ||
Color and LOGO | customized | ||
Electric system | 24V | ||
Fire equipment part | Fire pump | CB10/30, rated pressure 1.0MPa, flow 30L/s | |
Fire gun | PS30, flow 30L/s , jet distance ≥55m | ||
Standard configuration | national standard equipment box, full units national standard fire-fighting equipment, fire pump, fire gun, fire power take off, sliding gate, row type lights, reel, common tools, rear climbing ladder, water tank. | ||
Optional configuration | foam type, dry powder type, stainless tank, other requirements. | ||
Delivery date | Within 60 days after receipt advance | ||
Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||
