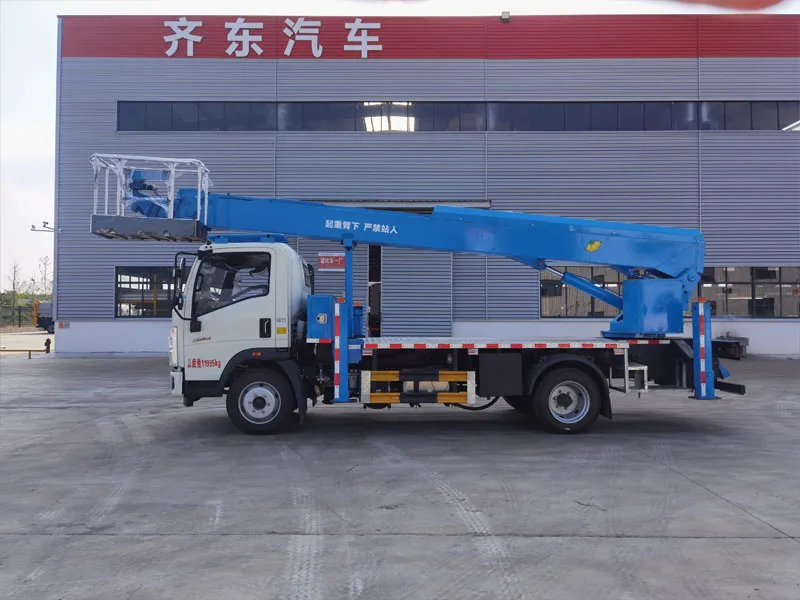

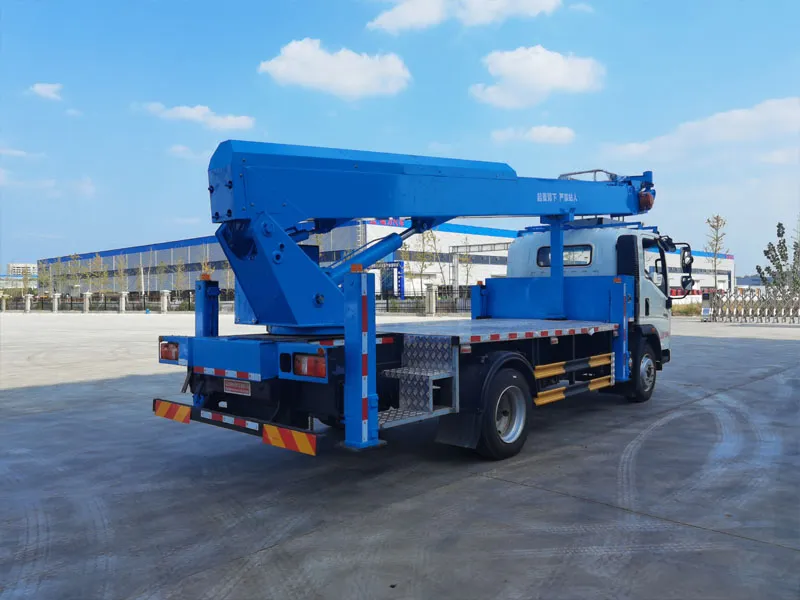

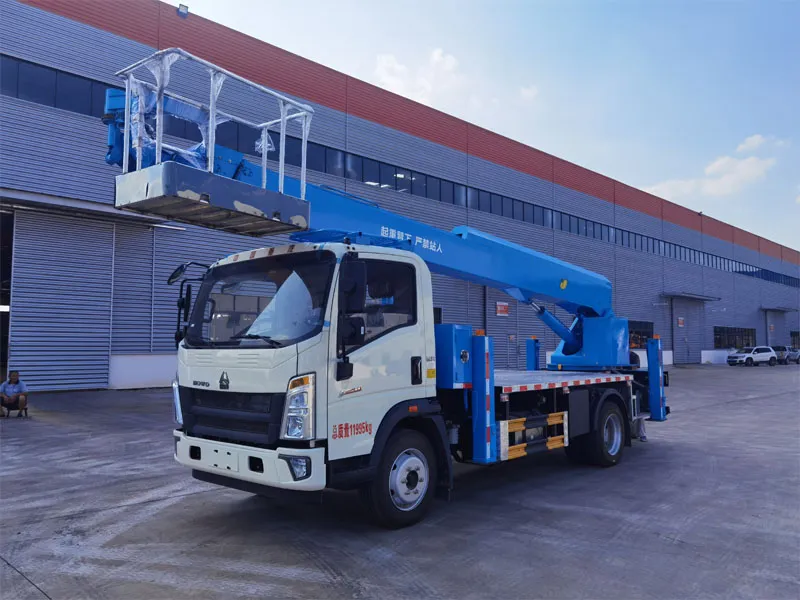

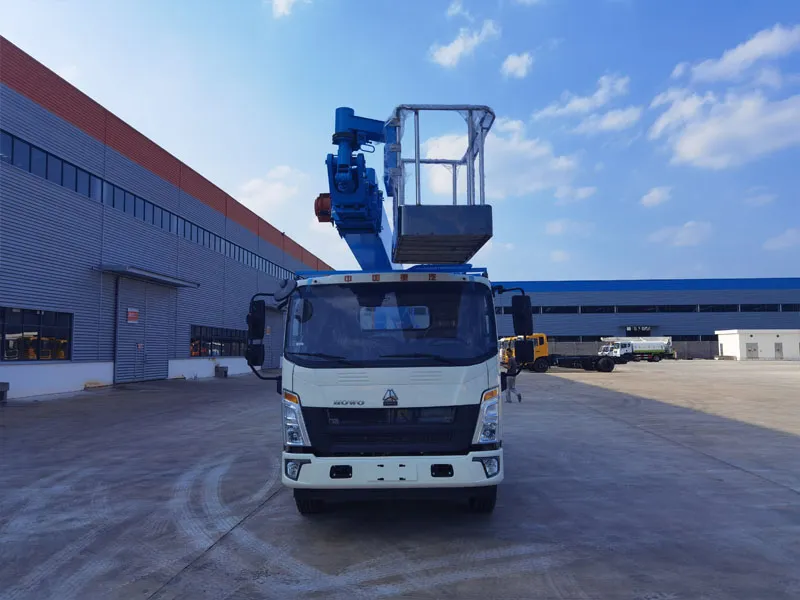

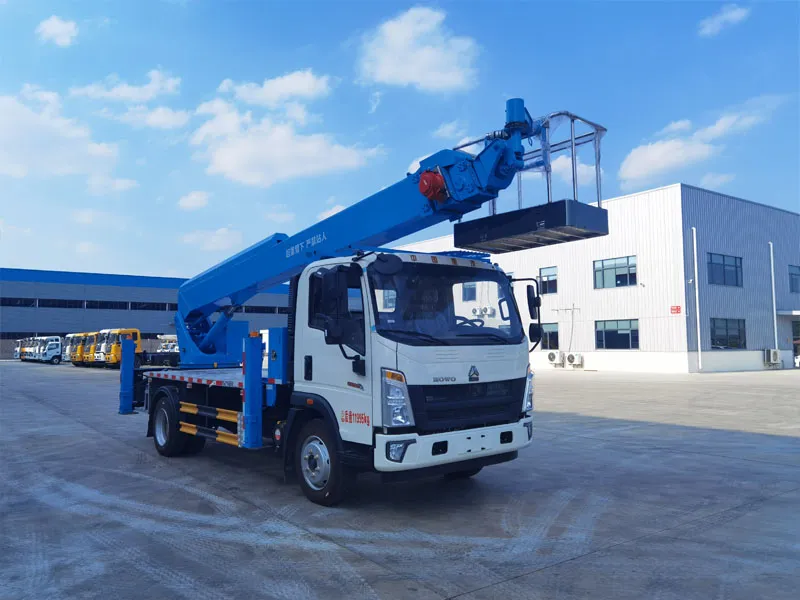

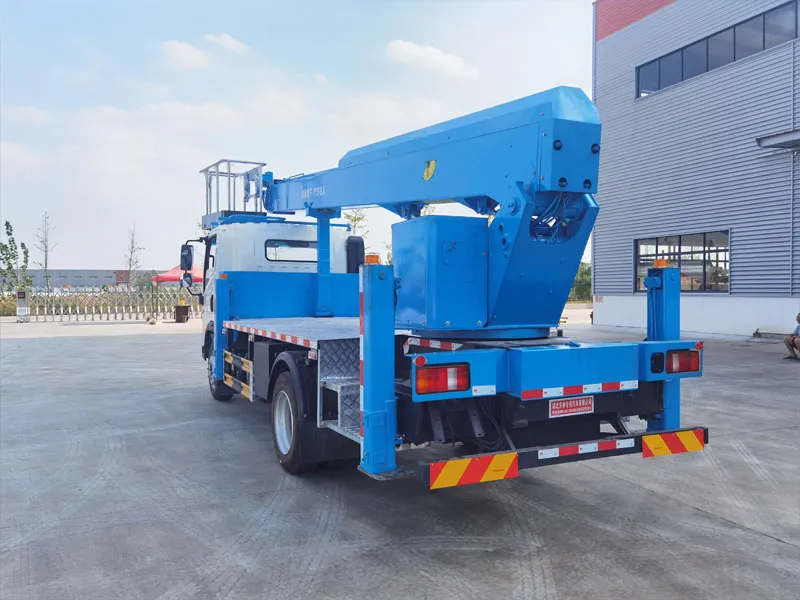

Sinotruk Howo rear-mounted aerial work platform truck features a 24 m working height and dual operating systems, providing efficient performance for high-altitude tasks.
GVW5815kg Driving Type 4x2 | |||
Model | Luke truck | ||
Cab | Howo light duty single row cab | ||
Engine(Hp) | 116 | ||
Power(Kw) | 85 | ||
Wheelbase | 3800 | ||
Front/Rear Suspension | 1160/2150 | ||
Steering | Power steering | ||
Approach/departure angle | 18/12 | ||
Wheels & tire | 8.25R16 | ||
Tire number | 6+1 | ||
Working height(m) | 12 | ||
RHD or LHD | optional | ||
Overall Dimensions(mm) | 7600×2000×3250 | ||
Curb weight (Kg) | 5490 | ||
Engine | Model | YN4102QBZL | |
Horsepower | 116 | ||
Maximum output Kw | 85 | ||
Maximum torque N.m | 290 | ||
Type | 4cylinders, in-line, 4-stroke, diesel engine | ||
Displacement | 3.76L | ||
Yunnei brand, Euro 2 | |||
Driving passenger | 2 | ||
Transmission | 6 speed forward and one reverse, manual | ||
Front Axle | 2.4T | ||
Rear Axle | 4.2T | ||
Brake System | air brake | ||
Color and LOGO | customized | ||
Electric system | 24V | ||

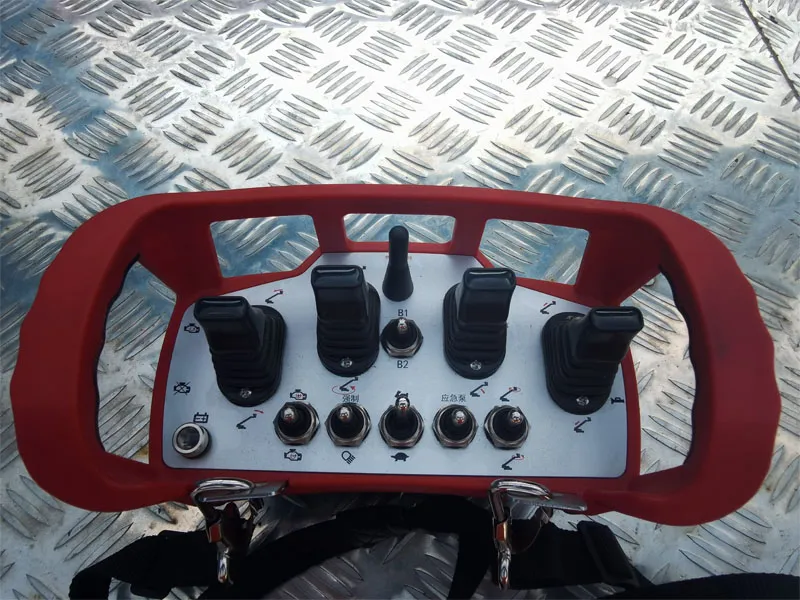

Standard configuration | Double operation systems, bucket insulation, 3 booms, hydraulic oil tank, 500kg lifting hook, box truck body design, 4 hydraulic H-shape legs, 2 signal lamps, 2 tool boxes. | ||
Equipment | Platform Dimension | 1080X620X1100 mm | |
Max Working Height | 24m | ||
Max Working Radius | straight | ||
Angle Of Rotation | 360 | ||
Platform Loading | 200kg | ||
Platform Passenger | 2 | ||
Rotating Speed | 0-2m | ||
Delivery date | Within 60 days after receipt advance | ||
Packing | Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||
