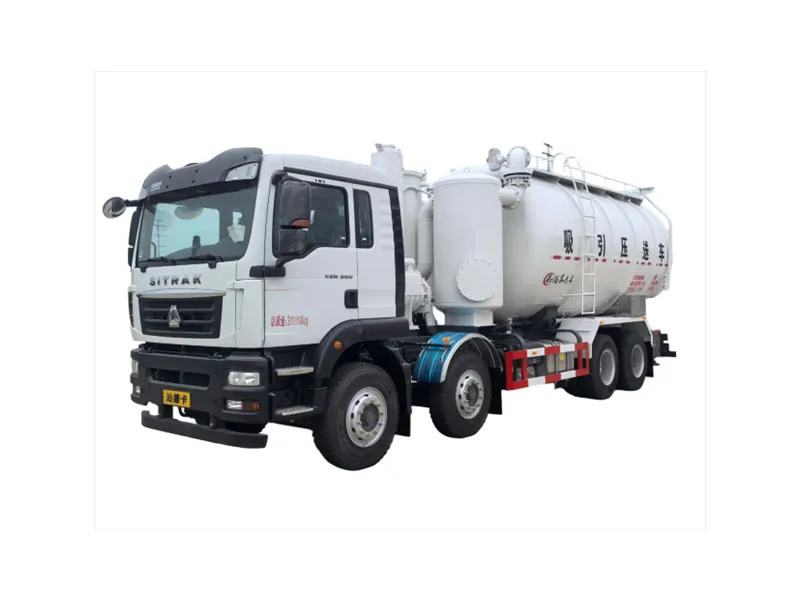

Sinotruk 25 cbm vacuum truck is designed for steel and coal plants, efficiently collecting dust and debris to maintain clean and safe industrial environments.
Category | Item | Specification/Parameter |
Product Model Name | - | Sinotruk 25cbm vacuum truck |
Chassis Parameters | Chassis Brand | SINOTRUK Sitrak |
Chassis Model | ZZ5316XYNV466GF1 | |
Engine Model | WP8.350E61, Weichai, 350 horsepower | |
Gearbox | 10-speed gearbox | |
Cab | G5 series cab | |
Wheelbase (mm) | 1800 + 3800 + 1350 | |
Front Axle & Rear Axle Load (t) | 5.5 / 11 | |
Emission Standard | Euro 3 or Euro 5 | |
Overall Dimensions | Length × Width × Height (mm) | 11900 × 2510 × 3950 |
Maneuverability | Maximum Speed (km/h) | 89 |
Tire Specification | 11.00R20 | |
Other Chassis Configurations | - | 280 double-layer frame, 300L aluminum alloy fuel tank, automatic air conditioning, four-channel ABS, Bosch steering gear, airbag seat, electric glass, central locking, remote control key, adjustable multifunctional steering wheel, electrically adjustable heated rearview mirror, terminal emission monitoring device, reversing buzzer, T-BOX |
Mass Parameters | Gross Mass (kg) | 31000 |
Curb Mass (kg) | 19200 | |
Rated Load Mass (kg) | 11670 | |
Special Performance | Tank Volume (m³) | 25 |
Residual Rate (%) | ≤0.2 | |
Maximum Tank Lifting Angle | 45° | |
Average Suction Speed (t/min) | 0.4 - 1.2 | |
Working Pressure (Mpa) | 0.2 | |
Average Discharge Speed (t/min) | 0.5 - 1.6 | |
Horizontal Discharge Distance (m) | 15 | |
Vertical Discharge Height (m) | 28 | |
Special Devices | Vacuum Pump Model & Manufacturer | RSR250D, Shanshan Luotian |
Air Compressor Model & Origin | BDW10/2, Wuhu, Anhui | |
Lifting Hydraulic Cylinder | Jiaheng Q series | |
Control and Protection System | High Vacuum Protection; High Material Level Alarm; Compressed Air High Pressure Release Protection |
