Parameter Category | Details |
Brand & Model | Sinotruk Howo V7-X Bulk Feed Truck |
Cargo Capacity | 25 Cubic Meters (standard); Max expandable to 30 Cubic Meters |
Chassis Configuration | 6×4 (6 wheels, 4 driving wheels) |
Overall Dimensions (L×W×H) | Customizable, typically around 10500mm×2500mm×3900mm |
Curb Weight | Approx. 12,000 kg |
Gross Vehicle Weight | 25,000 kg |
Engine | Sinotruk WD615.47 Euro III Diesel Engine; Displacement: 9.726L; Max Torque: 1800N·m @ 1200-1600rpm |
Horsepower | 371 HP |
Transmission | Sinotruk HW19710 Manual Transmission; 10 Forward Gears + 2 Reverse Gears |
Axle | Front Axle: Sinotruk HF7; Rear Axle: Sinotruk AC16; Axle Load: Front 7000kg, Rear 18000kg |
Tire Specification | 12.00R20 Radial Tire; Quantity: 6 (including 1 spare tire) |
Fuel Tank Capacity | 400L |
Feed Tank Material | High-strength Aluminum Alloy (6061-T6); Thickness: 5mm; Corrosion-resistant, lightweight |
Tank Structure | Segmented Design (customizable compartments); Sloped Bottom for Complete Discharge |
Discharge System | Electric-Hydraulic Dual Auger System; Auger Diameter: 180mm; Discharge Speed: 600-800kg/min; Discharge Distance: Up to 15m |

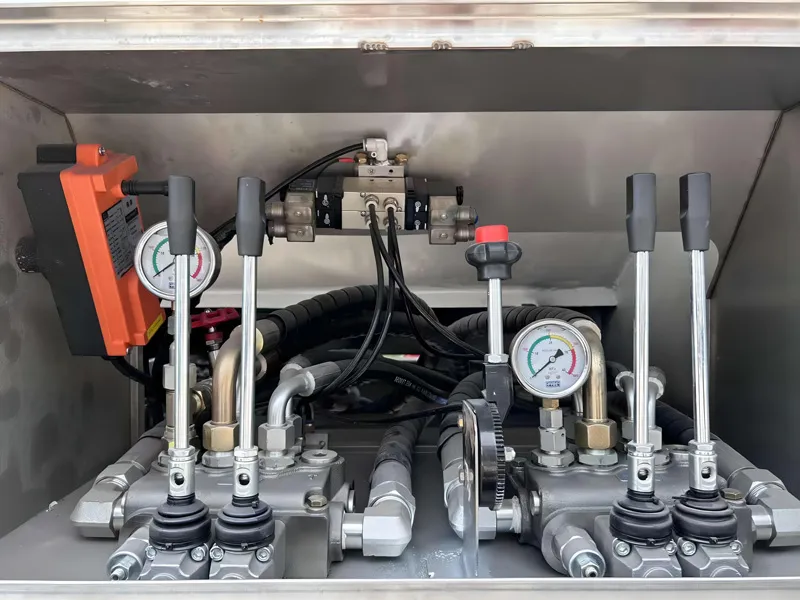

Control Mode | Wireless Remote Control (effective within 50m) + Cab Centralized Control Panel |
Electrical System | 24V DC; Equipped with Dual Batteries (12V×2) for Stable Power Supply |
Safety Features | - Anti-slip Aluminum Alloy Steps - Red-White Reflective Warning Strips - Rearview Camera with Night Vision (optional) - ABS Anti-lock Braking System |
Comfort Configuration | - Air-conditioned Cab - Adjustable Driver's Seat (air suspension optional) - MP3 Radio with USB Interface |
Application | Bulk Transportation of Pelleted/Powdered Animal Feed (poultry, swine, ruminants, aquaculture feed, etc.) |
Optional Configurations | - Stainless Steel Tank (304/316L) for Corrosion -Prone Environments - GPS/Beidou Positioning & Fleet Management System - Automatic Feed Distribution Metering Device - Hydraulic Lift for Tank Tipping (enhances discharge efficiency) |
Warranty | Chassis: 1 Year or 100,000 km; Special Equipment (Tank & Auger): 1 Year or 8,000 Working Hours |
