The Sinotruk HOWO 4×2 fire truck features an 18 m high lift with sprinkler and firefighting capabilities, designed for efficient emergency response.
18-meter high jet fire engine | |||||

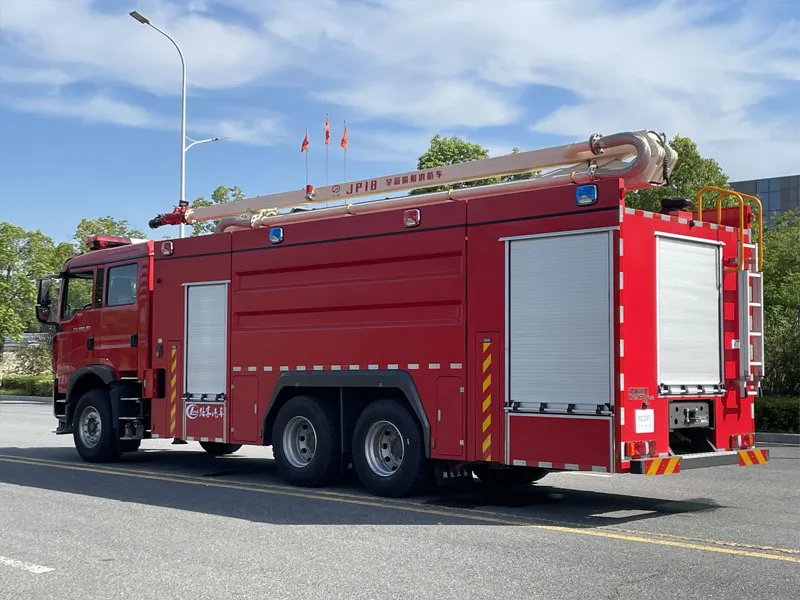

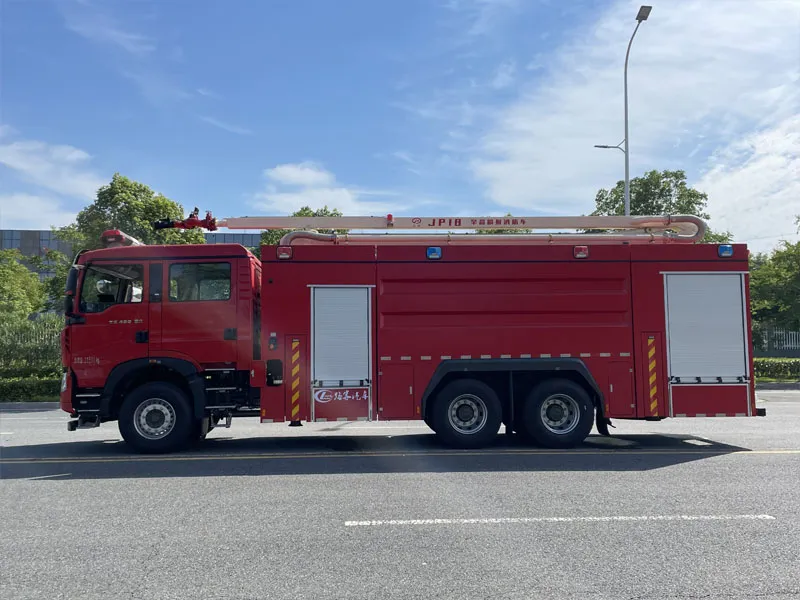

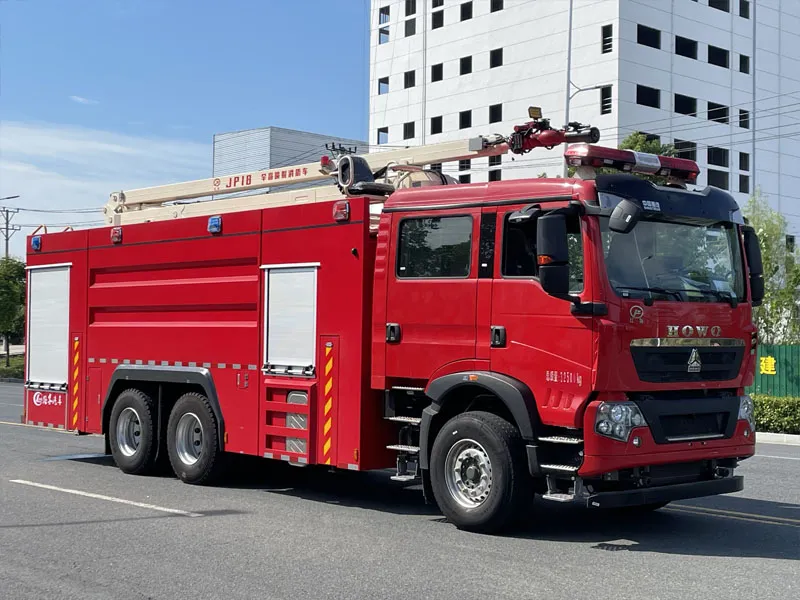

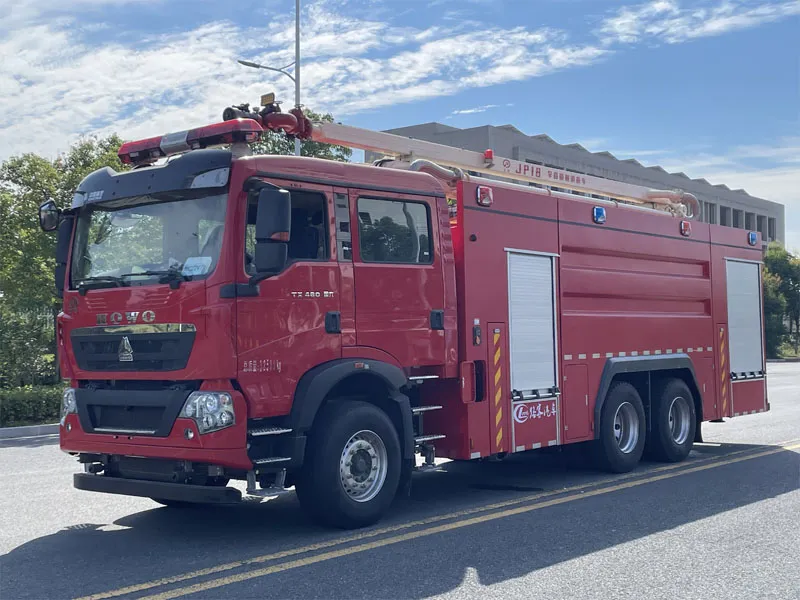

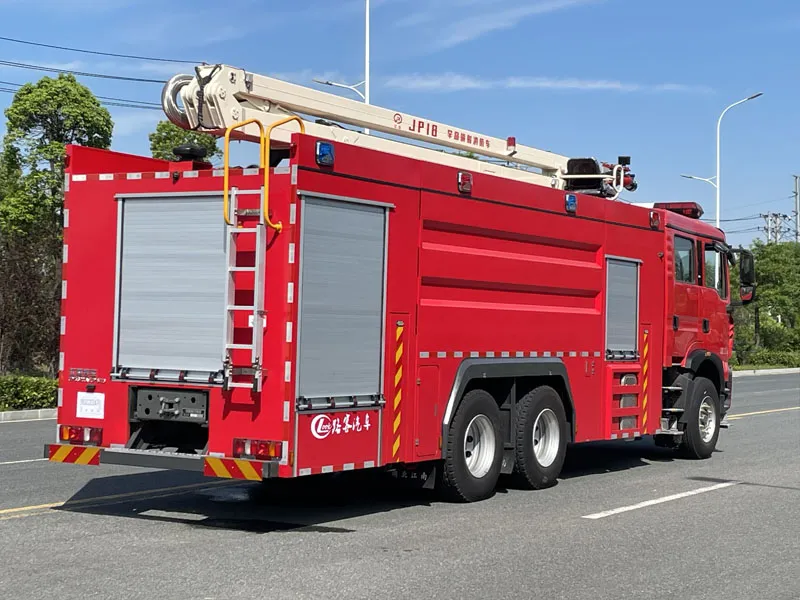

The 18-meter high-lift fire truck is modified from the heavy-duty Haowu ZZ5357TXFV464MF5 chassis, featuring an original double-cab design with hydraulic tilting. It is powered by a 445-horsepower China VI emission-compliant heavy-duty Haowu MC11.44-60 engine and equipped with a 12-cubic-meter tank (including a 10-cubic-meter water tank and 2-cubic-meter foam tank). The vehicle is fitted with a Shanghai CB10/60 portable fire pump and a Chengdu Weistar PLKD48 remote-controlled fire cannon | |||||
product name | JDF5320JXFJP18Z6 type lift jet fire engine | ||||
gross mass | 30900 (Kg) | Tank volume | 12,000 L (water 10 m3, foam 2 m3) | ||
Rated load mass | 15550 (kg) | outline dimension mm | 11030×2500×3800 | ||
curb weight | 14900 (kg) | No. of driver's seats | 2+4 (persons) | ||
Approach Angle/Departure Angle | 16/9 (°) | Front suspension / rear suspension | 1500/3055 | ||
number of axles | 3 | wheel base (mm) | 4600+1350 | ||
axle weight (Kg) | 7020/19920 (with dual shafts) | speed of a motor vehicle | 90(Km/h) | ||
[Base technical parameters] | |||||
Chassis type | ZZ5357TXFV464MF5 | ||||
Fuel types | diesel oil | tyre size | 12.00R20 | ||
front gauge | 2110 (mm) | rear track | 1830/1830 (mm) | ||
effluent standard | GB3847-2005, GB17691-2018 National VI | ||||
engine type | Engine manufacturer | displacement (ml) | power (Kw) | ||
MC11.44-60 | Heavy Duty Automobile Group Co., LTD | 10518 | 327KW | ||
Crew room description | Flat head all metal enclosed cab, panoramic curved glass, original double row | ||||
shell of tank | Using high quality carbon steel material, welding structure, internal longitudinal and transverse anti-vibration plates, high-tech anticorrosion treatment. Stainless steel material can be selected. | ||||
pump house | The rear pump, the left and right sides of the pump room, equipment box on both sides of the new easy to pull high strength aluminum alloy rolling shutter door. | ||||
Equipment room | It is manufactured by using the aluminum alloy profile internal tower connection technology produced in Europe and has a full mortise and tenon structure. | ||||
Tank volume | 12000L (tank volume 10 cubic meters, foam tank volume 2 cubic meters) | ||||
Firearm range | Water jet range: ≥70m, foam jet range: ≥60m | ||||
Fire pump model | CB10/100 | ||||
Lift height | 18 meters | ||||
