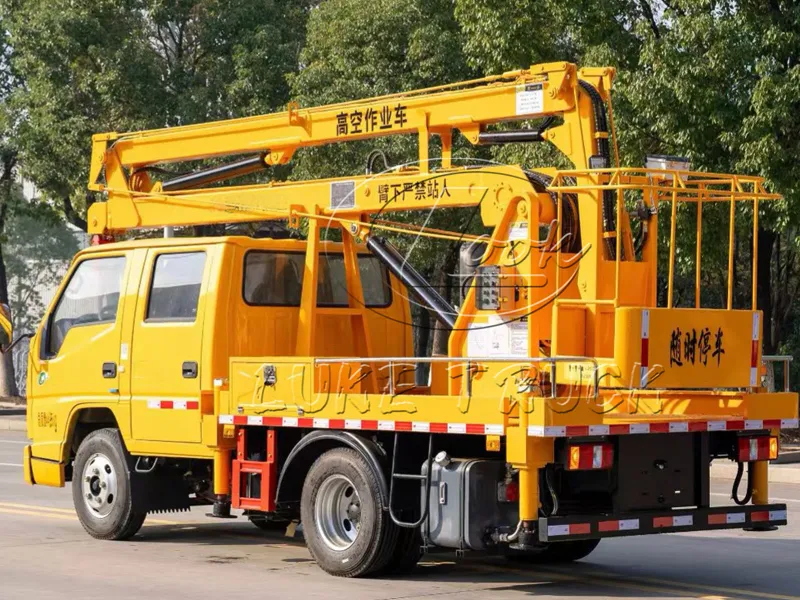

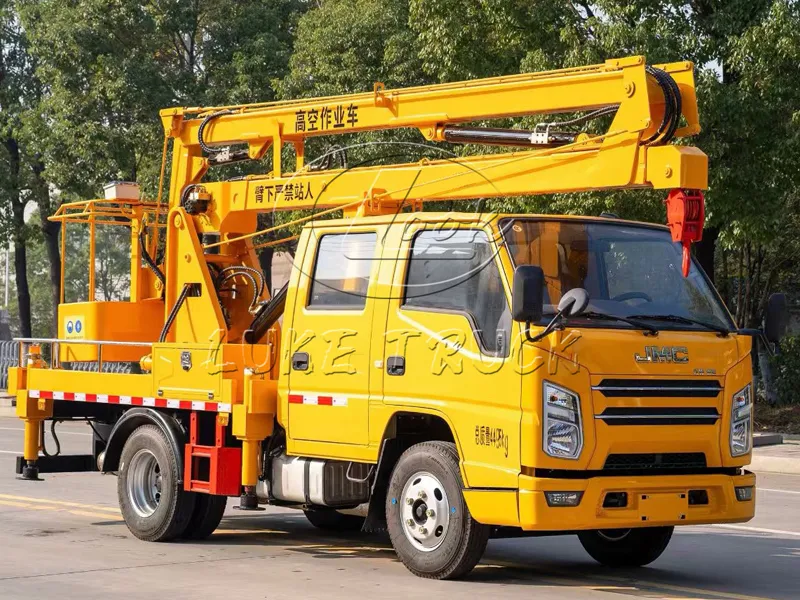

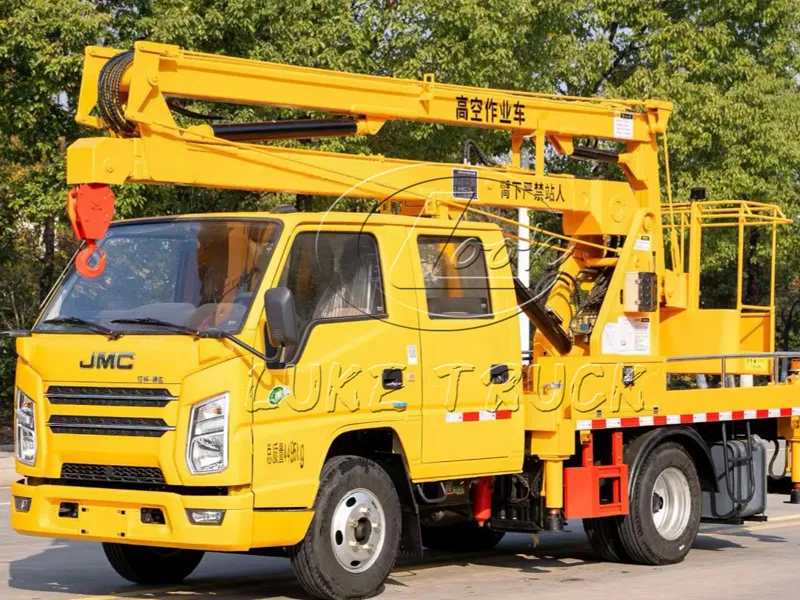

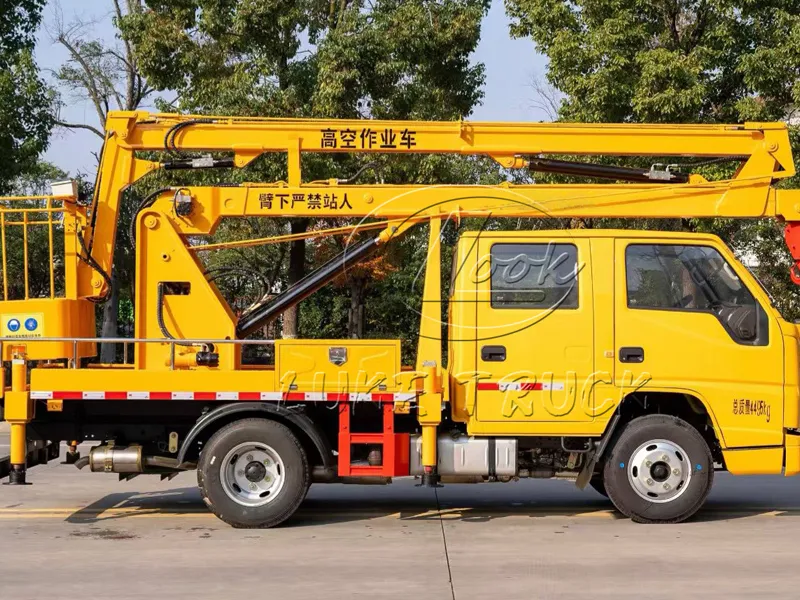

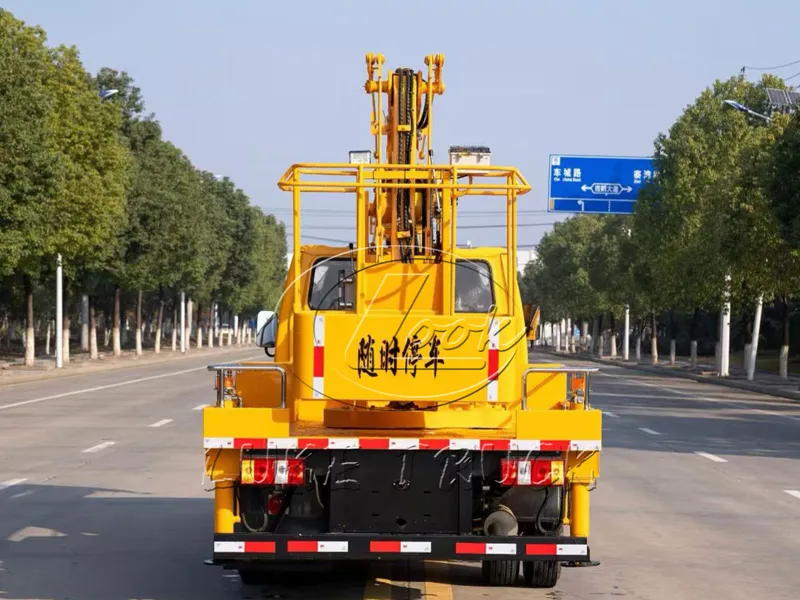

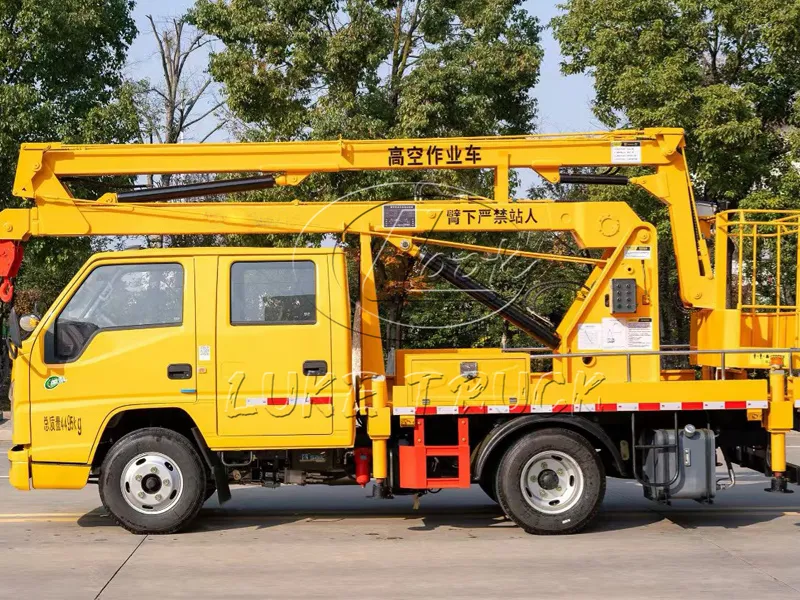

Jiangling Double-Row 22-meter Fold-Arm Aerial Working Platform Truck features a four-section hexagonal working arm with synchronized extension. Its swivel platform supports both manual and remote operation, enabling 360-degree rotation.
| [Technical Parameters of Jiangling Double Row 22m Folded Arm Aerial Working Platform Truck] | |||
| Product trademark | Casal card | Announcement batch | 400 |
| product name | Aerial Working Platform Truck | product model | LOOK5041JGKJX6 |
| gross mass （Kg） | 4495 | outline dimension （mm） | 5995×1990×3000 |
| Number of passengers in the cab (per person) | 2+3 | curb weight （Kg） | 4170 |
| Approach Angle/Departure Angle (°) | 20/12 | Front/rear suspension (mm) | 1075/1560 |
| axle weight （Kg） | 1725/2770 | Maximum speed (Km/h) | 100 |
| The cab is optional and is mounted on the chassis. Both the side and rear protective panels are made of Q235 steel and welded together. The rear panel measures 60mm wide by 100mm high, with a ground clearance of 420mm. The ABS model/manufacturer is APG3550500A from Zhejiang Asia-Pacific Electromechanical Co., Ltd. This vehicle is designed for high-altitude operations in power, telecommunications, and street lighting applications. Its main components include a lifting platform and an operating arm. Optional features include a non-perimeter structure, exterior styling options, and an optional air filter mounting position. | |||
| [Chassis Technical Parameters] | |||
| Chassis model | JX1041TSG26 | Chassis name | truck chassis |
| brand name | Jiangling brand | manufacturing enterprise | Jiangling Automobile Co., Ltd. |
| number of axles | 2 | Number of tires | 6 |
| wheel base （mm） | 3360 | tyre size | 7.00R16LT 10PR |
| Number of leaf springs | 7/4+6 | front gauge （mm） | 1385 |
| fuel type | diesel oil | rear track （mm） | 1425 |
| standard of emission | GB17691-2018 National VI | ||
| engine type | engine manufacturer | displacement （ml） | power （Kw） |
| JX493ZLQ6F | Jiangling Automobile Co., Ltd. | 2499 | 95 |
With their reliable performance and flexible operation, Jiangling Aerial Working Platform Trucks are widely used in various high-altitude operations. Here are the key features of some common models:
The main components: ① The working arm consists of an upper folding arm, a main arm, and a balancing mechanism. The main arm forms a maximum horizontal angle of 70° with the upper folding arm, which in turn forms a maximum angle of 140° with the main arm. This operating system supports dual-position operation on both the working bucket and the turntable. The four legs are individually adjustable, enabling the entire vehicle to level on uneven roads.
② Equipped with a four-section hexagonal working arm that extends/sinks synchronously, the turntable can be operated manually or remotely, with 360-degree rotation capability. The four hydraulic legs adopt a front V-back H configuration, adjustable individually or in linkage, and the working bucket has a rated load capacity of 200kg.
③ Equipped with an electro-hydraulic proportional control system for stepless speed regulation, along with multiple safety features including a hydraulic automatic leveling system and automatic interlock devices for boarding and alighting.
