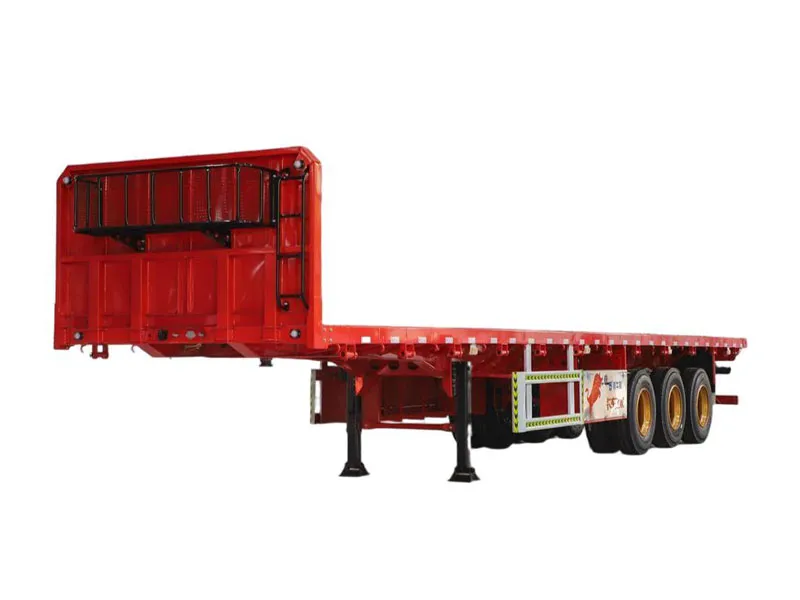

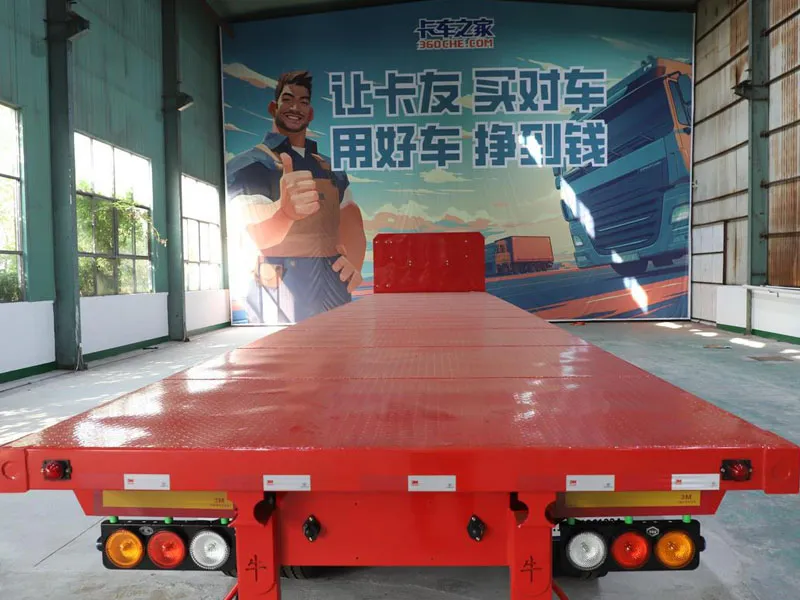

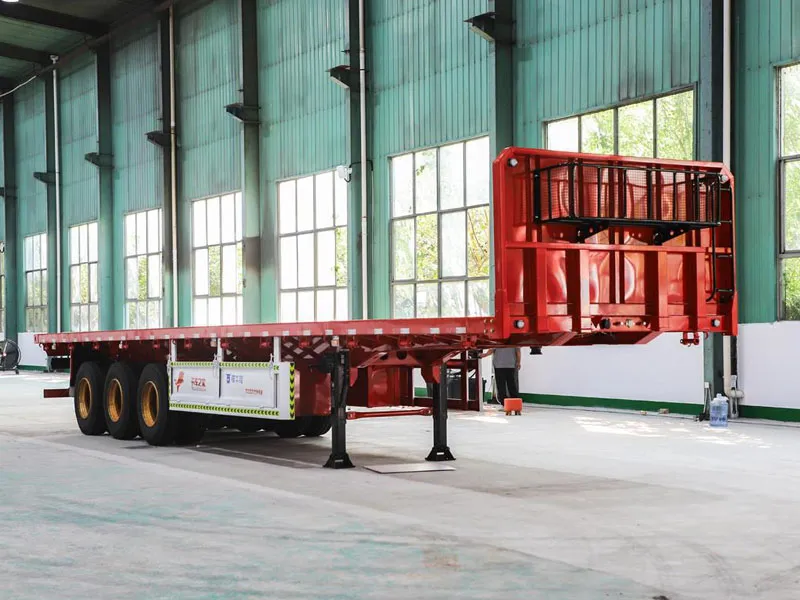

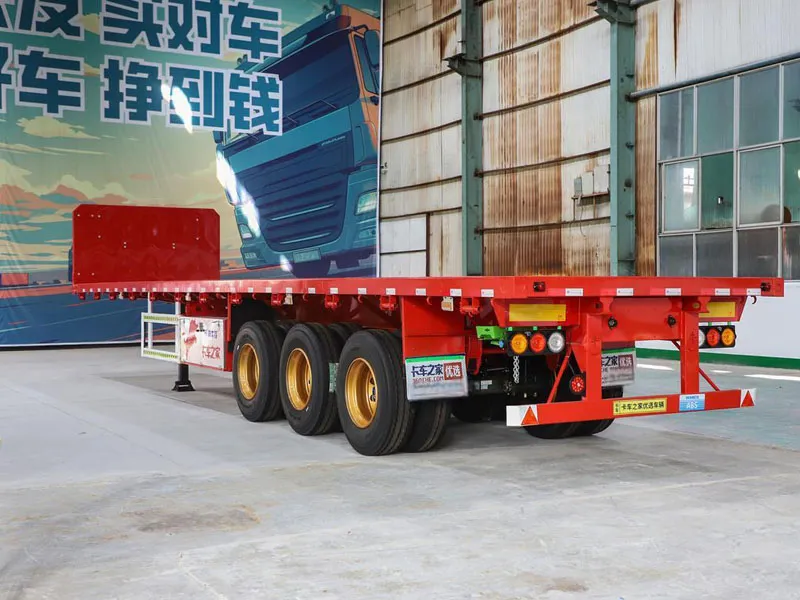

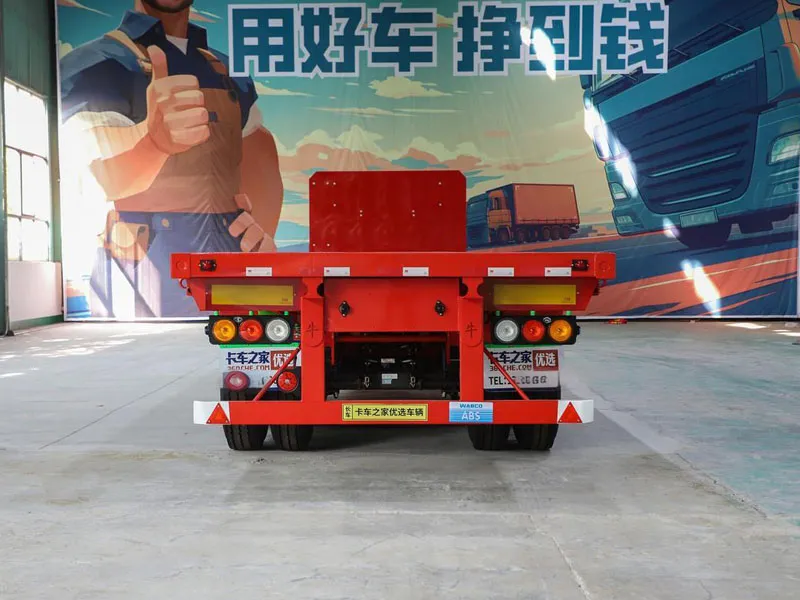

Flatbed semi-trailer features an open platform with no fixed sides, hauls heavy or bulky loads, relies on a tractor, and is ideal for diverse logistics applications.
Parameter Category | Parameter Name | 13m Flatbed Semi-Trailer | 14.6m Flatbed Semi-Trailer | 16m Flatbed Semi-Trailer | Unit |
Core Performance | GVWR (Gross Vehicle Weight Rating) | 49000 | 49000 | 49000 | kg |
Max Payload Capacity | 35000 | 34000 | 33000 | kg | |
Curb Weight | 14000 | 15000 | 16000 | kg | |
Structural Configuration | Main Frame Material | Q355B high-strength steel | Q355B high-strength steel | Q355B high-strength steel | - |
Deck Material | Checker plate (8mm thickness) | Checker plate (8mm thickness) | Checker plate (10mm thickness) | - | |
Axle Configuration | 3 axles (air suspension) | 3 axles (air suspension) | 4 axles (air suspension) | - | |
Tie-Down Points | 16 (recessed, 5t load each) | 20 (recessed, 5t load each) | 24 (recessed, 5t load each) | - | |
Dimension Details | Overall Length | 13000 | 14600 | 16000 | mm |
Deck Length | 12500 | 14100 | 15500 | mm | |
Overall Width | 2550 | 2550 | 2550 | mm | |
Overall Height (Deck to Ground) | 1300 | 1300 | 1300 | mm | |
Wheelbase | 3800+1300 (3-axle) | 4200+1300 (3-axle) | 4500+1300+1300 (4-axle) | mm | |
Tire & Brake | Tire Specification | 12R22.5 (6+1 spare, tubeless) | 12R22.5 (6+1 spare, tubeless) | 12R22.5 (8+1 spare, tubeless) | - |
Brake System | WABCO air brake + ABS | WABCO air brake + ABS | WABCO air brake + ABS | - | |
Safety Features | Lighting System | LED tail/side lights (ECE R65) | LED tail/side lights (ECE R65) | LED tail/side lights (ECE R65) | - |
Reflective Markings | Full-body retro-reflective tape | Full-body retro-reflective tape | Full-body retro-reflective tape | - |
