1. Basic Information
Model: Sinotruk Howo LPG Transport Truck
Brand: SINOTRUK HOWO
LPG Tank Capacity: 5000 liters
Application: Transportation and distribution of liquefied petroleum gas (LPG)
Design Standard: Comply with international safety and transportation regulations for pressure vessels and hazardous materials.
2. Chassis Parameters
Item | Specification |
Chassis Brand | SINOTRUK HOWO |
Cab Type | Single-row, closed, with air conditioning |
Engine Model | Sinotruk WD615 series (or equivalent) |
Engine Power | 160-210 hp |
Transmission | Manual transmission, 6-8 gears |
Driving Type | 4×2 |
Wheelbase | Customizable (typically 3800-4500mm) |
Tire Specification | 10.00R20 (or similar heavy-duty tires) |
Max Speed | ≤80 km/h (subject to local regulations) |
3. LPG Tank & System Parameters

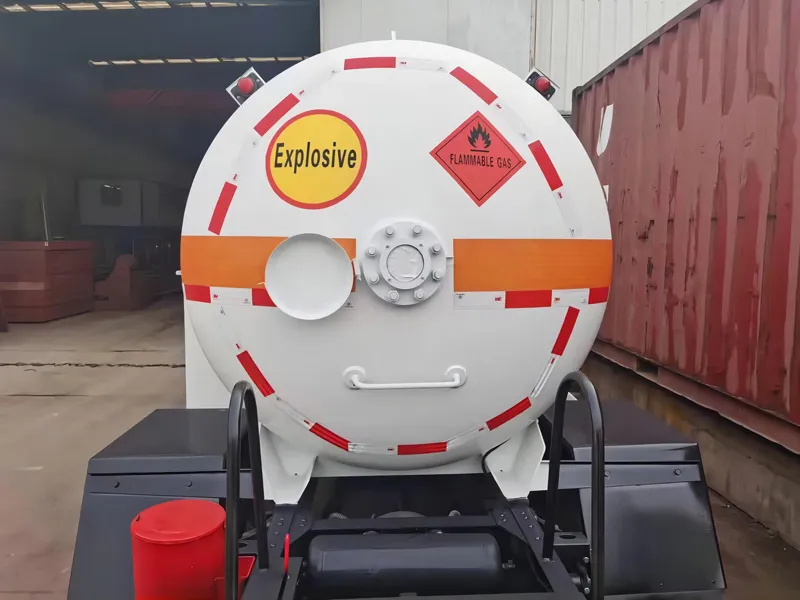

3.1 Tank Structure
Material: Q345R pressure vessel steel (high-strength, corrosion-resistant)
Design Pressure: 1.77 MPa
Working Pressure: 1.6 MPa
Volume: 5000 liters
Thickness: ≥10 mm (varies by section)
Inspection: Third-party inspection for pressure vessels, with certification.
3.2 Safety Devices
Safety Valve: Automatic pressure relief, meets GB/T 12241 standards.
Emergency Cut-off Valve: Hydraulic/pneumatic cut-off, activated in emergencies.
Pressure Gauge & Thermometer: Real-time monitoring of tank pressure and temperature.
Leak Detection System: Equipped with gas leak sensors for early warning.

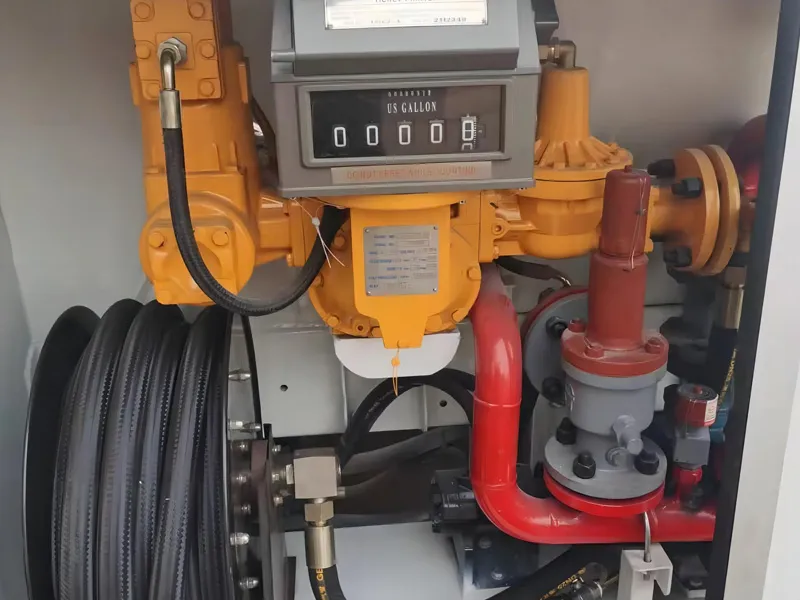

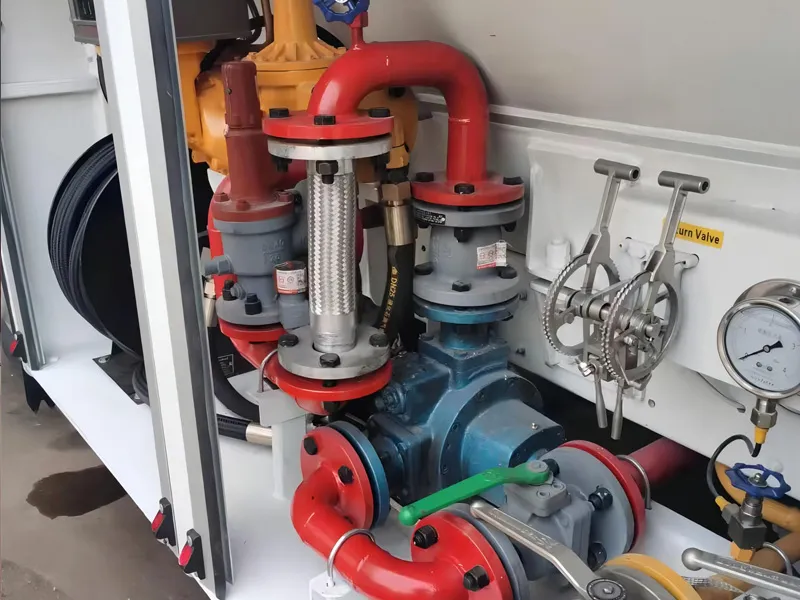

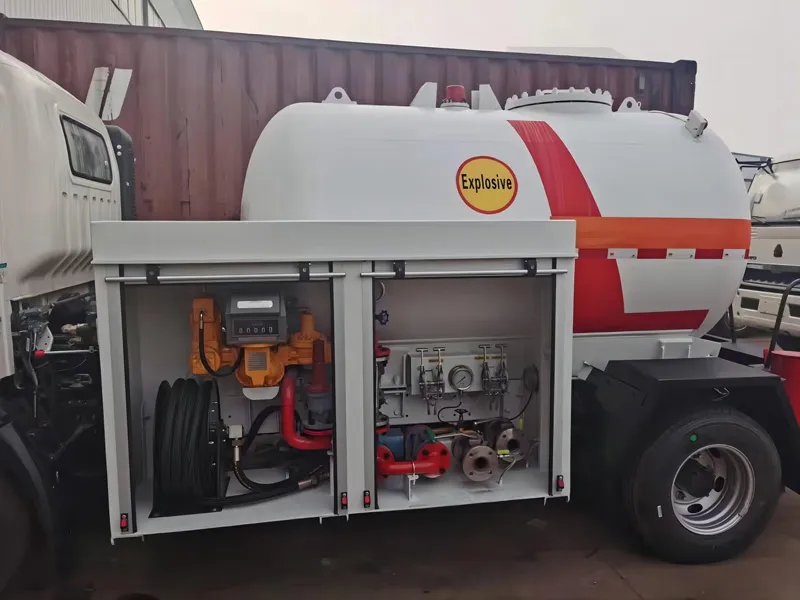

3.3 Loading & Unloading System
Pump Type: LPG transfer pump (flow rate customizable).
Filling Valve: Multiple filling interfaces for efficient loading/unloading.
Pipe Material: Stainless steel (304) or carbon steel with anti-corrosion coating.
4. Dimensions & Weight
Item | Dimension/Weight |
Overall Length | ~7500-8500 mm (varies by configuration) |
Overall Width | ~2490 mm |
Overall Height | ~3400 mm |
Curb Weight | ~8000-10000 kg |
GVW (Gross Vehicle Weight) | ~16000 kg (subject to chassis) |
5. Performance & Features
Fuel Efficiency: Economical fuel consumption, adapted to long-distance transportation.
Maneuverability: Flexible in urban and rural road conditions.
Safety Compliance: Meets international standards for LPG transportation (e.g., ADR, GB).

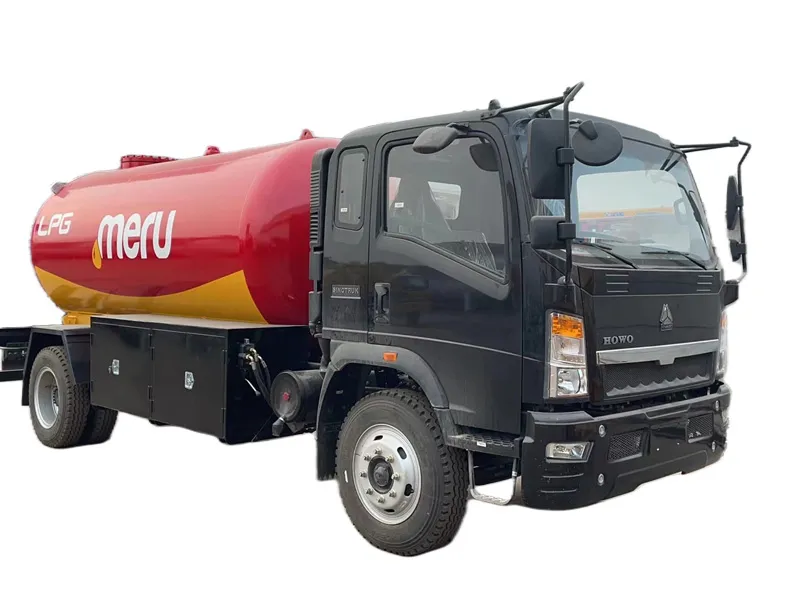

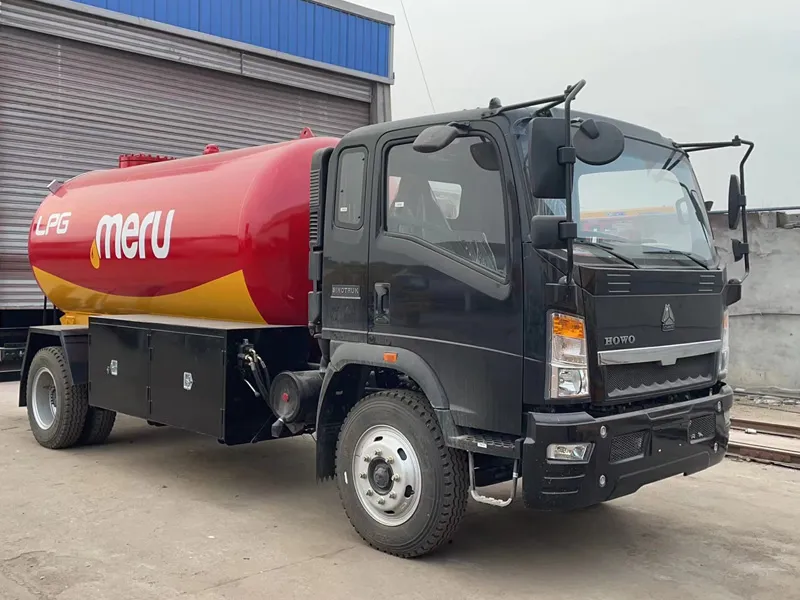

Customization: Logo, color, and partial configurations can be tailored (e.g., the “meru” logo and color scheme in the sample image).
6. Certification & Warranty
Certification: CE, ISO, and local hazardous material transportation certifications.
Warranty: 12 months for the whole vehicle, 24 months for the engine (subject to negotiation).
