On the busy apron of Almaty International Airport, aircraft take off and land in an orderly flow every day. Behind these efficient flight operations is a reliable and high-performance ground support system. Supplied by China National Aviation Fuel and manufactured by Hubei Luke Truck, the 30m³ rear twin-axle semi-trailer aircraft refueling truck has become a key force in airport fueling operations, providing strong support for one of Central Asia’s major aviation hubs.

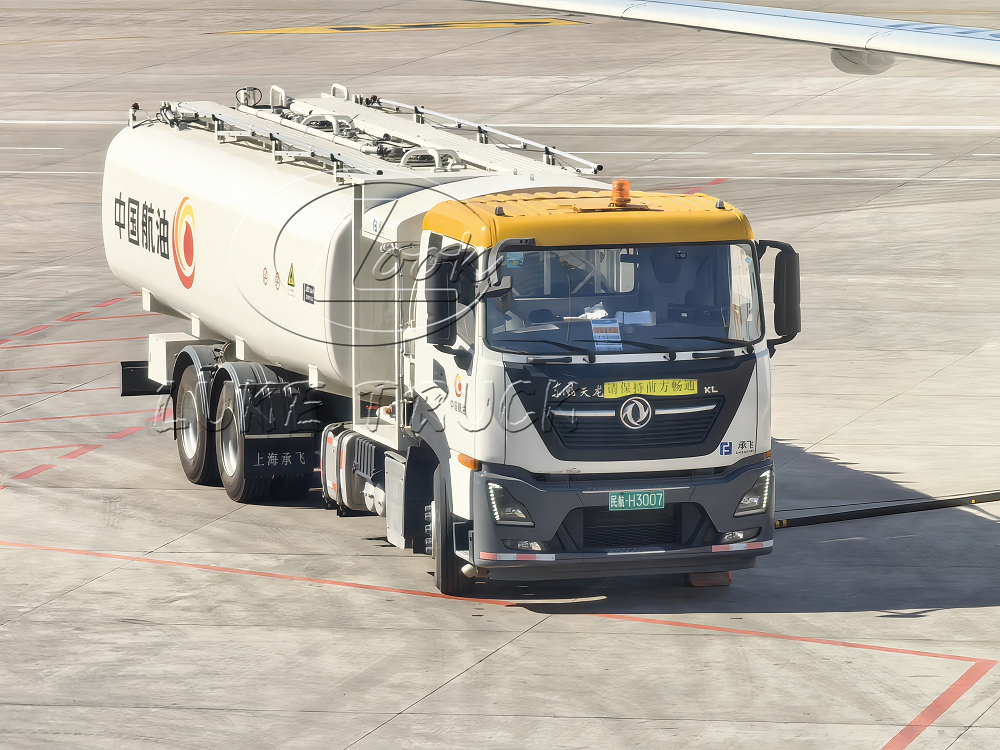

Built on the Dongfeng Tianlong KL rear twin-axle tractor chassis, this refueling truck is specially designed for intensive airport operations. Its 30 cubic meter large-capacity tank uses aviation-grade sealing technology and anti-corrosion materials, allowing a single fueling cycle to meet the long-range fuel demand of wide-body aircraft. This significantly reduces refill trips and improves turnaround efficiency, making it ideal for the high-frequency traffic of Almaty Airport.
The rear twin-axle semi-trailer structure provides excellent load stability and driving safety. Reinforced axles and suspension systems easily handle complex apron road conditions and full-load operations. The proven Dongfeng Tianlong powertrain delivers strong performance with excellent fuel economy, helping operators reduce running costs while adapting well to Central Asia’s climate and road environments.
Fuel cleanliness is critical for aircraft engine life and operational safety. This truck is equipped with a multi-layer fuel protection system:
Tank Material: Aviation-grade 304 stainless steel welded tank body
Wall Thickness: 6.5mm
Internal Coating: 200μm fluorocarbon coating resistant to jet fuel
Insulation Layer: 50mm polyurethane thermal insulation
Operating Temperature Range: -40°C to 60°C
This makes the unit highly suitable for Almaty’s continental climate, where winters can drop below -20°C and summers exceed 35°C.
The truck also includes a three-stage filtration system:
Coarse filter – 100μm precision
Fine filter – 20μm precision
Final delivery filter – 10μm precision

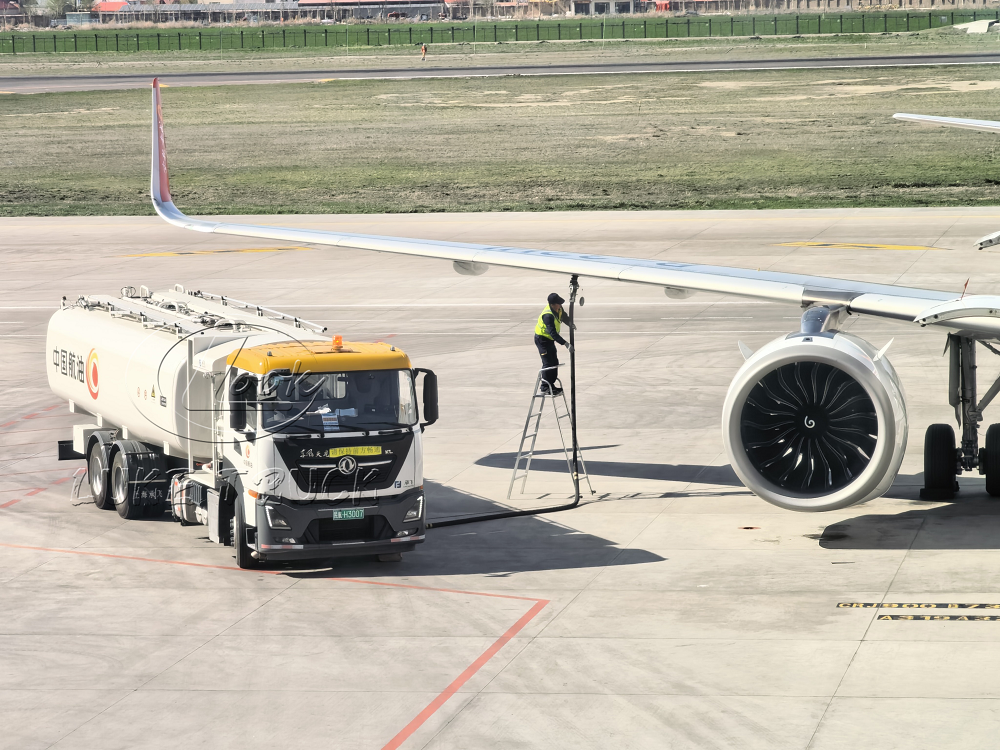

An oil-water separator with over 98% separation efficiency further protects fuel quality.
The fueling truck uses a PTO-driven aviation fuel pump system for high-efficiency delivery.
PTO Output Power: 80kW
Pump Model: CB-1200 Gear Pump
Rated Flow: 1200L/min
Max Flow: 1500L/min
Working Pressure: 1.6MPa
For winter operation, the truck includes a heated pipeline system that maintains fuel flow in freezing temperatures.
Its double-layer anti-explosion fuel hoses are built for airport safety and durability, with ISO-standard quick couplings compatible with aircraft fueling ports.
Accurate fueling is essential for aircraft balance and flight planning. This truck uses an industrial smart metering system with dual redundancy:
Turbine flow meter accuracy: ±0.1%
Positive displacement meter accuracy: ±0.2%
Pressure and temperature sensors with real-time monitoring
10-inch touchscreen control panel
Electronic fueling records with USB export
Operators can preset fuel volume, target pressure, and flow rate. The system automatically controls pump speed and shuts down once fueling is complete.
Aircraft fueling demands the highest safety standards. This truck includes a three-level interlock protection system:
Grounding resistance monitoring
Automatic shutdown if grounding fails
Leak sensors with rapid response
Emergency shutoff valve if pressure exceeds limits
Automatic heating/cooling activation
Emergency stop buttons on both sides and in cab
Full vehicle power cut-off in 0.1 seconds
Automatic parking brake lock and wheel chocks

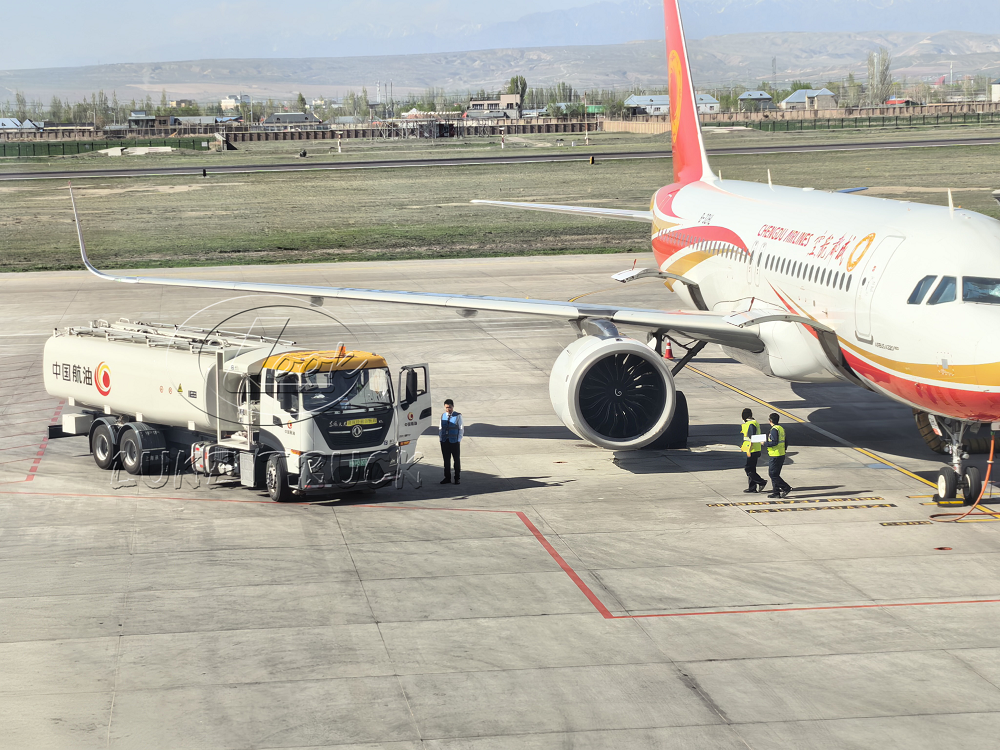

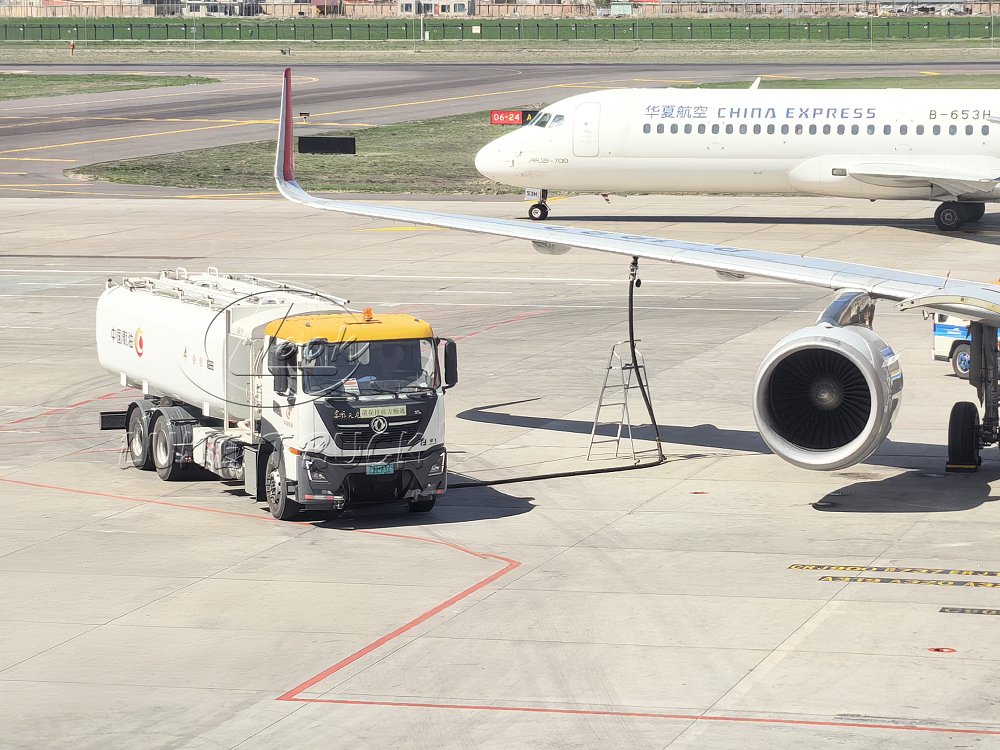

At Almaty International Airport, the truck is already serving airlines such as Chengdu Airlines and Huaxia Airlines. It efficiently fuels aircraft ranging from the Airbus A320neo (approx. 20,000L per fueling) to the Bombardier CRJ900 (approx. 8,000L).
Daily Service Capacity: 15–20 aircraft
Equipment Failure Rate: ≤0.5%
Typical Fueling Time: ≤15 minutes for 20,000L
Its stable performance and precise engineering have earned strong recognition from airport operators and airline customers alike.
More than just a refueling truck, this vehicle demonstrates the strength of Chinese high-end airport ground support equipment on the international stage. With advanced engineering, reliable quality, and smart control systems, the 30m³ rear twin-axle semi-trailer aircraft refueling truck will continue supporting Almaty International Airport and helping every flight depart safely and smoothly.
