Item | Specification | Item | Specification |
Brand | Qiyuan | Seating Capacity | 3+3 |

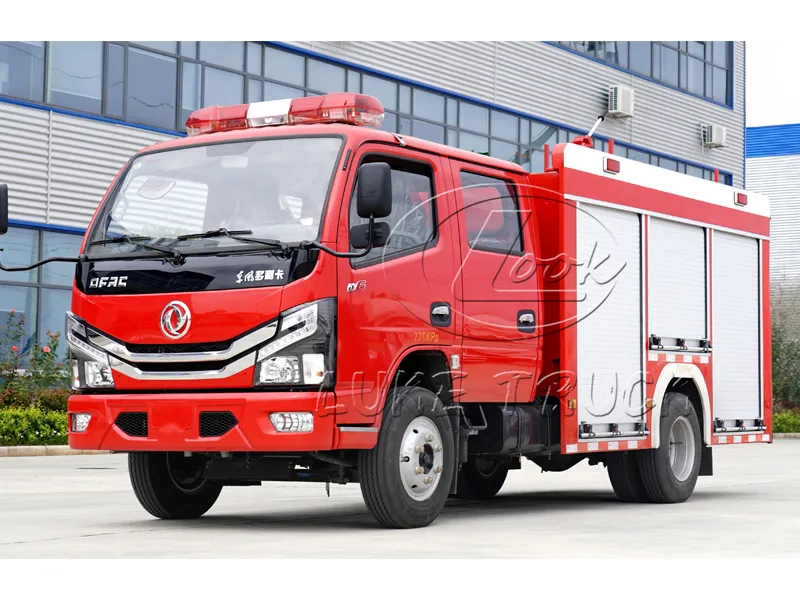

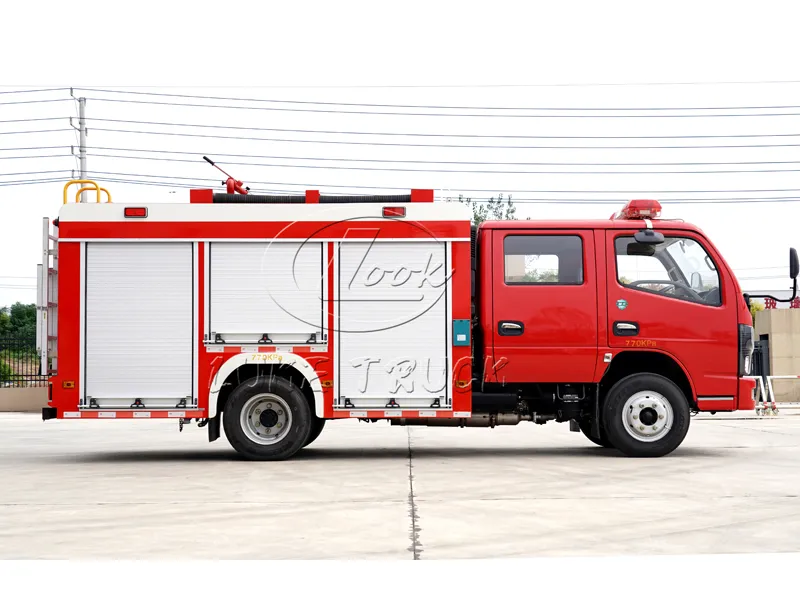

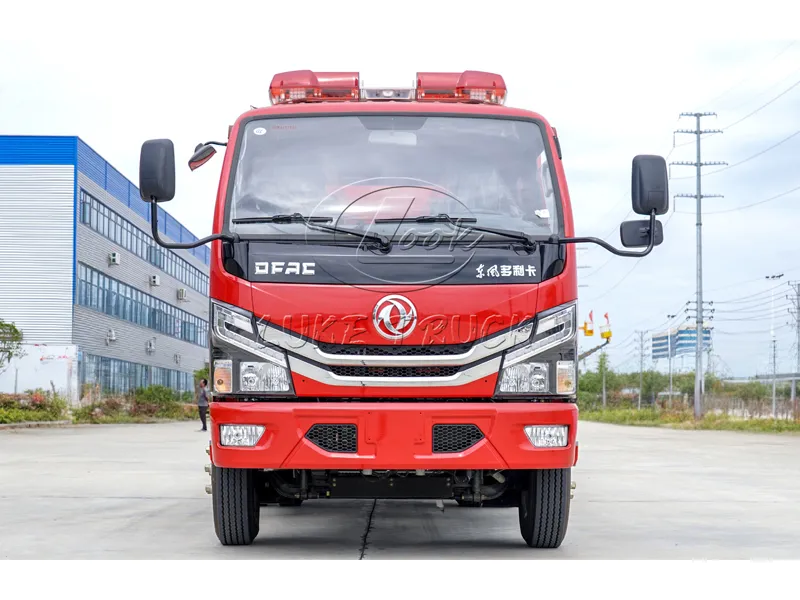

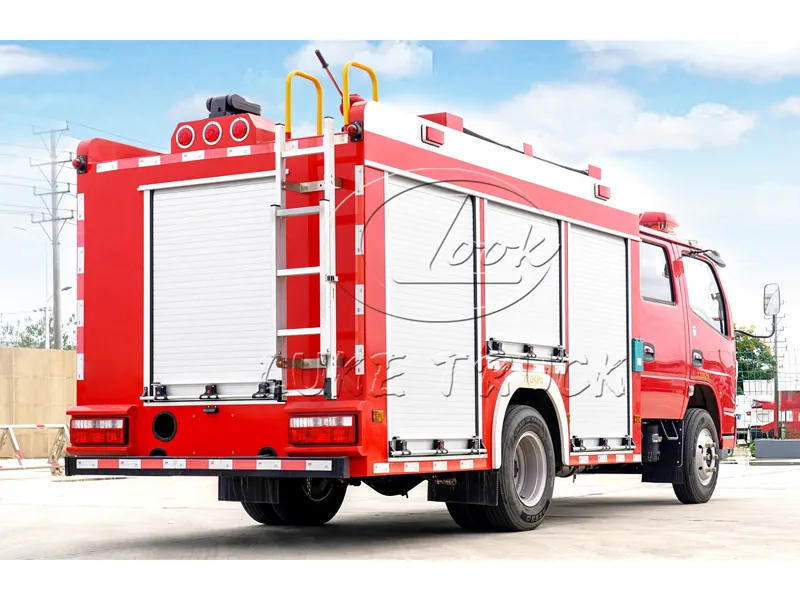

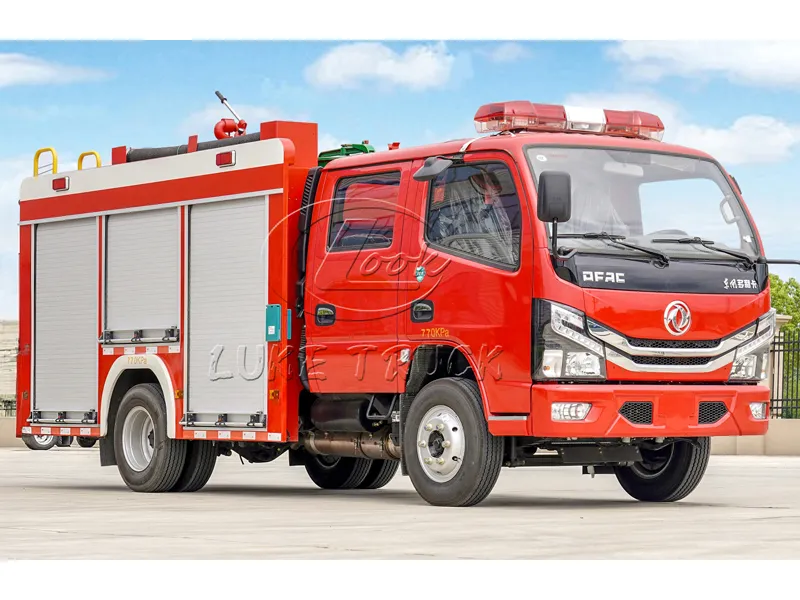

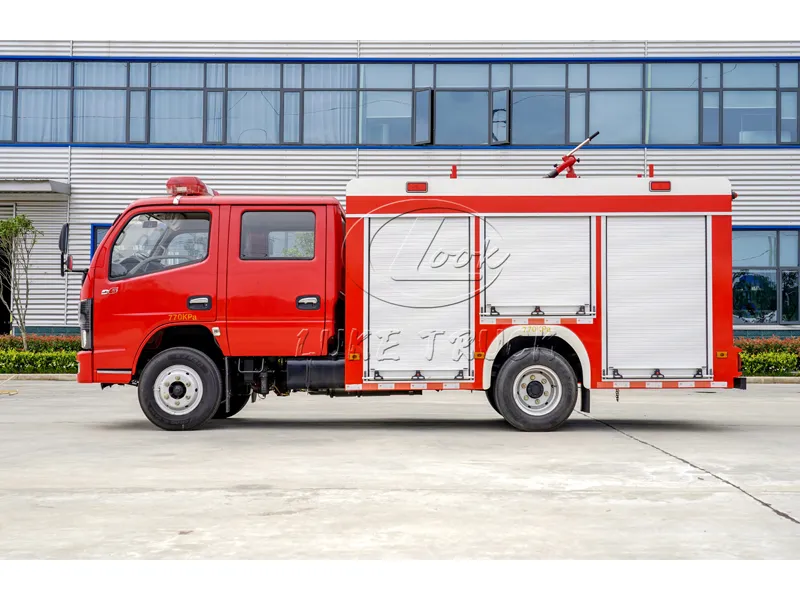

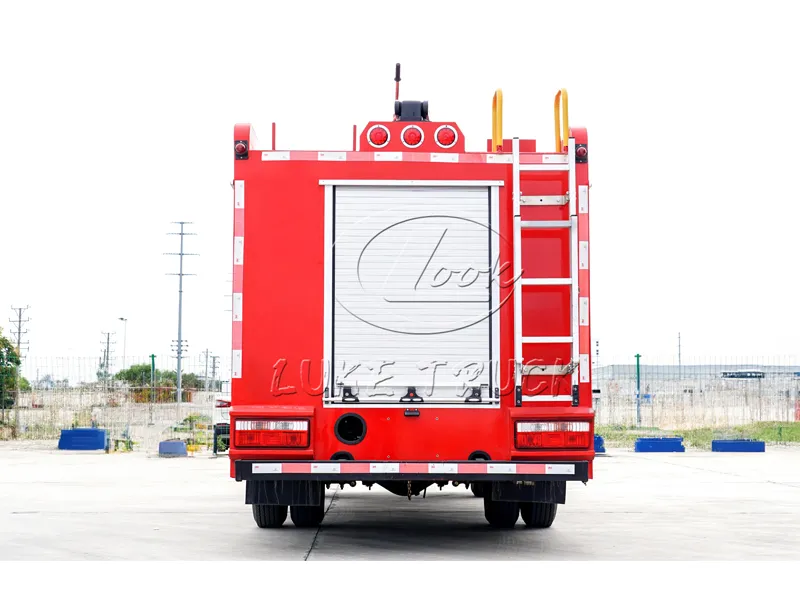

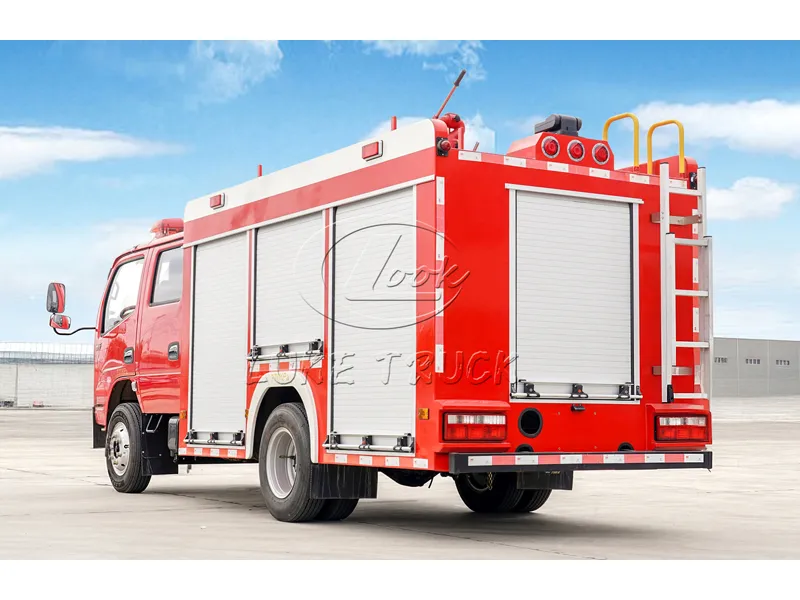

Product Name | Water Tank Fire Truck | Model | QY5170GXFSG80/E6 |
Gross Vehicle Weight (kg) | 8,450 | Tank Volume (m³) | 5.200 |
Rated Payload (kg) | 5,200 | Overall Dimensions (mm) | 8,170 × 2,530 × 3,490 |
Curb Weight (kg) | 3,800 | Cargo Box Dimensions (mm) | N/A |
Approach/Departure Angle (°) | 19/12 | Front/Rear Overhang (mm) | 1,260/2,210 |
Axle Load (kg) | 6,450/11,000 | Maximum Speed (km/h) | 105 |
Equipped exclusively with 295/80R22.5 18PR tires. The total tank volume is 5.200 m³, with a special-shaped water tank: front dimensions 1,250 × 1,300 × 1,400 mm, rear dimensions 1,950 × 2,300 × 1,400 mm. Integral side protection structure. Rear protection material: Q235A, cross-section size (W×H): 120 × 120 mm, bolted connection to the vehicle, rear protection ground clearance: 445 mm. ABS manufacturer: Xiangyang Dongfeng Longcheng Machinery Co., Ltd., model: ABS/ASR-24V-4S/4M. Main special equipment includes a fire pump and a fire monitor. | |||
Chassis Technical Specifications | |||
Item | Specification | Item | Specification |
Chassis Model | EQ1185DJ9CDF | Wheelbase (mm) | 4,700 |
Brand | Dongfeng | Manufacturer | Dongfeng Automobile Co., Ltd. |
Number of Axles | 2 | Number of Tires | 6 |
Tire Specification | 295/80R22.5 | Emission Standard | GB17691-2018 China National VI |
Leaf Spring Configuration | 8/10+7 | Front Track (mm) | 1,923, 1,931 |
Fuel Type | Diesel | Rear Track (mm) | 1,865 |
Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
B6.2NS6B150 | Dongfeng Cummins Engine Co., Ltd. | 6,200 | 85 |
