The KAMA Fire Sprinkler Truck is a multi-functional specialized vehicle built upon a light-duty truck chassis, seamlessly integrating firefighting capabilities with municipal sprinkling functions. Its core strengths lie in its "dual-purpose utility, high-efficiency emergency response, and cost-effectiveness." Key specifications include a Model 65CWY-40 fire pump—featuring a flow rate of 40 L/s and a head of 110 meters—and a 360-degree rotating fire monitor capable of both direct-stream and spray modes, with a projection range of 50 to 80 meters. This vehicle serves to more effectively safeguard the safety of residents' lives and maintain social order, finding widespread application in municipal operations, industrial parks, rural townships, and similar settings.

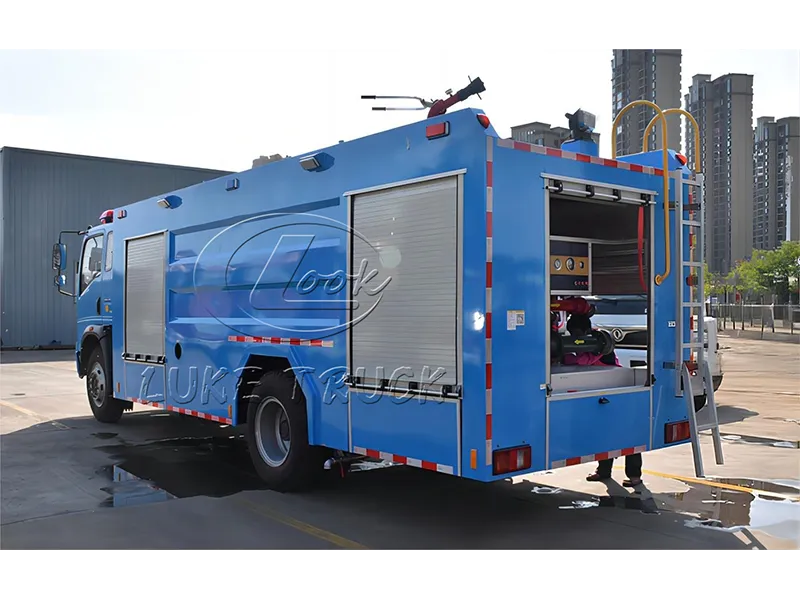

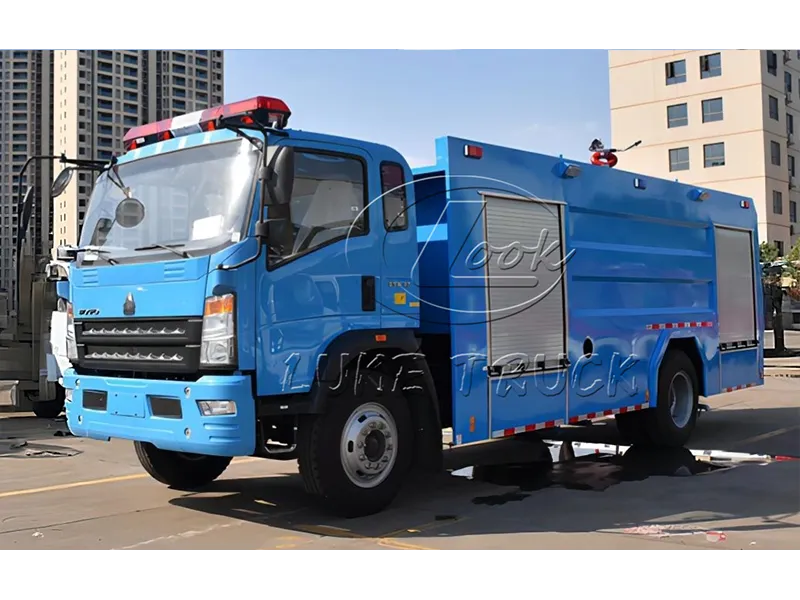

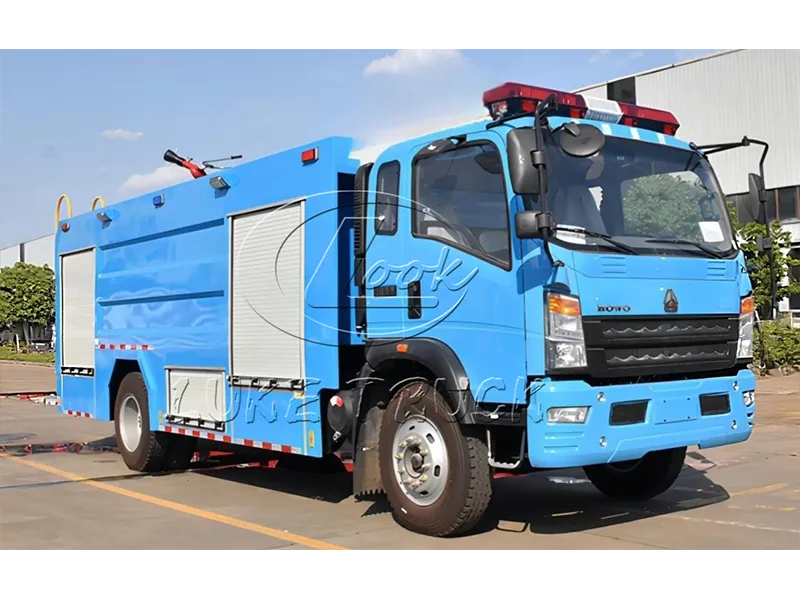

| SINOTRUK Wangpai Fire Truck — Complete Vehicle Technical Specifications | |||
| Item | Specification | Item | Specification |
| Brand | MP | Seating Capacity | 2+4 |
| Product Name | Decontamination Fire Truck | Model | QY5160TXFXX30/HW6 |
| Total Mass (kg) | 16250 | Tank Volume (m3) | 4.05 |
| Rated Payload (kg) | 3000 | Overall Dimensions (mm) | 8840×2525×3820 |
| Curb Weight (kg) | 12800 | Wheelbase (mm) | 4500 |
| Approach/Departure Angle (°) | 19/11 | Front/Rear Overhang (mm) | 1430/2410 |
| Axle Load (kg) | 5150/11100 | Maximum Speed (km/h) | 101 |
| Equipped exclusively with 315/80R22.5 tires. The total tank volume is 4.050 cubic meters, comprising a water tank with a volume of 2.000 cubic meters (dimensions: 1560 × 1300 × 1020 mm), a decontamination fluid tank with a volume of 1.000 cubic meters (dimensions: 1080 × 1600 × 600 mm), and a residual fluid tank with a volume of 1.050 cubic meters (dimensions: 820 × 1300 × 1020 mm). The vehicle features an integrated side and rear protective structure, with a rear ground clearance of 463 mm. The EBS system is manufactured by WABCO (Shanghai) Management Co., Ltd., model EBS3. Key specialized equipment includes a chemical decontamination unit, a lighting system, a fire pump, and a fire monitor. | |||
| Chassis Technical Specifications | |||
| Chassis Model | ZZ5207TXFV471GF5 | Chassis Name | Fire Truck Chassis |
| Brand | HOWO | Manufacturing Enterprise | Sinotruk Jinan Truck Co.,Ltd. |
| Number of Axles | 2 | Number of Tires | 6 |
| Tire Specifications | 11/9+8 | Emission Standard | GB17691-2018 China National VI |
| Leaf Spring Configuration | 10/9+6 | Front Track Width (mm) | 1950 |
| Fuel Type | Diesel | Rear Track (mm) | 1848 |
| Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
| MC07H.135-60 | China National Heavy Duty Truck Group Co., Ltd. | 7360 | 257 |
